SECURITHERM shower panel
Ref. H9636
Thermostatic shower panel with mixer with no non-return valves
Thermostatic shower panel with mixer with no non-return valves
DESCRIPTION
SECURITHERM shower panel

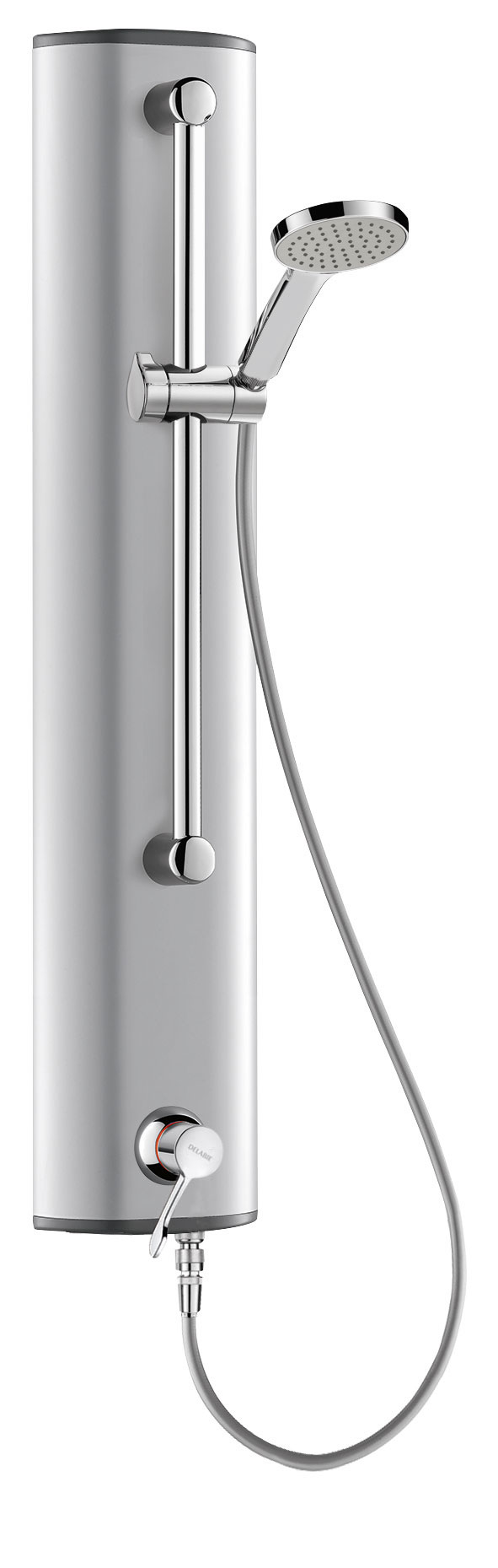

Ref. H9636SECURITHERM shower panel made from anodised aluminium for wall-mounted exposed installation:
SECURITHERM sequential thermostatic shower mixer.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer without non-return valves (reduces bacterial proliferation).
No risk of cross flow between the hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Cold water failsafe prevents cold showers: shuts off automatically if hot water supply fails.
Adjustable temperature control from cold water up to 39°C.
Maximum temperature limiter set at 39°C, can be adjusted.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated riser rail with removable flexible hose via rapid push-fit STOP connector.
Hygiene control lever L. 100mm.
Top inlets with M1/2" stopcocks.
Concealed fixings.
Filters.
Shower panel ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Shower panel with 30-year warranty.
SECURITHERM sequential thermostatic shower mixer.
Thermostatic sequential mixer: opens and closes with cold water.
Mixer without non-return valves (reduces bacterial proliferation).
No risk of cross flow between the hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold water supply fails.
Cold water failsafe prevents cold showers: shuts off automatically if hot water supply fails.
Adjustable temperature control from cold water up to 39°C.
Maximum temperature limiter set at 39°C, can be adjusted.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated riser rail with removable flexible hose via rapid push-fit STOP connector.
Hygiene control lever L. 100mm.
Top inlets with M1/2" stopcocks.
Concealed fixings.
Filters.
Shower panel ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
Shower panel with 30-year warranty.
ADVANTAGES
SECURITHERM: Optimum anti-scalding safety
Maximum hygiene: no non-return valves
Thermostatic: total temperature stability
Sequential: opens/closes with cold water
TECHNICAL CHARACTERISTICS
SECURITHERM shower panel
Ref. H9636| Supply | Top inlets with M1/2" inline stopcocks |
| Connector | M1/2" |
| Technology | Sequential thermostatic shower mixer |
| Height | 1045mm |
| Width | 210mm |
| Flow rate | 9 lpm |
| Temperature limiter | Yes |
| Finish | Aluminium |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts
SPARE PARTS
SECURITHERM shower panel
Ref. H9636
| 1. | 60212.10P |
|
Flat filter |
| 2. | 815 |
|
Chrome-plated single jet shower head M1/2" |
| 3. | 4110P |
|
Sliding shower head holder for shower rails, Ø 25mm and 32mm, bright |
| 4. | 836T1 |
|
SILVER flexible shower hose |
| 5. | N963 |
|
Thermostatic cartridge for shower mixers |
| 6. | 826115 |
|
Back-nut |
| 7. | 807792 |
|
Push-fit rapid STOP connector |
VARIANTS
| H9635 | Concealed inlet via M½" flexibles | ||
|---|---|---|---|
| H963615 | Top Ø 15mm compression fittings with inline stopcocks |
Ergonomic: opens and closes sequentially with cold water
