Adjustable height floor trap

Ref. 683001UK
For tiles or concrete floors
Adjustable height floor trap

Presentation

DESCRIPTION

Adjustable height floor trap

Ref. 683001UK
Floor trap for hard floors (tiles or concrete) with adjustable height:
Flow rate 36 lpm (meets standards).
Water level 50mm.
Bright polished stainless steel plate and grid 150x150mm.
Ø 43mm horizontal outlet integrated into the height of the floor trap (saves height and space in all directions).
Integrated waterproof collar to seal waterproof membrane.
Withstands high temperatures: 60°C continuous, 85°C peak.
Plunger with handle: easy to grip and easy cleaning.
Smooth PVC body (prevents build-up of impurities).
Classified non-flammable (American certification UL94).
110mm high, adjusts up to 70mm with extension.
Grill fixed with two stainless steel screws.
30-year warranty.

ADVANTAGES

Maintenance aisée - Installation aisée

Trap adapted to floor type, adjustable height

Nettoyage aisé

Plunger with handle, body free of impurities

Anti-vandalisme

Tamperproof stainless steel grid

Characteristics

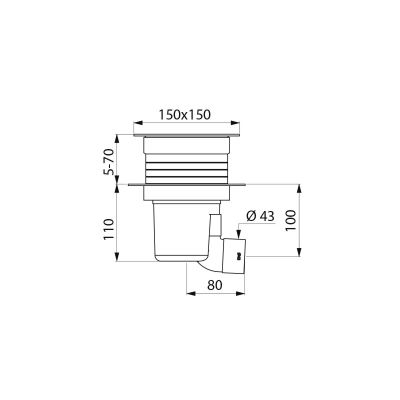

TECHNICAL CHARACTERISTICS

Adjustable height floor trap

Ref. 683001UK
Height 180mm max
Length 150mm
Width 150mm
Flow rate 36 lpm
Warranty 30-Year
Adjustable height floor trap
Ref. 683001UK

Downloads

DOWNLOADS

Adjustable height floor trap

Ref. 683001UK

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

683001 Ø 40mm outlet- tiled or concrete floors - 150 x 150mm - Height ≤ 70mm
683001DE Bright pol st steel plate & grid 150x150mm, Ø 50mm horizontal outlet
