DESCRIPTION

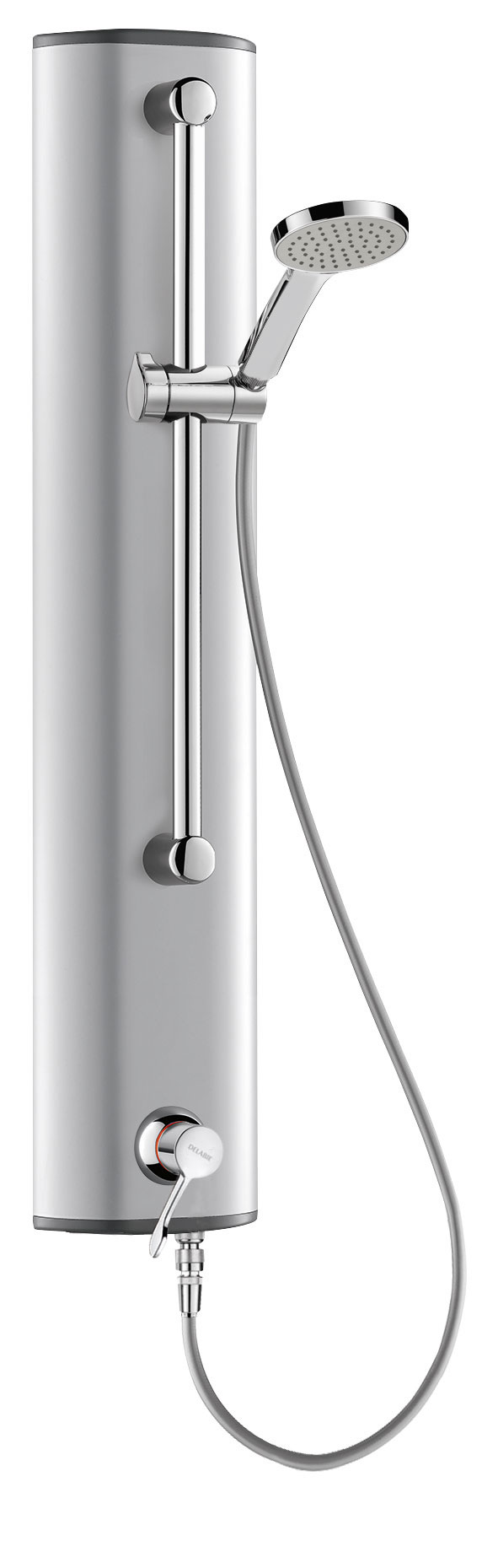

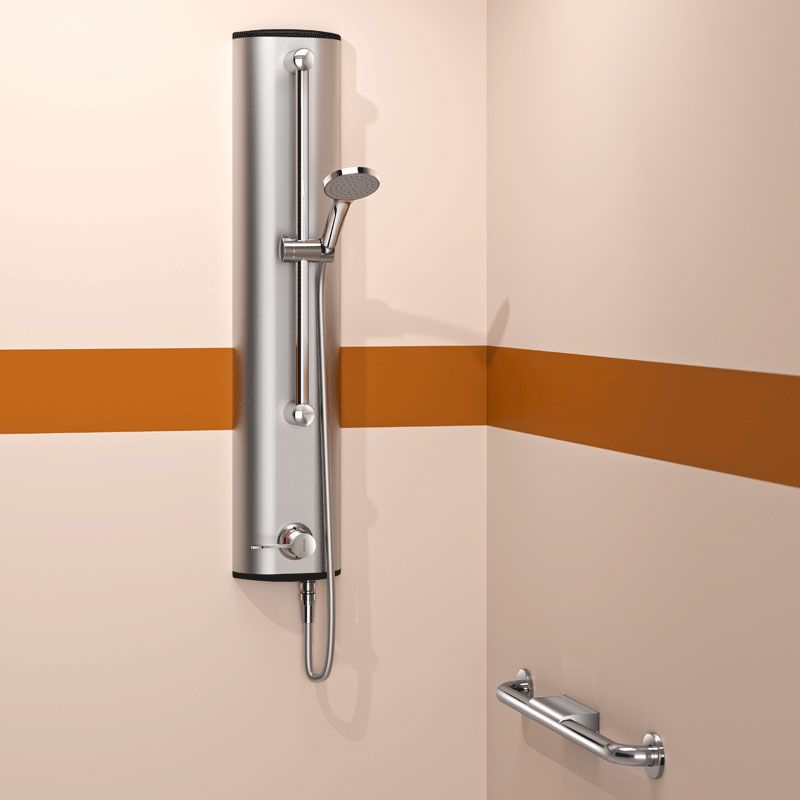

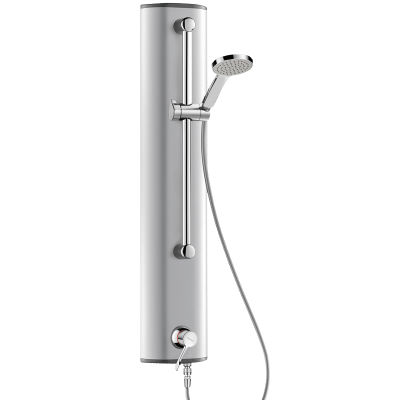

Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9635Anodised aluminium shower panel for wall-mounted, exposed installation:
SECURITHERM sequential thermostatic mixer (non time flow).
Adjustable temperature control from cold water up to 39°C; maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated riser rail with removable flexible hose via rapid push-fit STOP connector.
Hygiene control lever L. 100mm.
Concealed supply via M1/2" flexibles.
Concealed fixings
Filters.

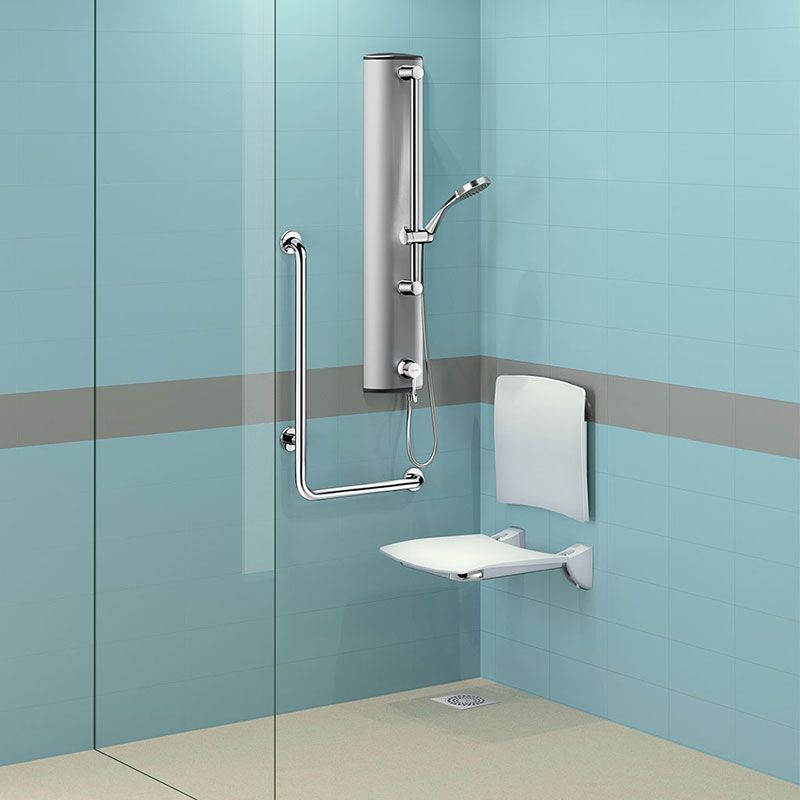

Suitable for people with reduced mobility.
30-year warranty.
SECURITHERM sequential thermostatic mixer (non time flow).
Adjustable temperature control from cold water up to 39°C; maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold water fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Flow rate 9 lpm at 3 bar.
Sliding handset on a chrome-plated riser rail with removable flexible hose via rapid push-fit STOP connector.
Hygiene control lever L. 100mm.
Concealed supply via M1/2" flexibles.
Concealed fixings
Filters.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Sequential: opens/closes with cold water
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
No non-return valves on inlets
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
SECURITHERM: optimal anti-scalding safety
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
Thermostatic: total temperature stability

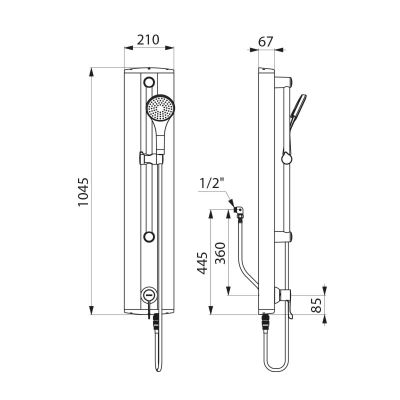

TECHNICAL CHARACTERISTICS
Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9635Supply | Concealed, via M1/2" flexible |
Connector | M1/2" |
Technology | Sequential thermostatic SECURITHERM |
Height | 1045mm |
Width | 210mm |
Flow rate | 9 lpm |
Temperature limiter | 39°C |
Finish | Aluminium |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9635![](https://www.delabie.com/var/site/storage/images/3/5/2/5/3555253-1-fre-FR/PD_H9635.jpg)
1. | 815 |
|
Chrome-plated single jet shower head M1/2" |
2. | 4110P |
|
Sliding shower head holder for shower rails, Ø 25mm and 32mm, bright |
3. | 60212.10P |
|
Flat filter |
4. | 836T1 |
|
SILVER flexible shower hose |
5. | N963 |
|
Thermostatic cartridge for shower mixers |
6. | 826115 |
|
Back-nut |
7. | 807792 |
|
Push-fit rapid STOP connector |
VARIANTS
H9636 | M1/2" top inlet + inline stopcocks | ||
---|---|---|---|
H963615 | Top Ø 15mm compression fittings with inline stopcocks |
VARIANTS
H9636 | M1/2" top inlet + inline stopcocks | ||
---|---|---|---|
H963615 | Top Ø 15mm compression fittings with inline stopcocks |
