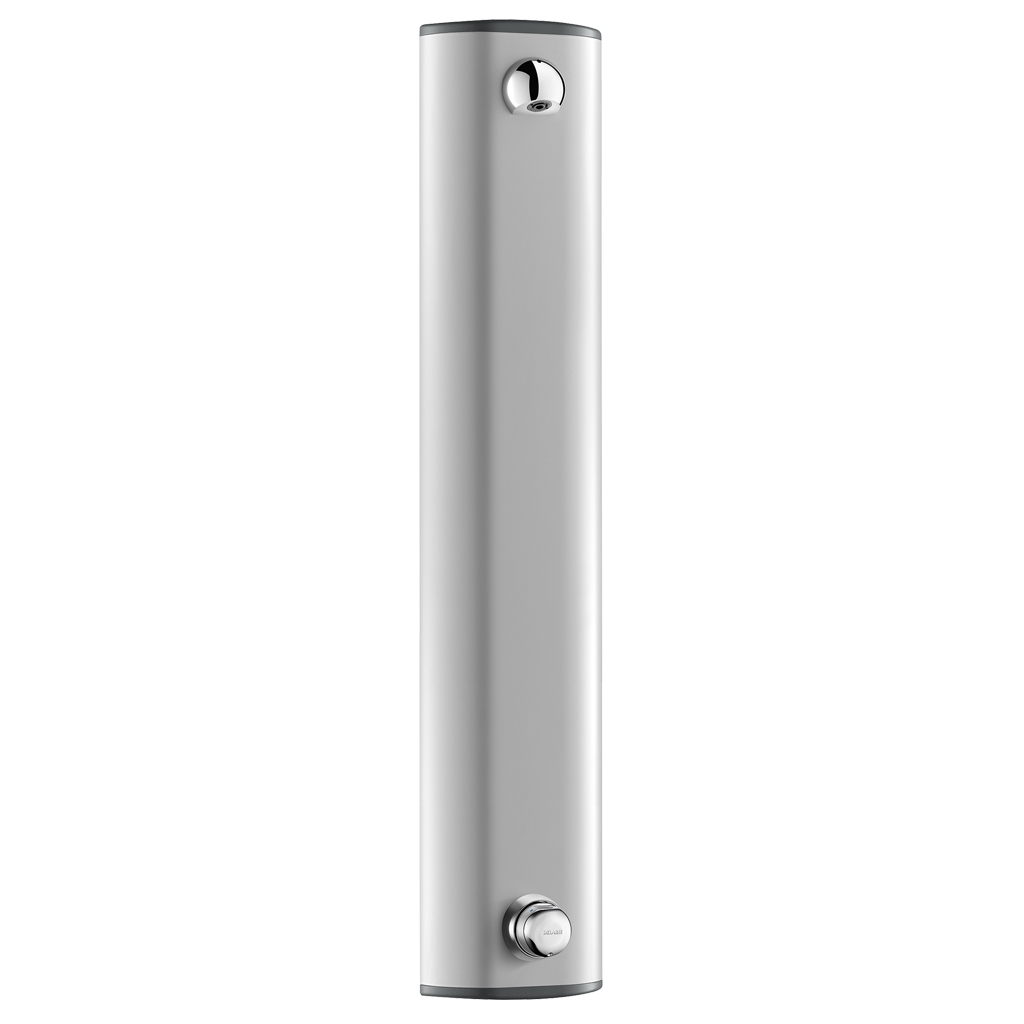

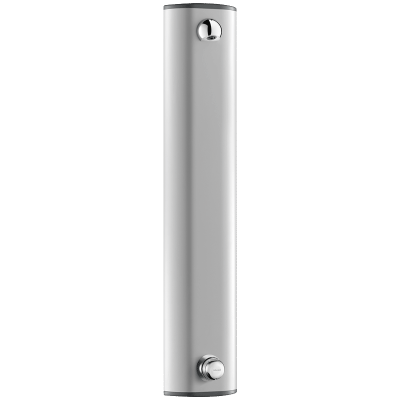

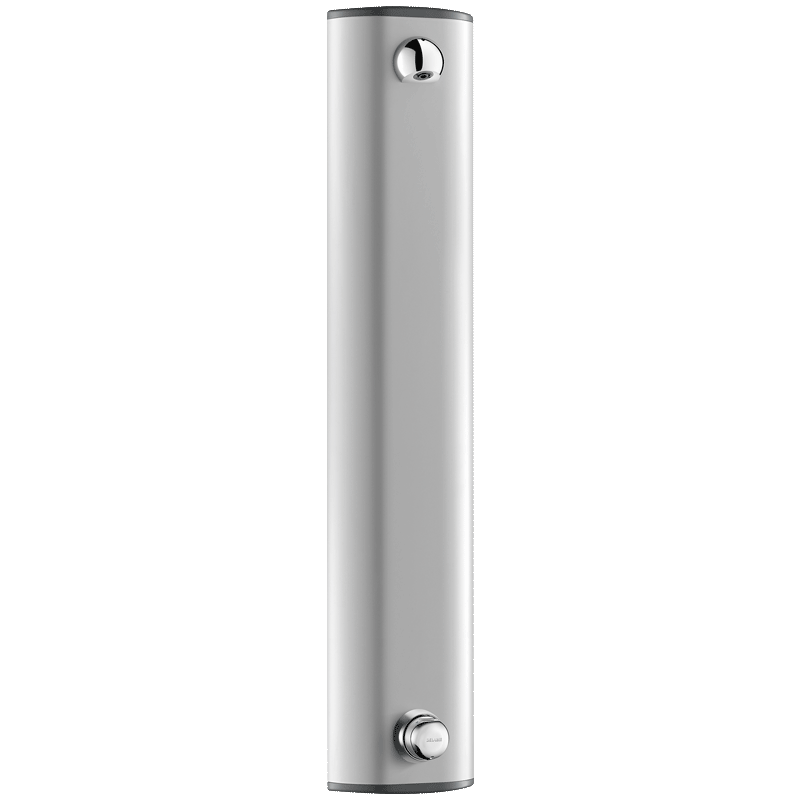

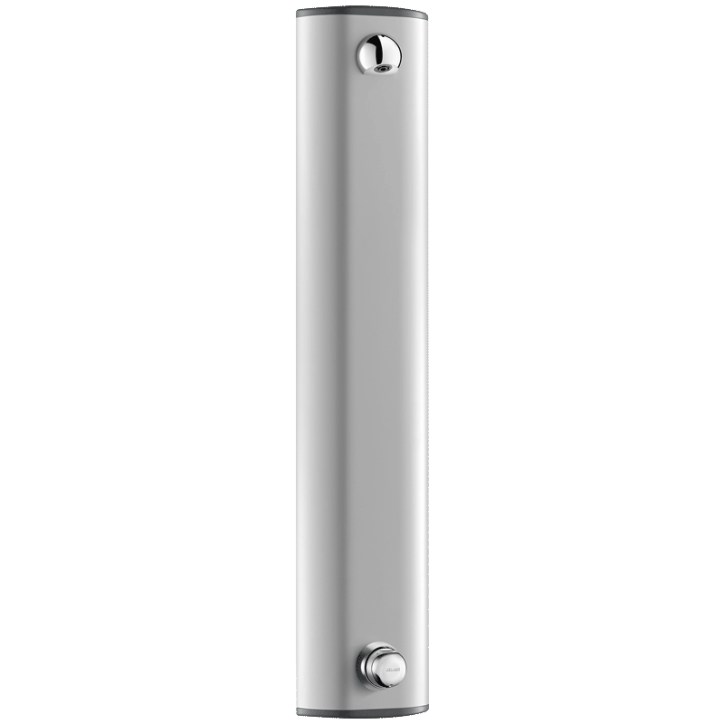

TEMPOMIX time flow shower panel

Ref. 790300
Time flow single control
TEMPOMIX time flow shower panel

Presentation

DESCRIPTION

TEMPOMIX time flow shower panel

Ref. 790300
Time flow shower panel with fixed shower head:
Anodised aluminium shower panel for wall-mounted, exposed installation.
Top inlet via stopcocks M½".
TEMPOMIX shower mixer with adjustable maximum temperature limiter.
Soft-touch operation.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar.
Chrome-plated, tamperproof, scale-resistant, fixed, ROUND shower head with automatic flow rate regulation.
Concealed fixings.
Filters and non-return valves.
Shower panel suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Economie d'eau

80% water savings

Confort - Ergonomie - Déclenchement souple

Temperature control on the mixer

Anti-vandalisme

Aluminium panel, brass controls

Characteristics

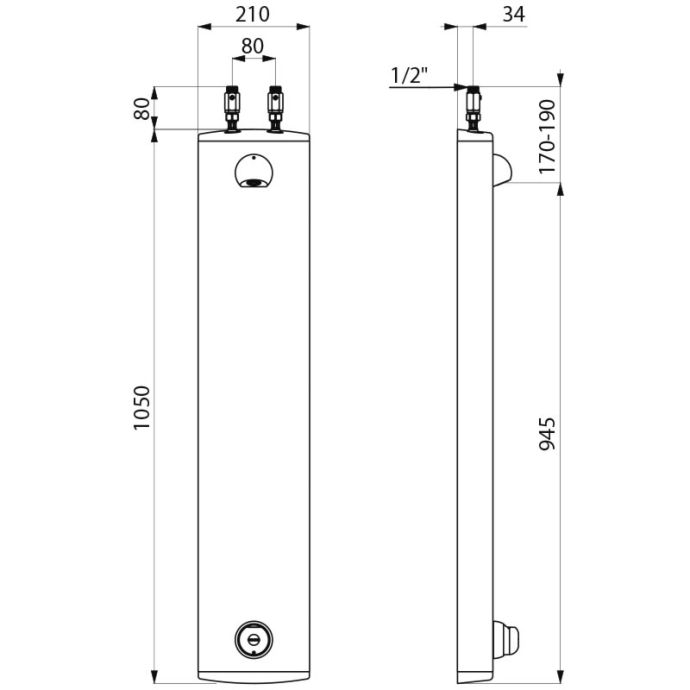

TECHNICAL CHARACTERISTICS

TEMPOMIX time flow shower panel

Ref. 790300
Connector M½"
Technology Time flow
Height 1,050mm
Depth 65mm
Width 210mm
Flow rate 6 lpm
Finish Aluminium
Certificates ACS Logo Belgaqua Logo PZH Logo DoP
Warranty 30-Year
TEMPOMIX time flow shower panel
Ref. 790300

Downloads

DOWNLOADS

Colonne de douche temporisée TEMPOMIX

Ref. 790300

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

790305 M1/2" top inlet + inline stopcocks, with soap dish
79030015 Top Ø 15mm compression fittings with inline stopcocks, without soap dish
79030515 Top Ø 15mm compression fittings with inline stopcocks, with soap dish
790310 Concealed inlet via M½" flexibles, without soap dish

Associated products

VARIANTS

790305 M1/2" top inlet + inline stopcocks, with soap dish
79030015 Top Ø 15mm compression fittings with inline stopcocks, without soap dish
79030515 Top Ø 15mm compression fittings with inline stopcocks, with soap dish
790310 Concealed inlet via M½" flexibles, without soap dish
