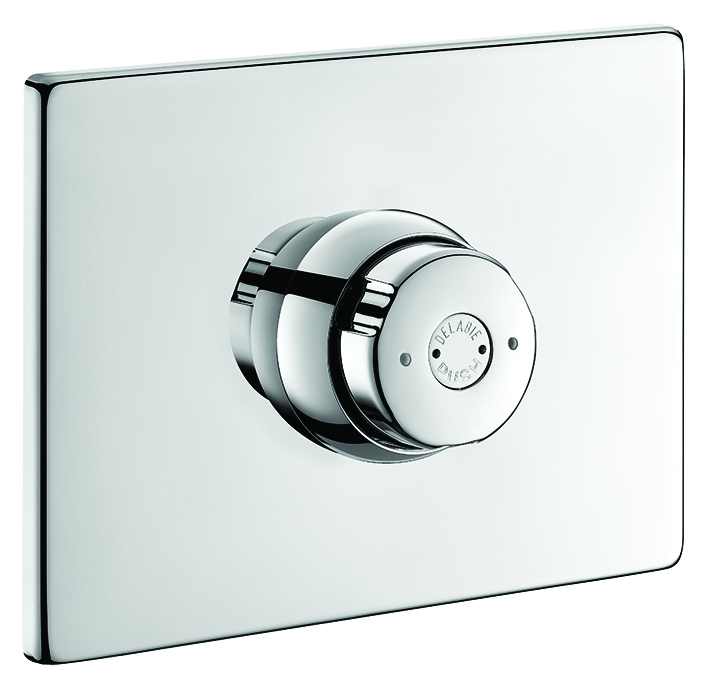

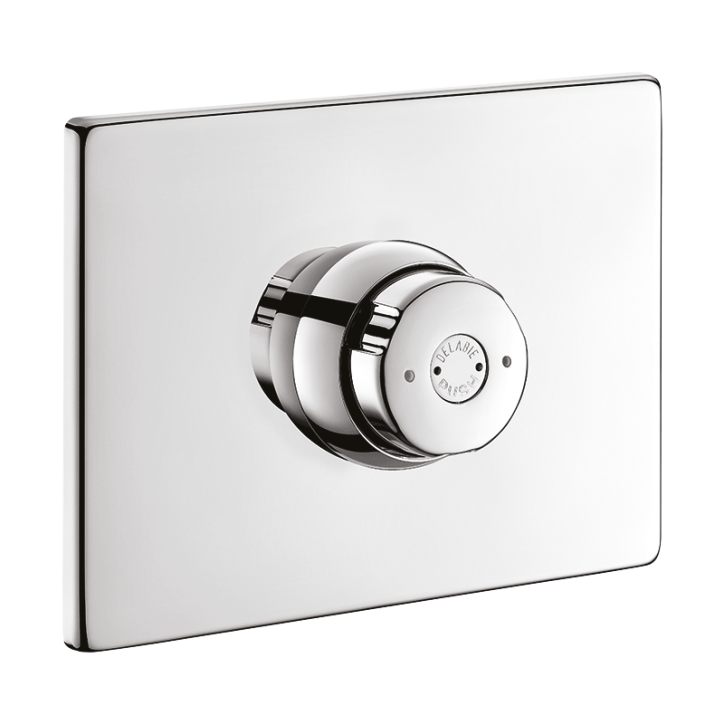

TEMPOSTOP time flow shower valve

Ref. 749218
Time flow, kit 2/2
TEMPOSTOP time flow shower valve 749218

Presentation

DESCRIPTION

TEMPOSTOP time flow shower valve

Ref. 749218
Recessed time flow shower kit 2/2:
Tamperproof polished stainless steel control plate 160 x 220mm.
TEMPOSTOP ¾" time flow valve for mixed water supply.
Ligature-resistant ring.
Time flow ~30 seconds.
Flow rate 6 lpm at 3 bar, can be adjusted.
Solid brass body.
Concealed fixings.
M½" stopcock with filter.
Chrome-plated Bayblend® control.
30-year warranty.

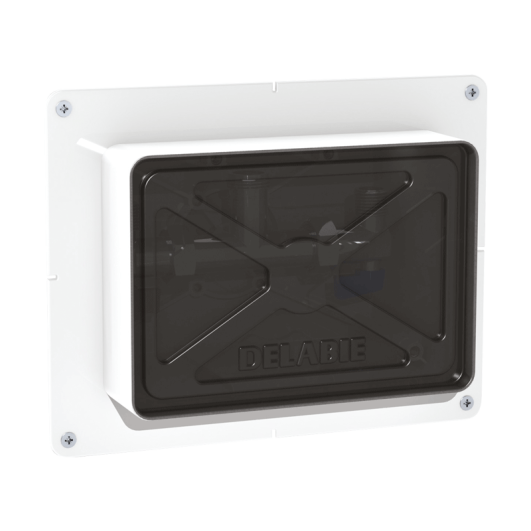

Order with waterproof housing ref. 749BOX.

ADVANTAGES

Economie d'eau

80% water savings

Anti-vandalisme

Ligature-resistant, streamlined design

Endurance - Fiabilité

System tested to over 500,000 operations

Characteristics

TECHNICAL CHARACTERISTICS

TEMPOSTOP time flow shower valve

Ref. 749218
Connector ½"
Technology Time flow

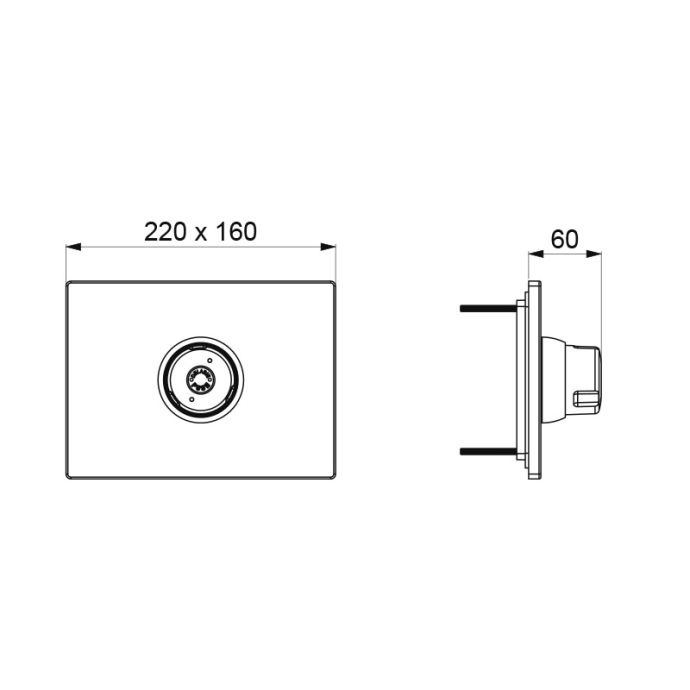

Depth 60mm
Length 220mm
Width 160mm
Flow rate 6 lpm
Finish Bright polished stainless steel
Certificates Logo DoP
Warranty 30-Year
TEMPOSTOP time flow shower valve
Ref. 749218

Downloads

DOWNLOADS

TEMPOSTOP time flow shower valve

Ref. 749218

To download one or several documents linked to this product, please select the type of file you require :
