DESCRIPTION

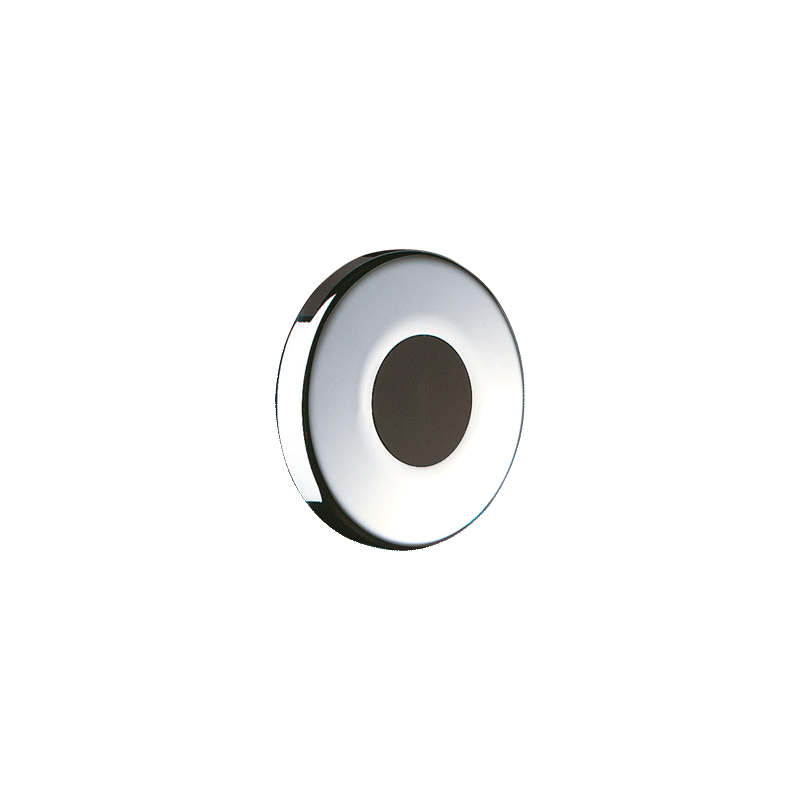

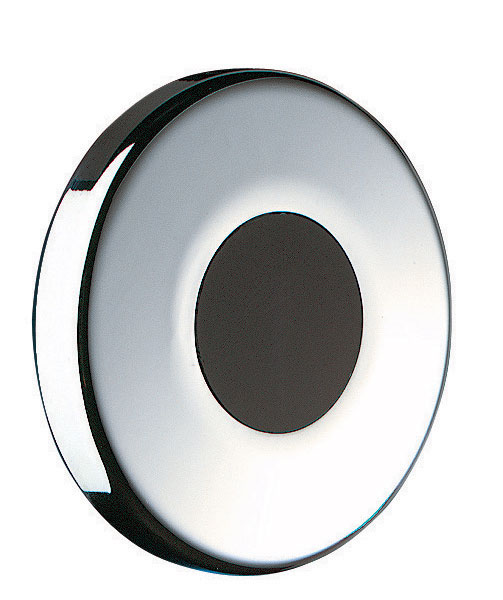

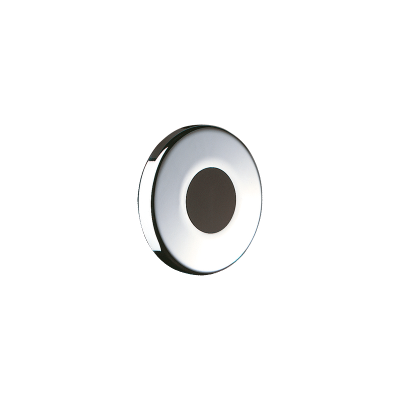

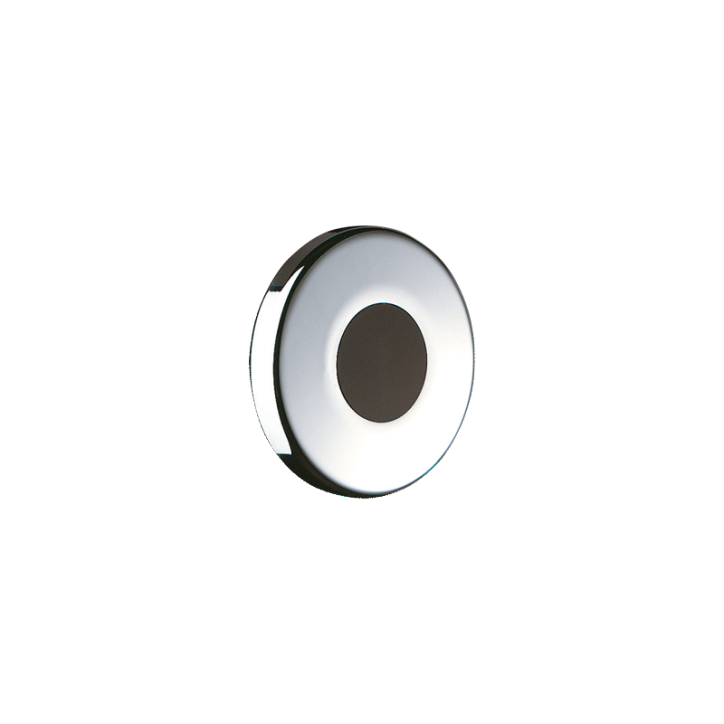

TEMPOMATIC electronic shower valve

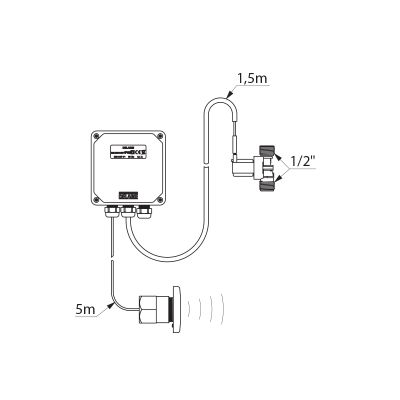

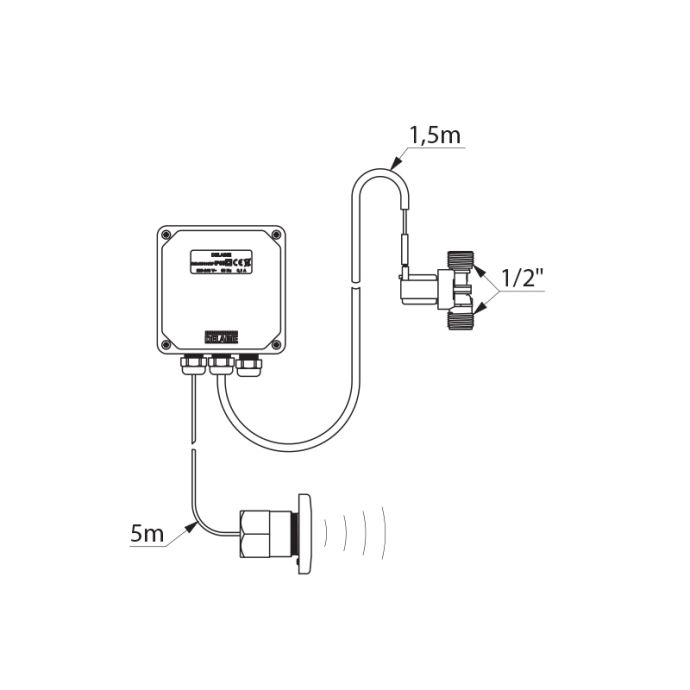

Ref. 452565Recessed electronic shower valve:
TEMPOMATIC electronic valve for mixed water supply.
Recessed installation.
Power supply by electronic unit with solenoid valve ½".
230/12V transformer.
2 operation modes:
- Automatic activation via presence detection.
- Voluntary ON/OFF activation by passing hand in front of sensor ~10 cm.
Duty flush (~60 seconds every 24 hours after the last use).
Adjustable time flow from 30 to 60 seconds.
Flow rate 20 lpm.
Chrome-plated solid brass.
Electronic shower valve suitable for people with reduced mobility.
30-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
TEMPOMATIC electronic valve for mixed water supply.
Recessed installation.
Power supply by electronic unit with solenoid valve ½".
230/12V transformer.
2 operation modes:
- Automatic activation via presence detection.
- Voluntary ON/OFF activation by passing hand in front of sensor ~10 cm.
Duty flush (~60 seconds every 24 hours after the last use).
Adjustable time flow from 30 to 60 seconds.
Flow rate 20 lpm.
Chrome-plated solid brass.
Electronic shower valve suitable for people with reduced mobility.
30-year warranty.
This model does not have a waterproof recessing box. The installer must ensure that the recessing area is waterproof and any leaks or condensates can drain away (see installation guide).
ADVANTAGES
![Secteur](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/1/1/3/3113-12-eng-US/secteur.png)
230/12 V
![Sans contact manuel](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/9/0/3/3099-12-eng-US/sans-contact.png)
Total hygiene: no manual contact
![Rinçage périodique](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/7/0/3/3071-12-eng-US/rincage-periodique.png)
Anti-bacterial duty flush
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
2 operation modes
TECHNICAL CHARACTERISTICS
TEMPOMATIC electronic shower valve
Ref. 452565Supply | 230/12V mains supply |
Connector | ½" |
Technology | Electronic |
Flow rate | 20 lpm |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
452150 | Shower valve only - mains supply 230/12V , M1/2", walls ≤ 155mm | ||
---|---|---|---|
452159 | Valve & shower head kit - mains supply 230/12V, M1/2", walls ≤ 155mm | ||
452569 | Shower kit with valve and shower head - power supply 230/12V, M1/2" |
VARIANTS
452150 | Shower valve only - mains supply 230/12V , M1/2", walls ≤ 155mm | ||
---|---|---|---|
452159 | Valve & shower head kit - mains supply 230/12V, M1/2", walls ≤ 155mm | ||
452569 | Shower kit with valve and shower head - power supply 230/12V, M1/2" |
