DESCRIPTION

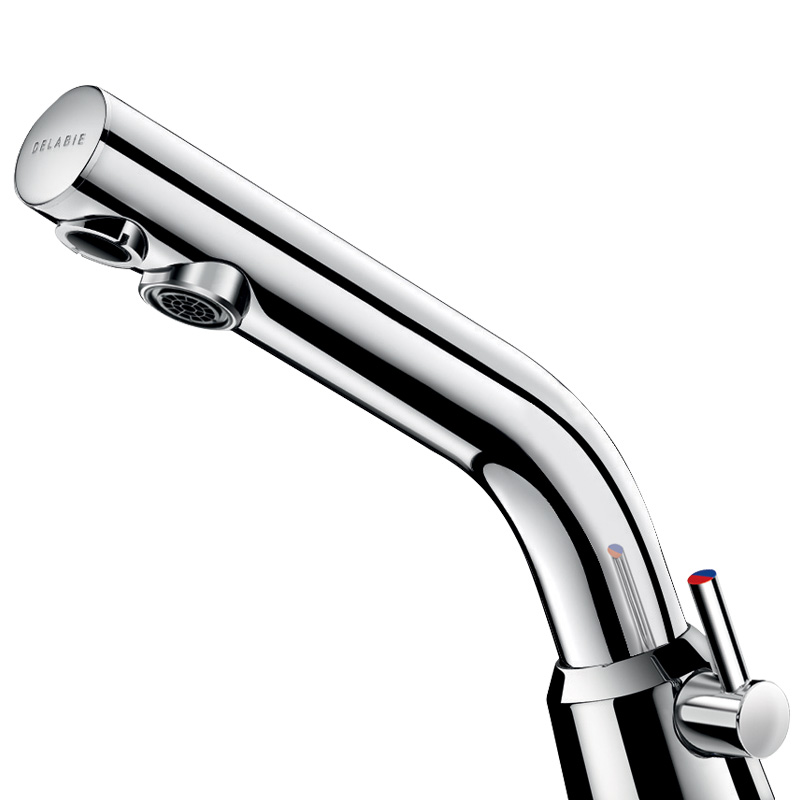

BINOPTIC MIX electronic mixer
Ref. 478MCHDeck-mounted electronic basin mixer:
Independent IP65 electronic control unit.
123 6V Lithium battery-operated.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds. every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M3/8".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low volume of water(reduces niches where bacteria can develop).
Side temperature control with standard lever control and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
Independent IP65 electronic control unit.
123 6V Lithium battery-operated.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 to 6 lpm.
Scale-resistant flow straightener.
Adjustable duty flush (pre-set flush ~60 seconds. every 24 hours after last use).
Active, infrared presence detection, sensor at the end of the spout optimises detection.
Chrome-plated brass body.
PEX flexibles with filters and solenoid valves M3/8".
Fixing reinforced by 2 stainless steel rods.
Anti-blocking security.
Spout with smooth interior and low volume of water(reduces niches where bacteria can develop).
Side temperature control with standard lever control and adjustable maximum temperature limiter.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
6V batteries
Anti-bacterial proliferation duty flush

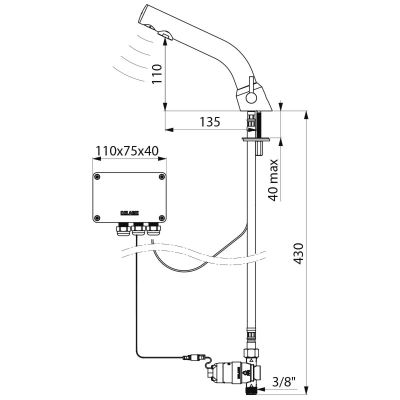

TECHNICAL CHARACTERISTICS
BINOPTIC MIX electronic mixer
Ref. 478MCHSupply | 6V battery |
Connector | M3/8" |
Technology | Electronic |
Drop height | 110mm |
Spout length | 135mm |
Flow rate | 3 lpm |
Certificates | |
Warranty | |
Repairability |
Spare parts
SPARE PARTS
BINOPTIC MIX electronic mixer
Ref. 478MCH1. | CEL378150V |
|
Detector |
2. | 922024.2P |
|
ECO flow straightener |
3. | 742MSP |
|
Mixing key |
4. | FLEX795 |
|
Stainless steel flexibles F3/8" |
5. | 495446BC |
|
Electronic control unit |
6. | 495606 |
|
Solenoid valve |
VARIANTS
378MCH | Mains supply - standard lever - M3/8" | ||
---|---|---|---|
378MCH15 | Mains supply - standard lever - Ø15mm compression fittings | ||
478MCH15 | Battery operated - standard lever - Ø15mm compression fittings |
