DESCRIPTION
BINOPTIC 2 electronic tap
Ref. 38101015
Provisional availability 2nd half
Please contact the sales office to check availability.
2025
.
Please contact the sales office to check availability.
Cross wall chrome-plated electronic basin tap:
Ø 15mm.
230/6V mains supply.
Reduced-stagnation solenoid valve and electronic unit are integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Wall-mounted stainless steel tap.
Presence detection sensor at the end of the spout optimises detection.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Set detection distance, duty flush and launch thermal shocks manually
Suitable for people with reduced mobility.
30-year warranty.
Ø 15mm.
230/6V mains supply.
Reduced-stagnation solenoid valve and electronic unit are integrated into the body of the tap.
Flow rate pre-set at 3 lpm at 3 bar, can be adjusted from 1.4 - 6 lpm.
Scale-resistant aerator.
Adjustable duty flush (pre-set flush ~60 seconds every 24 hours after last use).
Wall-mounted stainless steel tap.
Presence detection sensor at the end of the spout optimises detection.
Anti-blocking security.
Spout with smooth interior and low water volume (reduces bacterial development).
Set detection distance, duty flush and launch thermal shocks manually
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Exceptional water savings: 90%
Hygiene: no manual contact
Anti-bacterial proliferation duty flush
LED diagnostic aids

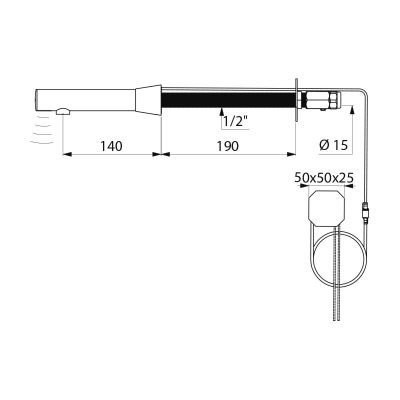

TECHNICAL CHARACTERISTICS
BINOPTIC 2 electronic tap
Ref. 38101015Supply | 230/6V mains supply |
Connector | M½" Ø 15mm |
Technology | Electronic |
Spout length | 140mm |
Flow rate | 3 lpm |
Finish | Chrome-plated |
Warranty |
VARIANTS
382010 | Chrome-plated: L.220mm, M1/2" connection, stopcocks, cross wall | ||
---|---|---|---|
38201015 | Chrome-plated: L.220mm, Ø 15mm compression fittings, cross wall | ||
381110 | Chrome-plated: L.140mm, M1/2" connection, cross wall | ||
383010 | Chrome-plated: L.140mm, M1/2" connection, stopcocks, for slim panels | ||
381010 | Chrome-plated: L.140mm, stopcocks, for cross wall installation | ||
382110 | Chrome-plated: L.220mm, M1/2" connection, cross wall | ||
384110 | Chrome-plated: L.220mm, M1/2" connection, recessed | ||
384110E | Chrome finish: L. 220 mm, Bluetooth connectivity, M1/2", recessed | ||
383000 | Satin finish: L. 140mm, M1/2" connection, stopcocks, for slim panels | ||
384100 | Satin finish: L. 220mm, M1/2", recessed |
VARIANTS
382010 | Chrome-plated: L.220mm, M1/2" connection, stopcocks, cross wall | ||
---|---|---|---|
38201015 | Chrome-plated: L.220mm, Ø 15mm compression fittings, cross wall | ||
381110 | Chrome-plated: L.140mm, M1/2" connection, cross wall | ||
383010 | Chrome-plated: L.140mm, M1/2" connection, stopcocks, for slim panels | ||
381010 | Chrome-plated: L.140mm, stopcocks, for cross wall installation | ||
382110 | Chrome-plated: L.220mm, M1/2" connection, cross wall | ||
384110 | Chrome-plated: L.220mm, M1/2" connection, recessed | ||
384110E | Chrome finish: L. 220 mm, Bluetooth connectivity, M1/2", recessed | ||
383000 | Satin finish: L. 140mm, M1/2" connection, stopcocks, for slim panels | ||
384100 | Satin finish: L. 220mm, M1/2", recessed |
