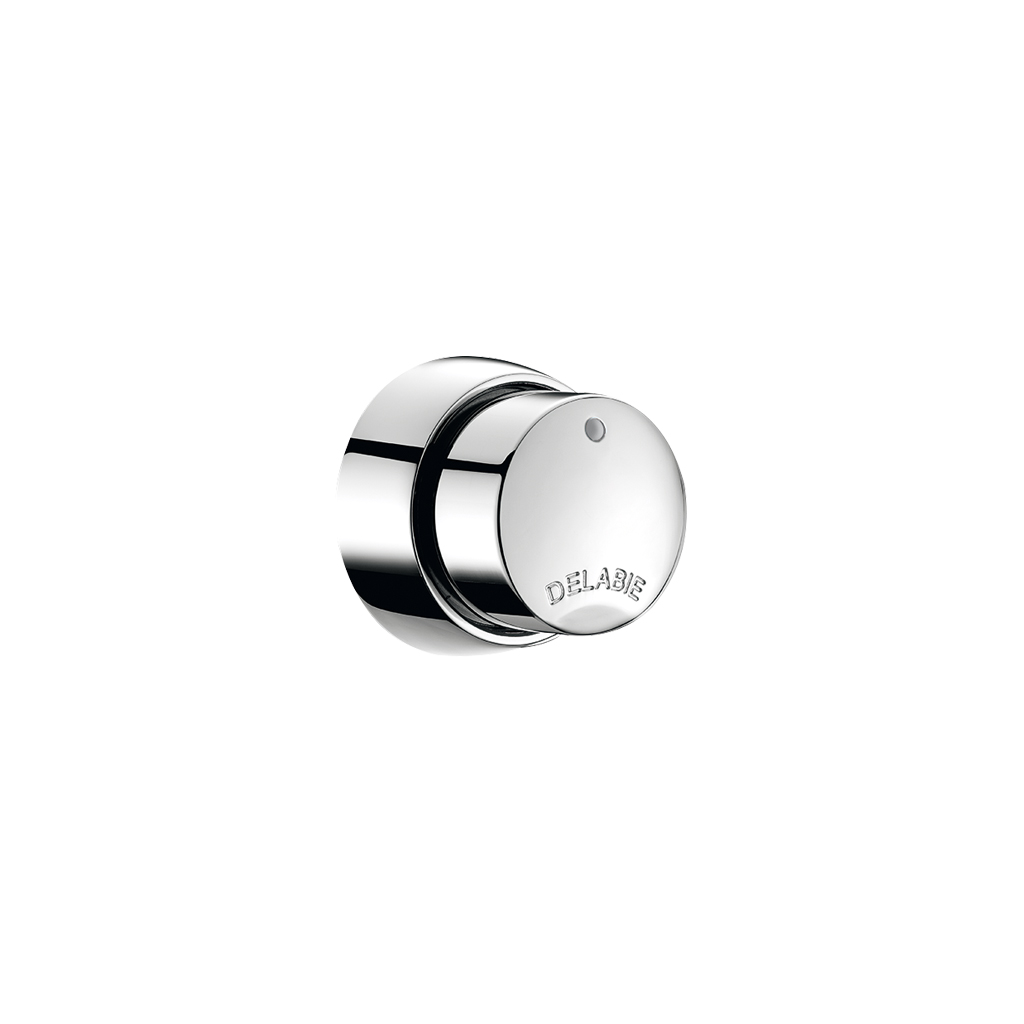

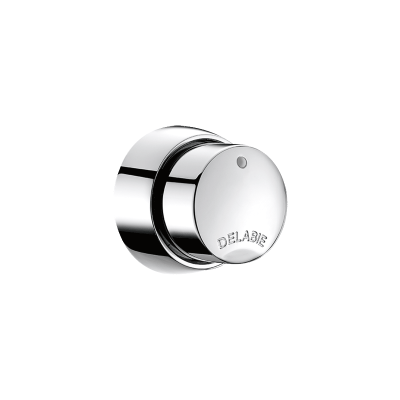

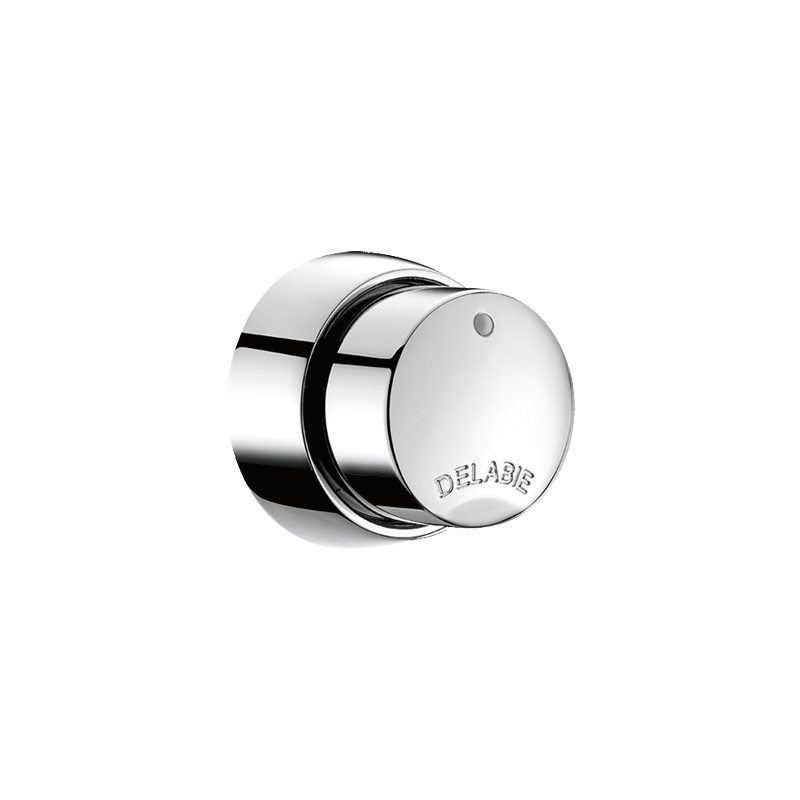

TEMPOSOFT 2 time flow urinal valve

Ref. 777140
Time flow 3 seconds
TEMPOSOFT 2 time flow urinal valve

Presentation

DESCRIPTION

TEMPOSOFT 2 time flow urinal valve

Ref. 777140
Time flow urinal valve for panels:
For standard or siphon action urinals.
For panels or dry wall installation up to 7mm maximum.
Soft-touch operation.
Time flow ~3 seconds.
Flow rate pre-set at 0.15 l/sec. at 3 bar, can be adjusted.
Chrome-plated brass body M½".
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Anti-vandalisme

Installation recessed inside the panel

Economie d'eau

Eco time flow 3 seconds

Confort - Ergonomie - Déclenchement souple

Soft-touch operation

Endurance - Fiabilité

Withstands to over 500,000 operations

Characteristics

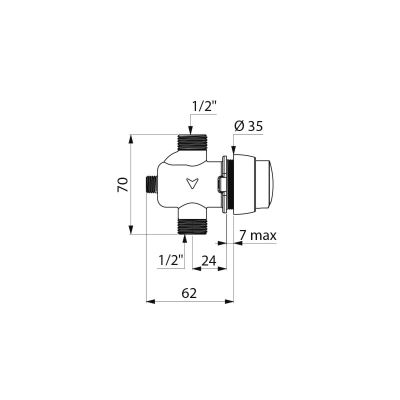

TECHNICAL CHARACTERISTICS

TEMPOSOFT 2 time flow urinal valve

Ref. 777140
Connector ½"
Technology Time flow
Height 70mm
Flow rate 0.15 l/sec.
Certificates Logo DoP
Warranty 30-Year
TEMPOSOFT 2 time flow urinal valve
Ref. 777140

Downloads

DOWNLOADS

TEMPOSOFT 2 time flow urinal valve

Ref. 777140

To download one or several documents linked to this product, please select the type of file you require :
