DESCRIPTION

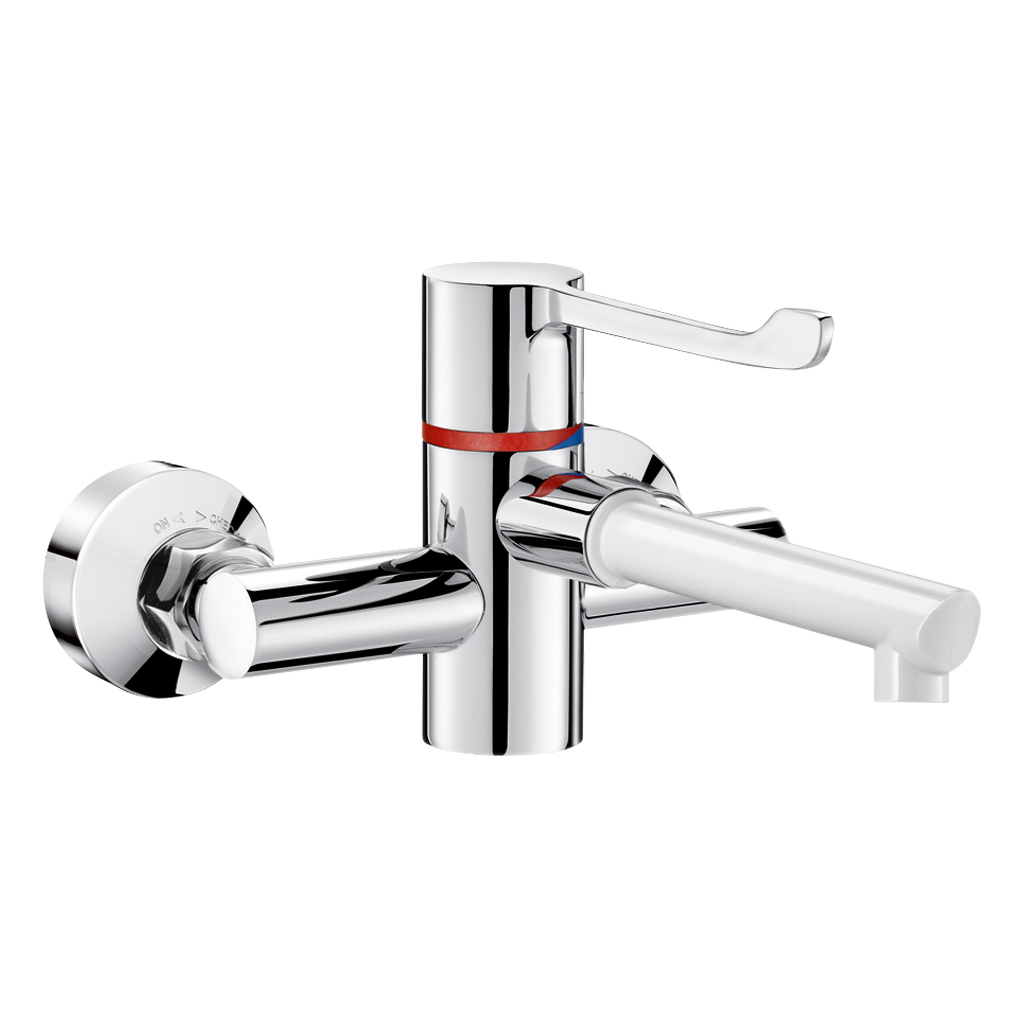

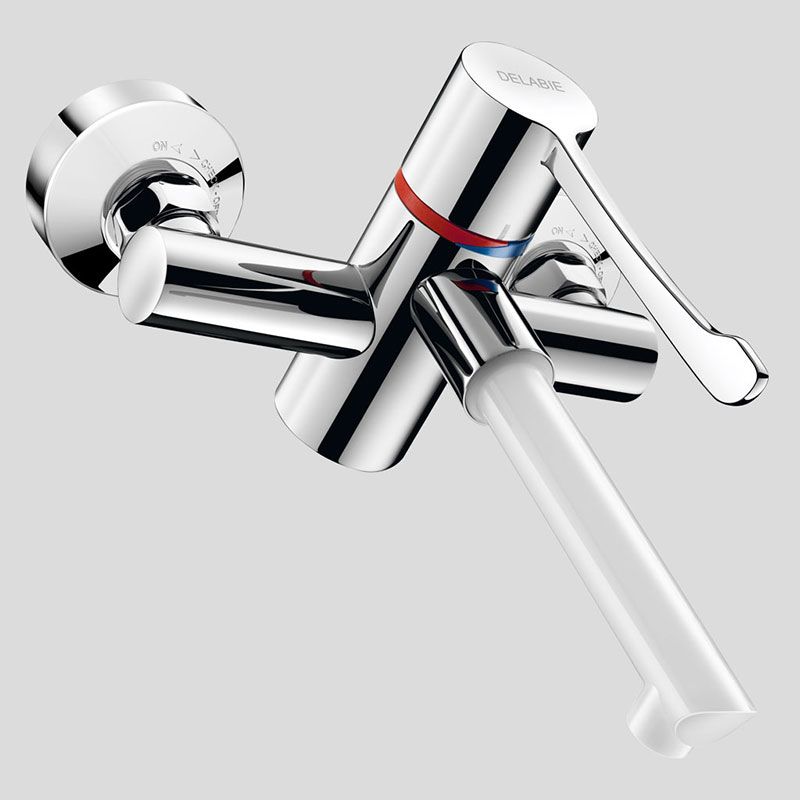

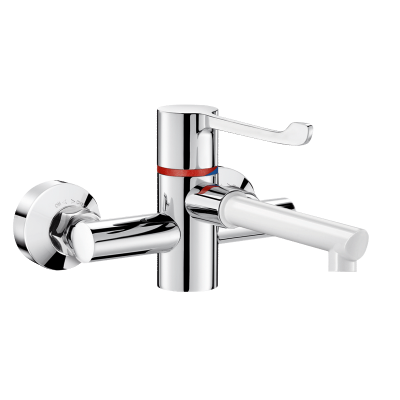

SECURITHERM BIOCLIP thermostatic sink mixer
Ref. H9610Wall-mounted thermostatic sink mixer.
Thermostatic sequential mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Wall-mounted thermostatic mixer supplied with 1 removable disposable spout made from recyclable Hostaform® L. 125mm.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge for sequential control of flow rate and temperature.
Temperature can be adjusted from cold water up to 40°C with maximum temperature limiter set at 40°C.
Thermal and chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
Chrome-plated brass body.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres supplied with offset STOP/CHECK connectors M1/2" M3/4" suitable for hospitals.
Thermostatic mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
30-year warranty.
Thermostatic sequential mixer: opens and closes with cold water.
No risk of cross flow between hot and cold water.
No non-return valves on the inlets.
Wall-mounted thermostatic mixer supplied with 1 removable disposable spout made from recyclable Hostaform® L. 125mm.
Anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Scale-resistant thermostatic sequential cartridge for sequential control of flow rate and temperature.
Temperature can be adjusted from cold water up to 40°C with maximum temperature limiter set at 40°C.
Thermal and chemical shocks are possible.
Body and spout with smooth interiors and low water volume.
Flow rate regulated at 7 lpm.
Chrome-plated brass body.
No manual contact thanks to Hygiene control lever L. 146mm.
Mixer with 150mm centres supplied with offset STOP/CHECK connectors M1/2" M3/4" suitable for hospitals.
Thermostatic mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Sequential: opens/closes with cold water
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Maximum hygiene: no non-return valves
![Robinetterie déclipsable](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/8/0/3/3085-12-eng-US/robinetterie-declipsable.png)

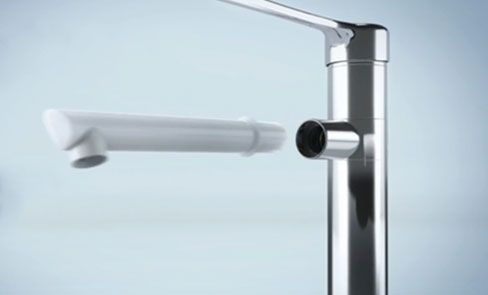

Removable spout: reduces bacterial development
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
SECURITHERM: optimum anti-scalding safety

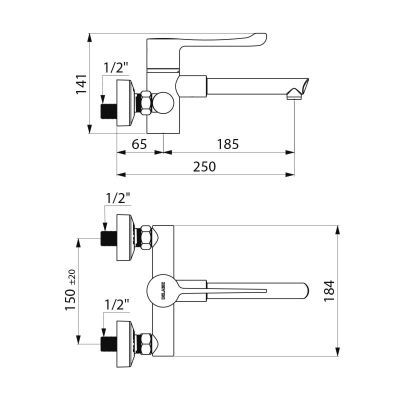

TECHNICAL CHARACTERISTICS
SECURITHERM BIOCLIP thermostatic sink mixer
Ref. H9610Connector | M1/2" |
Technology | SECURITHERM Securitouch sequential mixer |
Height | 141mm |
Width | 184mm |
Spout length | 185mm |
Flow rate | 7 lpm |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
H9610S | Removable disposable spout - offset standard unions, 150mm centres | ||
---|---|---|---|
H9611 | Removable st. steel spout - offset STOP/CHECK unions, 150mm centres | ||
H9611P | Removable disposable spout - inline STOP/CHECK unions, 150mm centres | ||
H9611S | Removable st. steel spout - offset standard unions, 150mm centres | ||
H9614P | Removable st. steel spout - inline STOP/CHECK unions, 200mm centres |
