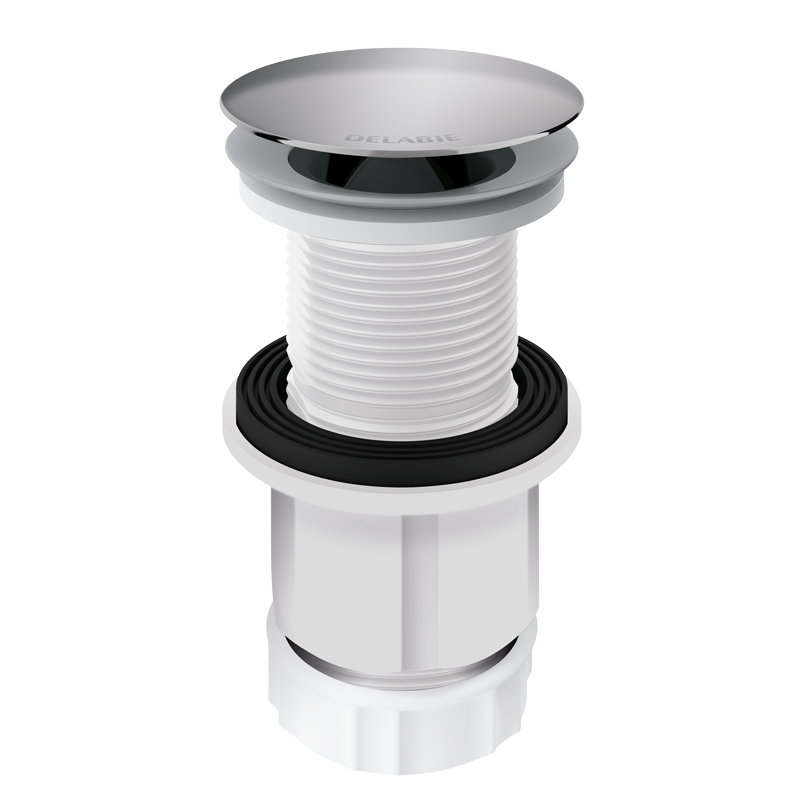

Hygienic waste without water level

Ref. 621
Waste without water level, with membrane
Hygienic waste without water level

Presentation

DESCRIPTION

Hygienic waste without water level

Ref. 621
Provisional availability 1st half
2025
.
Please contact the sales office to check availability.
Water-free waste M1 1/4".
Waste with a membrane to prevent bad smells.

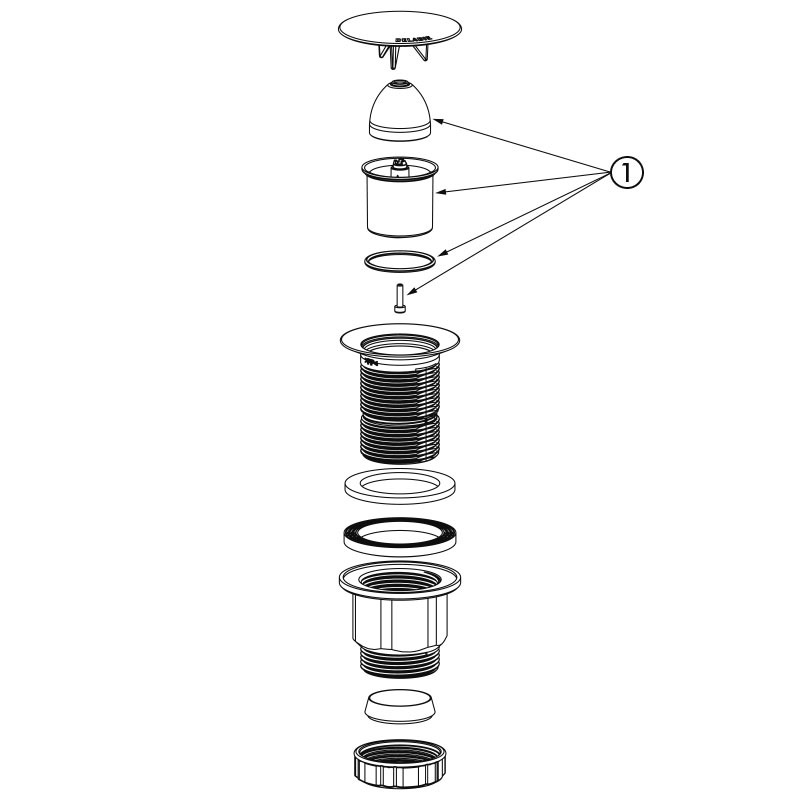

No water level: dome and cup with a membrane which can be removed from above.
Membrane can be cleaned and replaced.
Dome, cup and body made from white polypropylene. Membrane made from silicone.
Evacuation flow rate complies with European standard EN 274: 36 lpm.
Waste can be cut to size.
Not suitable for washbasins with an overflow.
30-year warranty.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: no water level

Universel

Requires minimal space underneath the basin

Maintenance aisée - Installation aisée

Easy to maintain: dome can be removed easily

Characteristics

TECHNICAL CHARACTERISTICS

Hygienic waste without water level

Ref. 621
Supply 11/4"
Flow rate Complies with European standard EN 274: 36 lpm

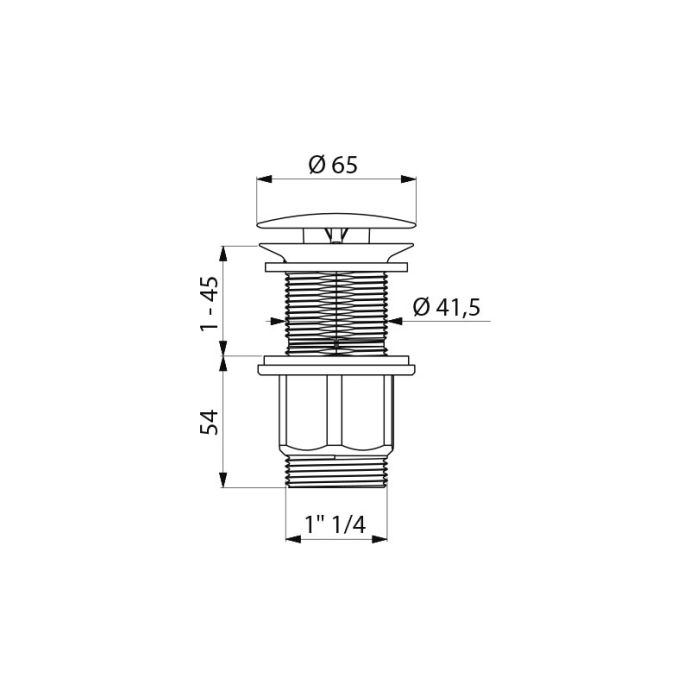

Diameter 65mm
Finish Dome, cup and body made from chrome-plated polypropylene. Membrane made from silicone.
Warranty 30-Year
