Hygienic waste without water level

Ref. 621W
Waste without water level, with membrane
Hygienic waste without water level

Presentation

DESCRIPTION

Hygienic waste without water level

Ref. 621W
Water-free waste M1 1/4".
Waste with a membrane to prevent bad smells.

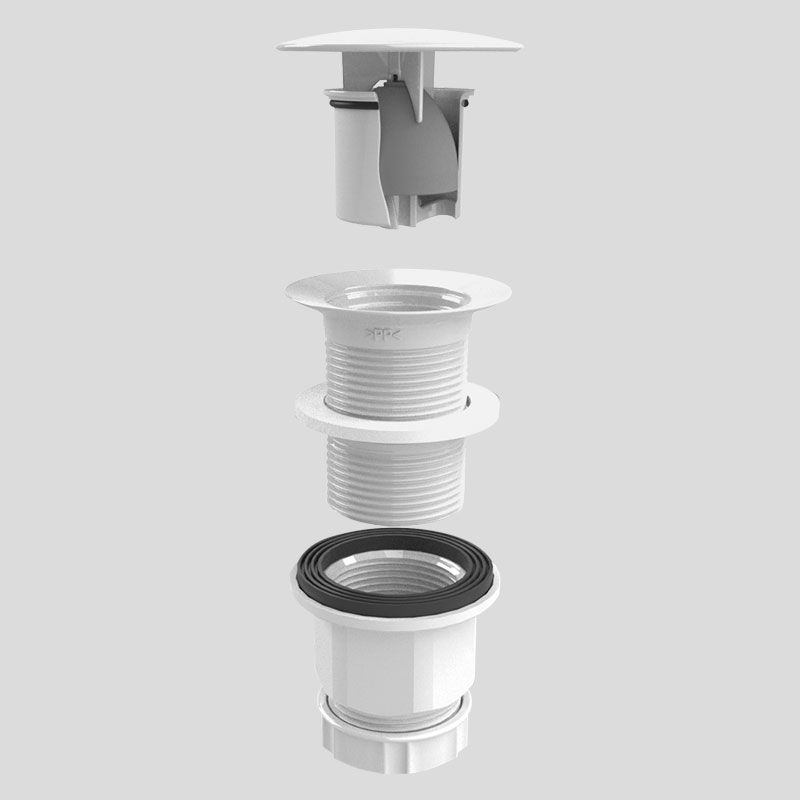

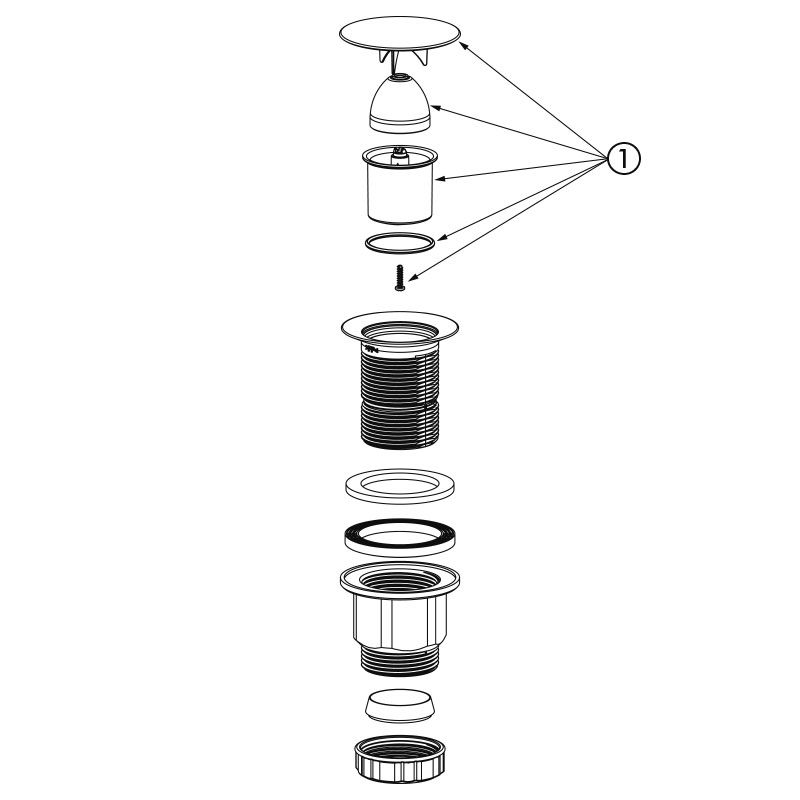

No water level: dome with a cup with a membrane which can be removed from above.
Membrane can be cleaned and replaced.
Dome, cup and body made from white polypropylene. Membrane made from silicone.
Evacuation flow rate complies with European standard EN 274: 36 lpm.
Waste can be cut to size.
Not suitable for washbasins with an overflow.
30-year warranty.

ADVANTAGES

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: no water level

Universel

Requires minimal space underneath the basin

Maintenance aisée - Installation aisée

Easy to maintain: dome can be removed easily

Characteristics

TECHNICAL CHARACTERISTICS

Hygienic waste without water level

Ref. 621W
Supply 1 1/4"
Flow rate Complies with European standard EN 274: 36 lpm

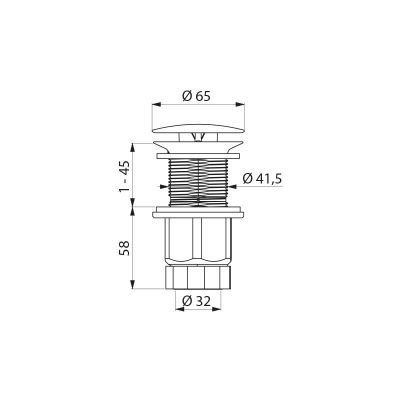

Diameter 65mm
Finish Dome, cup and body made from white polypropylene. Membrane made from silicone.
Warranty 30-Year
Hygienic waste without water level
Ref. 621W

Downloads

DOWNLOADS

Hygienic waste without water level

Ref. 621W

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

517000 Inlet F 1¼", horizontal outlet Ø 32mm with nut, water level 50mm
580000 Basin or urinal waste trap w. stainless steel grid for hole max Ø54mm
581000 ON/OFF basin waste with stainless steel valve
596000 Chrome-plated
611 HYGIÉNA basin waste - Chrome-plated finish - tall model
6110 HYGIÉNA washbasin waste -Chrome-plated finish - short model
6110BK Matte black finish - short model
620 Brass waste with valve M11/4"
