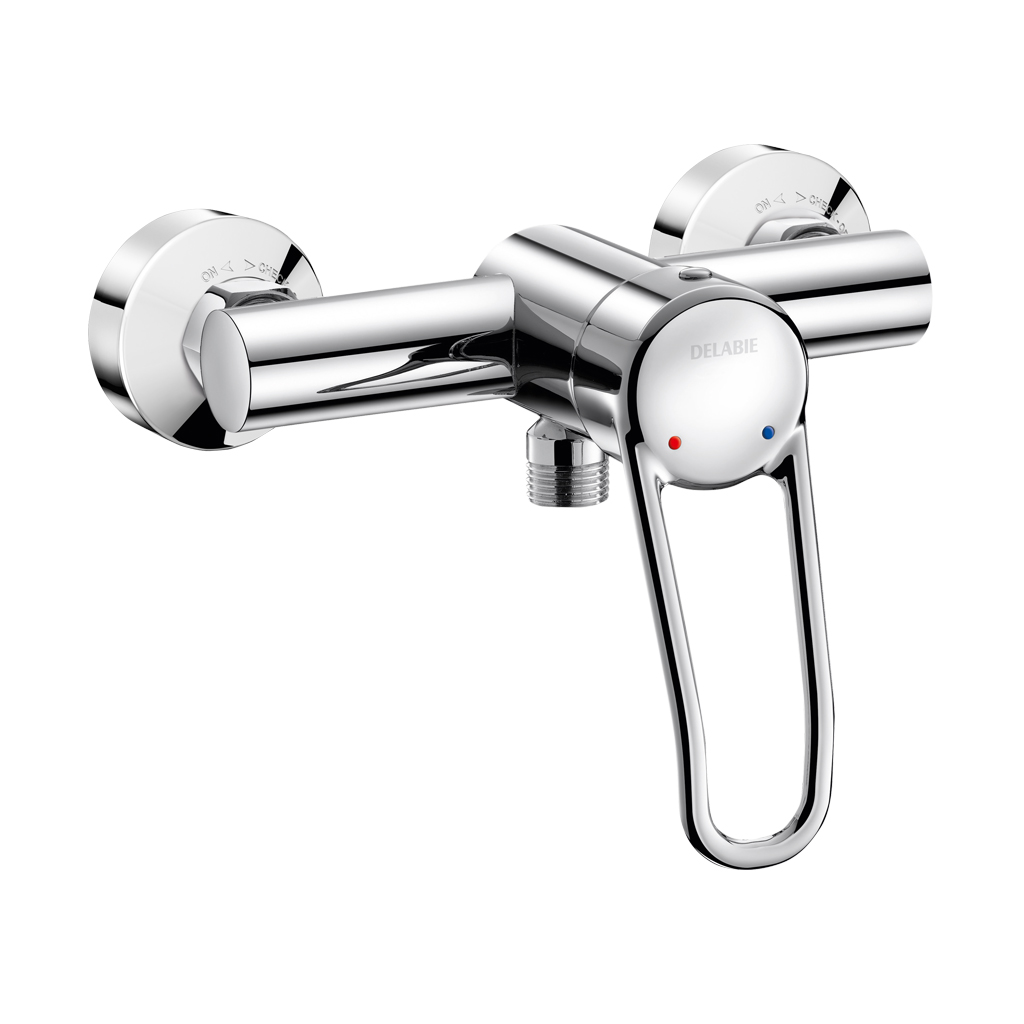

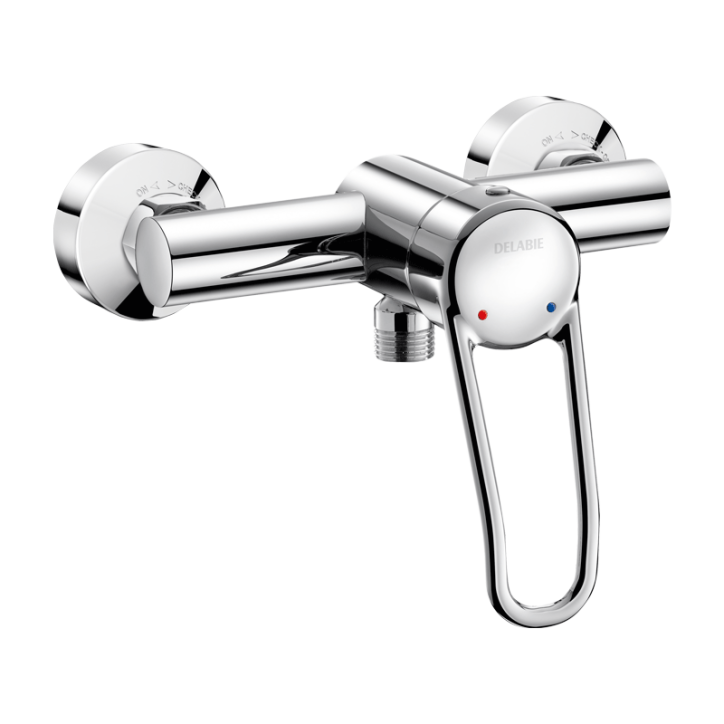

Securitouch mechanical shower mixer

Ref. 2739
Wall-mounted single control mixer, sculptured control lever
Securitouch mechanical shower mixer +

Presentation

DESCRIPTION

Securitouch mechanical shower mixer

Ref. 2739
Wall-mounted single control mechanical shower mixer.

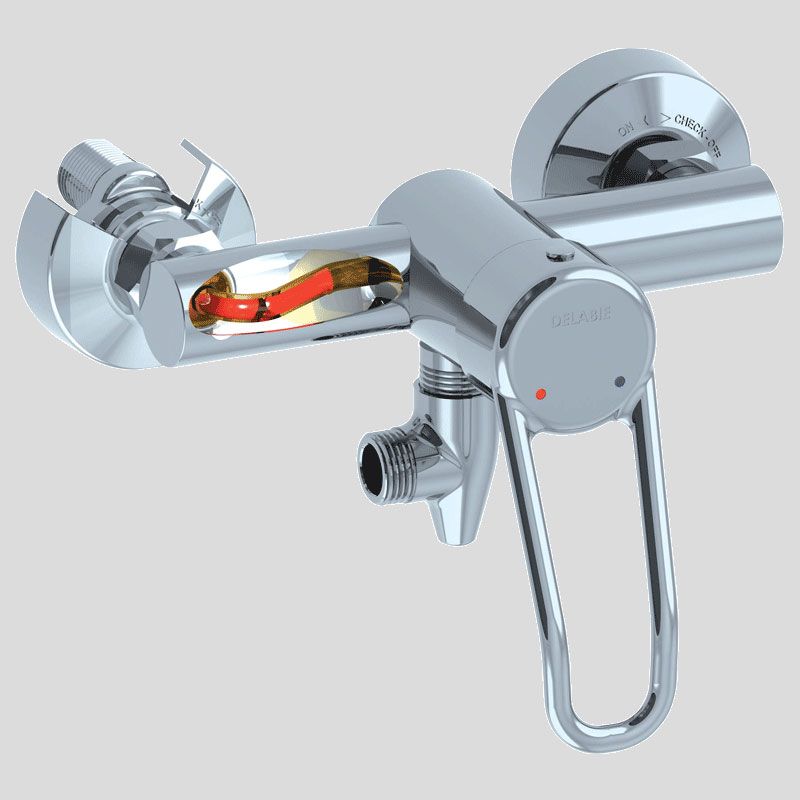

Wall-mounted single control mixer with Securitouch thermal insulation to prevent burns.
Ø 40mm ceramic cartridge with pre-set maximum temperature limiter.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M1/2" shower outlet with integrated non-return valve.
Mixer with offset STOP/CHECK connectors, M1/2" M3/4".
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Shower mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Corps à intérieur lisse

Maximum hygiene: smooth interior reduces bacteria

Sécurité anti-brûlure

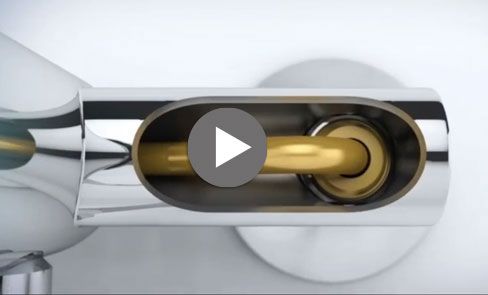

Securitouch thermal insulation prevents burns

Hygiène - Anti-bactérien - BIOSAFE

Maximum hygiene: low water volume.

Confort - Ergonomie - Déclenchement souple

Ergonomic: sculptured lever is easy to grip

Characteristics

TECHNICAL CHARACTERISTICS

Securitouch mechanical shower mixer

Ref. 2739
Connector M1/2"
Technology Securitouch shower mixer

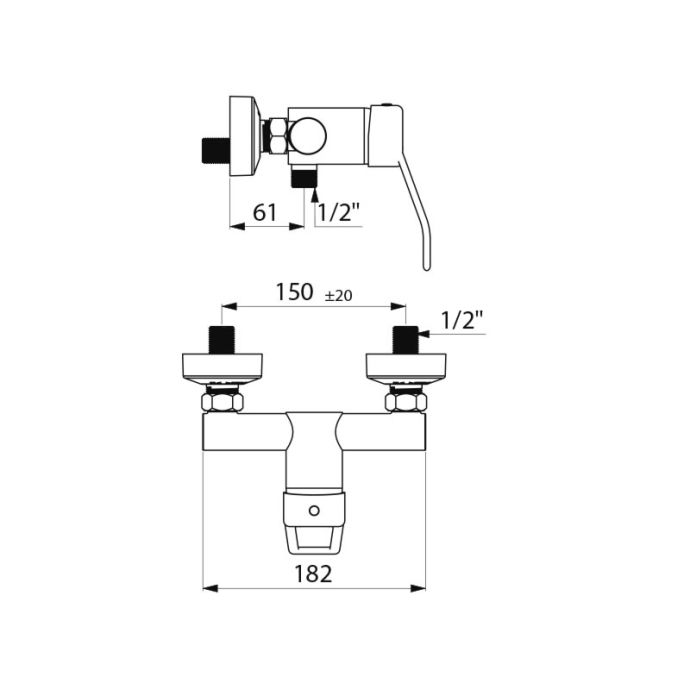

Depth 150mm
Width 182mm
Flow rate 9 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo WRAS Logo PZH Logo DoP Logo NF
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur de douche mécanique Securitouch

Ref. 2739

To download one or several documents linked to this product, please select the type of file you require :

Compatible products

COMPATIBLE PRODUCTS

Securitouch mechanical shower mixer

Ref. 2739
2739HYG
Auto-draining shower kit with mechanical mixer
Auto-draining shower kit with mechanical mixer
2739KIT

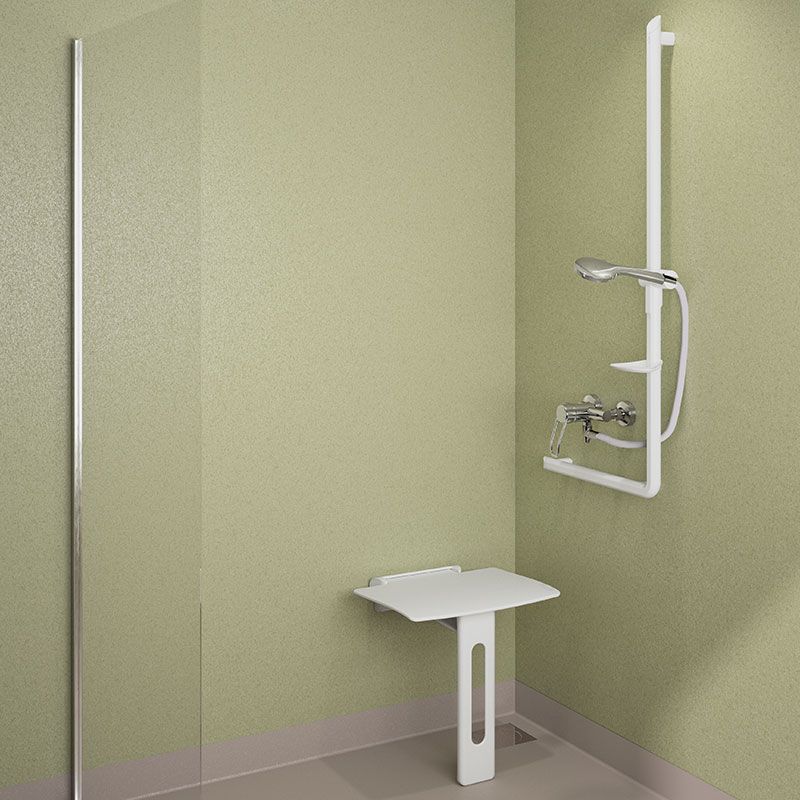

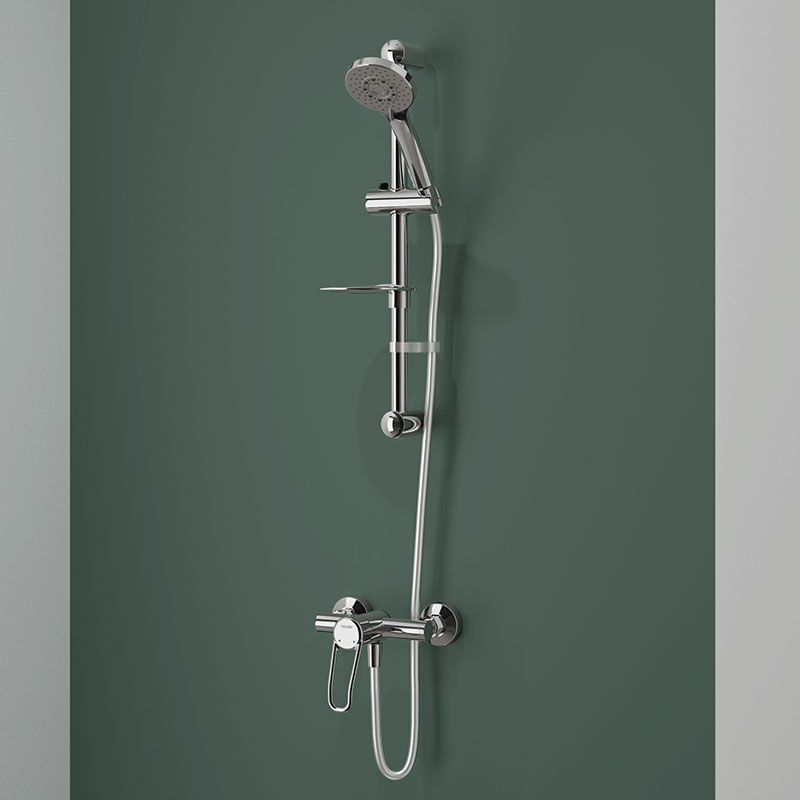

Shower riser rail with mechanical mixer
Shower riser rail with mechanical mixer

Spare parts

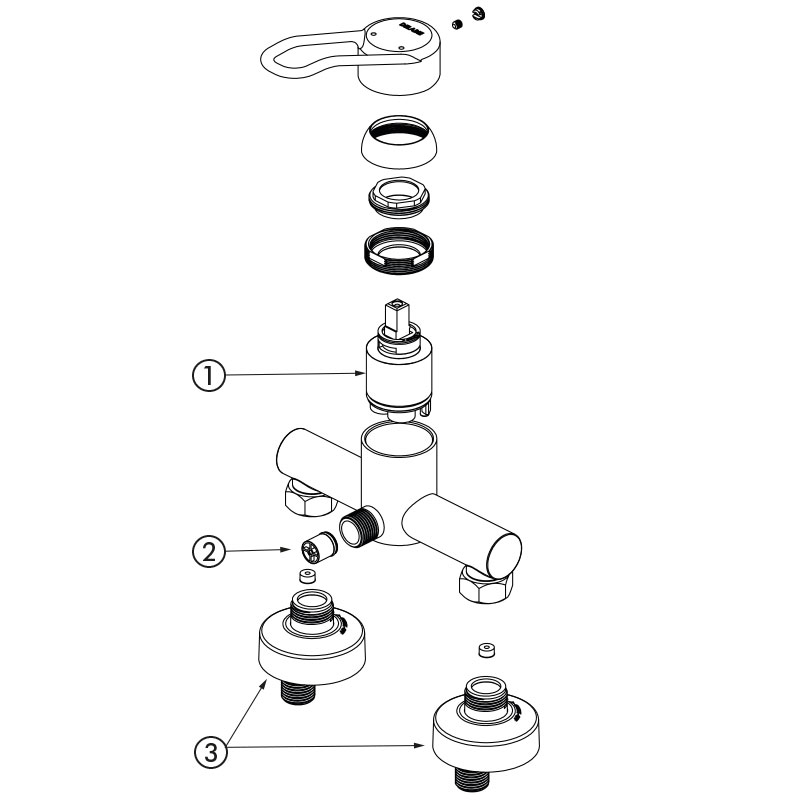

SPARE PARTS

Securitouch mechanical shower mixer

Ref. 2739
1. N109AG75
Ø40mm ceramic cartridge
2. 900015
Non-return valve
3. 900005
Flow limiter
4. 855755.2P
Offset connectors

VARIANTS

2739EP Mixer with EP cartridge - Sculptured lever - STOP/CHECK connectors
2739TEP Mixer with EP cartridge - Solid lever - STOP/CHECK connectors
2739EPS Mixer with EP cartridge - Sculptured lever - Standard connectors
2739TEPS Mixer with EP cartridge - Solid lever - Standard connectors
2739T Mixer w standard cartridge - Solid lever - STOP/CHECK connectors
2739S Mixer with standard cartridge -Sculptured lever - Standard connectors
2739TS Mixer with standard cartridge - Solid lever - Standard connectors
Infection control: mixer body with smooth interior
Infection control: mixer body with smooth interior
Ergonomic: shower mixer with sculptured lever which is easy to grip
Ergonomic: shower mixer with sculptured lever which is easy to grip

VARIANTS

2739EP Mixer with EP cartridge - Sculptured lever - STOP/CHECK connectors
2739TEP Mixer with EP cartridge - Solid lever - STOP/CHECK connectors
2739EPS Mixer with EP cartridge - Sculptured lever - Standard connectors
2739TEPS Mixer with EP cartridge - Solid lever - Standard connectors
2739T Mixer w standard cartridge - Solid lever - STOP/CHECK connectors
2739S Mixer with standard cartridge -Sculptured lever - Standard connectors
2739TS Mixer with standard cartridge - Solid lever - Standard connectors
Infection control: mixer body with smooth interior
Infection control: mixer body with smooth interior
Ergonomic: shower mixer with sculptured lever which is easy to grip
Ergonomic: shower mixer with sculptured lever which is easy to grip
