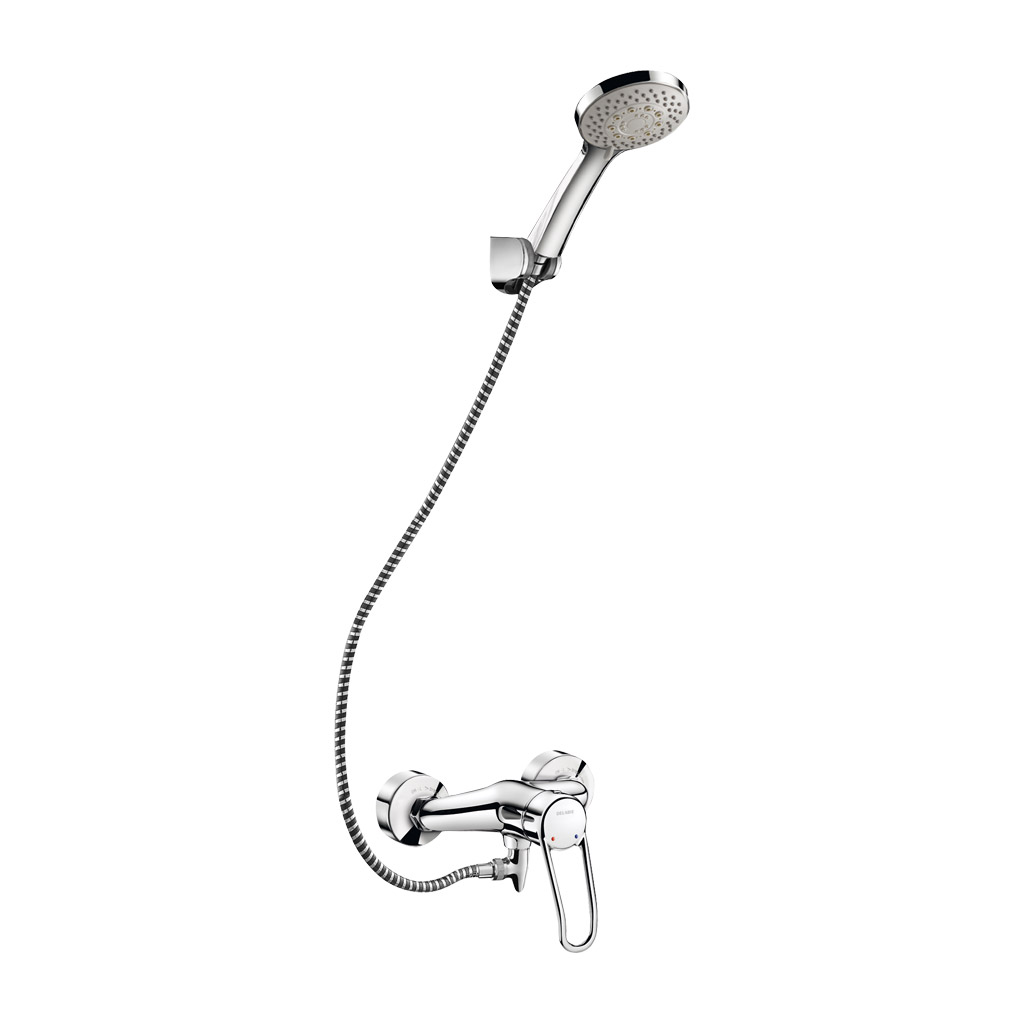

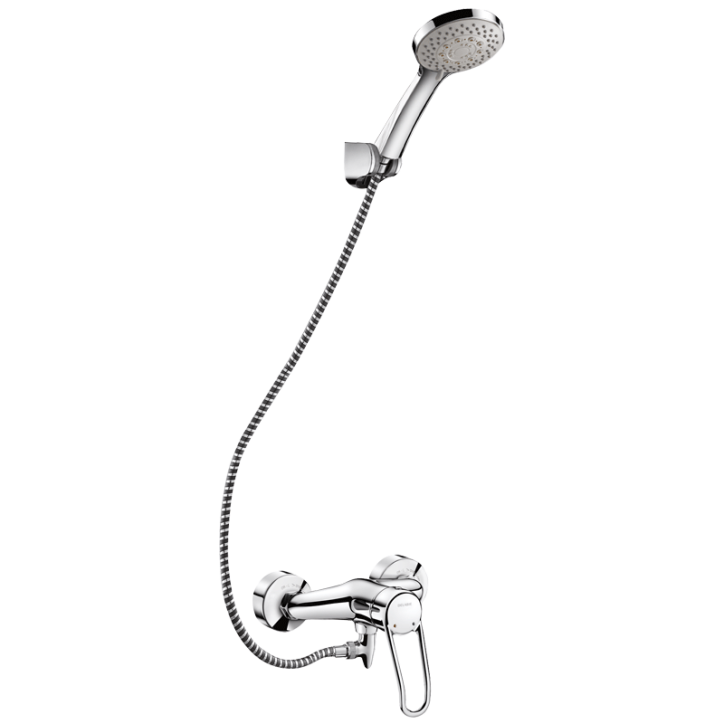

Auto-draining shower kit with EP mechanical mixer

Ref. 2539EPHYG
Shower kit with pressure-balancing mixer
Auto-draining shower kit with EP mechanical mixer

Presentation

DESCRIPTION

Auto-draining shower kit with EP mechanical mixer

Ref. 2539EPHYG
Shower kit with single control mechanical mixer.
SECURITHERM shower kit with auto-draining device:
• Mixer with Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Constant temperature regardless of pressure and flow rate variations.
Flow rate regulated at 9 lpm.
Chrome-plated brass body and sculptured control lever.
M½" shower outlet with integrated non-return valve.
Mixer with 2 offset STOP/CHECK wall connectors M1/2" M3/4" ideal for hospitals.
Filters and non-return valves.
• Chrome-plated shower head (ref. 813) with flexible hose (ref. 834T3) and chrome-plated, wall-mounted tilting support (ref. 845).
• Anti-stagnation connector FM½" for installation between lower outlet and flexible shower hose, for auto-draining of the flexible hose and shower head (ref. 880).
Shower kit ideal for healthcare facilities, nursing homes, hospitals and clinics.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW fails

Confort - Ergonomie - Déclenchement souple

Pressure-balancing: constant temperature

Confort - Ergonomie - Déclenchement souple

Ergonomic: sculptured lever is easy to grip

Economie d'eau

Water saving: flow rate regulated at 9 lpm

Characteristics

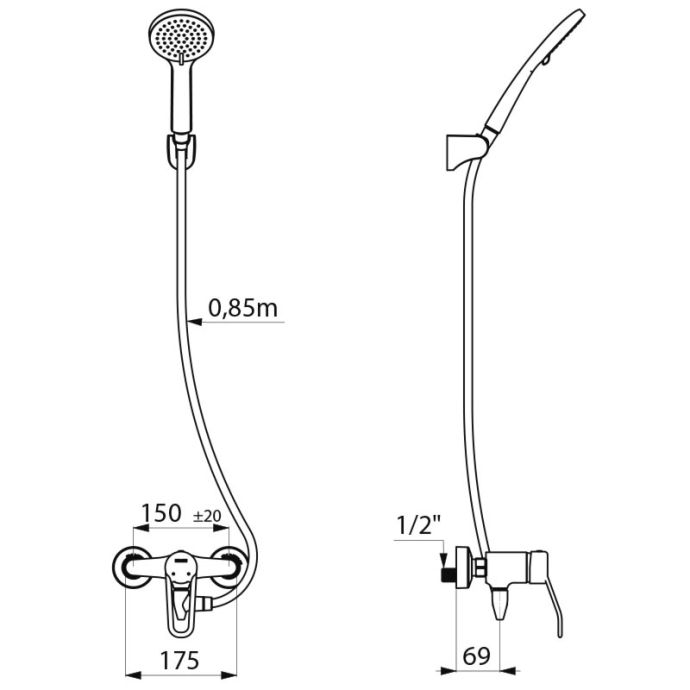

TECHNICAL CHARACTERISTICS

Auto-draining shower kit with EP mechanical mixer

Ref. 2539EPHYG
Connector M1/2"
Technology SECURITHERM EP
Width 175mm
Flow rate 9 lpm
Temperature limiter 39°C
Finish Chrome-plated brass
Certificates Logo Belgaqua ACS Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Auto-draining shower kit with EP mechanical mixer

Ref. 2539EPHYG

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

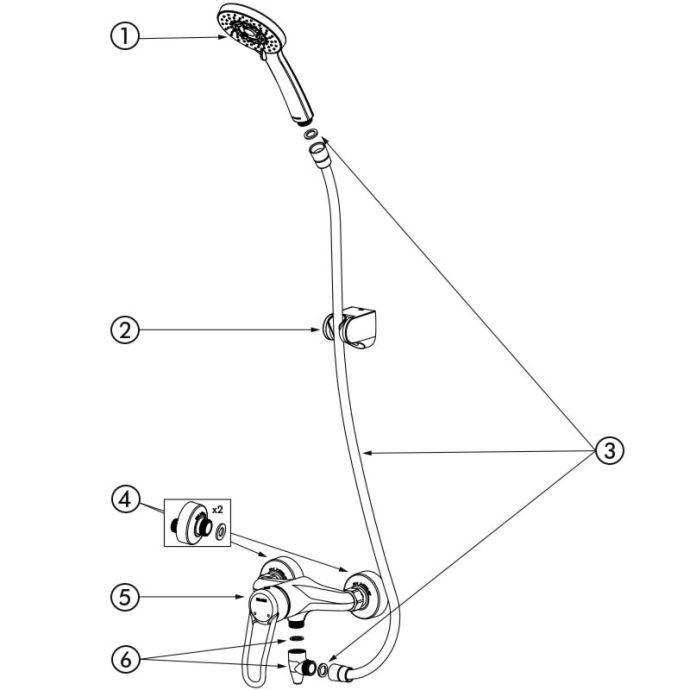

SPARE PARTS

Auto-draining shower kit with EP mechanical mixer

Ref. 2539EPHYG
1. 813
Chrome-plated shower head with 5 jets, M1/2"
2. 845
Wall-mounted tilting support for shower heads
3. 834T3
BICOLOR flexible shower hose
4. 855755.2P
Offset connectors
5. 2539EP
SECURITHERM EP pressure-balancing shower mixer
6. 880
Auto-draining device

VARIANTS

2539EPSHYG EP cartridge - Long sculptured lever - Standard connectors
2239EPHYG EP cartridge - Short sculptured lever - STOP/CHECK connectors
2239EPSHYG EP cartridge - Short sculptured lever - standard connectors
2539HYG Standard cartridge - Long sculptured lever -STOP/CHECK connectors
2539SHYG Standard cartridge - Long sculptured lever -Standard connectors

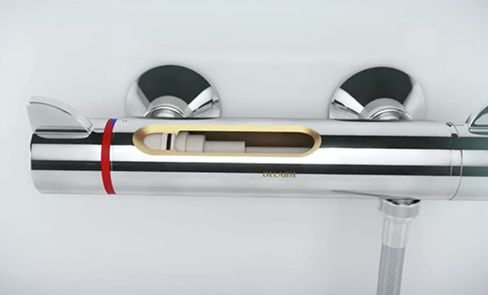

Anti-scalding safety & infection control
Anti-scalding safety & infection control

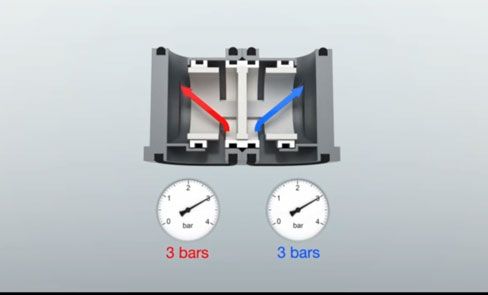

Pressure-balancing: anti-scalding safety and stable temperature
