Mechanical shower mixer

Ref. 2443
Wall-mounted recessed mechanical mixer
Mechanical shower mixer

Presentation

DESCRIPTION

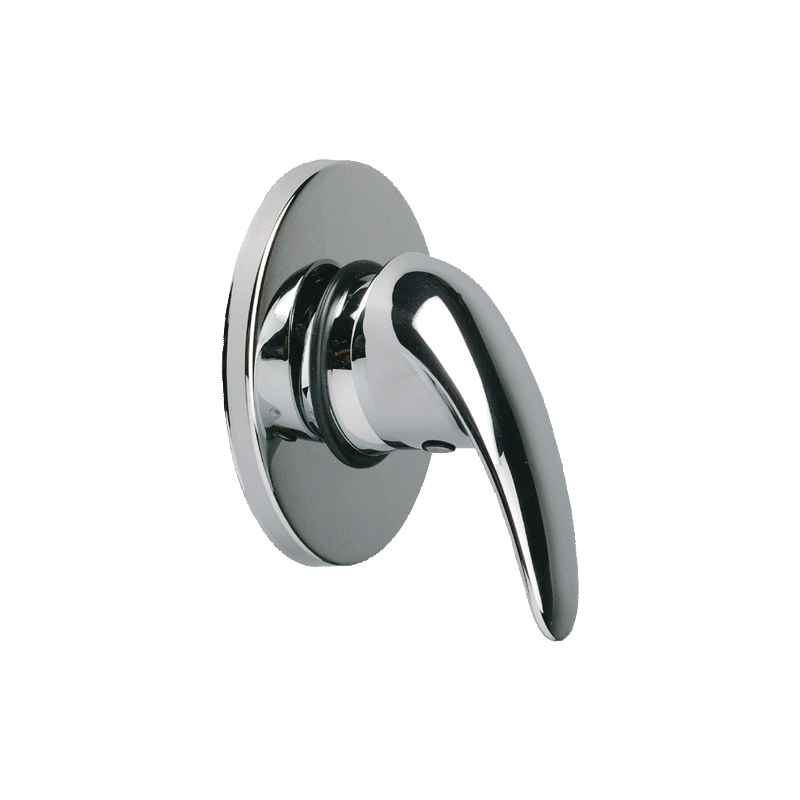

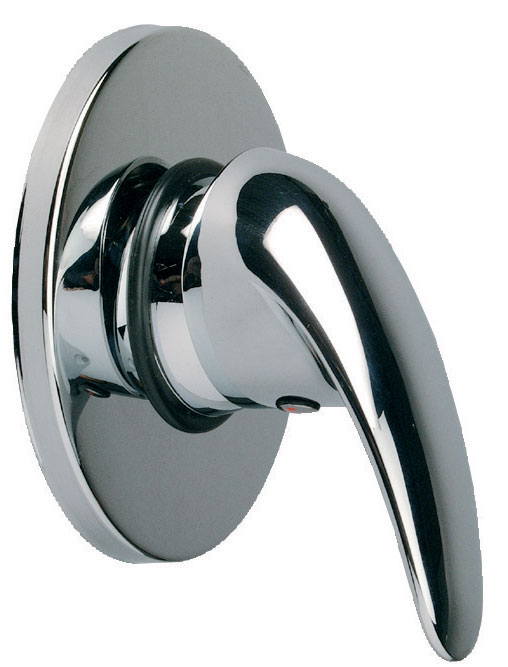

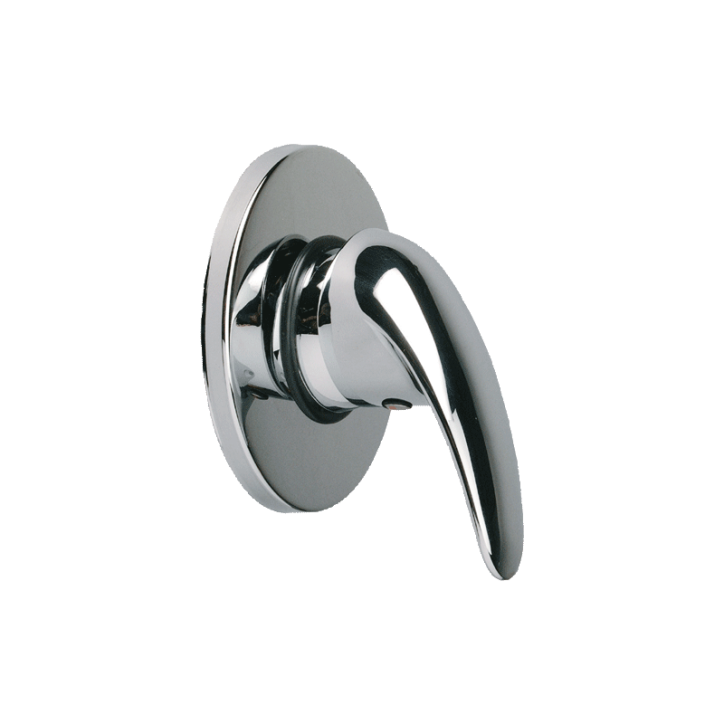

Mechanical shower mixer

Ref. 2443
Wall-mounted, recessed, mechanical shower mixer with adjustable wall plate Ø 116mm.
Ø 40mm ceramic cartridge with pre-set maximum temperature limiter.
Solid control lever.
Chrome-plated brass body.
Order a wall-mounted outlet (ref. 868121) or TONIC JET shower head (ref. 712000) or ROUND shower head (ref. 709000) to complete.
This mixer is not supplied with a waterproof housing. The installer must ensure that the recessing area is waterproof and allow a drainage point for any leaks or condensation.

ADVANTAGES

Endurance - Fiabilité

Chrome-plated brass body

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Confort - Ergonomie - Déclenchement souple

Solid control lever is easy to grip

Characteristics

TECHNICAL CHARACTERISTICS

Mechanical shower mixer

Ref. 2443

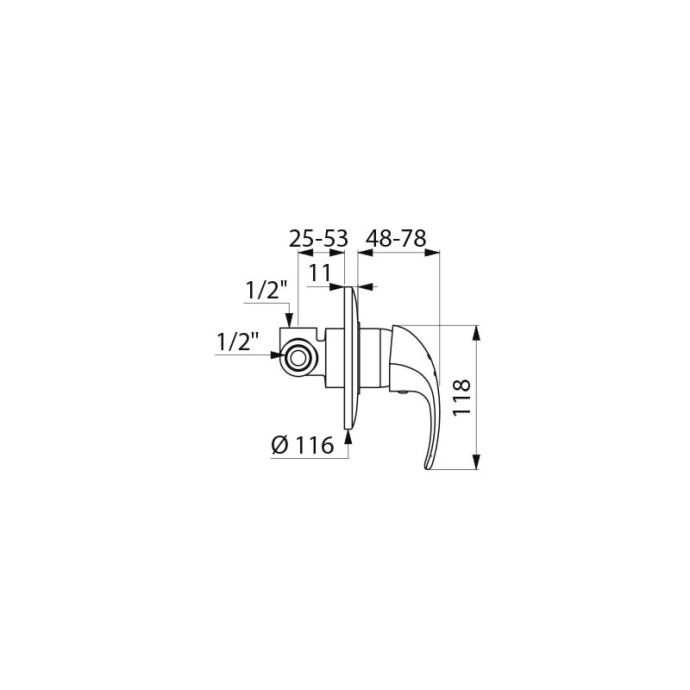

Connector 1/2"
Depth 48-78mm
Finish Chrome-plated brass
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
Repairability
Mechanical shower mixer
Ref. 2443

Downloads

DOWNLOADS

Mitigeur de douche encastrable mécanique

Ref. 2443

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

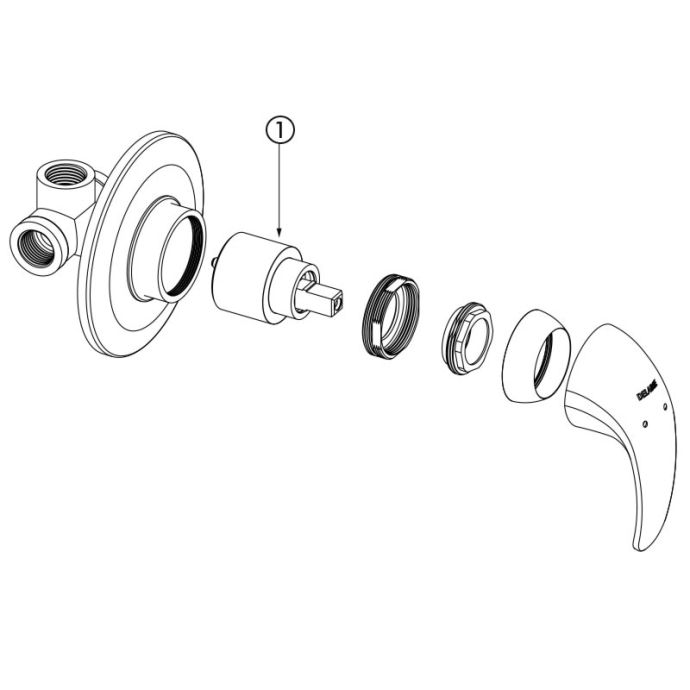

SPARE PARTS

Mechanical shower mixer

Ref. 2443
1. N148AA75
Ø40mm ceramic cartridge
