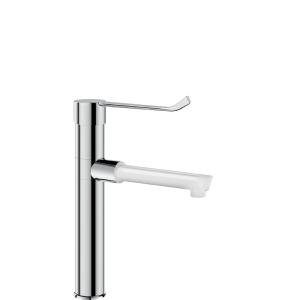

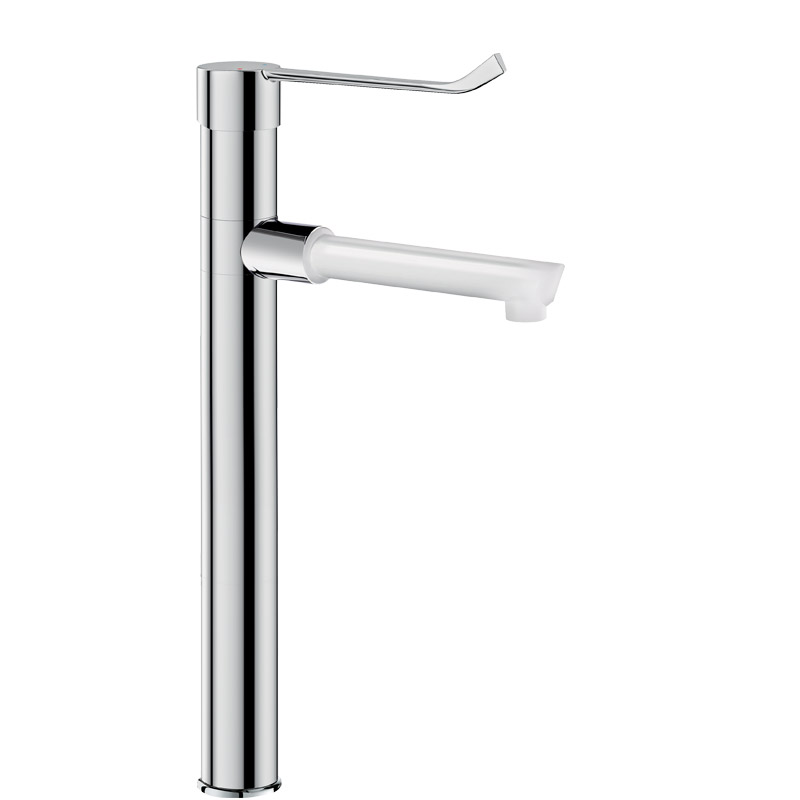

SECURITHERM EP pressure-balancing sink mixer
Ref. 2871T3EP
High single hole, single control mixer with EP cartridge
High single hole, single control mixer with EP cartridge
DESCRIPTION
SECURITHERM EP pressure-balancing sink mixer
Ref. 2871T3EPDeck-mounted, tall basin mixer with SECURITHERM pressure-balancing.
Single hole, single control mixer with high, swivelling spout H. 320mm.
Mixer supplied with 1 removable, disposable spout.
Anti-scalding safety: reduced HW flow if CW supply fails (and vice versa).
Constant temperature regardless of pressure or flow rate variations.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Body and spout with smooth interiors (limits bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Flow rate limited to 9 lpm at 3 bar.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
30-year warranty.
Single hole, single control mixer with high, swivelling spout H. 320mm.
Mixer supplied with 1 removable, disposable spout.
Anti-scalding safety: reduced HW flow if CW supply fails (and vice versa).
Constant temperature regardless of pressure or flow rate variations.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Body and spout with smooth interiors (limits bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Flow rate limited to 9 lpm at 3 bar.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Hygiene: smooth interior reduces bacteria
Thermal shock feature; no need to remove the lever
Pre-set maximum temperature limiter
Hygiene control lever requires no manual contact

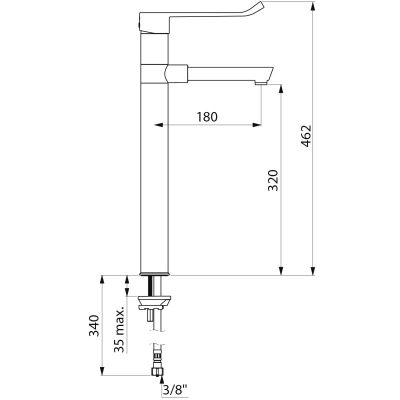

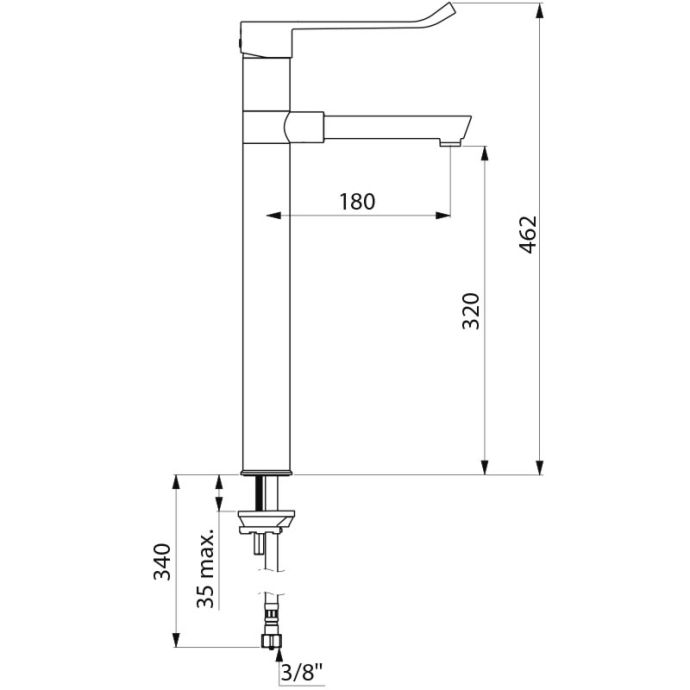

TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing sink mixer
Ref. 2871T3EPConnector | F3/8" |
Technology | BIOCLIP |
Drop height | 320mm |
Spout length | 180mm |
Flow rate | 9 lpm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

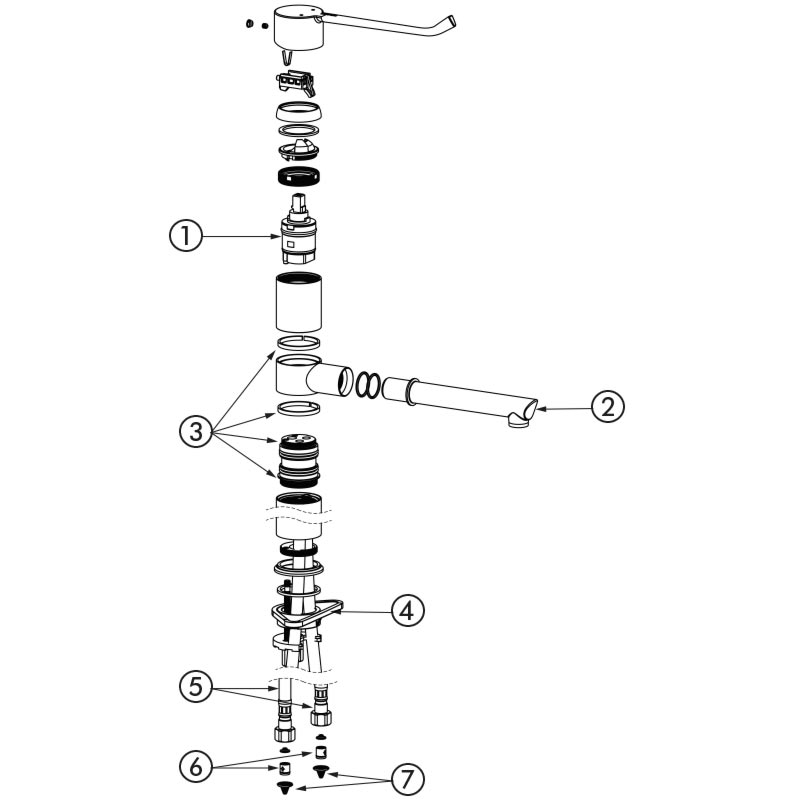

SPARE PARTS
SECURITHERM EP pressure-balancing sink mixer
Ref. 2871T3EP
After 04/2022
1. | N262 |
|
Ø35mm ceramic pressure balancing cartridge |
2. | 20015 |
|
Disposable BIOCLIP spout |
3. | 753256 |
|
Replacement O-ring joints |
4. | 2510SES |
|
Locking kit |
5. | 256P |
|
Fixing plate |
6. | FLEXPEX4 |
|
F3/8" PEX flexible hoses |
7. | 900010 |
|
Non-return valve |
8. | 60438.10P |
|
Conical filter |
VARIANTS
2870T3EP | EP cartridge - removable stainless steel spout | ||
---|---|---|---|
2871T3 | Standard cartridge - removable disposable spout | ||
2870T3 | Standard cartridge - removable stainless steel spout |
VARIANTS
2870T3EP | EP cartridge - removable stainless steel spout | ||
---|---|---|---|
2871T3 | Standard cartridge - removable disposable spout | ||
2870T3 | Standard cartridge - removable stainless steel spout |
