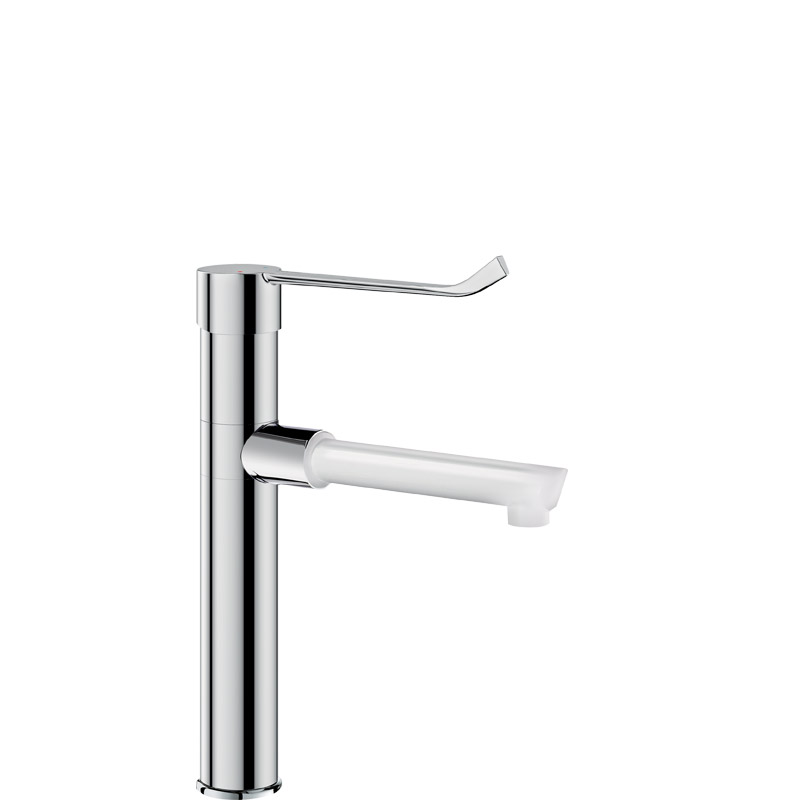

SECURITHERM EP pressure-balancing basin mixer

Ref. 2871T1EP
High single hole, single control mixer with EP cartridge
SECURITHERM EP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing basin mixer

Ref. 2871T1EP
Deck-mounted, tall basin mixer with SECURITHERM pressure-balancing.

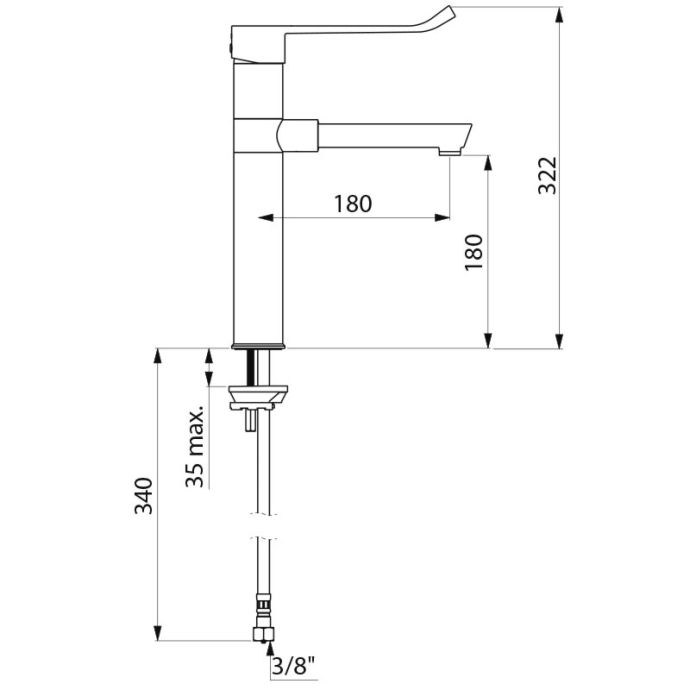

Single hole, single control mixer with high, swivelling spout H. 180mm L. 180mm.
Mechanical mixer supplied with 1 removable disposable spout.
Anti-scalding safety: reduced HW flow rate if CW supply fails (and vice versa).
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Body and spout with smooth interiors (limits bacterial development).
Thermal shocks are easy to undertake without removing the control lever or shutting off the cold water supply.
Flow rate regulated at 5 lpm.
Hygiene lever L. 185mm for touch-free control.
Chrome-plated brass body and base.
PEX flexibles F3/8" with filters and non-return valves.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single control mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.

ADVANTAGES

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Sécurité anti-brûlure

HW flow rate is reduced if cold water supply fails

Sécurité anti-brûlure

Thermal shock without removing the control lever

Confort - Ergonomie - Déclenchement souple

Hygiene control lever requires no manual contact

Characteristics

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2871T1EP
Connector F3/8"
Technology BIOCLIP mechanical mixer
Drop height 180mm
Spout length 180mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo DoP Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2871T1EP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

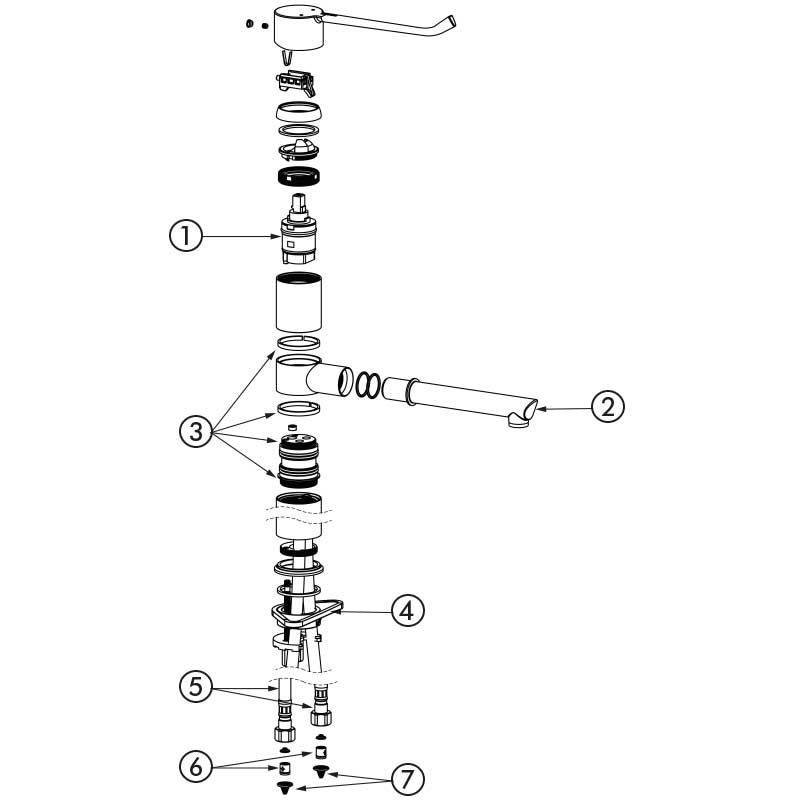

SPARE PARTS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2871T1EP
1. N262
Ø35mm ceramic pressure balancing cartridge
2. 20015
Disposable BIOCLIP spout
3. 753256
Replacement O-ring joints
4. 900005
Flow limiter
5. 2510SES
Locking kit
6. 256P
Fixing plate
7. FLEXPEX3
F3/8" PEX flexible hoses
8. 900010
Non-return valve
9. 60438.10P
Conical filter

VARIANTS

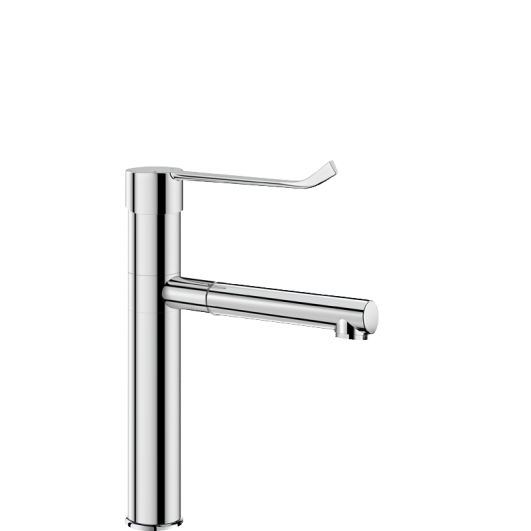

2870T1EP EP cartridge - removable stainless steel spout
2871T1 Standard cartridge - removable disposable spout
2870T1 Standard cartridge - removable stainless steel spout
Pressure-balancing: anti-scalding safety and temperature stability
Pressure-balancing: anti-scalding safety and temperature stability

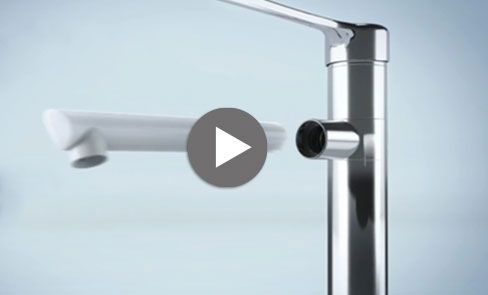

Infection control: mixer with removable spout and body with smooth interior
Infection control: mixer with removable spout and body with smooth interior

VARIANTS

2870T1EP EP cartridge - removable stainless steel spout
2871T1 Standard cartridge - removable disposable spout
2870T1 Standard cartridge - removable stainless steel spout
Pressure-balancing: anti-scalding safety and temperature stability
Pressure-balancing: anti-scalding safety and temperature stability
Infection control: mixer with removable spout and body with smooth interior
Infection control: mixer with removable spout and body with smooth interior
