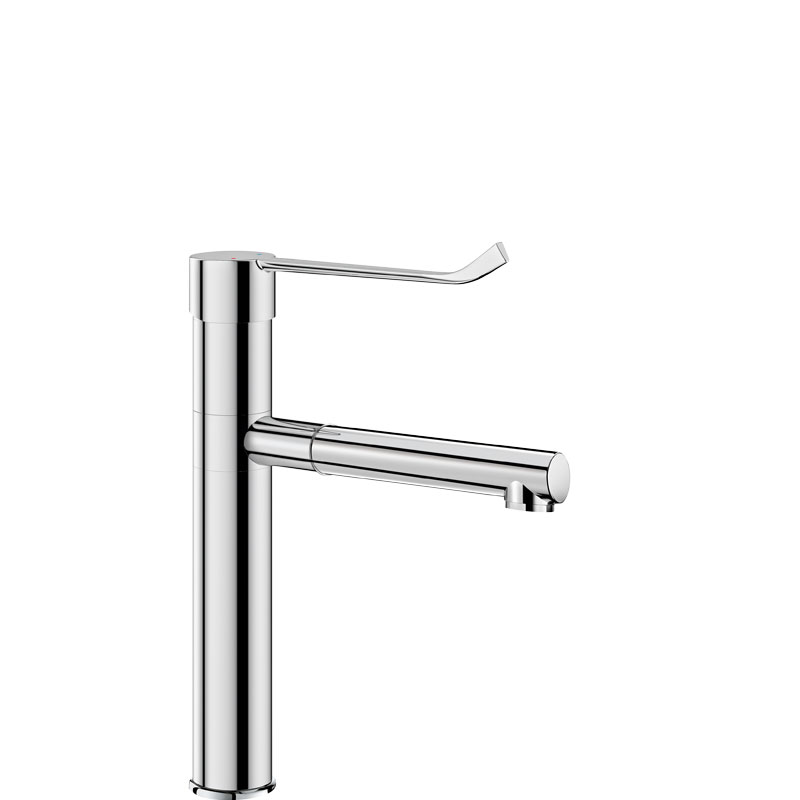

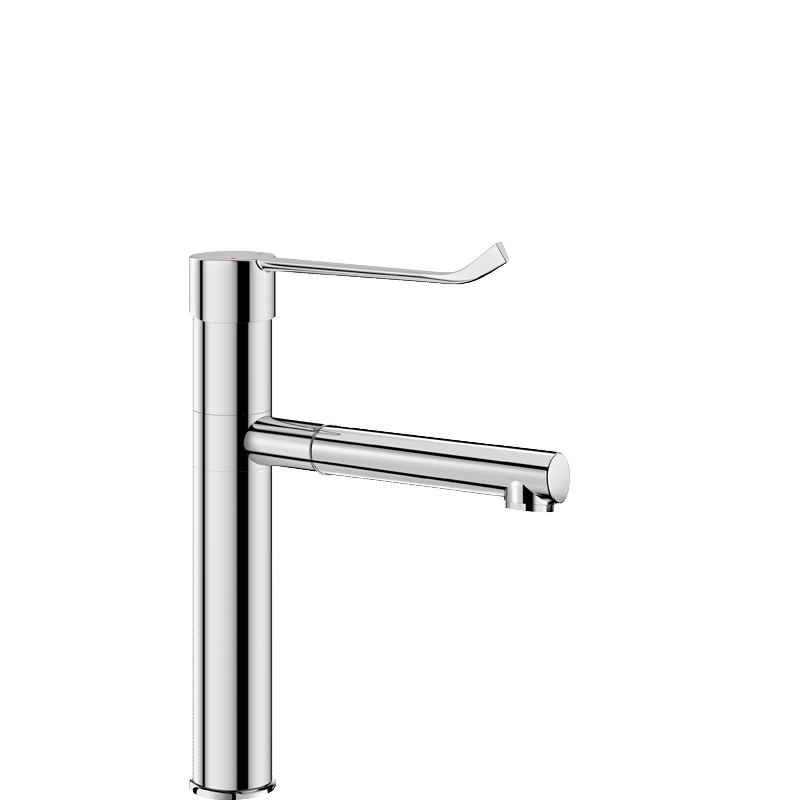

SECURITHERM EP pressure-balancing basin mixer

Ref. 2870T1EP
Tall single hole, single control mixer with EP cartridge
SECURITHERM EP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing basin mixer

Ref. 2870T1EP
Deck-mounted SECURITHERM pressure-balancing, tall basin mixer.
Single hole, single control mixer with high, swivelling spout H. 180mm.
Mixer supplied with 2 removable stainless steel spouts.
Anti-scalding safety: reduced HW flow if CW supply fails (and vice versa).
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Body and spout with smooth interiors (limits bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Flow rate limited to 5 lpm at 3 bar.
Body and base in chrome plated brass.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Reinforced fixing by 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Sécurité anti-brûlure

Thermal shock possible without removing lever

Sécurité anti-brûlure

Pre-set maximum temperature limiter

Confort - Ergonomie - Déclenchement souple

Hygiene control lever requires no manual contact

Characteristics

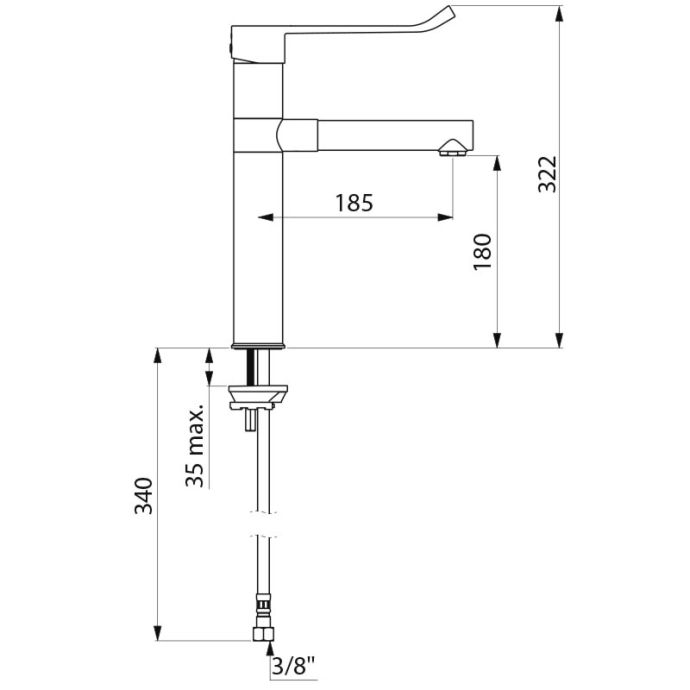

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2870T1EP
Connector F3/8"
Technology BIOCLIP
Drop height 180mm
Spout length 185mm
Flow rate 5 lpm
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2870T1EP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

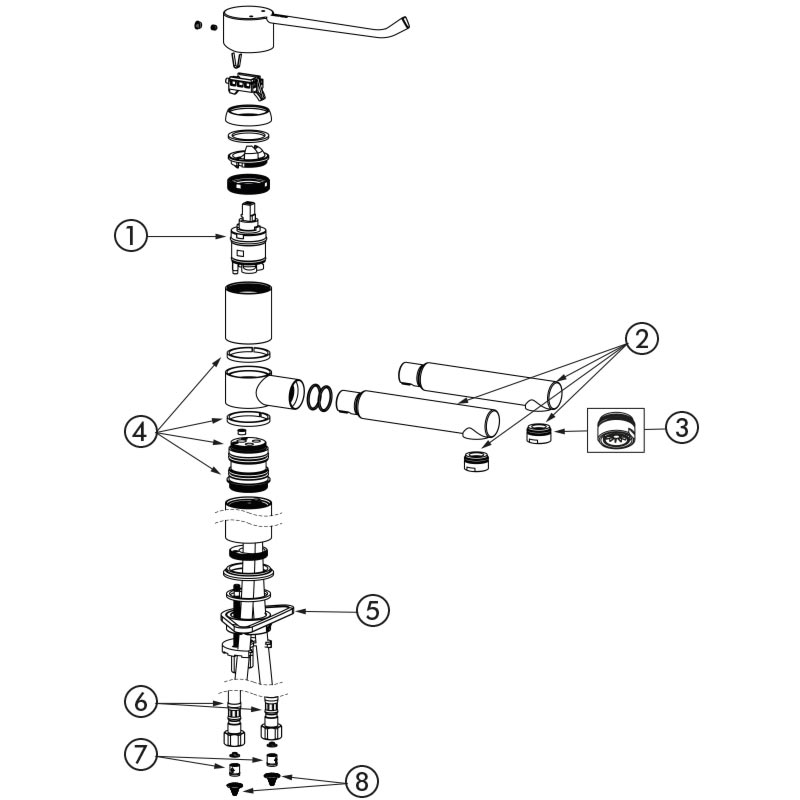

SPARE PARTS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2870T1EP
1. N262
Ø35mm ceramic pressure balancing cartridge
2. 20002
Stainless steel BIOCLIP spout
3. 921024.2P
Star-shaped flow straightener
4. 753256
Replacement O-ring joints
5. 900005
Flow limiter
6. 2510SES
Locking kit
7. 256P
Fixing plate
8. FLEXPEX3
F3/8" PEX flexible hoses
9. 900010
Non-return valve
10. 60438.10P
Conical filter

VARIANTS

2871T1EP EP cartridge - removable disposable spout
2871T1 Standard cartridge - removable disposable spout
2870T1 Standard cartridge - removable stainless steel spout

VARIANTS

2871T1EP EP cartridge - removable disposable spout
2871T1 Standard cartridge - removable disposable spout
2870T1 Standard cartridge - removable stainless steel spout
