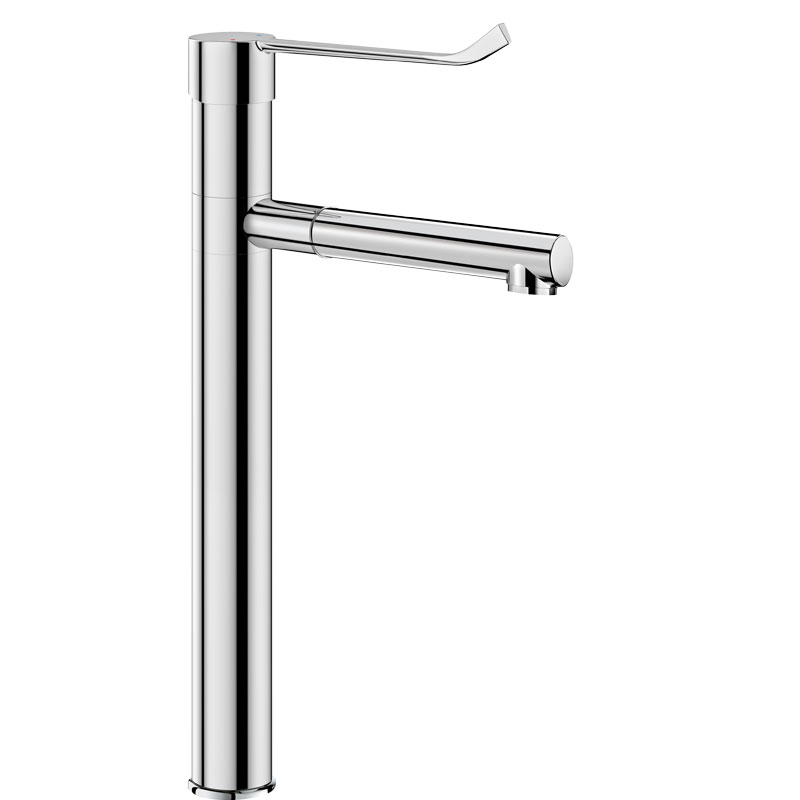

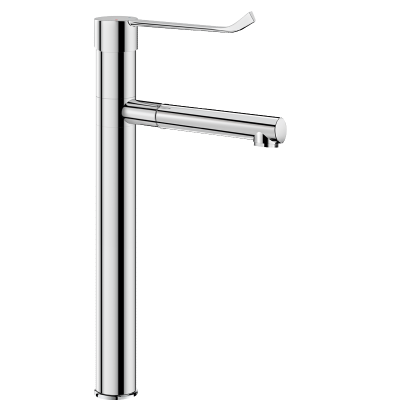

SECURITHERM EP pressure-balancing sink mixer
Ref. 2870T3EP
Single hole, single control tall mixer with EP cartridge
Single hole, single control tall mixer with EP cartridge
DESCRIPTION
SECURITHERM EP pressure-balancing sink mixer
Ref. 2870T3EPDeck-mounted SECURITHERM pressure-balancing high sink mixer.
Single hole, single control mixer with high, swivelling spout H. 320mm.
Mixer supplied with 2 removable stainless steel spouts.
Total anti-scalding safety: reduced HW flow if CW supply fails (and vice versa).
Constant temperature regardless of variations in pressure and flow rate.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Body and spout with smooth interiors (limits bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Flow rate limited to 9 lpm at 3 bar.
Body and base in chrome plated brass.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Reinforced fixing via 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics
Suitable for people with reduced mobility.
30-year warranty.
Single hole, single control mixer with high, swivelling spout H. 320mm.
Mixer supplied with 2 removable stainless steel spouts.
Total anti-scalding safety: reduced HW flow if CW supply fails (and vice versa).
Constant temperature regardless of variations in pressure and flow rate.
Ø 35mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Body and spout with smooth interiors (limits bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Flow rate limited to 9 lpm at 3 bar.
Body and base in chrome plated brass.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Reinforced fixing via 2 stainless steel rods.
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
Hygiene: smooth interior reduces bacteria
Thermal shock possible without removing lever
Pre-set maximum temperature limiter
Hygiene control lever requires no manual contact

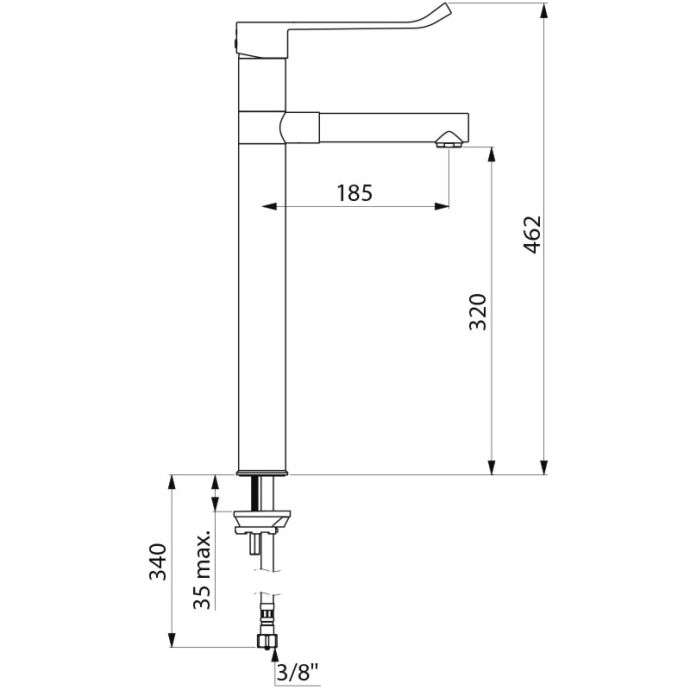

TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing sink mixer
Ref. 2870T3EPConnector | F3/8" |
Technology | BIOCLIP |
Drop height | 320mm |
Spout length | 185mm |
Flow rate | 9 lpm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

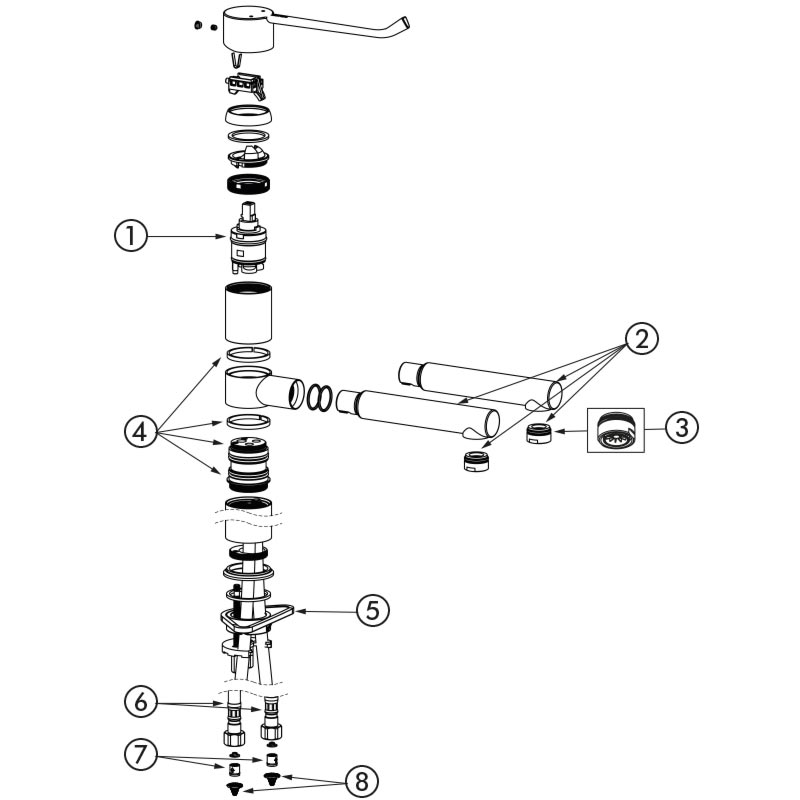

SPARE PARTS
SECURITHERM EP pressure-balancing sink mixer
Ref. 2870T3EP1. | N262 |
|
Ø35mm ceramic pressure balancing cartridge |
2. | 20002 |
|

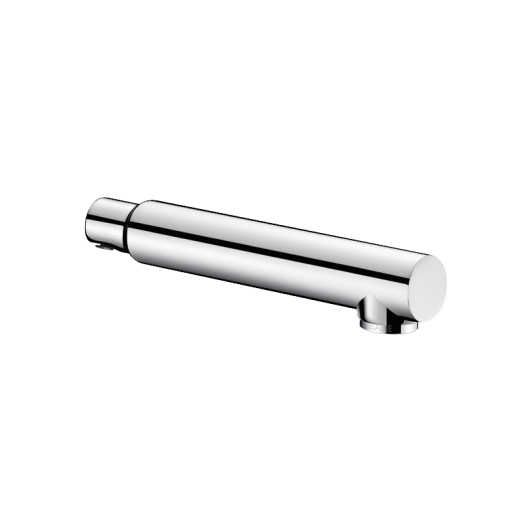

Stainless steel BIOCLIP spout |
3. | 921024.2P |
|
Star-shaped flow straightener |
4. | 753256 |
|
Replacement O-ring joints |
5. | 2510SES |
|
Locking kit |
6. | 256P |
|
Fixing plate |
7. | FLEXPEX4 |
|
F3/8" PEX flexible hoses |
8. | 900010 |
|
Non-return valve |
9. | 60438.10P |
|
Conical filter |
VARIANTS

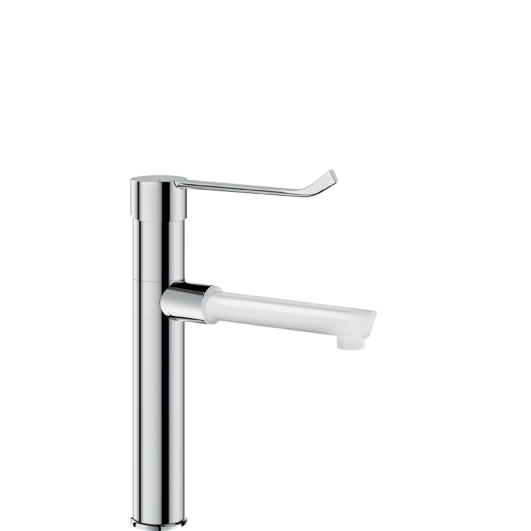

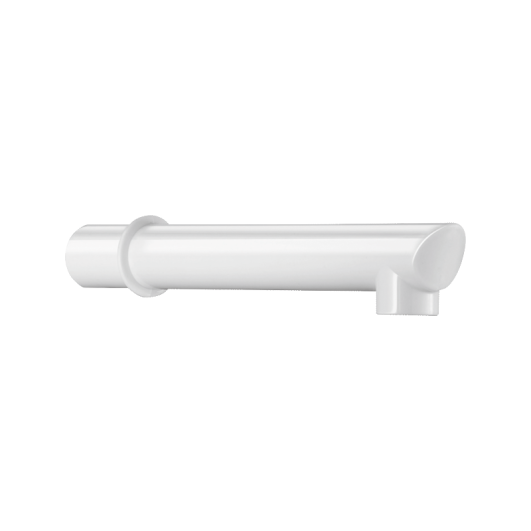

2871T3EP | EP cartridge - removable disposable spout | ||
---|---|---|---|
2871T3 | Standard cartridge - removable disposable spout | ||
2870T3 | Standard cartridge - removable stainless steel spout |
VARIANTS
2871T3EP | EP cartridge - removable disposable spout | ||
---|---|---|---|
2871T3 | Standard cartridge - removable disposable spout | ||
2870T3 | Standard cartridge - removable stainless steel spout |
