BIOCLIP mechanical basin mixer
Ref. 2821T
Single hole mechanical removable mixer H. 95mm L. 120mm, solid lever
Single hole mechanical removable mixer H. 95mm L. 120mm, solid lever
+
DESCRIPTION
BIOCLIP mechanical basin mixer
Ref. 2821TDeck-mounted mechanical basin mixer.

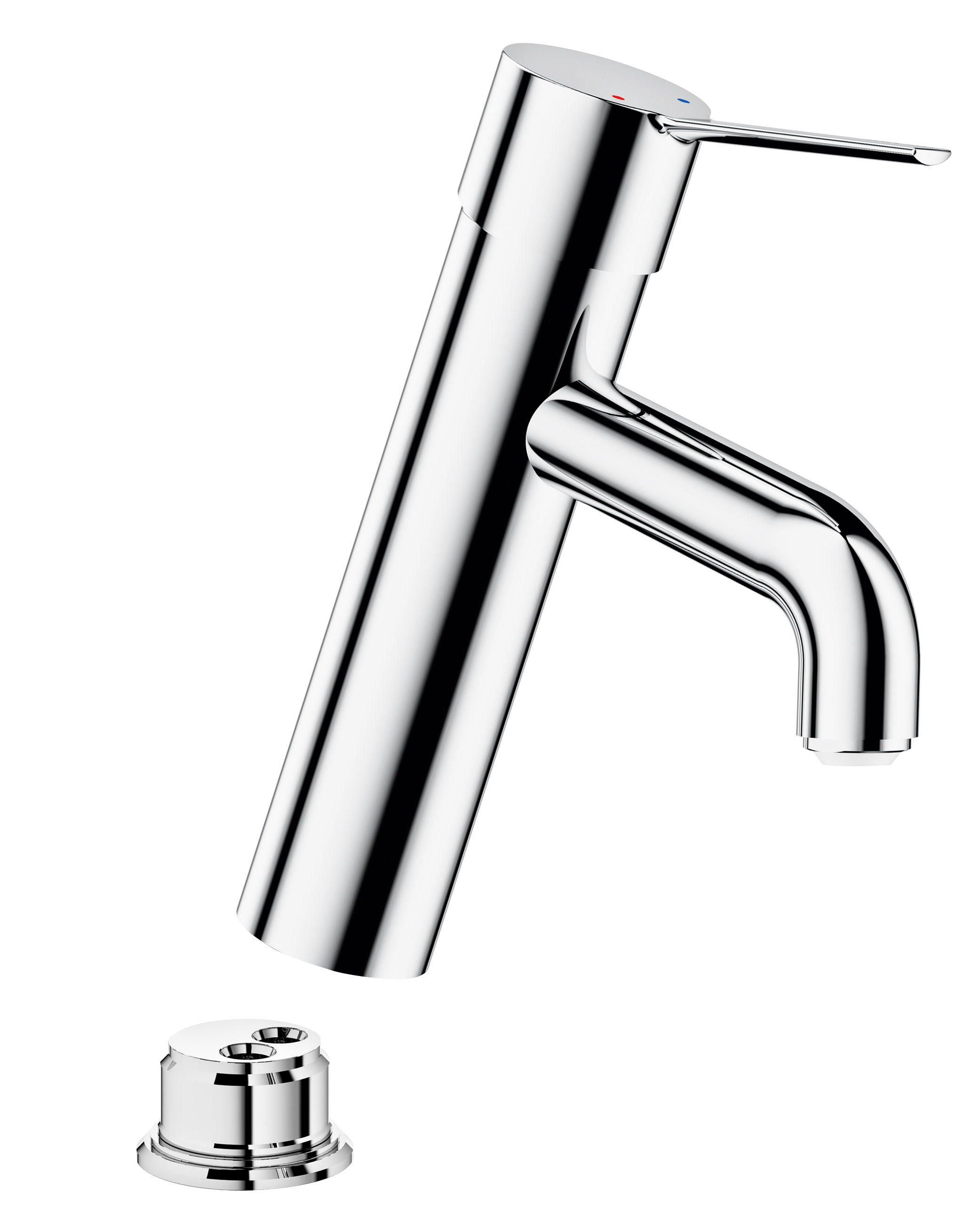

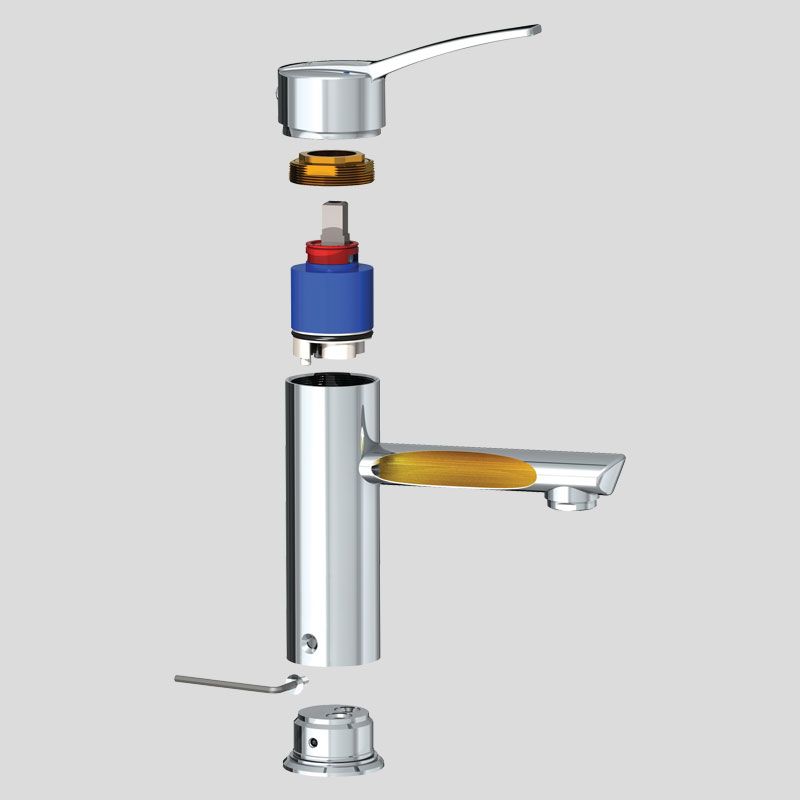

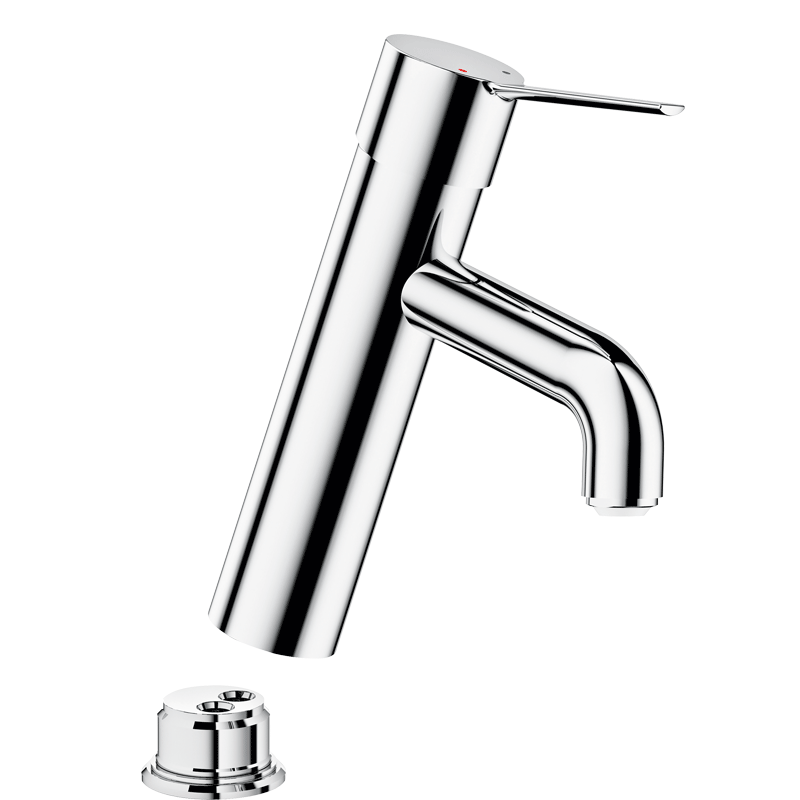

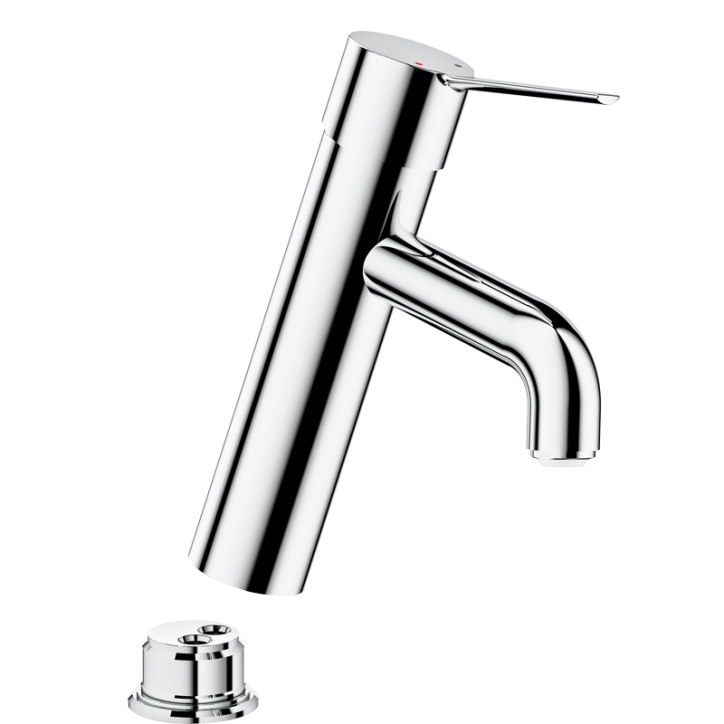

BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a BIOSAFE hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Thermal shocks are possble without removing the control ever or shutting off teh cold water supply.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
Without pop-up waste.
PEX flexibles F3/8" supplied with stopcocks in chrome-plated brass.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tubes.
BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a BIOSAFE hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Thermal shocks are possble without removing the control ever or shutting off teh cold water supply.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Solid control lever.
Without pop-up waste.
PEX flexibles F3/8" supplied with stopcocks in chrome-plated brass.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tubes.
ADVANTAGES
Hygiene: remove for internal cleaning
Hygiene: smooth interior reduces bacteria
Pre-set maximum temperature limiter
Ergonomic: solid lever is easy to grip

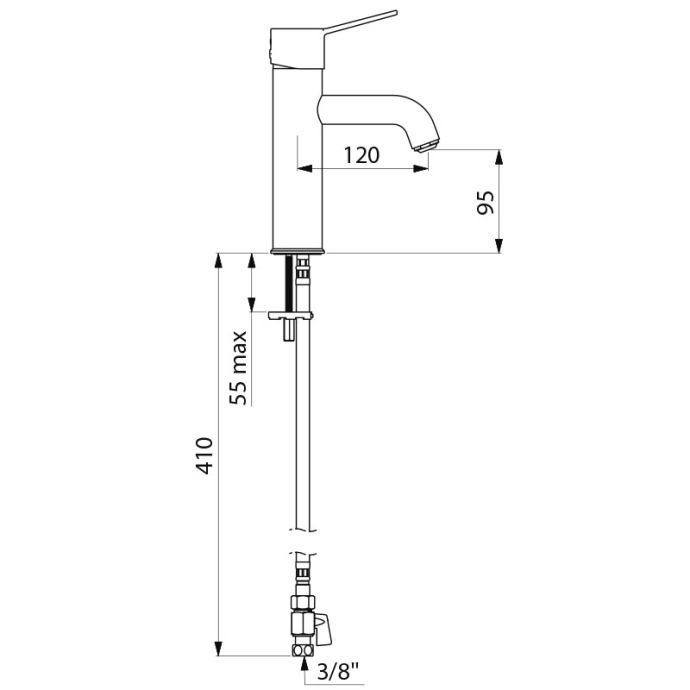

TECHNICAL CHARACTERISTICS
BIOCLIP mechanical basin mixer
Ref. 2821T| Connector | F3/8" |
| Technology | BIOCLIP removable mixer |
| Drop height | 95mm |
| Spout length | 120mm |
| Flow rate | 5 lpm at 3 bar |
| Temperature limiter | Yes |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty |
|
| Repairability |  |

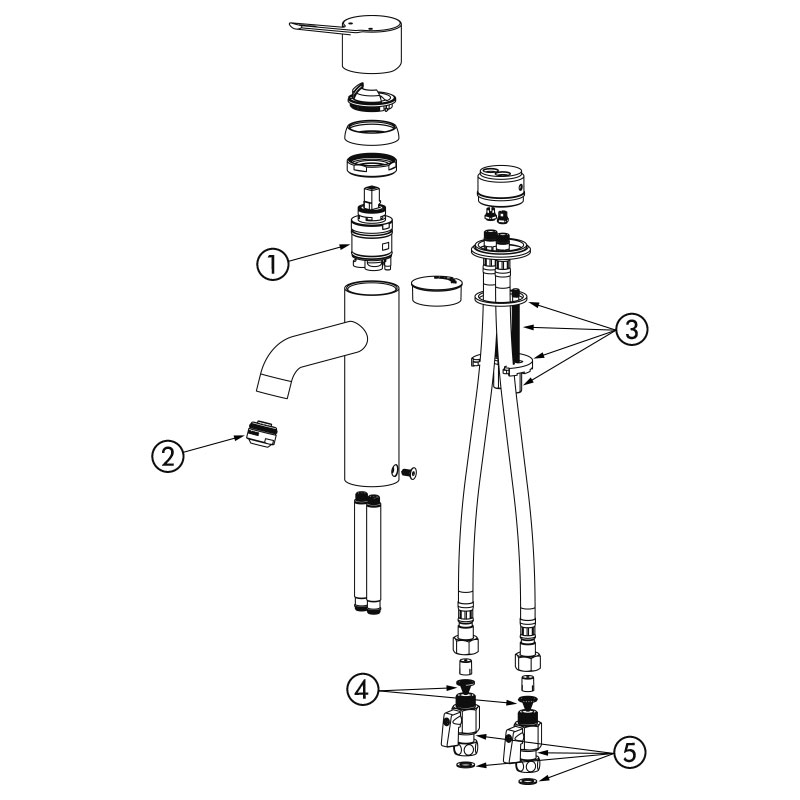

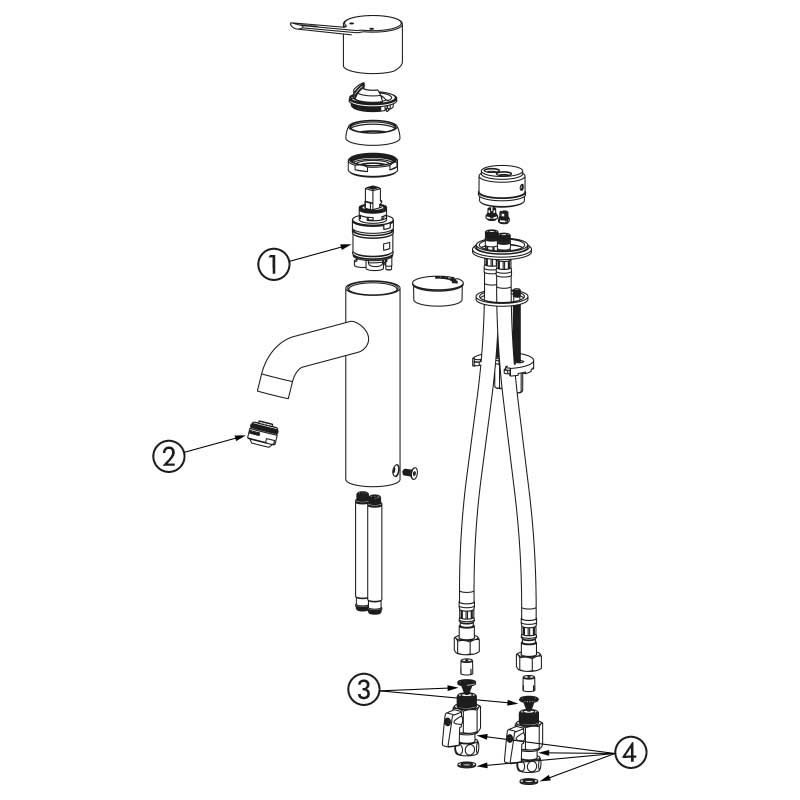

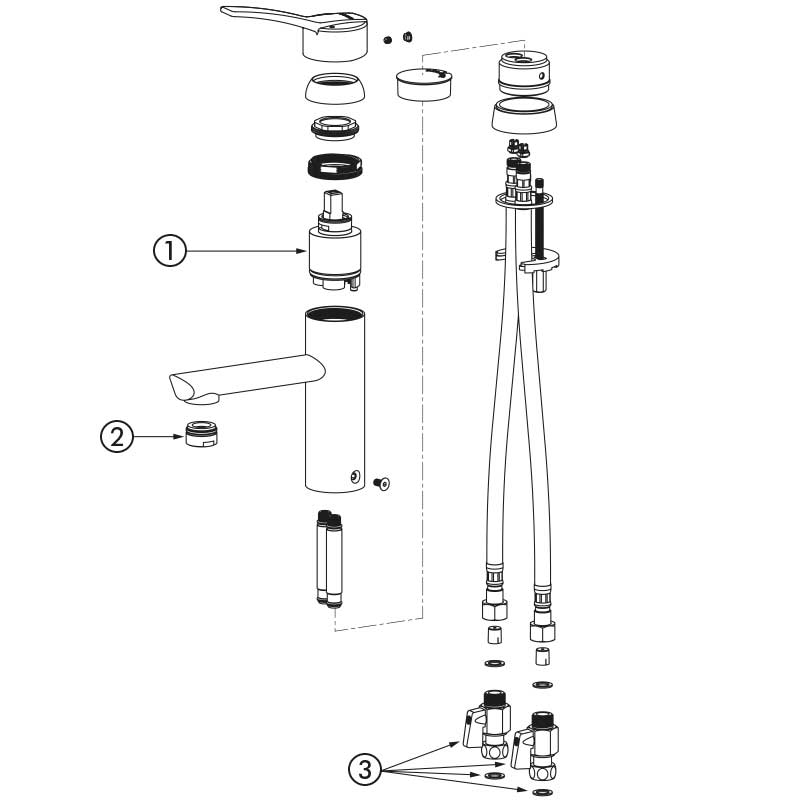

Spare parts
SPARE PARTS
BIOCLIP mechanical basin mixer
Ref. 2821T
| 1. | N009AG75 |
|
Ø40mm ceramic cartridge |
| 2. | 921024.2P |
|
Star-shaped flow straightener |
| 3. | 2510SES |
|
Locking kit |
| 4. | 825212 |
|
In-line STOP union |
VARIANTS
| 2821LEP | EP cartridge - Hygiene lever - no waste - stopcocks - flexibles | ||
|---|---|---|---|
| 2821TEP | EP cartridge - solid lever - no waste - stopcocks - flexibles | ||
| 2820LEP | EP cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | ||
| 2820TEP | EP cartridge - solid lever - pop-up waste - stopcocks - flexibles | ||
| 28211LEP | Ep cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles | ||
| 28211TEP | EP cartridge - solid lever - no pop-up waste, no stopcocks - flexibles | ||
| 28201LEP | EP cartridge, Hygiene lever - pop-up waste - no stopcocks - flexibles | ||
| 28201TEP | EP cartridge - solid lever - pop-up waste - no stopcocks - flexibles | ||
| 2821L | Standard cartridge - Hygiene lever - no waste, stopcocks - flexibles | ||
| 2820L | Std cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | ||
| 2820T | Std cartridge - solid lever - pop-up waste - stopcocks - flexibles | ||
| 28211L | Std cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles | ||
| 28211T | Standard cartridge - solid lever - no waste, no stopcocks - flexibles | ||
| 28201L | Std cartridge, Hygiene lever - pop-up waste - no stopcocks, flexibles | ||
| 28201T | Std cartridge - solid lever - pop-up waste - no stopcocks - flexibles |
Infection control: removable mixer, smooth interior
Associated products
PREMIX NANO thermostatic mixing valve
For mixed water from 34 - 60°C
Ref. 732016
Copper tails
M10 X 1, L. 365mm
Ref. 811610.2P
Wall-mounted liquid soap dispenser, 1 litre
Liquid soap or hydroalcoholic gel dispenser
Ref. 510580
VARIANTS
| 2821LEP | EP cartridge - Hygiene lever - no waste - stopcocks - flexibles | ||
|---|---|---|---|
| 2821TEP | EP cartridge - solid lever - no waste - stopcocks - flexibles | ||
| 2820LEP | EP cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | ||
| 2820TEP | EP cartridge - solid lever - pop-up waste - stopcocks - flexibles | ||
| 28211LEP | Ep cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles | ||
| 28211TEP | EP cartridge - solid lever - no pop-up waste, no stopcocks - flexibles | ||
| 28201LEP | EP cartridge, Hygiene lever - pop-up waste - no stopcocks - flexibles | ||
| 28201TEP | EP cartridge - solid lever - pop-up waste - no stopcocks - flexibles | ||
| 2821L | Standard cartridge - Hygiene lever - no waste, stopcocks - flexibles | ||
| 2820L | Std cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | ||
| 2820T | Std cartridge - solid lever - pop-up waste - stopcocks - flexibles | ||
| 28211L | Std cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles | ||
| 28211T | Standard cartridge - solid lever - no waste, no stopcocks - flexibles | ||
| 28201L | Std cartridge, Hygiene lever - pop-up waste - no stopcocks, flexibles | ||
| 28201T | Std cartridge - solid lever - pop-up waste - no stopcocks - flexibles |
Infection control: removable mixer, smooth interior
