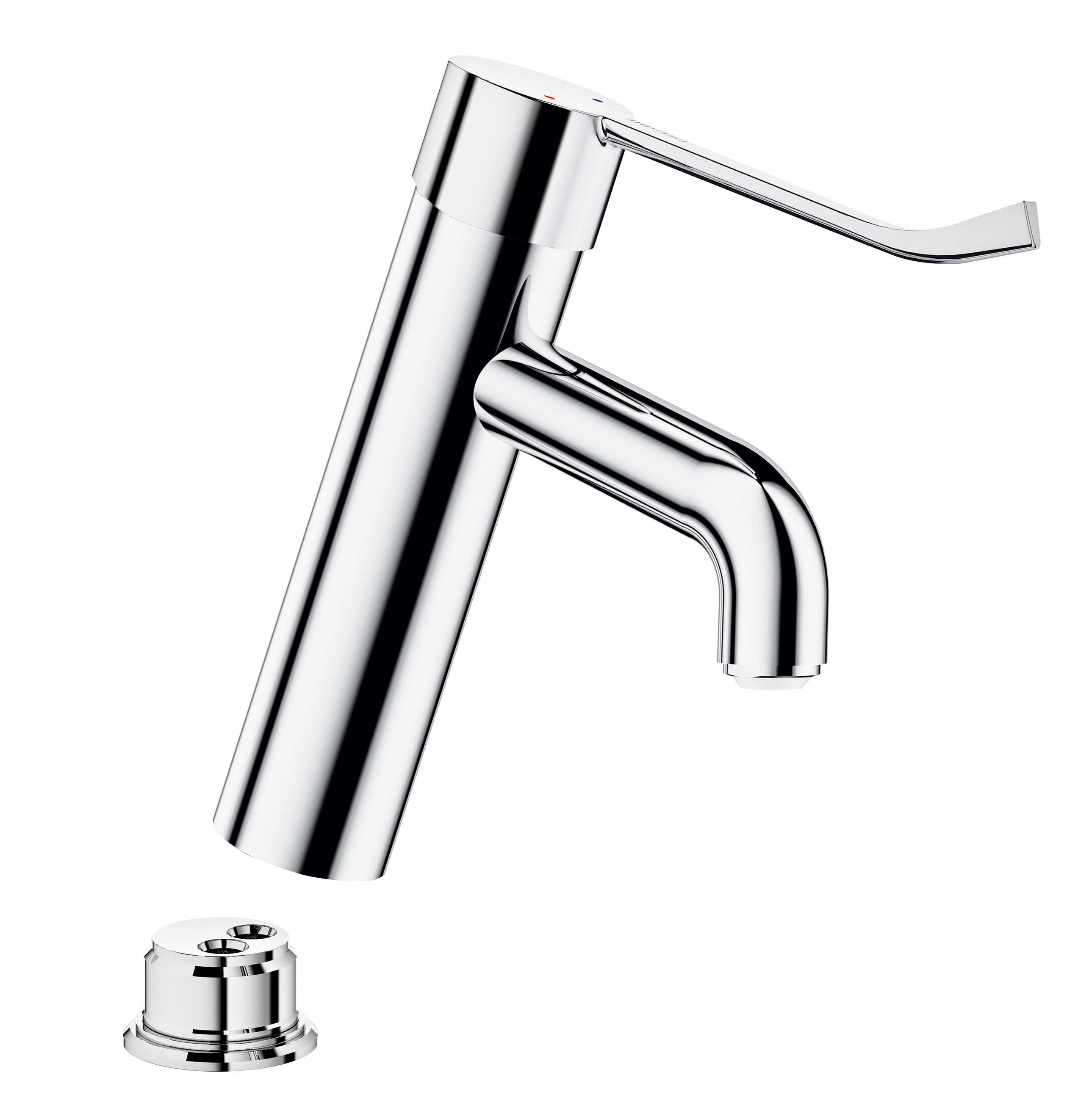

BIOCLIP mechanical basin mixer
Ref. 28211L
Single hole removable mechanical mixer H.95mm L.120mm, Hygiene lever
Single hole removable mechanical mixer H.95mm L.120mm, Hygiene lever
DESCRIPTION
BIOCLIP mechanical basin mixer
Ref. 28211LDeck-mounted mechanical basin mixer.
BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a BIOSAFE hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Thermal shocks are possible without removing the control ever or shutting off the cold water supply.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Hygiene control lever L. 150mm.
With no pop-up waste.
F3/8" PEX flexibles.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tails.
BIOCLIP mechanical mixer: mixer can be removed entirely for cleaning and disinfection.
Single hole mixer with spout H. 95mm L. 120mm fitted with a BIOSAFE hygienic flow straightener.
Spout suitable for fitting a BIOFIL point-of-use filter.
Ø 35mm ceramic cartridge with pre-set maximum temperature limiter.
Thermal shocks are possible without removing the control ever or shutting off the cold water supply.
Body and spout with smooth interiors and low water volume.
Flow rate limited to 5 lpm at 3 bar.
Hygiene control lever L. 150mm.
With no pop-up waste.
F3/8" PEX flexibles.
Fixing reinforced via 2 stainless steel rods.
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Also available with copper tails.
ADVANTAGES
Hygiene: remove for internal cleaning
Hygiene: smooth interior reduces bacteria
Pre-set maximum temperature limiter
Hygiene control lever: no manual contact

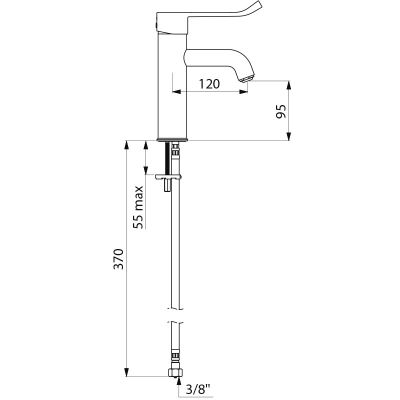

TECHNICAL CHARACTERISTICS
BIOCLIP mechanical basin mixer
Ref. 28211LConnector | F3/8" |
Technology | BIOCLIP removable mixer |
Drop height | 95mm |
Spout length | 120mm |
Flow rate | 5 lpm at 3 bar |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

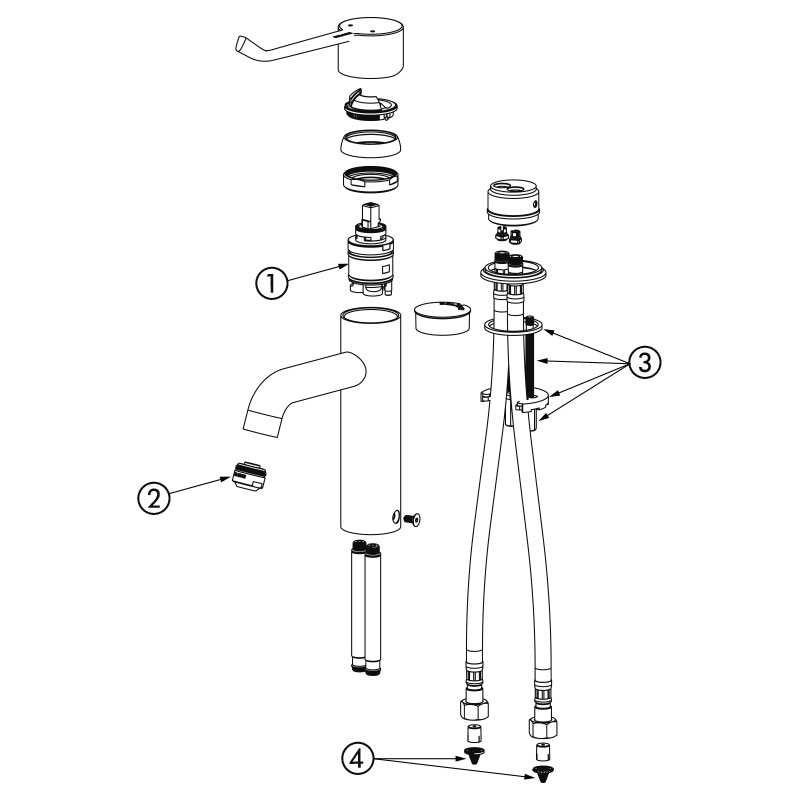

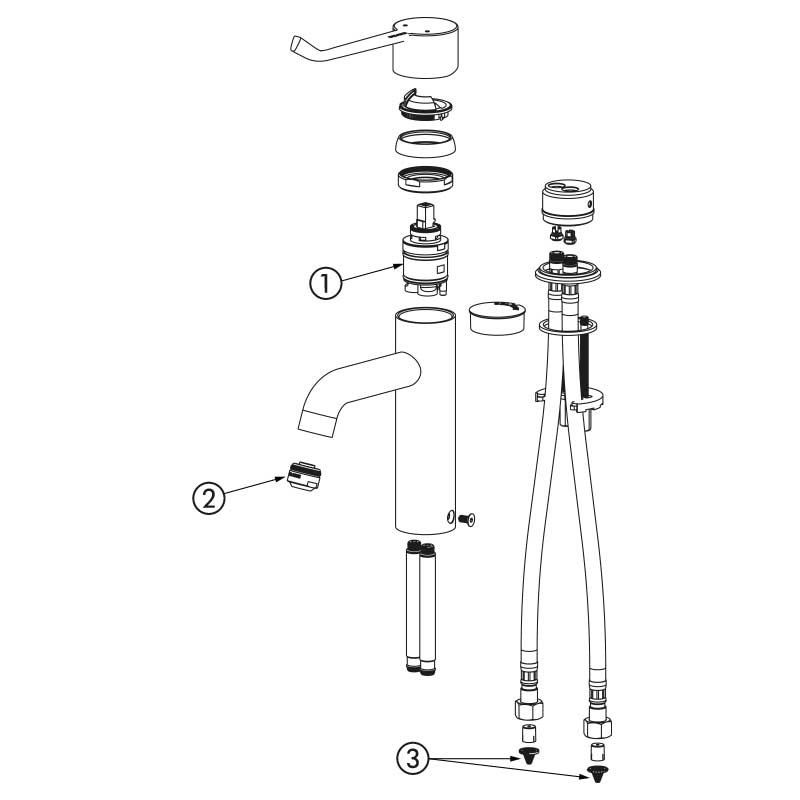

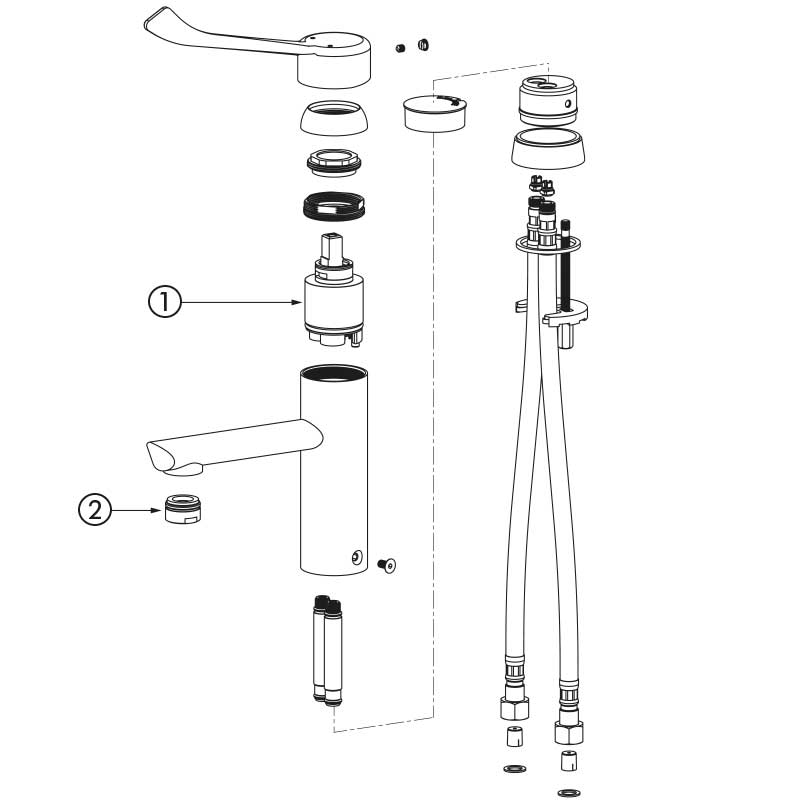

SPARE PARTS
BIOCLIP mechanical basin mixer
Ref. 28211L1. | N009AG75 |
|
Ø40mm ceramic cartridge |
2. | 921024.2P |
|
Star-shaped flow straightener |
3. | 2510SES |
|
Locking kit |
VARIANTS
2821LEP | EP cartridge - Hygiene lever - no waste - stopcocks - flexibles | ||
---|---|---|---|
2821TEP | EP cartridge - solid lever - no waste - stopcocks - flexibles | ||
2820LEP | EP cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | ||
2820TEP | EP cartridge - solid lever - pop-up waste - stopcocks - flexibles | ||
28211LEP | Ep cartridge - Hyg lever - no pop-up waste - no stopcocks - flexibles | ||
28211TEP | EP cartridge - solid lever - no pop-up waste, no stopcocks - flexibles | ||
28201LEP | EP cartridge, Hygiene lever - pop-up waste - no stopcocks - flexibles | ||
28201TEP | EP cartridge - solid lever - pop-up waste - no stopcocks - flexibles | ||
2821L | Standard cartridge - Hygiene lever - no waste, stopcocks - flexibles | ||
2821T | Standard cartridge - solid lever - no waste - stopcocks - flexibles | ||
2820L | Std cartridge - Hygiene lever - pop-up waste - stopcocks - flexibles | ||
2820T | Std cartridge - solid lever - pop-up waste - stopcocks - flexibles | ||
28211T | Standard cartridge - solid lever - no waste, no stopcocks - flexibles | ||
28201L | Std cartridge, Hygiene lever - pop-up waste - no stopcocks, flexibles | ||
28201T | Std cartridge - solid lever - pop-up waste - no stopcocks - flexibles |
