DESCRIPTION

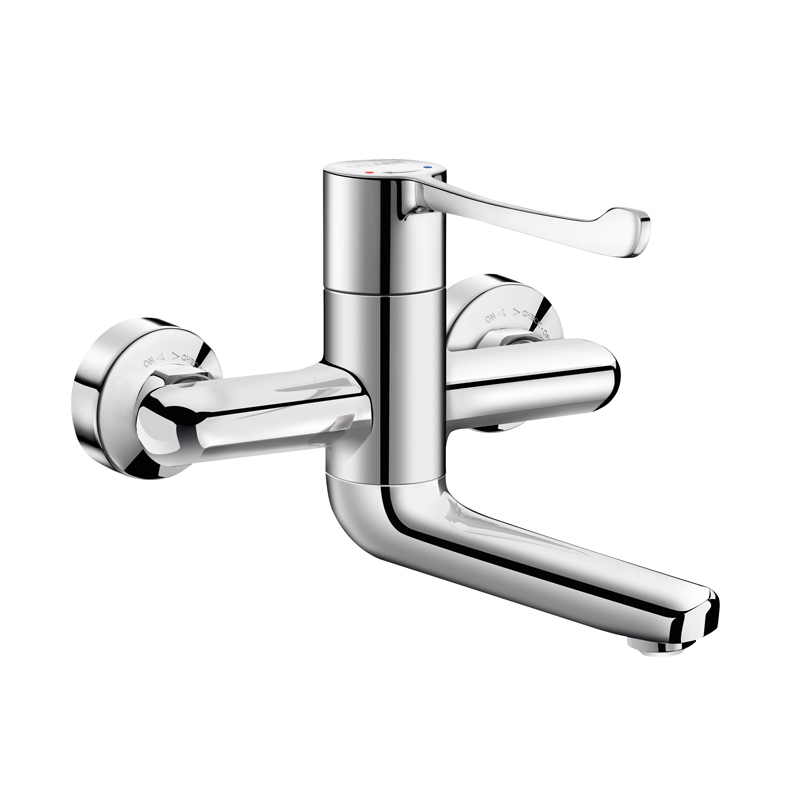

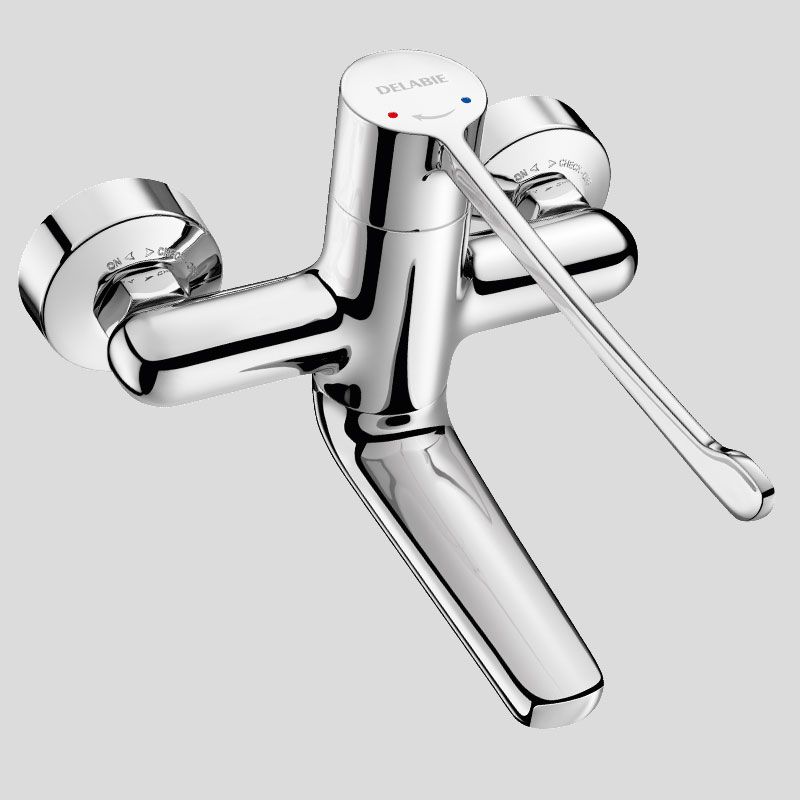

Sequential mechanical basin mixer
Ref. 2640Wall-mounted sequential mechanical basin mixer.
Sequential mechanical mixer: opens and closes with cold water, with 70° lever turning range.
Wall-mounted mixer with swivelling under spout L. 120mm with hygienic BIOSAFE outlet.
Spout suitable for fitting a BIOFIL point-of-use filter.
Spout can be easily fixed in place.
Securitouch thermal insulation prevents burns.
Ø 35mm standard ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with narrow tubes with smooth interiors and very low water volume reduces bacterial development.
The speed of the water in the tubes reduces biofilm development considerably.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Flow rate regulated at 4 lpm.
Chrome-plated brass body.
Hygiene control lever L. 150mm requires no manual contact.
Mixer with 150mm centres supplied with offset STOP/CHECK wall connectors M1/2" M3/4" ideal for hospitals.
Recommended installation height: 100 - 200mm above the work surface.
Mechanical mixer ideal for Healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Sequential mechanical mixer: opens and closes with cold water, with 70° lever turning range.
Wall-mounted mixer with swivelling under spout L. 120mm with hygienic BIOSAFE outlet.
Spout suitable for fitting a BIOFIL point-of-use filter.
Spout can be easily fixed in place.
Securitouch thermal insulation prevents burns.
Ø 35mm standard ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with narrow tubes with smooth interiors and very low water volume reduces bacterial development.
The speed of the water in the tubes reduces biofilm development considerably.
Thermal shocks are possible without removing the control lever or shutting off the cold water supply.
Flow rate regulated at 4 lpm.
Chrome-plated brass body.
Hygiene control lever L. 150mm requires no manual contact.
Mixer with 150mm centres supplied with offset STOP/CHECK wall connectors M1/2" M3/4" ideal for hospitals.
Recommended installation height: 100 - 200mm above the work surface.
Mechanical mixer ideal for Healthcare facilities, retirement and care homes, hospitals and clinics.
Sequential mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES
Sequential: opens/closes with cold water
Thermal shocks are possible without removing lever
Maximum hygiene: reduced biofilm
Spout can be fixed or swivel
TECHNICAL CHARACTERISTICS
Sequential mechanical basin mixer
Ref. 2640Connector | M1/2" |
Technology | BIOSAFE sequential mechanical mixer |
Spout length | 120mm |
Flow rate | 4 lpm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

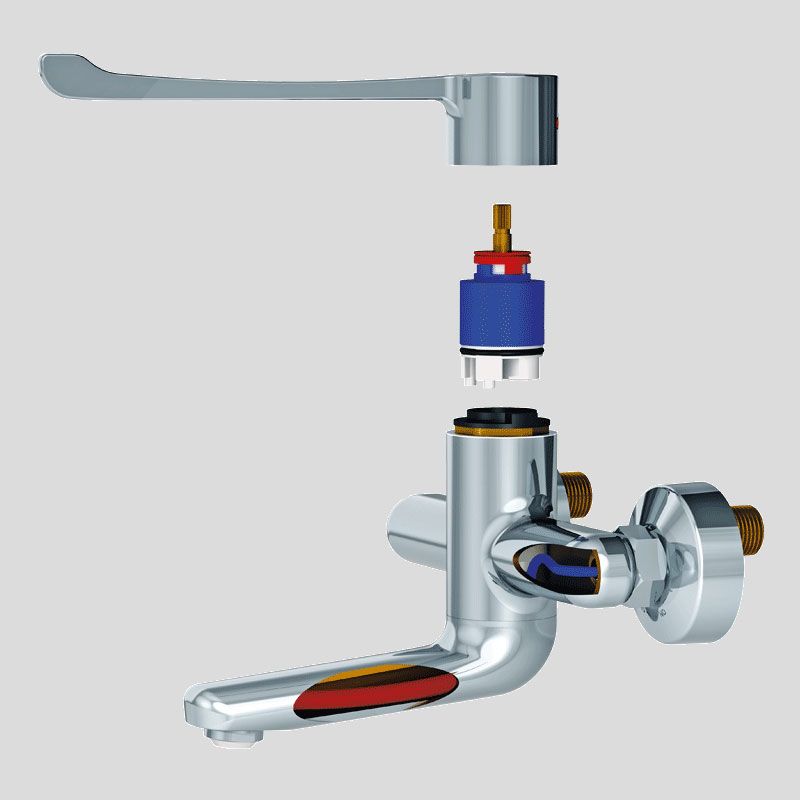

SPARE PARTS
Sequential mechanical basin mixer
Ref. 26401. | N243 |
|
Ø35mm ceramic sequential cartridge |
2. | 855755.2P |
|
Offset connectors |
3. | 922640 |
|
BIOSAFE hygienic outlet M24/100 |
VARIANTS
2644P | Spout L. 120mm - In-line STOP/CHECK connectors, 200mm centres | ||
---|---|---|---|
2640P | Spout L. 120mm - STOP/CHECK inline connectors, 150mm centres | ||
2641 | Spout L. 200mm - STOP/CHECK offset connectors, 150mm centres | ||
2640S | Spout L. 120mm - standard offset connectors, 150mm centres | ||
2641S | Spout L. 200mm - standard offset connectors, 150mm centres |
VARIANTS
2644P | Spout L. 120mm - In-line STOP/CHECK connectors, 200mm centres | ||
---|---|---|---|
2640P | Spout L. 120mm - STOP/CHECK inline connectors, 150mm centres | ||
2641 | Spout L. 200mm - STOP/CHECK offset connectors, 150mm centres | ||
2640S | Spout L. 120mm - standard offset connectors, 150mm centres | ||
2641S | Spout L. 200mm - standard offset connectors, 150mm centres |
