Mechanical mixer with retracting hand spray

Ref. 2597

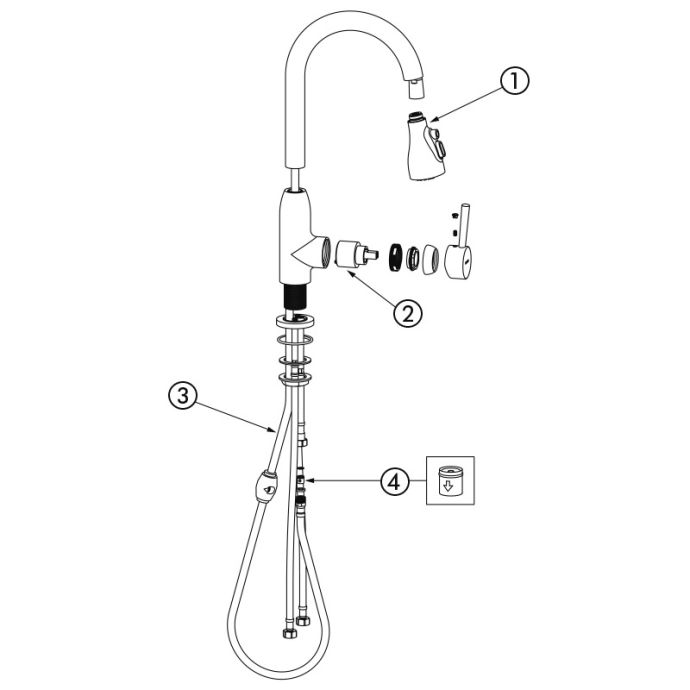

Single hole mechanical mixer with retracting hand spray
Mechanical mixer with retracting hand spray

Presentation

DESCRIPTION

Mechanical mixer with retracting hand spray

Ref. 2597

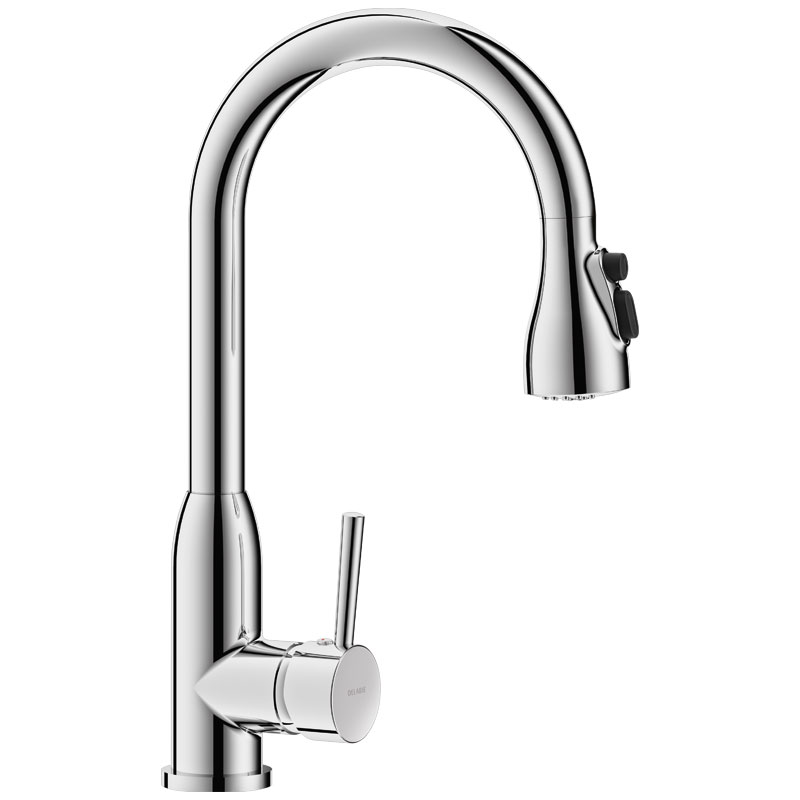

Deck-mounted mechanical mixer with retracting hand spray.
Single hole mixer with swivelling swan neck spout H. 210mm L. 210mm.
Mechanical mixer with scale resistant hand spray with 3 spray options: laminar flow, rain-effect and blade.
Ø 40mm standard ceramic cartridge with pre-set maximum temperature limiter.
Flow rate 5 lpm at 3 bar.
Chrome-plated brass body and slimline control lever.

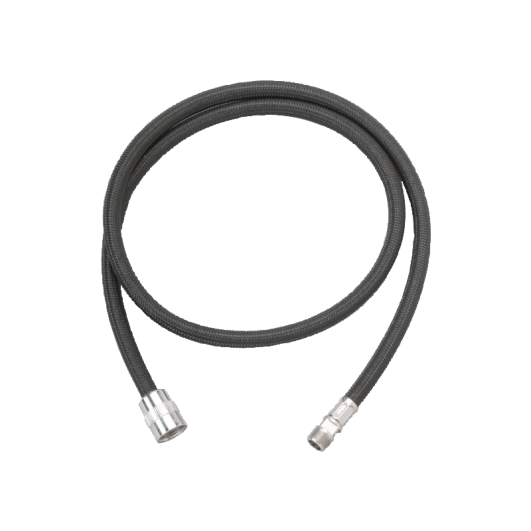

Hand spray for sinks with Nylon flexible hose with integrated non-return valve.
F3/8” PEX flexibles .
Fixed via back nut.
Mixer with 30-year warranty.

ADVANTAGES

Confort - Ergonomie - Déclenchement souple

Comfort: mixer and retracting hand set with 3 jets

Confort - Ergonomie - Déclenchement souple

Ergonomic: slimline control lever is easy to grip

Anti-vandalisme

Increased durability: chrome-plated brass

Anti-vandalisme

Increased durability: fixed via back-nut

Characteristics

TECHNICAL CHARACTERISTICS

Mechanical mixer with retracting hand spray

Ref. 2597
Connector F3/8"

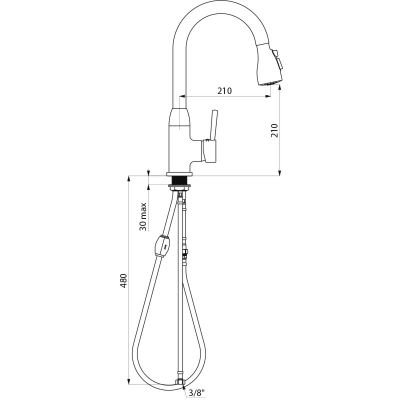

Height 408mm
Drop height 210mm
Spout length 210mm
Flow rate 5 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
Mechanical mixer with retracting hand spray
Ref. 2597

Downloads

DOWNLOADS

Mechanical mixer with retracting hand spray

Ref. 2597

To download one or several documents linked to this product, please select the type of file you require :
