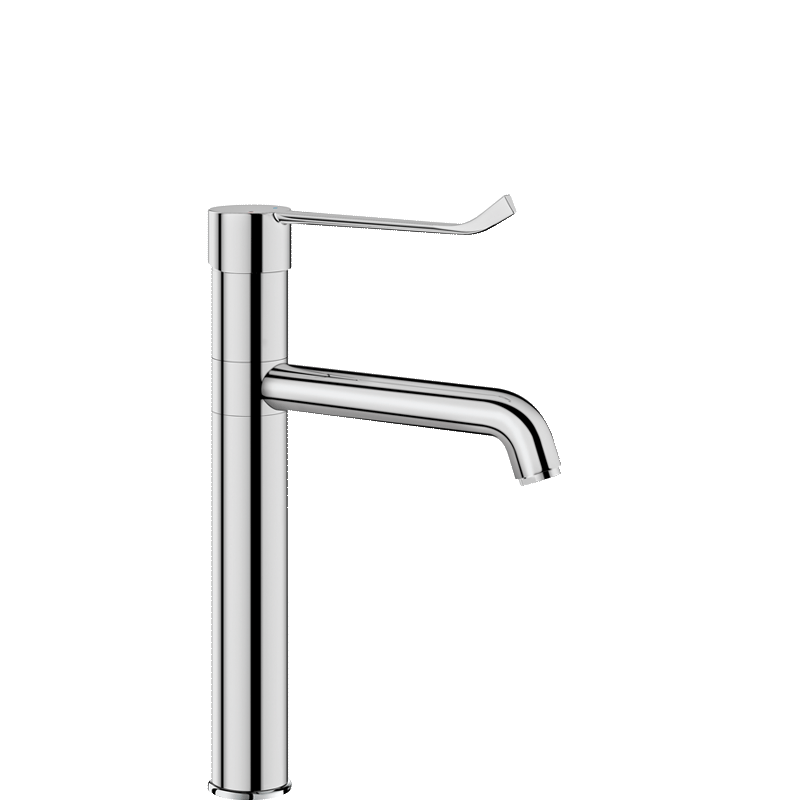

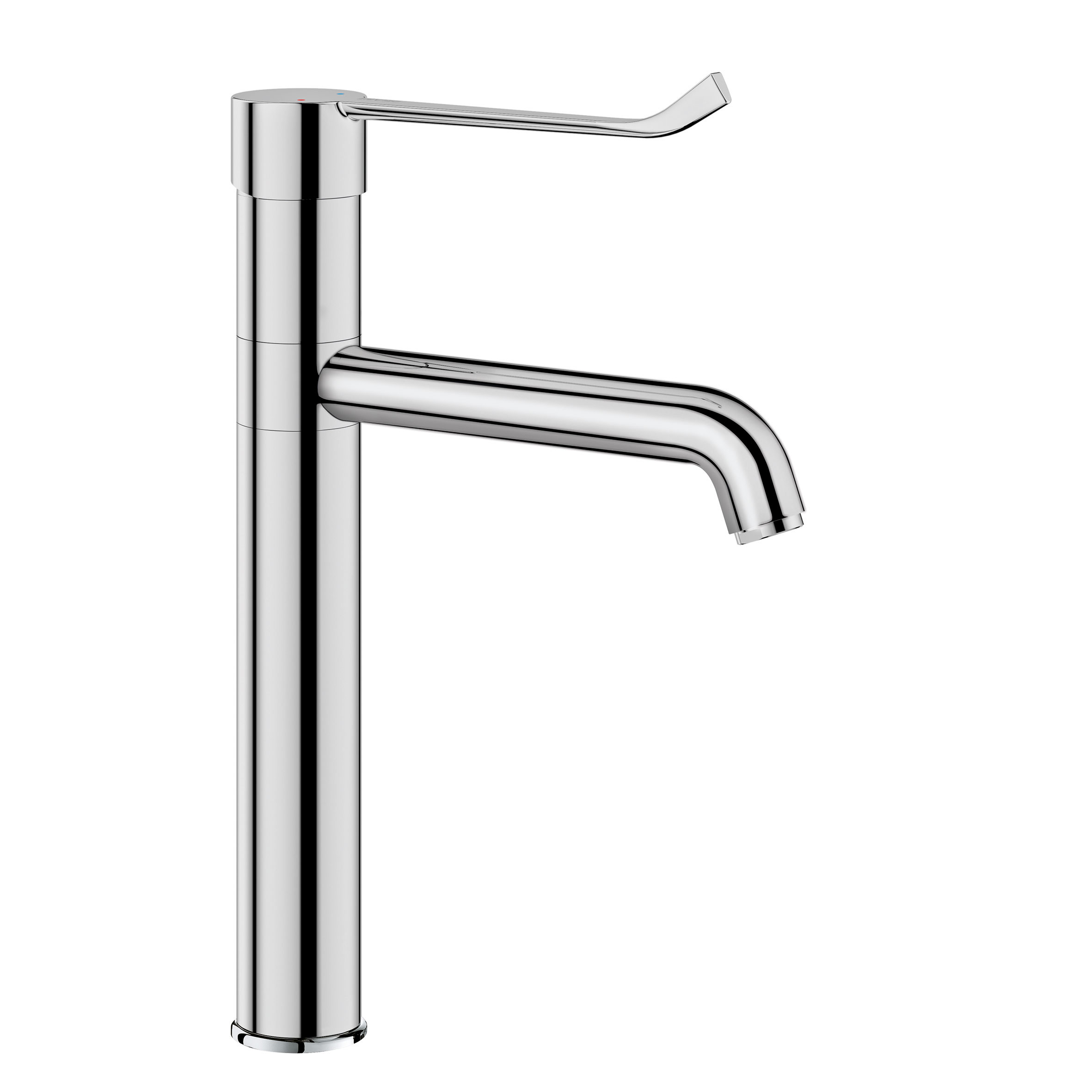

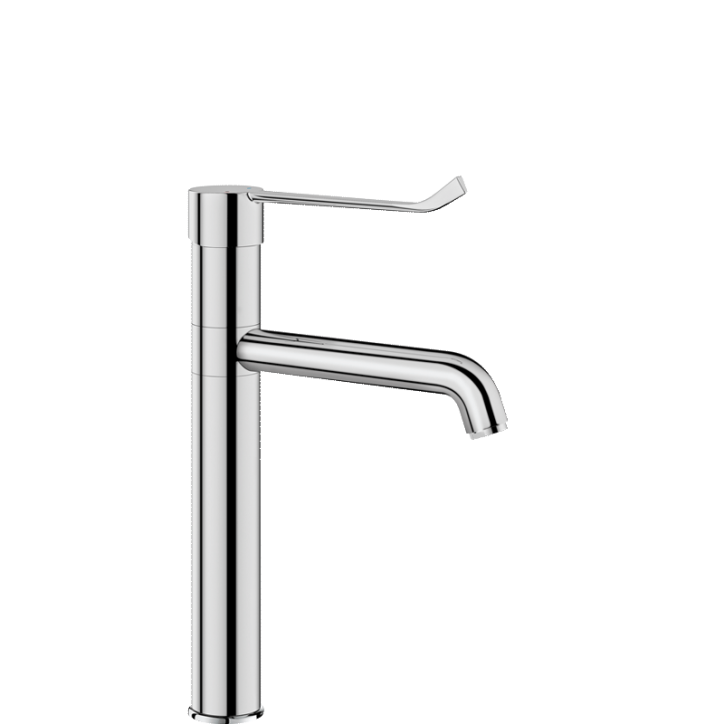

SECURITHERM EP pressure-balancing basin mixer
Ref. 2564T5EP
Single hole, single control tall mixer with EP cartridge
Single hole, single control tall mixer with EP cartridge
DESCRIPTION
SECURITHERM EP pressure-balancing basin mixer
Ref. 2564T5EPDeck-mounted SECURITHERM basin mixer with pressure-balancing.
Single hole, single control mixer with swivelling spout H. 205mm L. 170mm.
Tall mixer with BIOSAFE hygienic outlet suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow reduces if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic cartridge with pressure balancing with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water.
Flow rate regulated at 5 lpm.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Fixings reinforced via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Single hole, single control mixer with swivelling spout H. 205mm L. 170mm.
Tall mixer with BIOSAFE hygienic outlet suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow reduces if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic cartridge with pressure balancing with pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water.
Flow rate regulated at 5 lpm.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Fixings reinforced via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES
EP: HW flow reduces if CW supply fails
EP: reduces pressure variations
Thermal shocks are possible without removing lever
Hygiene: smooth interior reduces bacteria

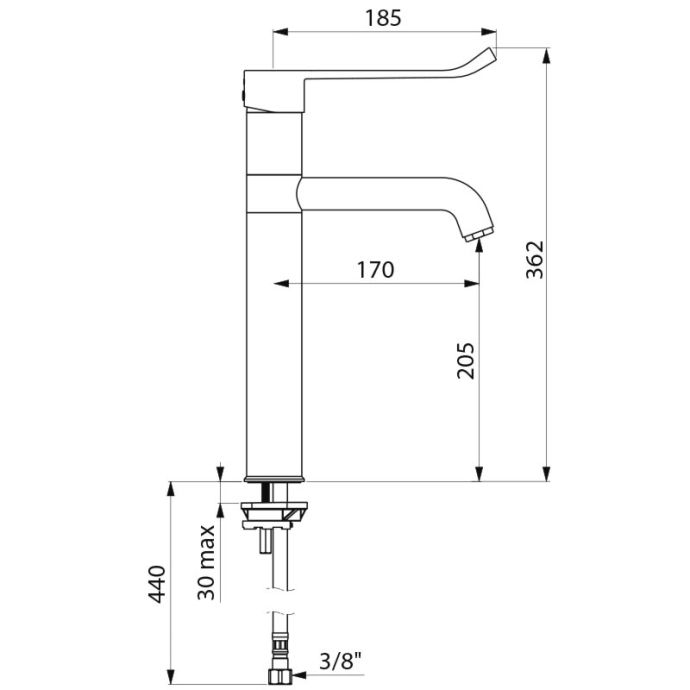

TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing basin mixer
Ref. 2564T5EPConnector | F3/8" |
Technology | SECURITHERM EP mixer |
Height | 362mm |
Drop height | 205mm |
Spout length | 170mm |
Flow rate | 5 lpm |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty |
VARIANTS
2565T5EP | EP cartridge - fixed spout H. 205mm L. 170mm | ||
---|---|---|---|
2564T1EP | EP cartridge - swivelling spout H. 165mm L. 140mm | ||
2565T1EP | EP cartridge - fixed spout H. 165mm L. 140mm | ||
2564T2EP | EP cartridge - swivelling spout H. 165mm L. 220mm | ||
2564T5 | Standard cartridge - swivelling spout H. 205mm L. 170mm | ||
2565T5 | Standard cartridge - fixed spout H. 205mm L. 170mm | ||
2564T1 | Standard cartridge - swivelling spout H. 165mm L. 140mm | ||
2565T1 | Standard cartridge - fixed spout H. 165mm L. 140mm | ||
2564T2 | Standard cartridge - swivelling spout H. 165mm L. 220mm |
VARIANTS
2565T5EP | EP cartridge - fixed spout H. 205mm L. 170mm | ||
---|---|---|---|
2564T1EP | EP cartridge - swivelling spout H. 165mm L. 140mm | ||
2565T1EP | EP cartridge - fixed spout H. 165mm L. 140mm | ||
2564T2EP | EP cartridge - swivelling spout H. 165mm L. 220mm | ||
2564T5 | Standard cartridge - swivelling spout H. 205mm L. 170mm | ||
2565T5 | Standard cartridge - fixed spout H. 205mm L. 170mm | ||
2564T1 | Standard cartridge - swivelling spout H. 165mm L. 140mm | ||
2565T1 | Standard cartridge - fixed spout H. 165mm L. 140mm | ||
2564T2 | Standard cartridge - swivelling spout H. 165mm L. 220mm |
