DESCRIPTION

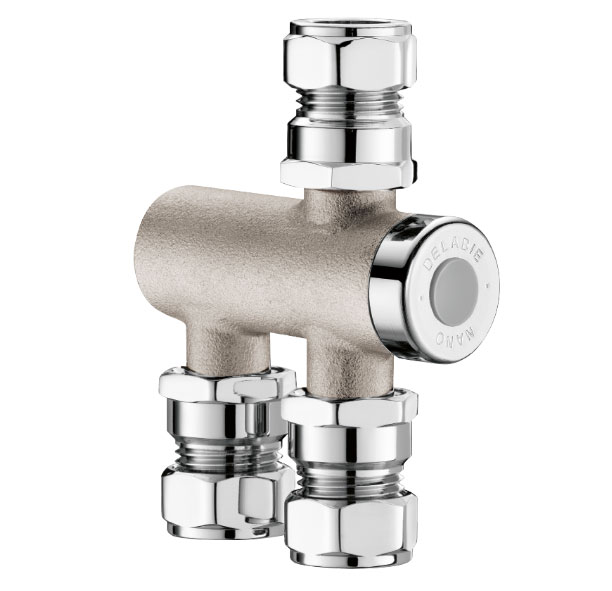

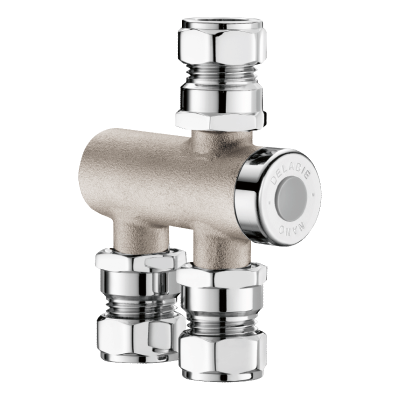

PREMIX NANO thermostatic mixing valve
Ref. 732115Hot water thermostatic mixing valve for mixed water distribution from 34 - 60°C:
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Brass body.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Nickel-plated brass body M½" inlets and Ø 15mm conical outlets.
30-year warranty.
For 1 - 2 taps or 1 shower.
Anti-scalding safety: immediate shut-off if cold or hot water fails.
Temperature pre-set at 38°C, can be adjusted by the installer from 34 - 60°C.
Brass body.
Filters and non-return valves.
Minimum flow rate to operate: 3 lpm.
Thermal shocks are possible.
Nickel-plated brass body M½" inlets and Ø 15mm conical outlets.
30-year warranty.
ADVANTAGES
![Sécurité anti-brûlure](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/4/1/3/3141-12-eng-US/antibrulure.png)
Automatic shut-off if hot or cold water fails
![Confort - Ergonomie - Déclenchement souple](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/0/9/2/2903-13-eng-US/confort.png)
Stable temperature
![Maintenance aisée - Installation aisée](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)

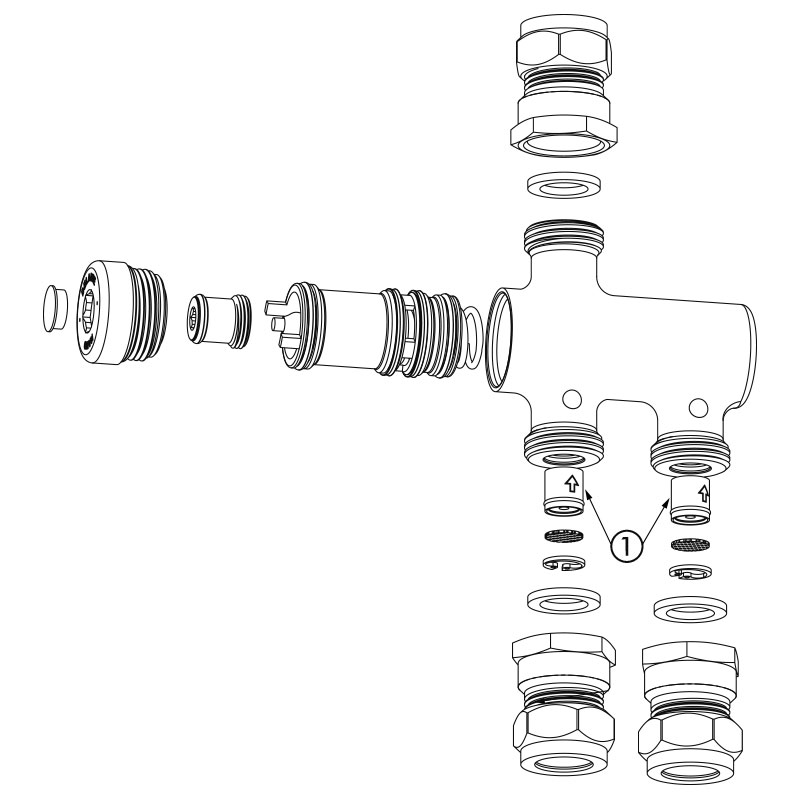

Non-return valves and filters easily accessible
![Endurance - Fiabilité](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/3/7/9/2/2973-12-eng-US/endurance.png)
Thermo-reactive cell
TECHNICAL CHARACTERISTICS
PREMIX NANO thermostatic mixing valve

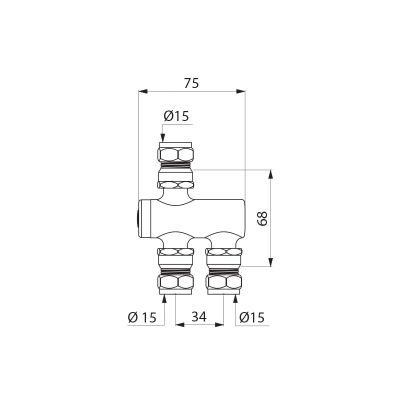

Ref. 732115Connector | M½" Ø 15mm |
Technology | Thermostatic |
Height | 70mm |
Finish | Nickel-plated |
Certificates |
![]() ![]() ![]() |
Warranty | ![]() |
VARIANTS
732012 | Nickel-plated body - Ø 15mm compression fittings | ||
---|---|---|---|
732016 | Chrome-plated body - Ø 15mm compression fittings | ||
732116 | Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8" | ||
732216 | Chrome-plated body - HW inlet F3/8" & CW inlet M3/8", MW outlet M3/8" | ||
732230 | Chrome - HW F3/8" & CW M3/8", MW outlet M3/8" + connection kit 3/8" |
