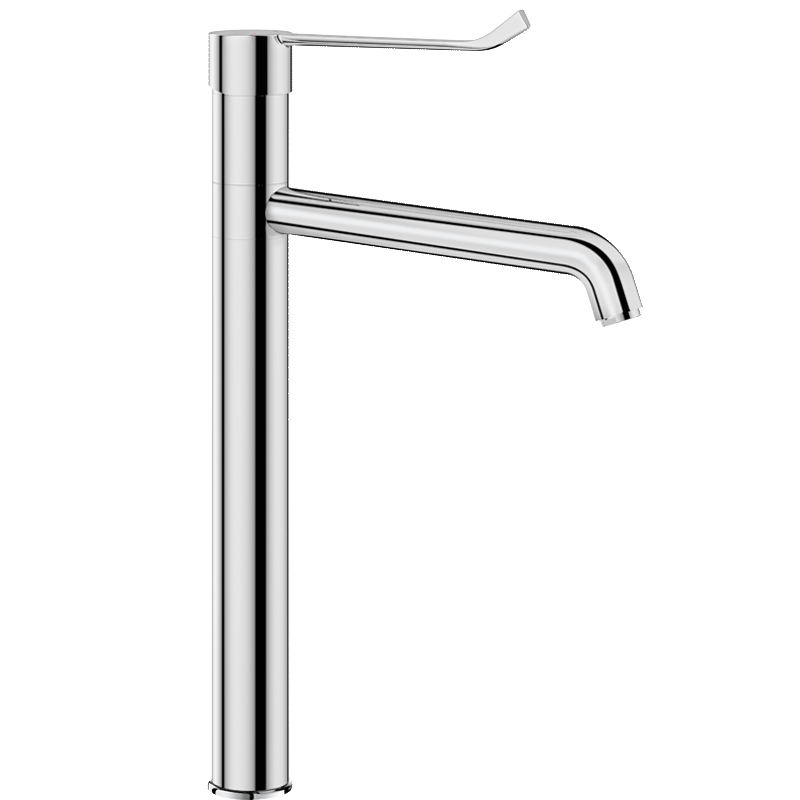

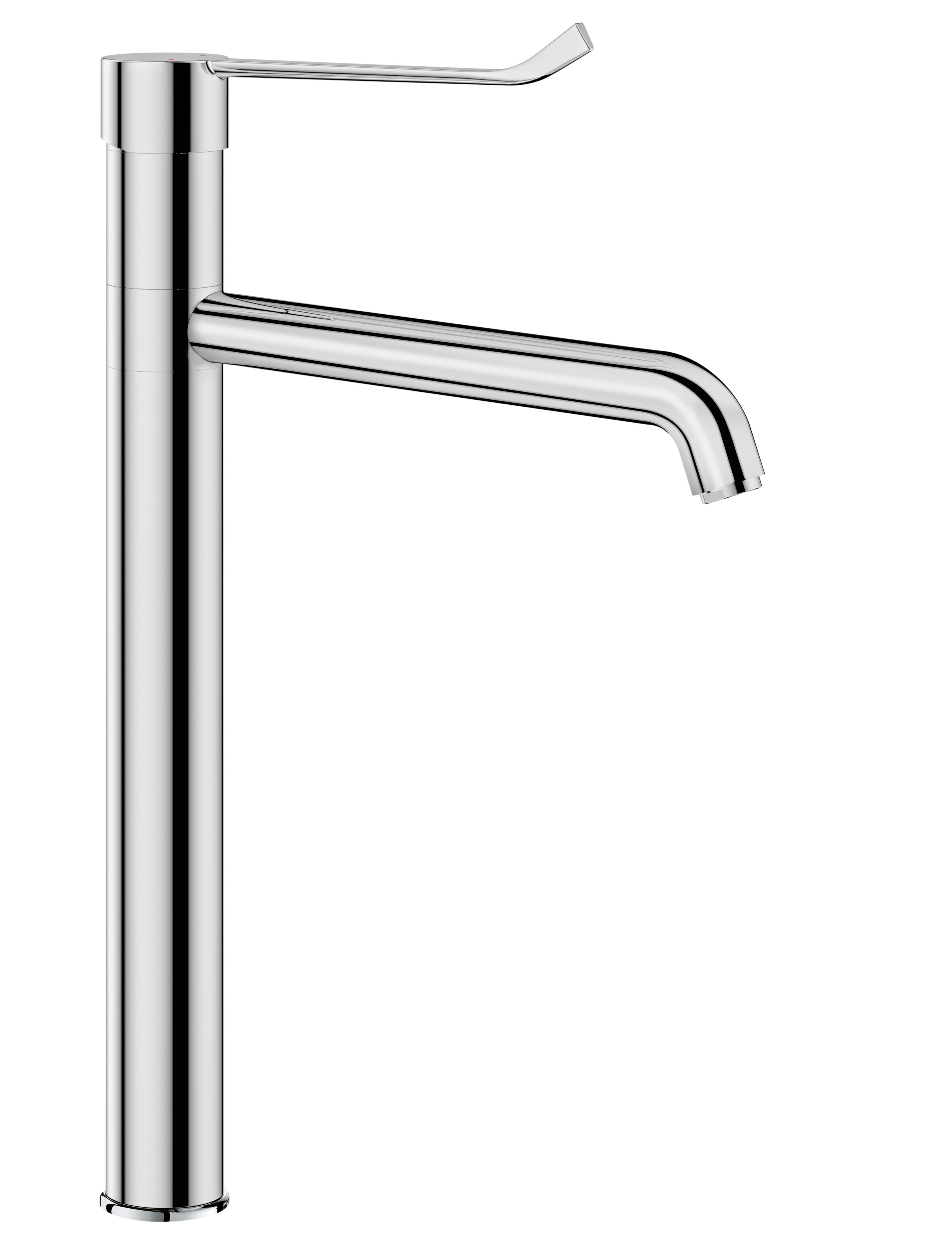

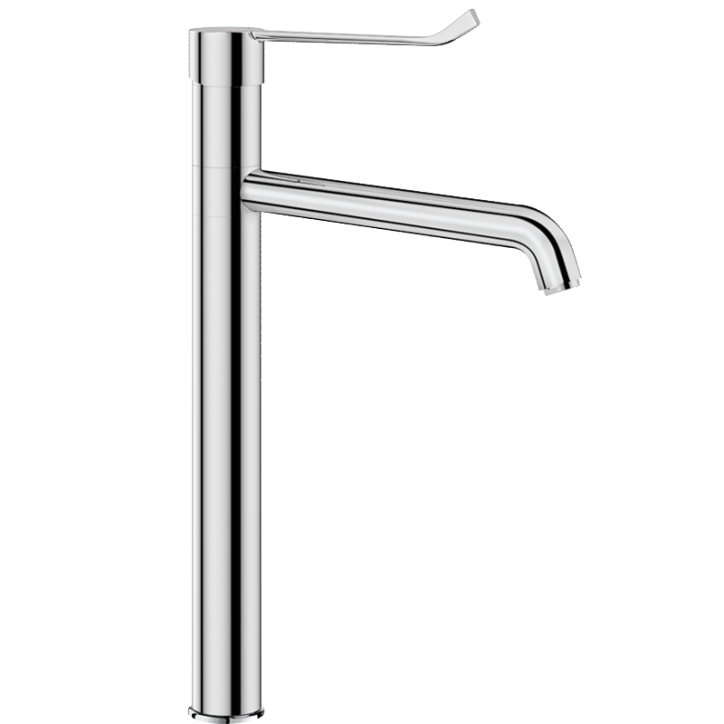

SECURITHERM EP pressure-balancing sink mixer
Ref. 2564T4EP
Tall single hole, single control mixer with EP cartridge
Tall single hole, single control mixer with EP cartridge
DESCRIPTION
SECURITHERM EP pressure-balancing sink mixer
Ref. 2564T4EPDeck-mounted SECURITHERM sink mixer with pressure-balancing.
Single hole, single control mixer with swivelling spout H. 305mm L. 220mm.

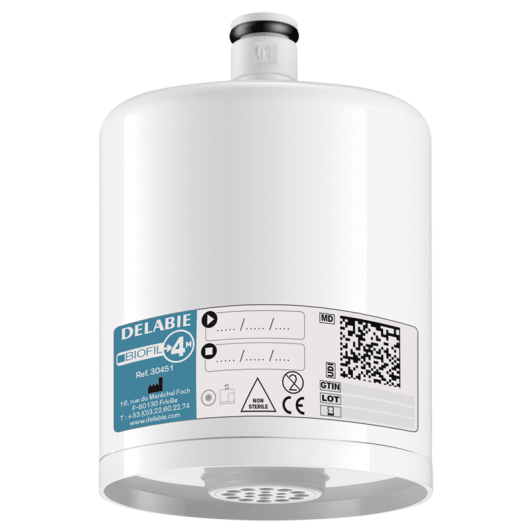

Tall mixer with hygienic flow straightener suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow reduces if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic cartridge with pressure balancing and pre-set maximum temperature limiter.

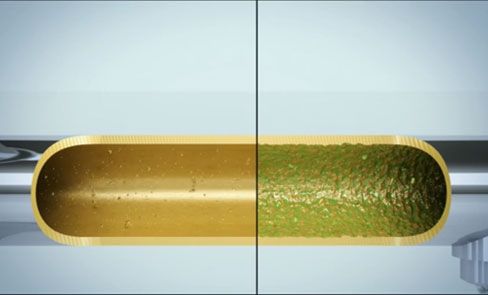

Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water.
Flow rate limited to 9 lpm at 3 bar.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Fixings reinforced via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
Single hole, single control mixer with swivelling spout H. 305mm L. 220mm.
Tall mixer with hygienic flow straightener suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow reduces if CW supply fails (and vice versa).
Stable temperature regardless of pressure and flow rate variations in the system.
Ø 35mm ceramic cartridge with pressure balancing and pre-set maximum temperature limiter.
Body and spout with smooth interiors (reduces bacterial development).
Thermal shocks are possible without removing the control lever or shutting off the cold water.
Flow rate limited to 9 lpm at 3 bar.
Chrome-plated brass body and base.
Hygiene control lever L. 185mm requires no manual contact.
PEX flexibles F3/8" with filters and non-return valves.
Fixings reinforced via 2 stainless steel rods.
Mechanical mixer with pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
Mixer with 30-year warranty.
ADVANTAGES
EP: HW flow reduces if CW supply fails
EP: reduces pressure variations
Thermal shocks are possible without removing lever
Hygiene: smooth interior reduces bacteria

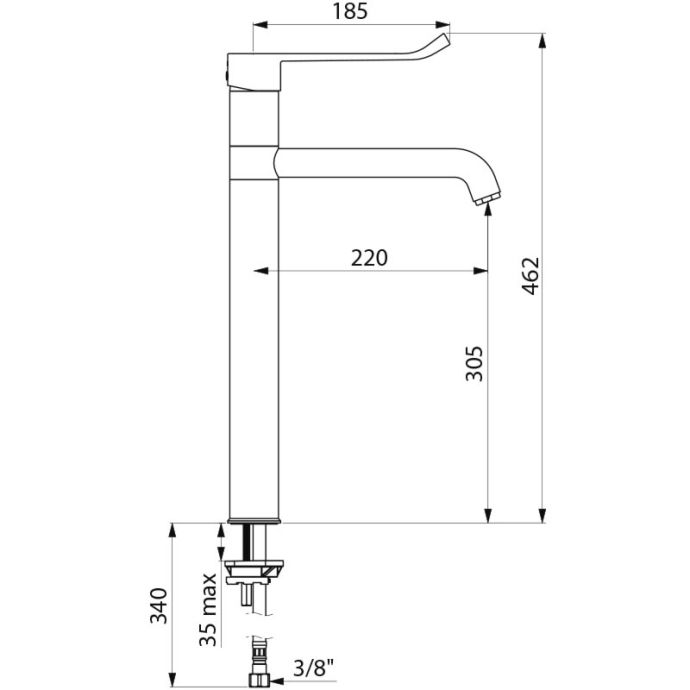

TECHNICAL CHARACTERISTICS
SECURITHERM EP pressure-balancing sink mixer
Ref. 2564T4EPConnector | F3/8" |
Technology | SECURITHERM EP |
Height | 462mm |
Drop height | 305mm |
Spout length | 220mm |
Flow rate | 9 lpm at 3 bar |
Temperature limiter | Yes |
Finish | Chrome-plated brass |
Certificates | |
Warranty |
VARIANTS
2565T3 | Standard cartridge - fixed spout H. 305mm L. 140mm | ||
---|---|---|---|
2564T3EP | EP cartridge - swivelling spout H. 305mm L. 140mm | ||
2564T3 | Standard cartridge - swivelling spout H. 305mm L. 140mm | ||
2564T4 | Standard cartridge - swivelling spout H. 305mm L. 220mm | ||
2565T3EP | EP cartridge - fixed spout H. 305mm L. 140mm |
VARIANTS
2565T3 | Standard cartridge - fixed spout H. 305mm L. 140mm | ||
---|---|---|---|
2564T3EP | EP cartridge - swivelling spout H. 305mm L. 140mm | ||
2564T3 | Standard cartridge - swivelling spout H. 305mm L. 140mm | ||
2564T4 | Standard cartridge - swivelling spout H. 305mm L. 220mm | ||
2565T3EP | EP cartridge - fixed spout H. 305mm L. 140mm |
