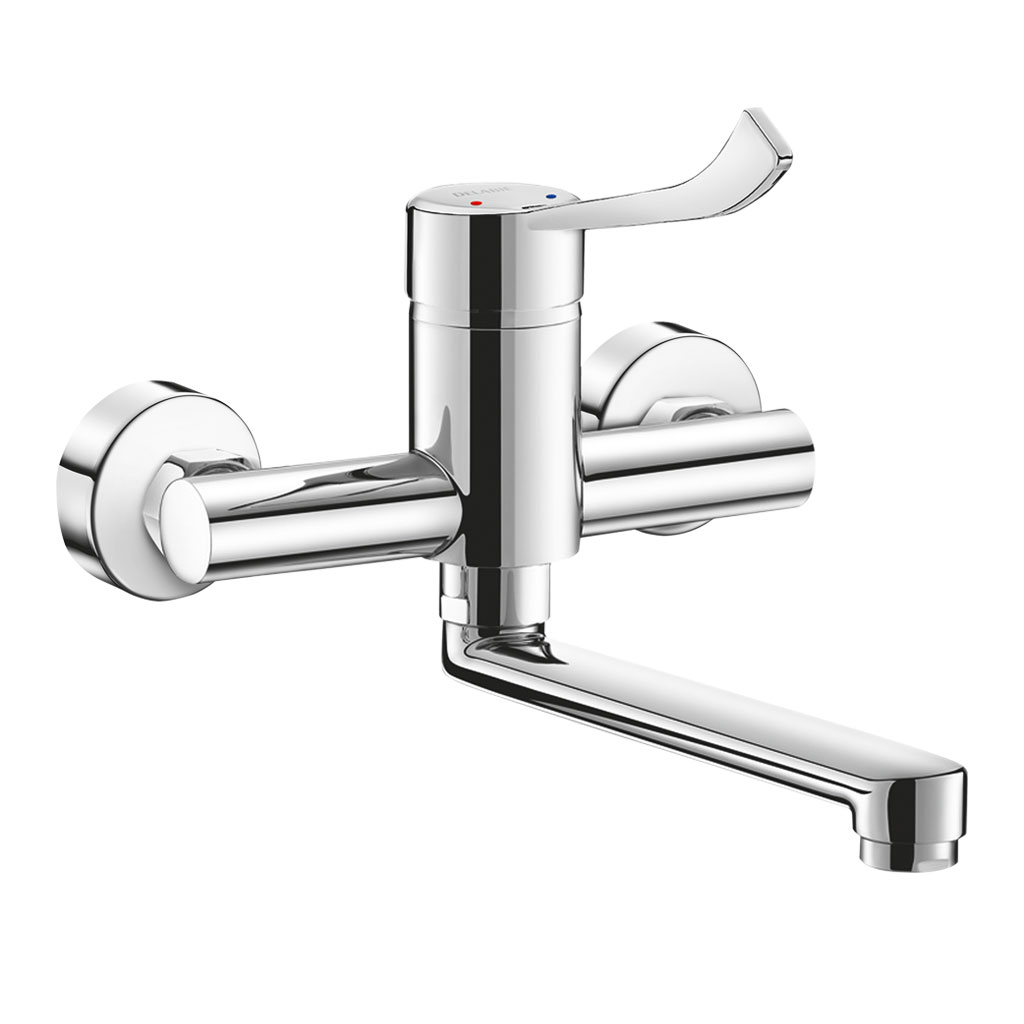

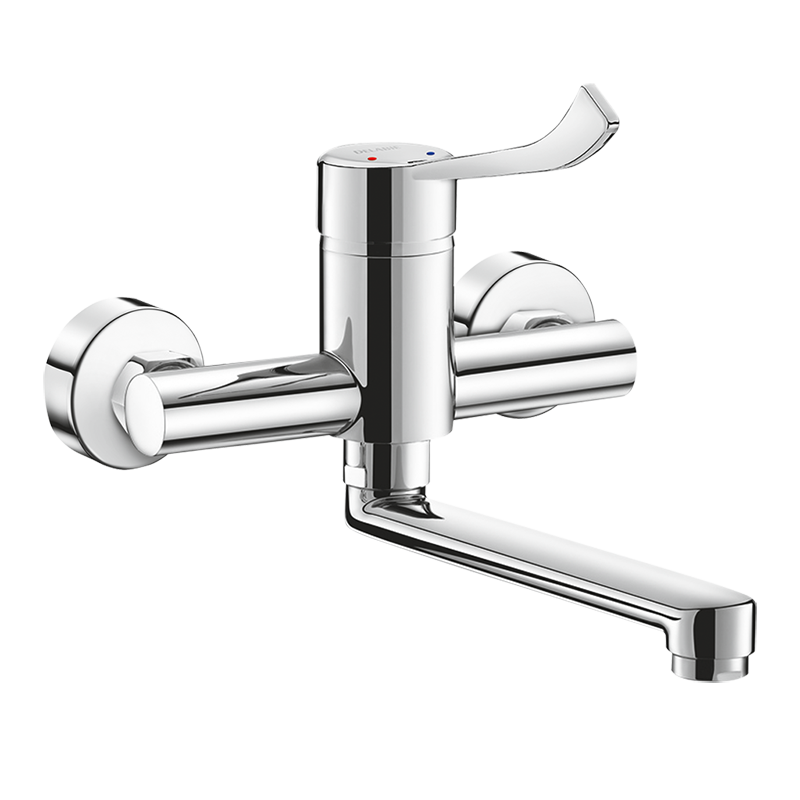

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEPS
Wall-mounted mixer with swivel spout L .200mm, Hygiene lever L. 150mm
SECURITHERM EP pressure-balancing basin mixer

Presentation

DESCRIPTION

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEPS
Wall-mounted SECURITHERM pressure-balancing basin mixer.
Wall-mounted mixer with flat, swivelling under spout L. 200mm with hygienic flow straightener suitable for fitting a BIOFIL point-of-use filter.
Anti-scalding safety: HW flow rate is reduced if CW fails (and vice versa).
Stable temperature regardless pressure and flow rate variations in the system.
Securitouch thermal insulation prevents burns.
Ø 40mm pressure-balancing ceramic cartridge with pre-set maximum temperature limiter.
Body and spout with smooth interiors and low water volume (reduces bacterial niches).
Flow rate regulated at 5 lpm at 3 bar.
Chrome-plated brass body.
Hygiene control lever L. 150mm.
Mixer supplied with offset standard connectors M1/2" M3/4".
Mechanical mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Mixer suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

EP: HW flow reduced if CW fails

Sécurité anti-brûlure

Securitouch thermal insulation prevents burns

Confort - Ergonomie - Déclenchement souple

EP: reduces pressure variations

Corps à intérieur lisse

Hygiene: smooth interior reduces bacteria

Characteristics

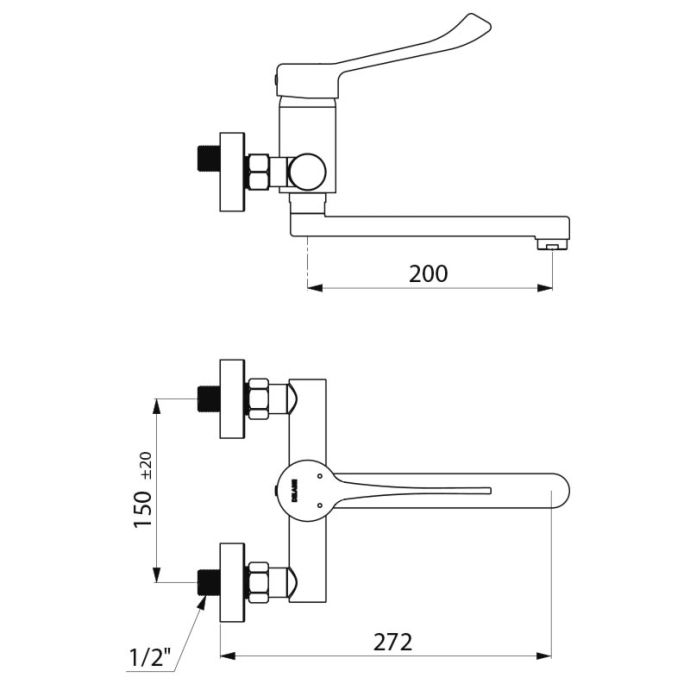

TECHNICAL CHARACTERISTICS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEPS
Connector M1/2"
Technology SECURITHERM EP mixer, Securitouch
Spout length 200mm
Flow rate 5 lpm
Temperature limiter Yes
Finish Chrome-plated
Certificates ACS Logo Belgaqua Logo WRAS Logo DIN-DVGW Logo PZH Logo DoP
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEPS

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

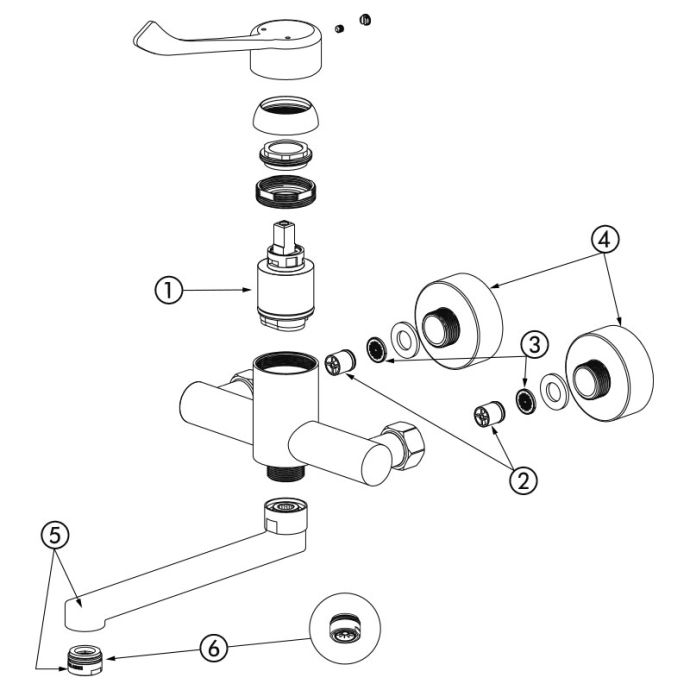

SPARE PARTS

SECURITHERM EP pressure-balancing basin mixer

Ref. 2445LEPS
1. N252
Ø40mm ceramic pressure balancing EP cartridge with base
2. 900007
Non-return valve with flow rate regulator
3. 60234.10P
Flat filter
4. 856794.2P
Offset union
5. 943200
Flat swivelling spout
6. 921024.2P
Star-shaped flow straightener

VARIANTS

2446EP EP cartridge - swivel spout L. 150mm - sculpt lever, STOP/CHECK unions
2446EPS EP cartridge - swivel spout L. 150mm - sculpt lever, standard unions
2446LEP EP cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions
2446LEPS EP cartridge - swivel spout L. 150mm - Hygiene lever, standard unions
2445EP EP cartridge - Spout L. 200mm - Sculptured lever - Offset STOP/CHECK unions
2445EPS EP cartridge - Spout L. 200mm - Sculptured lever - Offset standard unions
2445LEP EP cartridge - Spout L. 200mm - Hygiene lever - Offset STOP/CHECK unions
2446 Std cartridge - swivel spout L.150mm - sculpt lever, STOP/CHECK unions
2446S Std cartridge - swivel spout L. 150mm - sculpt lever, standard unions
2446L Std cartridge - swivel spout L. 150mm - Hyg lever, STOP/CHECK unions
2446LS Std cartridge - swivel spout L. 150mm - Hygiene lever, standard unions
2445 Std cartridge - Spout L.200mm - Sculpt lever, offset STOP/CHECK unions
2445S Std cartridge - Spout L.200mm - Sculptured lever - Offset standard unions
2445L Standard cartridge - Spout L. 200mm - Hygiene lever - offset STOP/CHECK unions
2445LS Standard cartridge - Spout L. 200mm - Hygiene lever - Offset standard unions

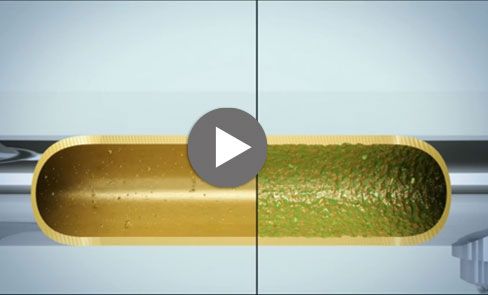

Infection control: mixer body with smooth interior
Infection control: mixer body with smooth interior

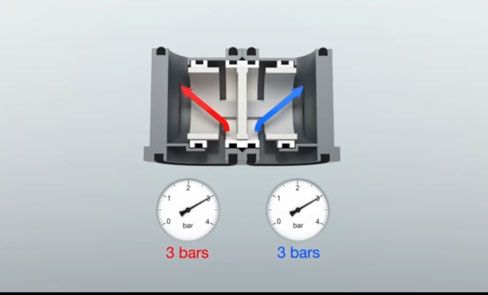

Pressure-balancing: anti-scalding safety and stable temperature
Pressure-balancing: anti-scalding safety and stable temperature
