Pressure-balancing mixer with retracting hand spray

Ref. 2211LEP
Single hole mechanical EP mixer with retracting hand spray
Pressure-balancing mixer with retracting hand spray

Presentation

DESCRIPTION

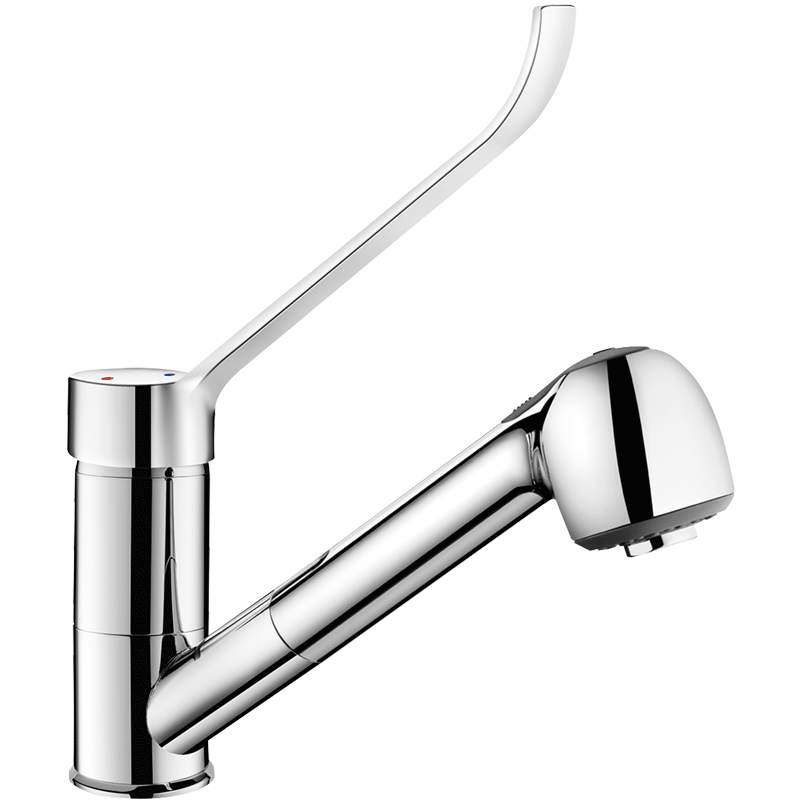

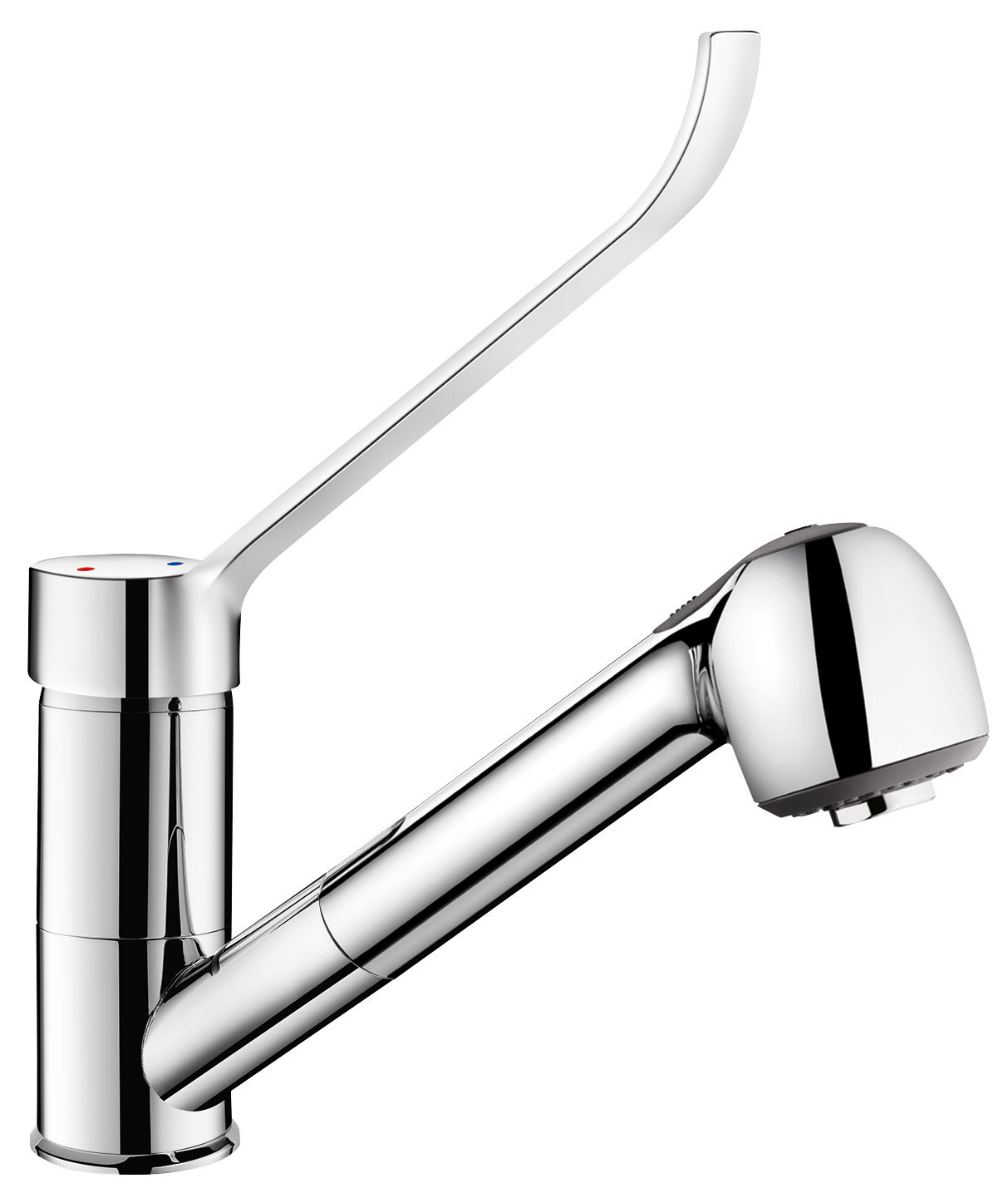

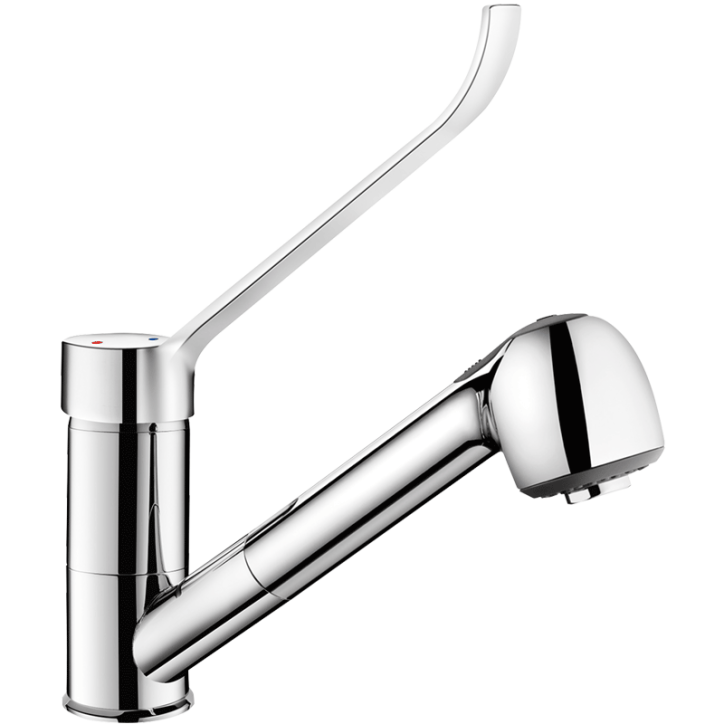

Pressure-balancing mixer with retracting hand spray

Ref. 2211LEP
Deck-mounted mechanical sink mixer with pressure-balancing suitable for baby baths.

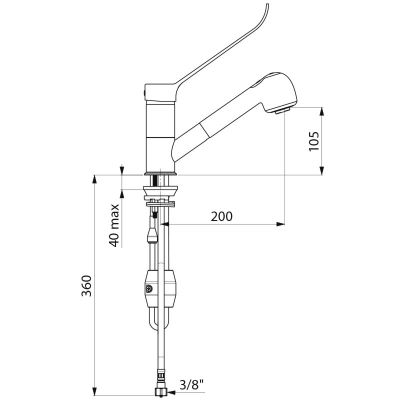

Single hole mixer with retracting hand spray with swivelling spout H. 105mm L. 200mm.
Ø 40mm ceramic cartridge with pressure-balancing and pre-set maximum temperature limiter.
Total anti-scalding safety: HW flow rate is reduced if CW supply fails (and vice versa).
Stable temperature regardless of variations in pressure and flow rate.
Securitouch thermal insulation prevents burns.
Mechanical mixer with retracting hand spray with 2 jet options: flow straightener / rain effect.
Body with smooth interior.
Flow rate 7 lpm at 3 bar.
Chrome-plated brass body and Hygiene control lever.
BIOSAFE flexible shower hose reduces bacterial proliferation: transparent polyurethane flexible hose ensures replacement if biofilm is present, smooth interior and exterior.
Narrow flexible (interior Ø 6mm), low water volume.
Specific counterweight.
F⅜" PEX flexibles with filters and non-return valves.
Fixing reinforced by 2 stainless steel rods.
SECURITHERM mechanical mixer with pressure-balancing ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
Single hole mixer suitable for people with reduced mobility.
30-year warranty.

ADVANTAGES

Sécurité anti-brûlure

HW flow rate reduced if CW fails

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: transparent flexible with smooth interior

Confort - Ergonomie - Déclenchement souple

Hygiene control lever requires no manual contact

Confort - Ergonomie - Déclenchement souple

Comfort: retracting hand spray, 2 jet options

Characteristics

TECHNICAL CHARACTERISTICS

Pressure-balancing mixer with retracting hand spray

Ref. 2211LEP
Connector F3/8"
Technology SECURITHERM EP mechanical mixer

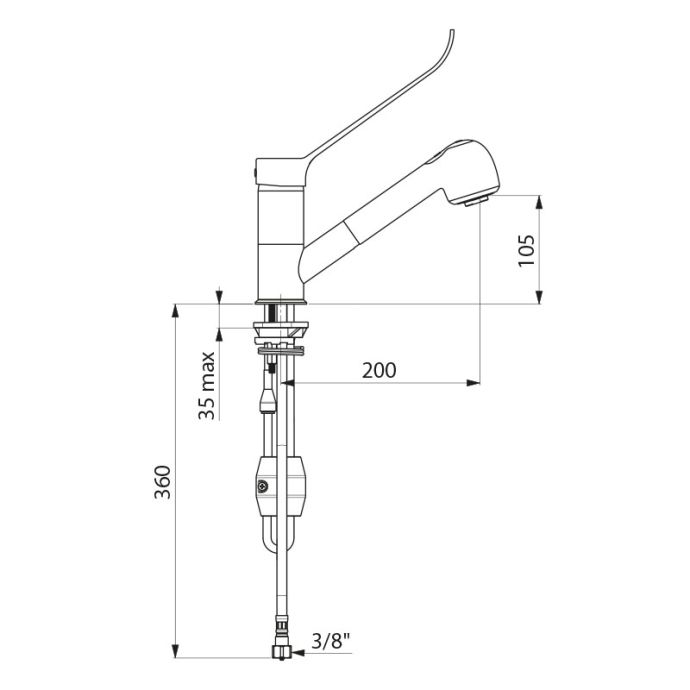

Drop height 105mm
Spout length 200mm
Flow rate 7 lpm at 3 bar
Temperature limiter Yes
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo DoP Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Mitigeur d'évier à équilibrage de pression avec douchette extractible

Ref. 2211LEP

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

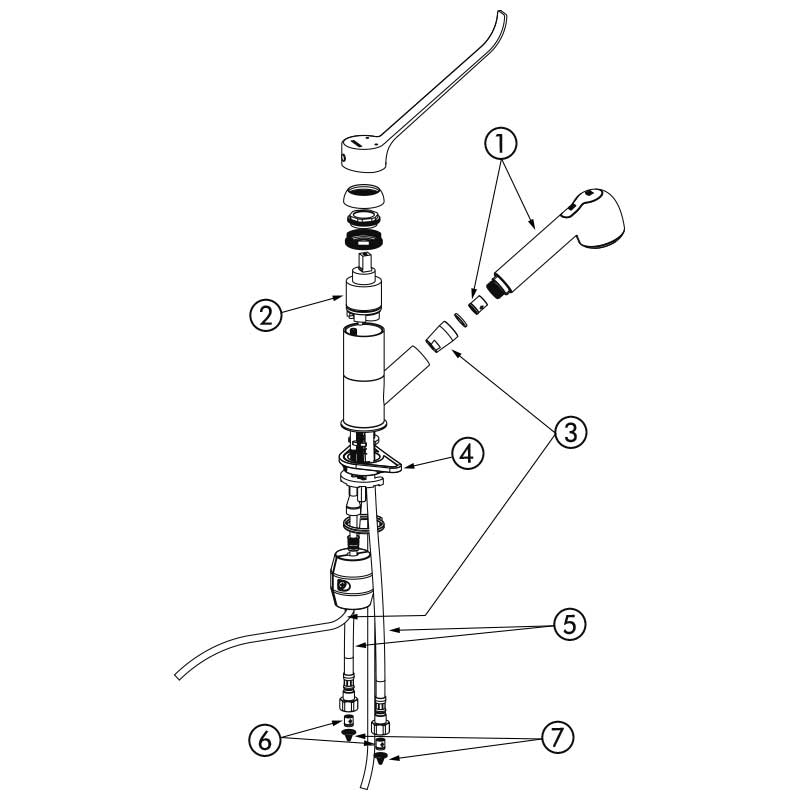

SPARE PARTS

Pressure-balancing mixer with retracting hand spray

Ref. 2211LEP
1. 816
Chrome-plated shower head with 2 jets, M1/2"
2. N252
Ø40mm ceramic pressure balancing EP cartridge with base
3. 837T4
BIOSAFE polyurethane flexible hose
4. 256P
Fixing plate
5. 2211CP
Counterweight
6. FLEXPEX2
F3/8" PEX flexible hoses
7. 900010
Non-return valve
8. 60438.10P
Conical filter

VARIANTS

2211EP Mixer with pressure-balancing cartridge - Solid lever
2211 Mixer with standard cartridge - Solid lever
2211L Mixer with standard cartridge - Hygiene lever
