DESCRIPTION

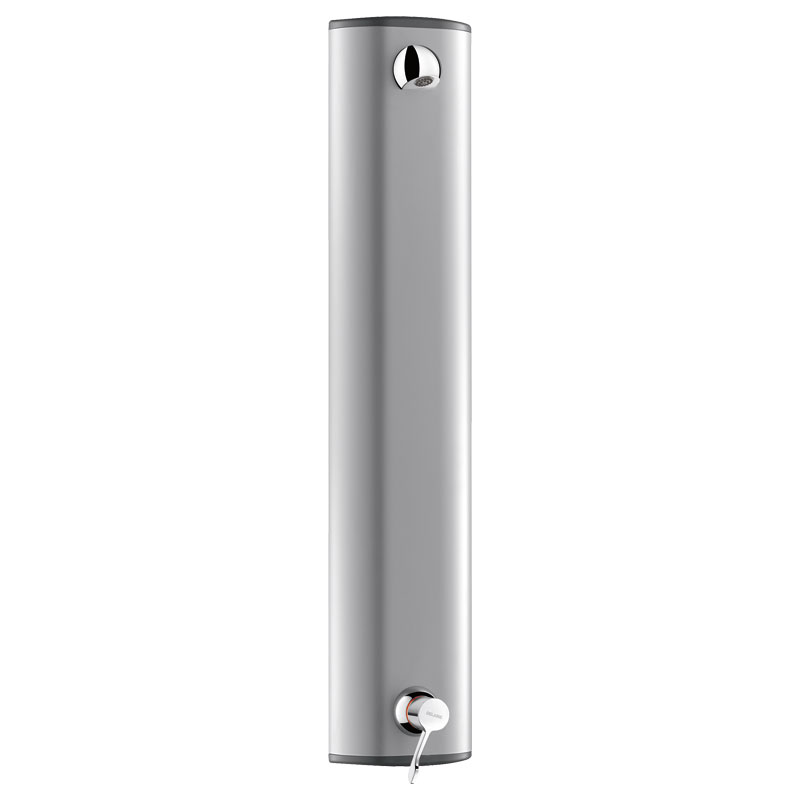

Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9639Anodised aluminium shower panel for wall-mounted exposed installation:
SECURITHERM sequential thermostatic mixer (non-time flow).
Adjustable temperature control from cold water up to 39°C; maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold water supply fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Hygiene control lever L. 100mm.
Top inlets with inline M1/2" stopcocks.
Concealed fixings.
Filters.
Suitable for people with reduced mobility.
30-year warranty.
SECURITHERM sequential thermostatic mixer (non-time flow).
Adjustable temperature control from cold water up to 39°C; maximum temperature limiter set at 39°C, can be adjusted.
Anti-scalding failsafe: automatic shut-off if cold water supply fails.
Anti-cold showers function: automatic shut-off if hot water fails.
Thermal shocks are possible.
Chrome-plated, tamperproof, scale-resistant ROUND shower head with automatic flow rate regulation at 6 lpm at 3 bar.
Hygiene control lever L. 100mm.
Top inlets with inline M1/2" stopcocks.
Concealed fixings.
Filters.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
SECURITHERM: Optimum anti-scalding safety
No non-return valves on inlets
Thermostatic: total temperature stability
Sequential open and closing on cold water

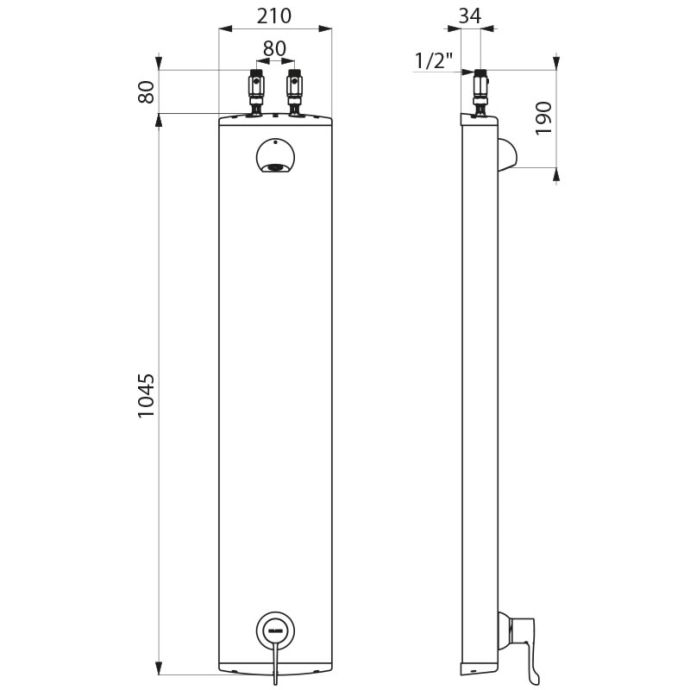

TECHNICAL CHARACTERISTICS
Aluminium shower panel with SECURITHERM sequential mixer
Ref. H9639Supply | Top inlets with M1/2" inline stopcocks |
Connector | M1/2" |
Technology | Sequential thermostatic SECURITHERM |
Height | 1050mm |
Width | 210mm |
Flow rate | 6 lpm |
Temperature limiter | 39°C |
Finish | Aluminium |
Certificates | |
Warranty | |
Repairability |
Spare parts

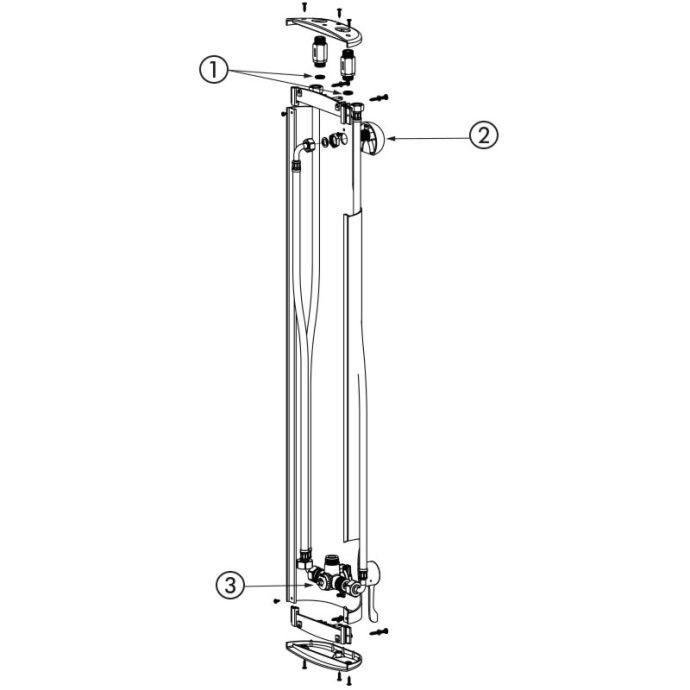

SPARE PARTS
Aluminium shower panel with SECURITHERM sequential mixer
Ref. H96391. | 60212.10P |
|
Flat filter |
2. | 709000 |
|
ROUND shower head |
3. | N963 |
|
Thermostatic cartridge for shower mixers |
VARIANTS
H9636 | M1/2" top inlet + inline stopcocks | ||
---|---|---|---|
H963615 | Top Ø 15mm compression fittings with inline stopcocks | ||
H963915 | Top Ø 15mm compression fittings with inline stopcocks | ||
H9635 | Concealed inlet via M½" flexibles | ||
H9634 | Concealed inlet via M½" flexibles |
VARIANTS
H9636 | M1/2" top inlet + inline stopcocks | ||
---|---|---|---|
H963615 | Top Ø 15mm compression fittings with inline stopcocks | ||
H963915 | Top Ø 15mm compression fittings with inline stopcocks | ||
H9635 | Concealed inlet via M½" flexibles | ||
H9634 | Concealed inlet via M½" flexibles |
