Auto-draining shower kit with thermostatic mixer
Ref. H9630HYG
Thermostatic sequential mixer with no non-return valves
Thermostatic sequential mixer with no non-return valves
DESCRIPTION

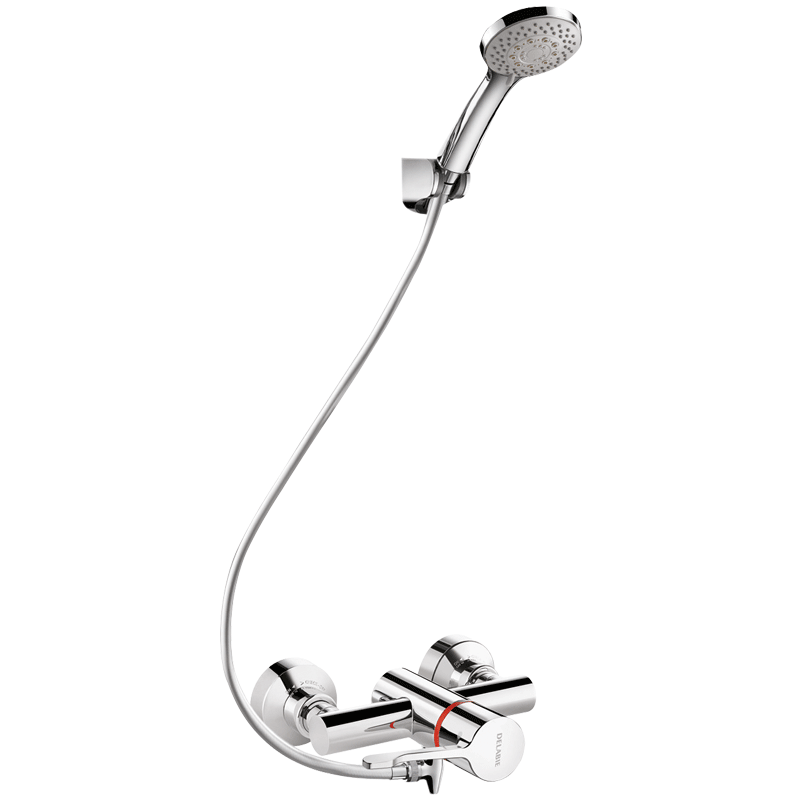

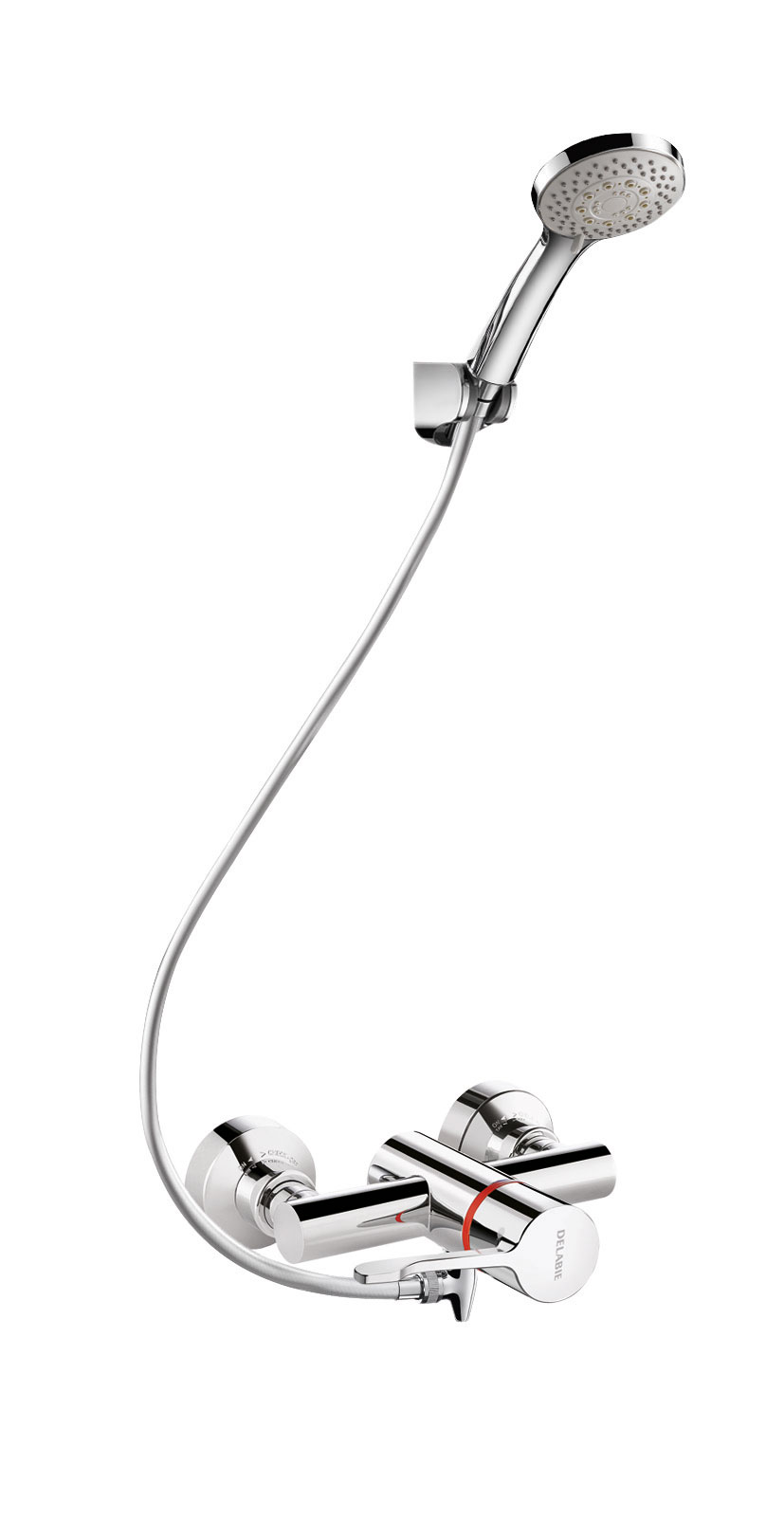

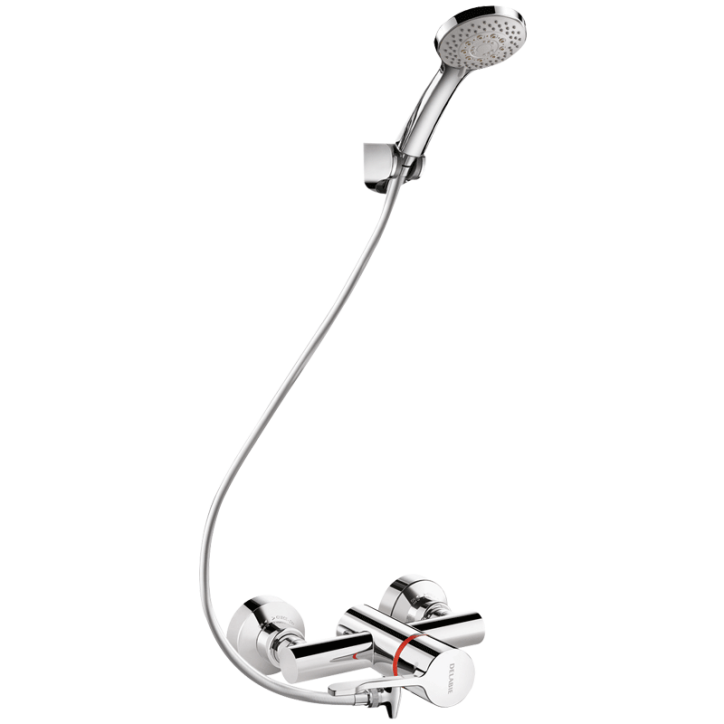

Auto-draining shower kit with thermostatic mixer
Ref. H9630HYGSECURITHERM thermostatic sequential shower kit with auto-draining device.
• Mixer with scale-resistant, thermostatic sequential cartridge:
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.

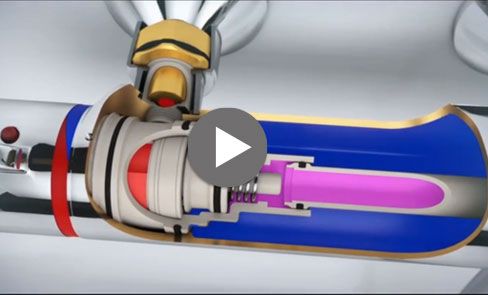

Securitouch thermal insulation prevents burns.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome plated brass body and Hygiene lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with offset STOP/CHECK connectors, M1/2" M3/4".
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
• Shower head (ref. 813) with flexible shower hose (ref. 836T3) and adjustable, chrome-plated wall-mounted support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (reduces bacterial development) (ref. 880).

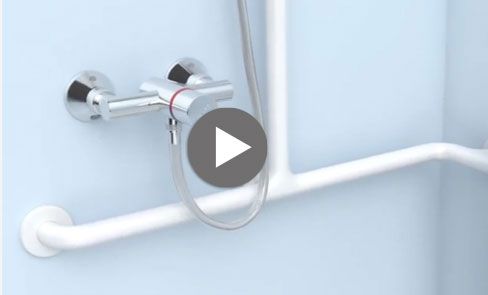

Suitable for people with reduced mobility.
30-year warranty.
• Mixer with scale-resistant, thermostatic sequential cartridge:
Thermostatic sequential mixer: opens and closes with cold water.
Mixer with no non-return valves on the inlets (reduces bacterial proliferation).
No risk of cross flow between hot and cold water.
Sequential mixer with anti-scalding failsafe: shuts off automatically if cold or hot water supply fails.
Securitouch thermal insulation prevents burns.
Temperature control from cold water up to 39°C with maximum temperature limiter set at 39°C.
Thermal shocks are possible.
Body with smooth interior and low water volume.
Flow rate regulated at 9 lpm.
Chrome plated brass body and Hygiene lever L. 100mm.
M1/2" bottom shower outlet.
Wall-mounted mixer with offset STOP/CHECK connectors, M1/2" M3/4".
Mixer ideal for healthcare facilities, retirement and care homes, hospitals and clinics.
• Shower head (ref. 813) with flexible shower hose (ref. 836T3) and adjustable, chrome-plated wall-mounted support (ref. 845).
• Auto-draining device FM1/2" for installation between the flexible hose and the shower head, automatically drains the shower head and flexible hose (reduces bacterial development) (ref. 880).
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES

Sequential: opens/closes with cold water

Maximum hygiene: no non-return valves

SECURITHERM: Optimal anti-scalding safety

Thermostatic: total temperature stability

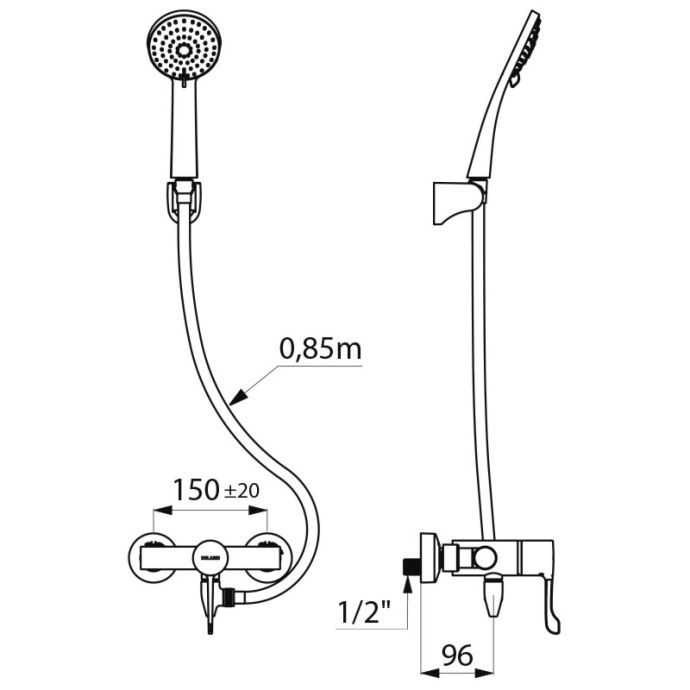

TECHNICAL CHARACTERISTICS
Auto-draining shower kit with thermostatic mixer
Ref. H9630HYGConnector | M1/2" |
Technology | SECURITHERM single control, Securitouch |
Depth | 185mm |
Length | 184mm |
Flow rate | 9 lpm |
Temperature limiter | 39°C |
Finish | Chrome-plated brass |
Certificates |
![]() ![]() |
Warranty | ![]() |
Repairability | ![]() |
Spare parts

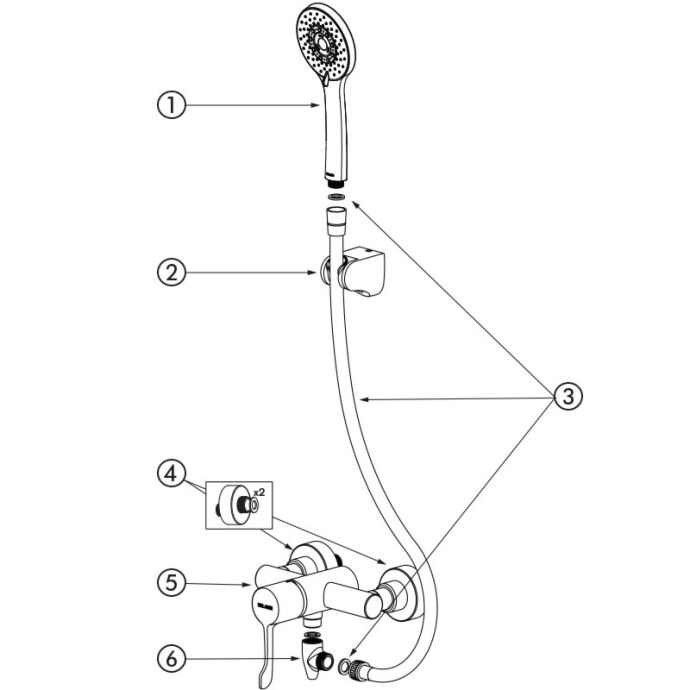

SPARE PARTS
Auto-draining shower kit with thermostatic mixer
Ref. H9630HYG
1. | 813 |
|
Chrome-plated shower head with 5 jets, M1/2" |
2. | 845 |
|
Wall-mounted tilting support for shower heads |
3. | 836T3 |
|
SILVER flexible shower hose |
4. | 855755.2P |
|
Offset connectors |
5. | H9630 |
|
Sequential thermostatic shower mixer |
6. | 880 |
|
Auto-draining device |
VARIANTS
H9630SHYG | Standard offset connectors |
---|
VARIANTS
H9630SHYG | Standard offset connectors |
---|
