Self-supporting frame system for TEMPOFIX 3 with electronic WC valve
Ref. 547105
Electronic valve with mains supply
Electronic valve with mains supply
DESCRIPTION

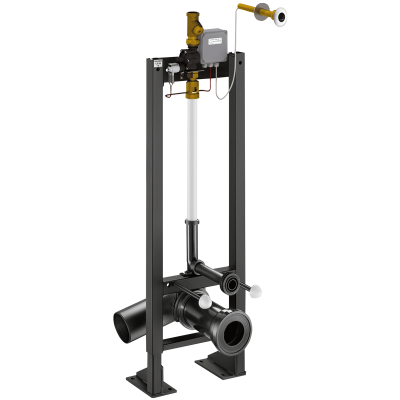

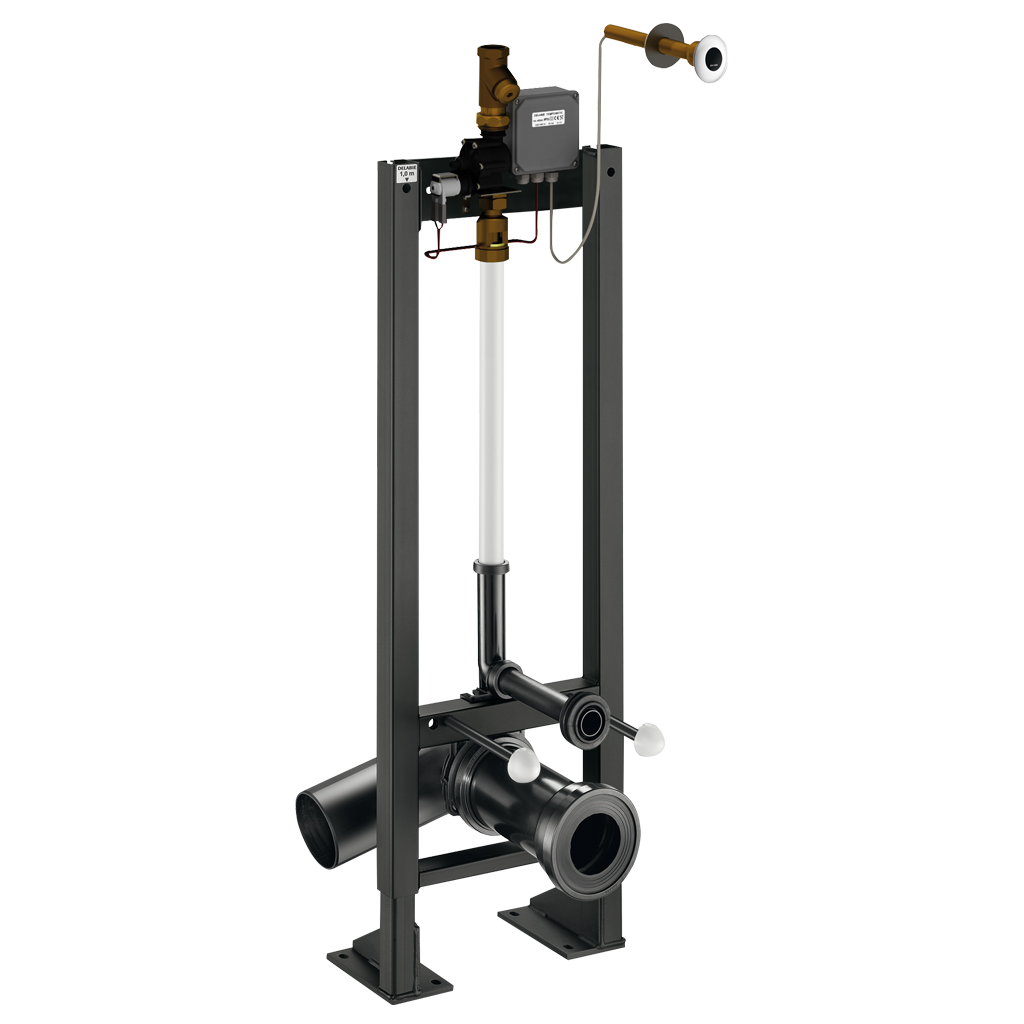

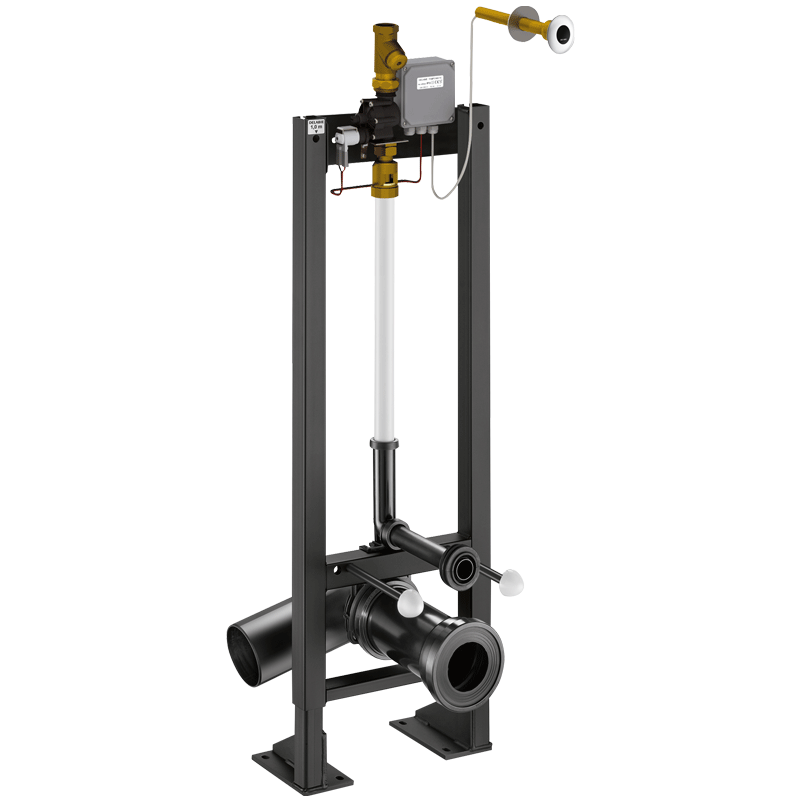

Self-supporting frame system for TEMPOFIX 3 with electronic WC valve
Ref. 547105Self-supporting frame system for wall-hung WCs:
- Black powder-coated steel frame.
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer.
- Ø 100mm PVC soil pipe with waterproof seal, with 2 setting positions.
- Delivered pre-mounted.
- Compatible with solid wall finishes from 70 - 210mm.
Fitted with a TEMPOMATIC F1" electronic direct flush valve:
Flush system without cistern: directly connected to pipework
- Mains supply with 1" solenoid valve.
- 230/12V transformer.
- IP65 independent electronic unit.
- Wall plate flush to the wall.
- Shock-resistant infrared presence detection sensor.
- Voluntary activation (when hand is detected ~4cm in front of the sensor) or automatic flush (when the user leaves).
- Time flow ~7 seconds, can be adjusted from 3 - 12 seconds.
- Detection distance and flow rate/volume can be adjusted.
- Base flow rate 1 L/sec at 1 bar dynamic pressure.
- Compatible with rain water.
Technical characteristics: see TEMPOMATIC WC ref. 463150.
Suitbale for rimless WC pans without flow rate regulation.
Suitable for people with reduced mobility.
30-year warranty.
- Black powder-coated steel frame.
- With large feet for fixing to load-bearing floors.
- Frame height can be adjusted from 0 - 200mm (with 1m mark).
- Ø 32mm flush tube with Ø 55mm connection washer.
- Ø 100mm PVC soil pipe with waterproof seal, with 2 setting positions.
- Delivered pre-mounted.
- Compatible with solid wall finishes from 70 - 210mm.
Fitted with a TEMPOMATIC F1" electronic direct flush valve:
Flush system without cistern: directly connected to pipework
- Mains supply with 1" solenoid valve.
- 230/12V transformer.
- IP65 independent electronic unit.
- Wall plate flush to the wall.
- Shock-resistant infrared presence detection sensor.
- Voluntary activation (when hand is detected ~4cm in front of the sensor) or automatic flush (when the user leaves).
- Time flow ~7 seconds, can be adjusted from 3 - 12 seconds.
- Detection distance and flow rate/volume can be adjusted.
- Base flow rate 1 L/sec at 1 bar dynamic pressure.
- Compatible with rain water.
Technical characteristics: see TEMPOMATIC WC ref. 463150.
Suitbale for rimless WC pans without flow rate regulation.
Suitable for people with reduced mobility.
30-year warranty.
ADVANTAGES
![Sans contact manuel](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/9/9/0/3/3099-12-eng-US/sans-contact.png)
Total hygiene: no manual contact
![Anti-vandalisme](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/7/8/8/2/2887-12-eng-US/antivandalisme.png)
Install behind the wall
![Maintenance aisée - Installation aisée](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/5/1/0/3/3015-17-eng-US/maintenance.png)
Quick and easy to install: delivered pre-mounted
![Hygiène - Anti-bactérien - BIOSAFE](https://www.delabie.com/var/site/storage/images/_aliases/picto_65x65/1/0/0/3/3001-12-eng-US/antibacterien.png)
Direct flush: no stagnant water

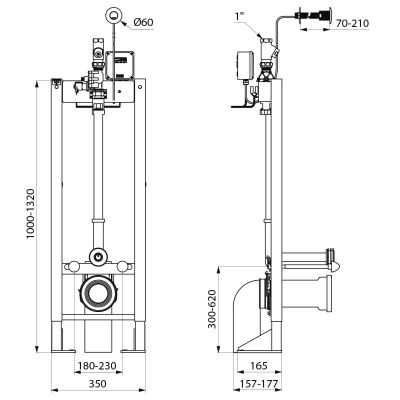

TECHNICAL CHARACTERISTICS
Self-supporting frame system for TEMPOFIX 3 with electronic WC valve
Ref. 547105Supply | Mains supply 230/12V |
Connector | 1" |
Technology | Electronic |
Height | 1000 - 1320mm |
Depth | 157 - 177mm |
Width | 350mm |
Warranty | ![]() |
Repairability | ![]() |
Spare parts
SPARE PARTS
Self-supporting frame system for TEMPOFIX 3 with electronic WC valve
Ref. 547105![](https://www.delabie.com/var/site/storage/images/6/3/8/7/3287836-1-fre-FR/PD_547105.jpg)
1. | 463399 |
|
Detector |
2. | 461035 |
|
Solenoid valve |
3. | 463000 |
|
Electronic control unit |
