DESCRIPTION

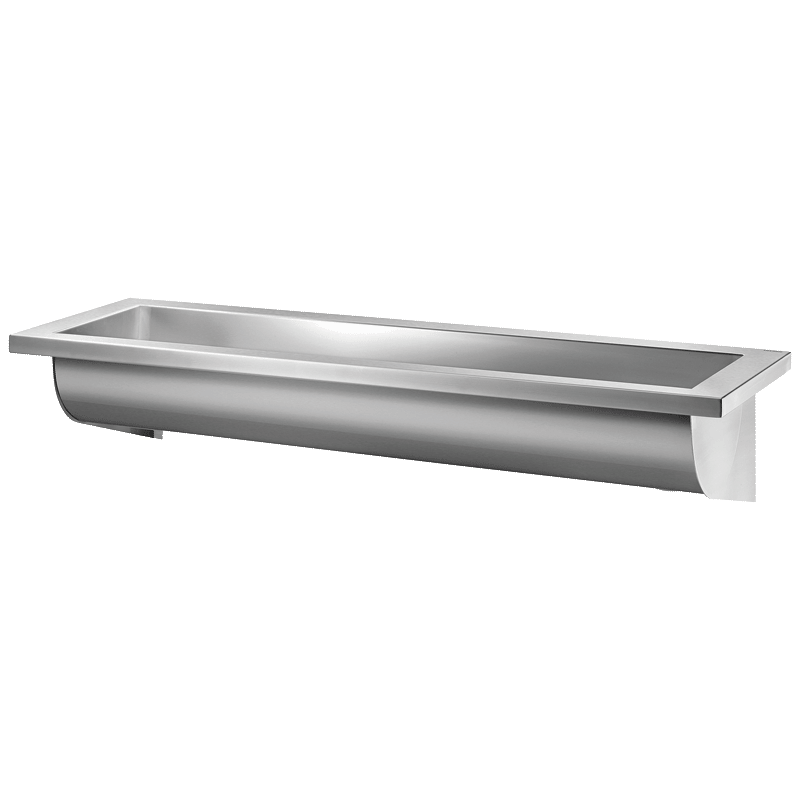

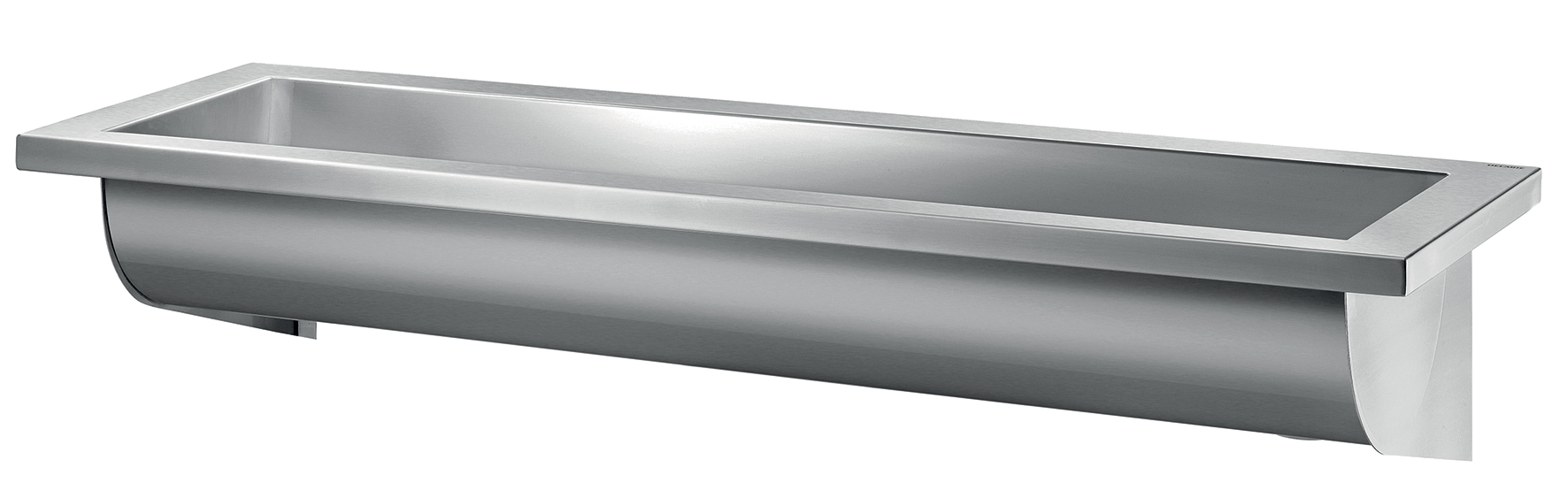

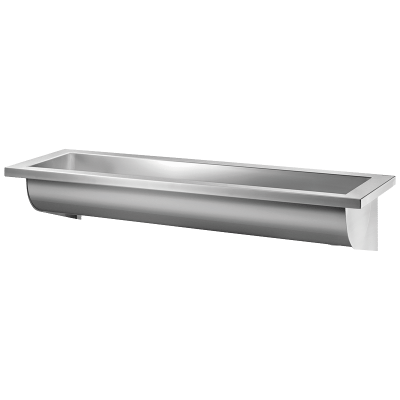

Wall-mounted CANAL wash trough
Ref. 120310Wall-mounted wash trough for wall-mounting for, 5 services - 3,000mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 0.8mm for the bowl, 1.5mm for surround and fixing brackets.
Easy to install: no joint concealers to install, lightweight trough.
Water control can be wall-mounted or deck-mounted.
Drainage on the right.
Without tap hole.
Supplied with 1½" waste. Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 15.6kg.
30-year warranty.

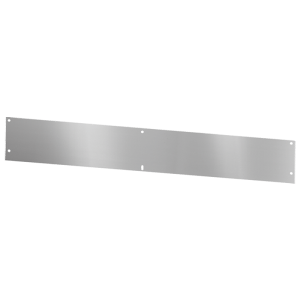

Option to add a bacteriostatic 304 stainless steel splashback (ref. 100310).
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 0.8mm for the bowl, 1.5mm for surround and fixing brackets.
Easy to install: no joint concealers to install, lightweight trough.
Water control can be wall-mounted or deck-mounted.
Drainage on the right.
Without tap hole.
Supplied with 1½" waste. Without overflow.
Supplied with fixing elements.
CE marked. Complies with European standard EN 14296.
Weight: 15.6kg.
30-year warranty.
Option to add a bacteriostatic 304 stainless steel splashback (ref. 100310).
ADVANTAGES
Bacteriostatic 304 stainless steel, smooth surface

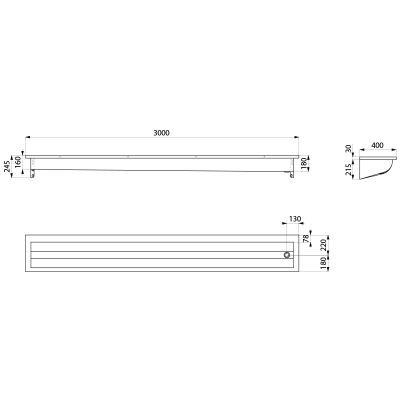

TECHNICAL CHARACTERISTICS
Wall-mounted CANAL wash trough
Ref. 120310Height | 250mm |
Length | 3000mm |
Width | 400mm |
Thickness | 1mm (bowl) and 1.5mm (surround and fixing brackets) |
Finish | Polished satin 304 stainless steel |
Certificates | |
Warranty |
VARIANTS
120240 | Without tap hole - L. 600mm - Waste trap on the right | ||
---|---|---|---|
120250 | Without tap hole - L. 1200mm - Waste trap on the right | ||
120260 | Without tap hole - L. 1400mm - Waste trap on the right | ||
120280 | Without tap hole - L. 1800mm - Waste trap on the right | ||
120300 | Without tap hole - L. 2400mm - Waste trap on the right | ||
121250 | With tap hole Ø 22mm - L. 1200mm - waste trap on the right | ||
121280 | With tap hole Ø 22mm - L. 1800mm - waste trap on the right | ||
121300 | With Ø22mm tap hole - L. 2400mm - Drainage on the right | ||
122250 | With tap hole - L. 1200mm - waste trap on the left | ||
122280 | Without tap hole - L. 1800mm - Drainage on the left |
VARIANTS
120240 | Without tap hole - L. 600mm - Waste trap on the right | ||
---|---|---|---|
120250 | Without tap hole - L. 1200mm - Waste trap on the right | ||
120260 | Without tap hole - L. 1400mm - Waste trap on the right | ||
120280 | Without tap hole - L. 1800mm - Waste trap on the right | ||
120300 | Without tap hole - L. 2400mm - Waste trap on the right | ||
121250 | With tap hole Ø 22mm - L. 1200mm - waste trap on the right | ||
121280 | With tap hole Ø 22mm - L. 1800mm - waste trap on the right | ||
121300 | With Ø22mm tap hole - L. 2400mm - Drainage on the right | ||
122250 | With tap hole - L. 1200mm - waste trap on the left | ||
122280 | Without tap hole - L. 1800mm - Drainage on the left |
