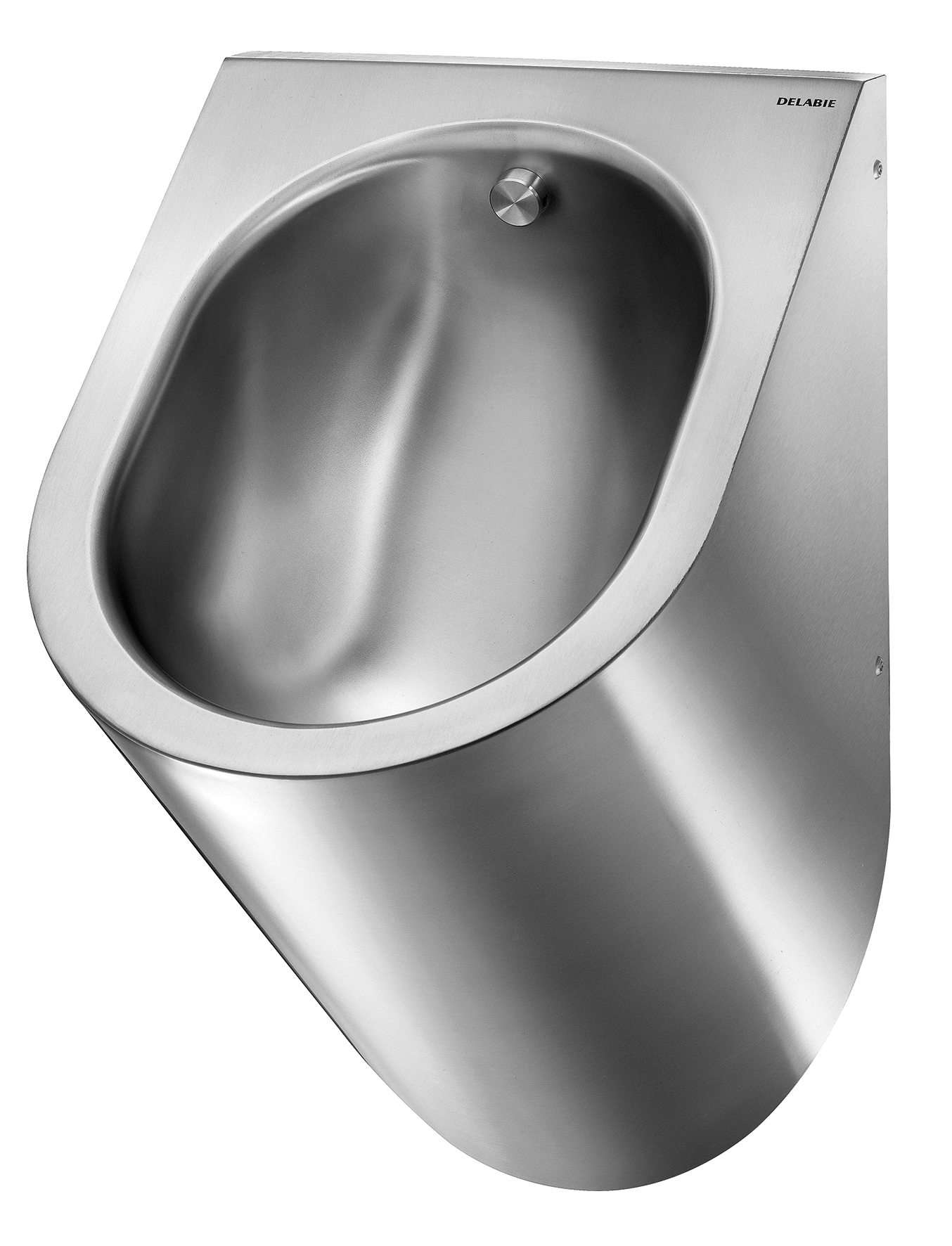

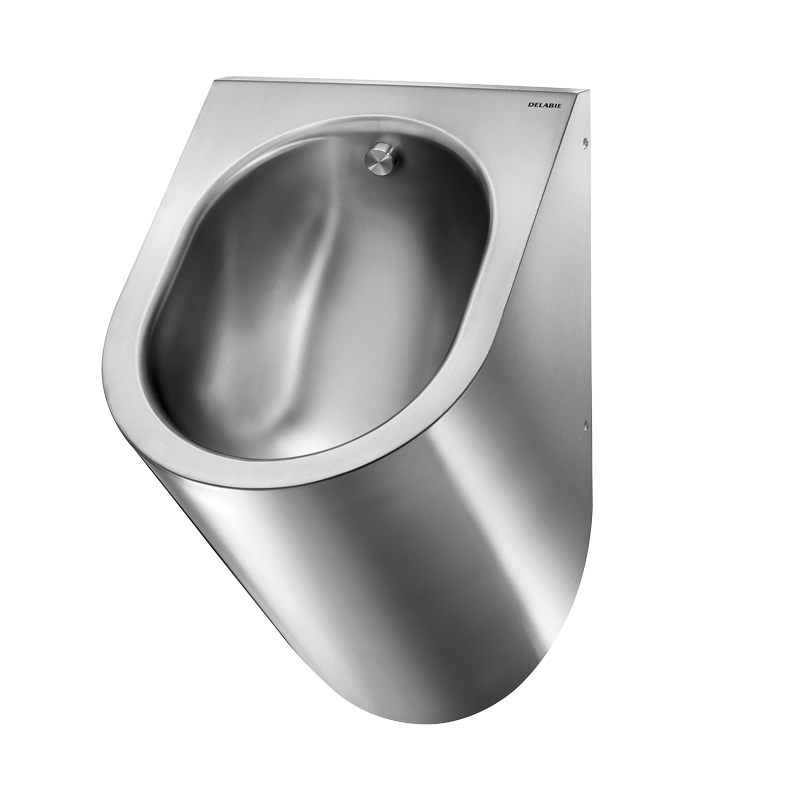

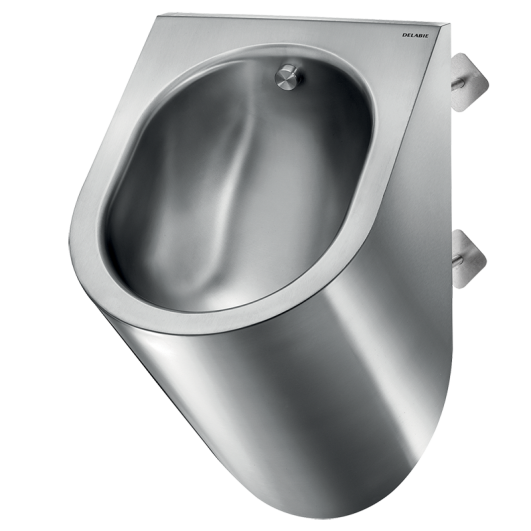

DELTA HD wall-hung urinal

Ref. 164770
Polished satin 304 stainless steel - Rear inlet
DELTA HD wall-hung urinal

Presentation

DESCRIPTION

DELTA HD wall-hung urinal

Ref. 164770
Wall-hung individual rimless urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Stainless steel thickness: 1.2mm.
Rear (recessed) inlet.
Vandal-resistant: recessed waste outlet, concealed trap and reinforced mounting frame.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 1½" trap, fixing elements and theft prevention TORX security screws.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 7.5kg.

ADVANTAGES

Nettoyage aisé

Bacteriostatic 304 stainless steel

Anti-vandalisme

Suitable for secure sector

Characteristics

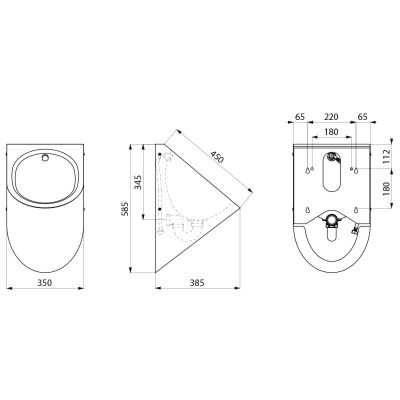

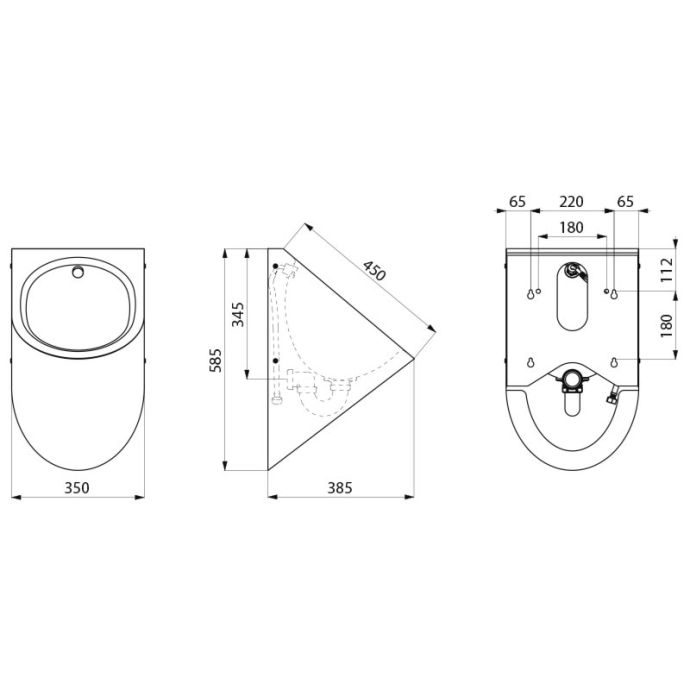

TECHNICAL CHARACTERISTICS

DELTA HD wall-hung urinal

Ref. 164770
Height 585mm
Length 350mm
Width 385mm
Thickness 1.2mm
Finish Polished satin 304 stainless steel
Certificates Logo CE Logo PZH
Warranty 30-Year
DELTA HD wall-hung urinal
Ref. 164770

Downloads

DOWNLOADS

Urinoir antivandalisme DELTA HD

Ref. 164770

To download one or several documents linked to this product, please select the type of file you require :

Associated products
