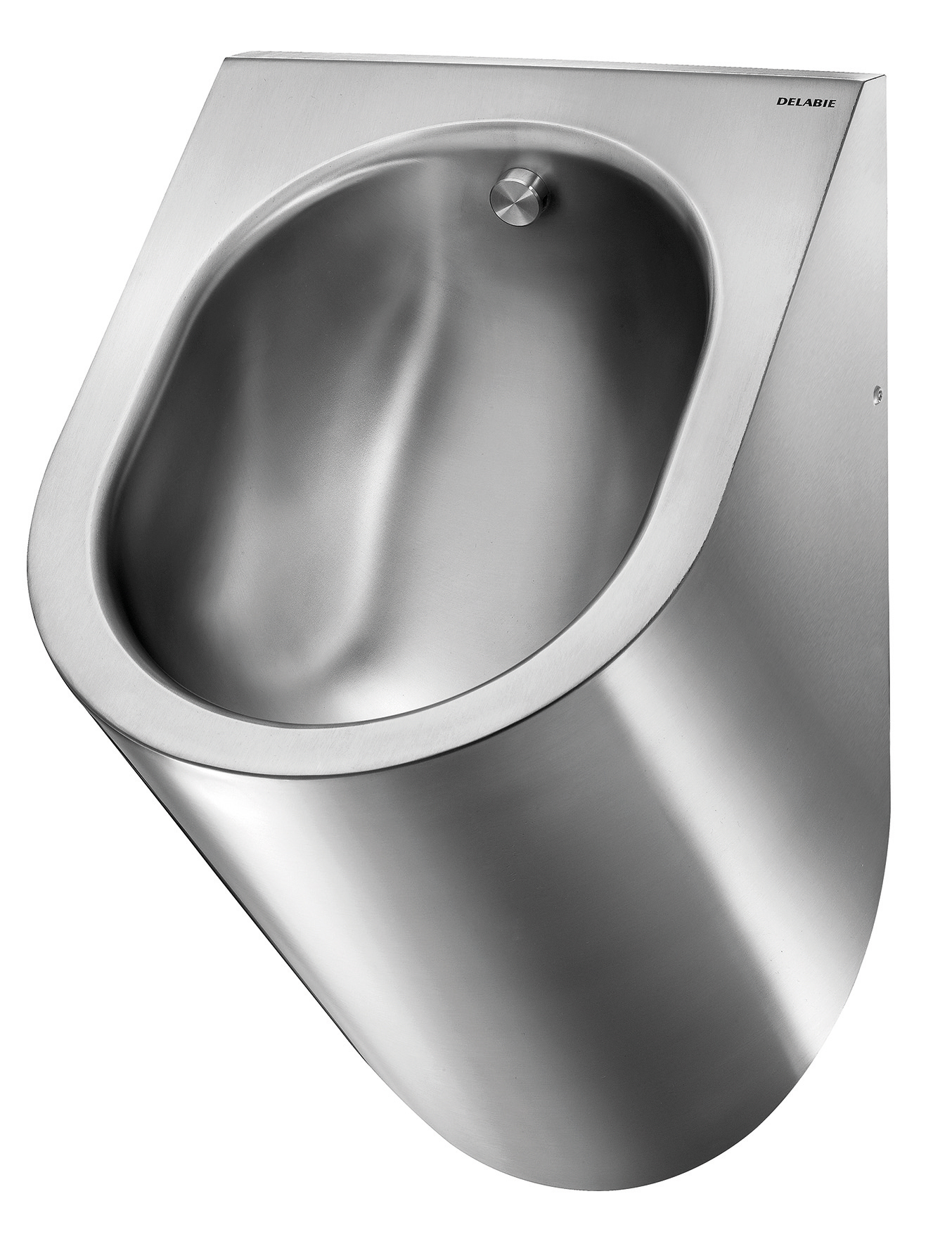

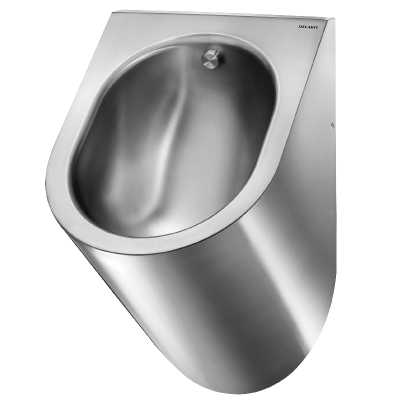

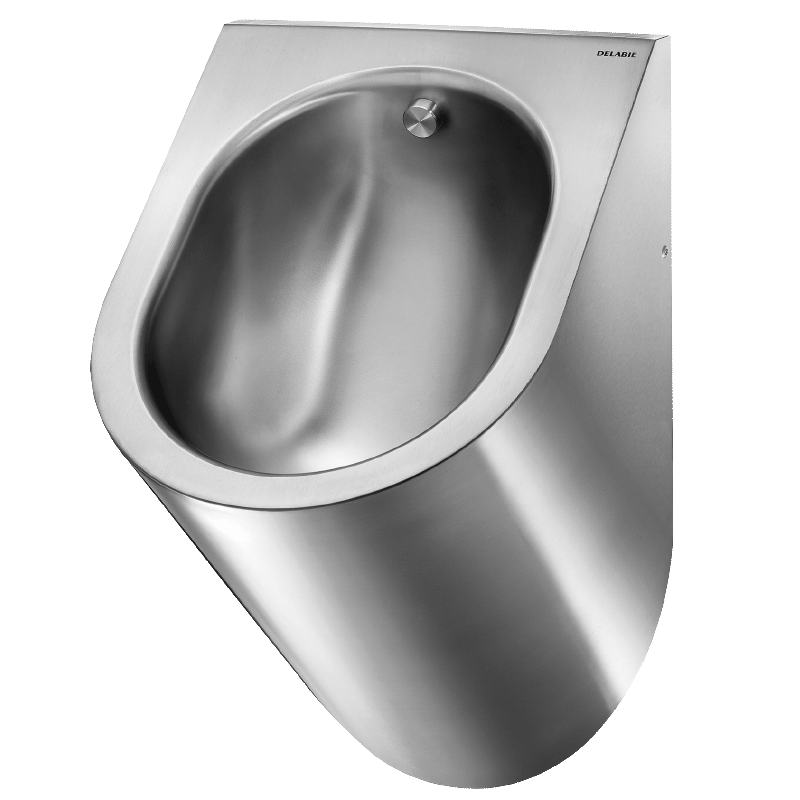

DELTA wall-hung urinal

Ref. 134770
Polished satin 304 stainless steel - Rear water inlet
DELTA wall-hung urinal

Presentation

DESCRIPTION

DELTA wall-hung urinal

Ref. 134770
Wall-hung individual rimless urinal.
Compatible with all standard frame systems on the market.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear (recessed) water inlet.
Recessed waste outlet. Concealed trap.
Quick and easy to install from the front thanks to a stainless steel mounting frame.
Supplied with 1½" P trap, fixing elements and theft prevention TORX security screws.
CE marked. Complies with European standard EN 13407 for 2L flush.
Weight: 7.5kg.
30-year warranty.

[Formerly ref: 0311160001]

ADVANTAGES

Nettoyage aisé

Bacteriostatic 304 stainless steel

Characteristics

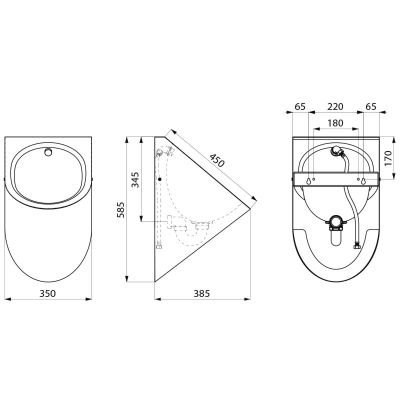

TECHNICAL CHARACTERISTICS

DELTA wall-hung urinal

Ref. 134770
Height 585mm
Length 385mm
Width 350mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Certificates Logo CE Logo PZH
Warranty 30-Year
DELTA wall-hung urinal
Ref. 134770

Downloads

DOWNLOADS

DELTA wall-hung urinal

Ref. 134770

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

134772 Recessed inlet - Dual finish
134170 Exposed inlet - Recessed waste
134710 Exposed inlet - Recessed or exposed waste
