KOMPACT washbasin and wall-hung WC combination

Ref. 162300
Polished satin 304 stainless steel - Wall-hung WC right side
KOMPACT washbasin and wall-hung WC combination

Presentation

DESCRIPTION

KOMPACT washbasin and wall-hung WC combination

Ref. 162300
Washbasin combination unit with cistern, mounted WC pan on right side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel body thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface is easy to clean.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M½".
WC fitted with 6-litre cistern.
Water inlets: washbasin M½", WC M3/8".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.

ADVANTAGES

Nettoyage aisé

Bacteriostatic 304 stainless steel

Anti-vandalisme

Suitable for the secure sector

Characteristics

TECHNICAL CHARACTERISTICS

KOMPACT washbasin and wall-hung WC combination

Ref. 162300

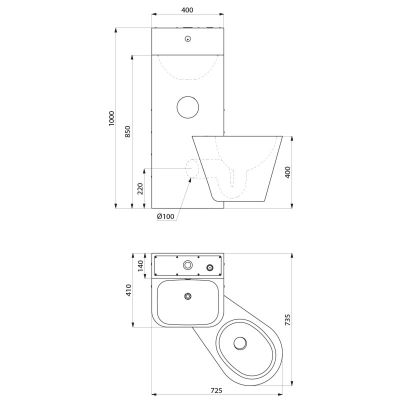

Height 1000mm
Length 725mm
Width 735mm
Thickness 2mm
Finish Polished satin 304 stainless steel
Certificates ACS Logo PZH
Warranty 30-Year

Downloads

DOWNLOADS

Combi Lavabo WC suspendu KOMPACT

Ref. 162300

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

162400 Wall-mounted WC - WC pan on the left side
162500 Wall-mounted WC - centered WC pan
162600 Floor-standing WC - WC pan on the right side
162700 Floor-standing WC - WC pan on the left side
162800 Floor-standing WC - centered WC pan

VARIANTS

162400 Wall-mounted WC - WC pan on the left side
162500 Wall-mounted WC - centered WC pan
162600 Floor-standing WC - WC pan on the right side
162700 Floor-standing WC - WC pan on the left side
162800 Floor-standing WC - centered WC pan
