KOMPACT washbasin and wall-hung WC combination
Ref. 160300
Polished satin 304 stainless steel - Wall-mounted - WC on right side
Polished satin 304 stainless steel - Wall-mounted - WC on right side
DESCRIPTION

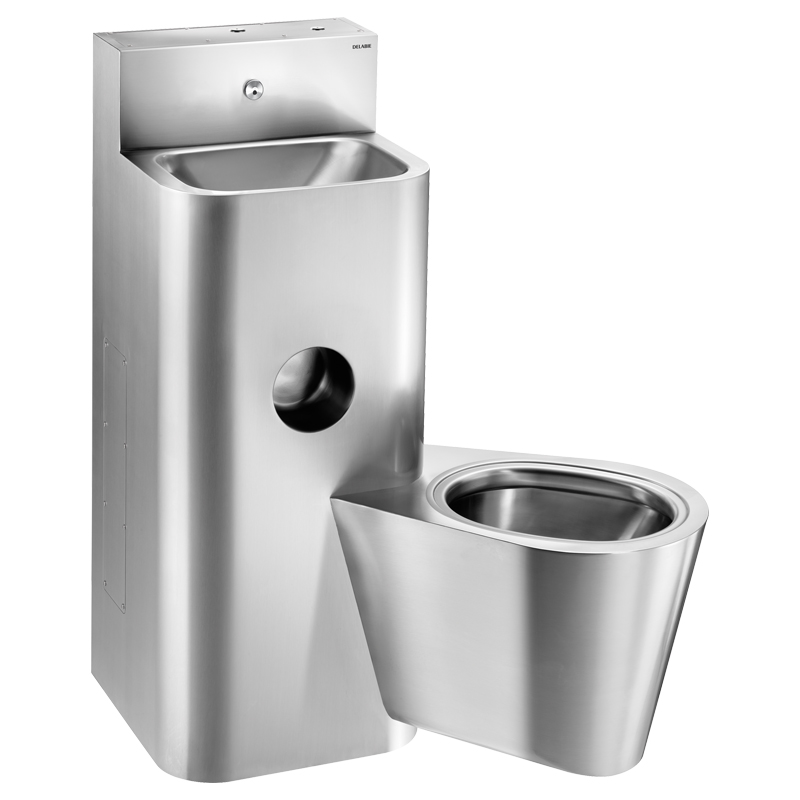

KOMPACT washbasin and wall-hung WC combination
Ref. 160300Combination unit: washbasin and suspended WC pan on right side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws. Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M½".
WC equipped with time flow flush valve, 7 second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030003]
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws. Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws: makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproof push-button and anti-blocking system, 7 second time flow, M½".
WC equipped with time flow flush valve, 7 second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030003]
ADVANTAGES
Bacteriostatic 304 stainless steel
Suitable for secure sector

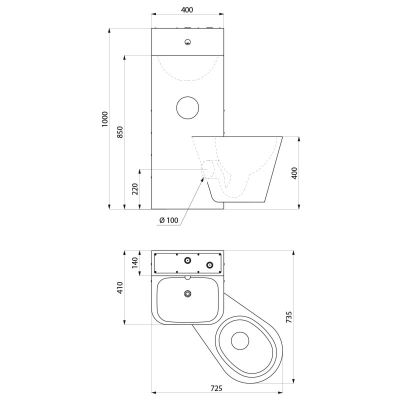

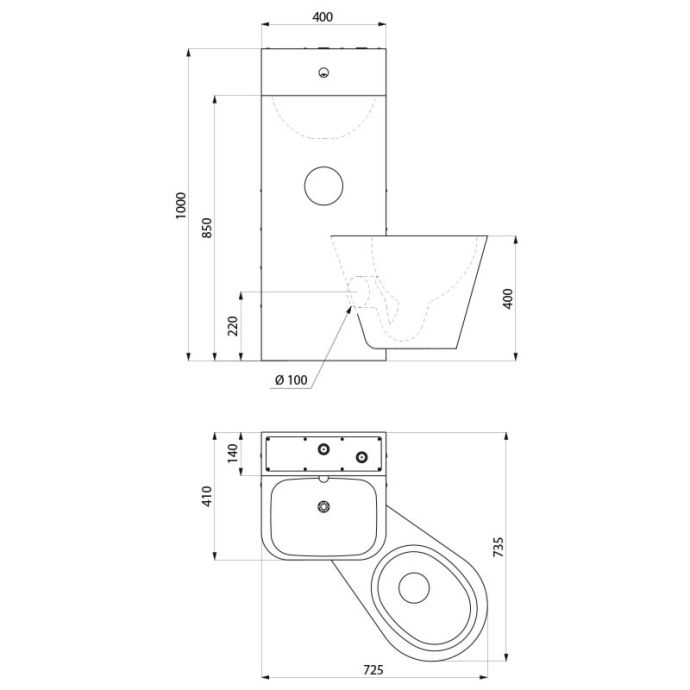

TECHNICAL CHARACTERISTICS
KOMPACT washbasin and wall-hung WC combination
Ref. 160300| Height | 1000mm |
| Length | 725mm |
| Width | 735mm |
| Thickness | 2mm |
| Finish | 304 polished satin stainless steel |
| Certificates |
|
| Warranty |
|
VARIANTS
| 160400 | Wall-mounted WC - WC pan on the left side | ||
|---|---|---|---|
| 160500 | Wall-mounted WC - centered WC pan | ||
| 160600 | Floor-standing WC - WC pan on the right side | ||
| 160700 | Floor-standing WC - WC pan on the left side | ||
| 160800 | Floor-standing WC - centered WC pan | ||
| 161600 | Floor-standing WC - WC pan on the right side - 2 push-buttons CW/MW | ||
| 161700 | Floor-standing WC - WC pan on the left side - 2 push-buttons CW/MW | ||
| 161800 | Floor-standing WC - centered WC pan - 2 push-buttons CW/MW |
