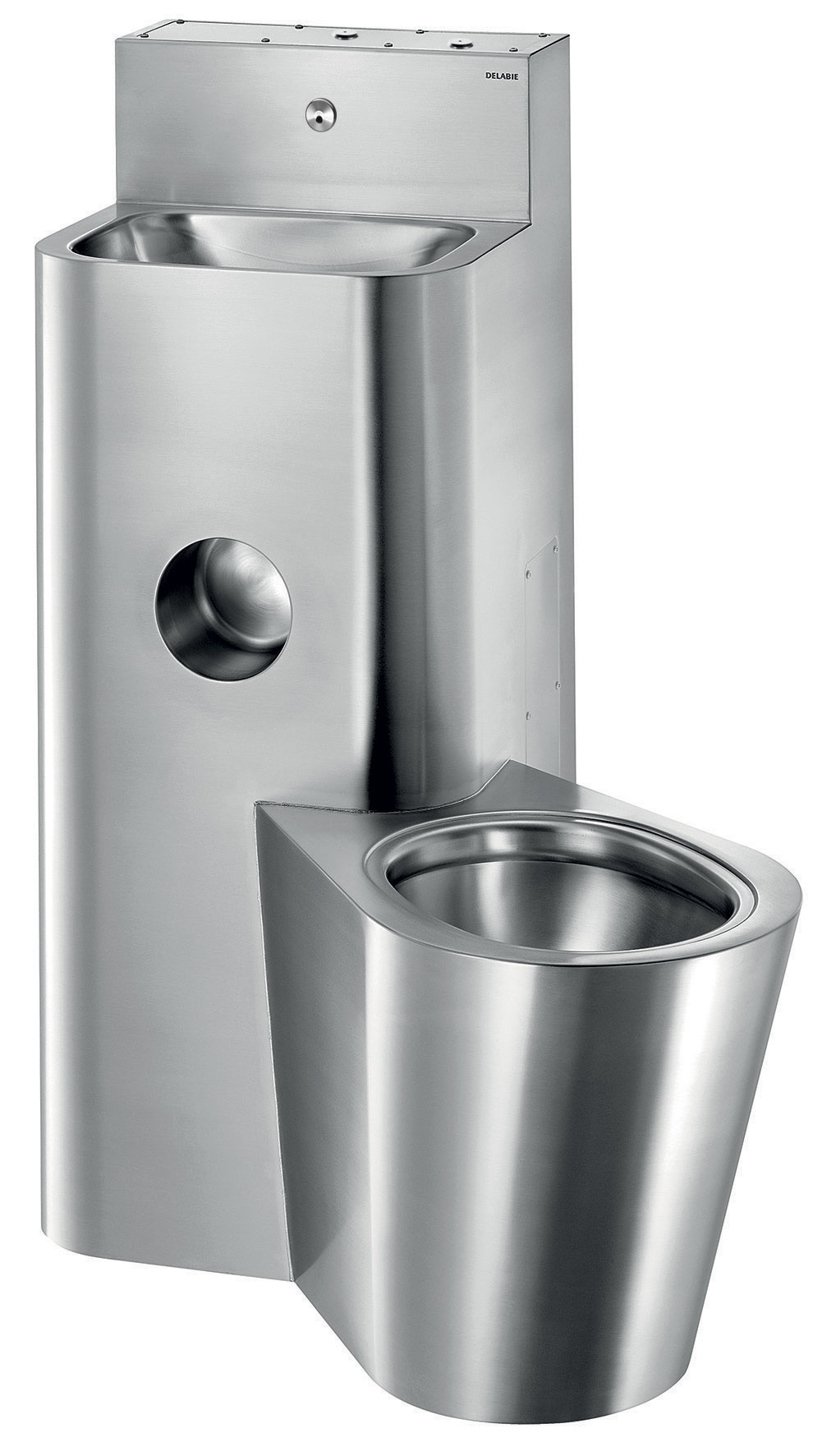

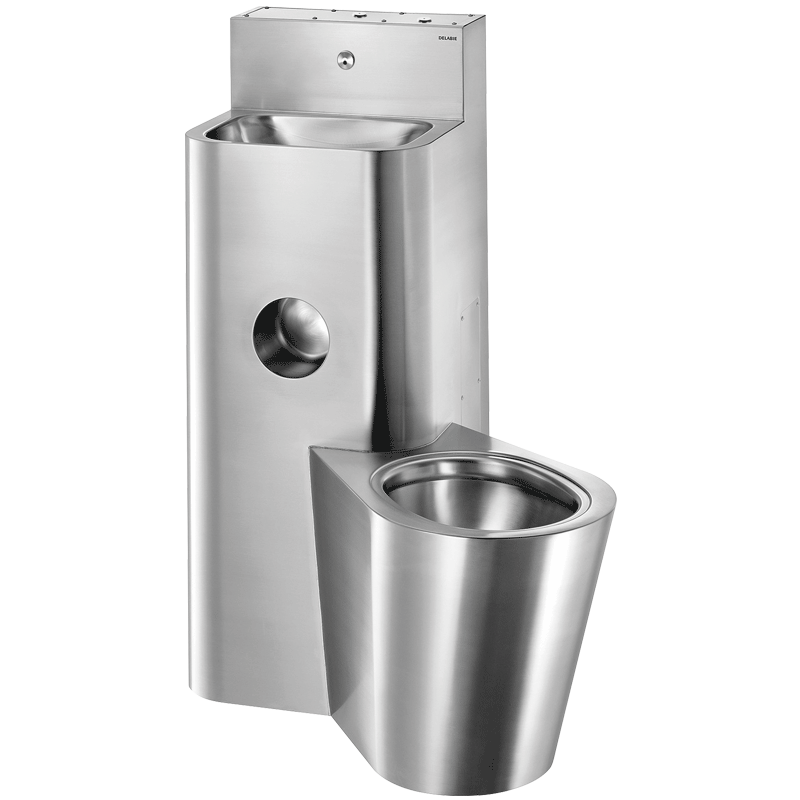

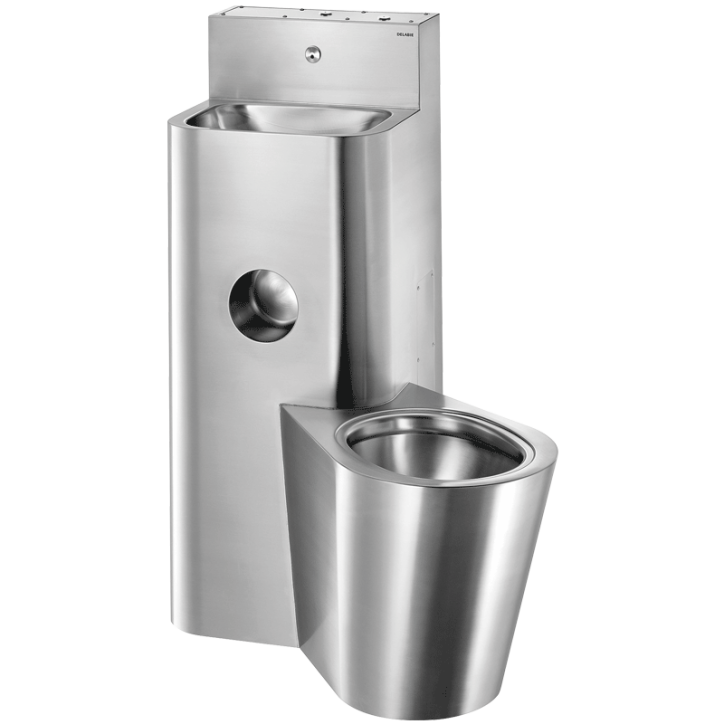

KOMPACT washbasin and floor-standing WC combination
Ref. 160600
Polished satin 304 stainless steel, Wall mount, Floor mount WC on RHS
Polished satin 304 stainless steel, Wall mount, Floor mount WC on RHS
DESCRIPTION
KOMPACT washbasin and floor-standing WC combination
Ref. 160600Combination unit: washbasin and floor-standing WC pan on right side with recessed toilet roll holder.
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M½".
WC equipped with time flow flush valve, 7 second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030006]
Wall-mounted installation with 3 access panels, 2 on the sidesand 1 on the top with theft prevention TORX security screws.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel unit thickness: 2mm.
Rounded corners and edges for improved safety.
Smooth surface for easy cleaning.
Suitable for prisons, police stations, etc.
WC pan is completely welded to washbasin, no screws:
makes cleaning easier and prevents concealment of objects.
Washbasin equipped with time flow tap: stainless steel tamperproofpush-button and anti-blocking system, 7 second time flow, M½".
WC equipped with time flow flush valve, 7 second time flow, M¾".
Water inlet: washbasin M½", WC M¾".
Recessed horizontal water outlet: Ø 100mm.
Supplied with washbasin siphon.
Easy to install: only one water outlet for both washbasin and WC,water inlet and outlet already connected.
Weight: 36kg.
[Formerly ref: 0610030006]
ADVANTAGES
Bacteriostatic 304 stainless steel
Suitable for secure sector

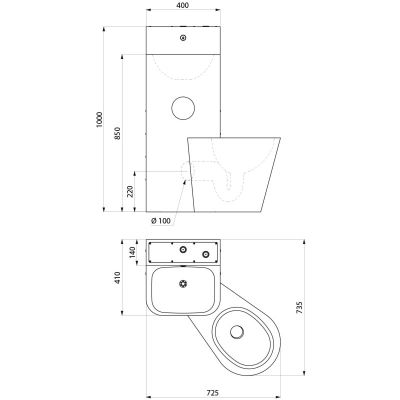

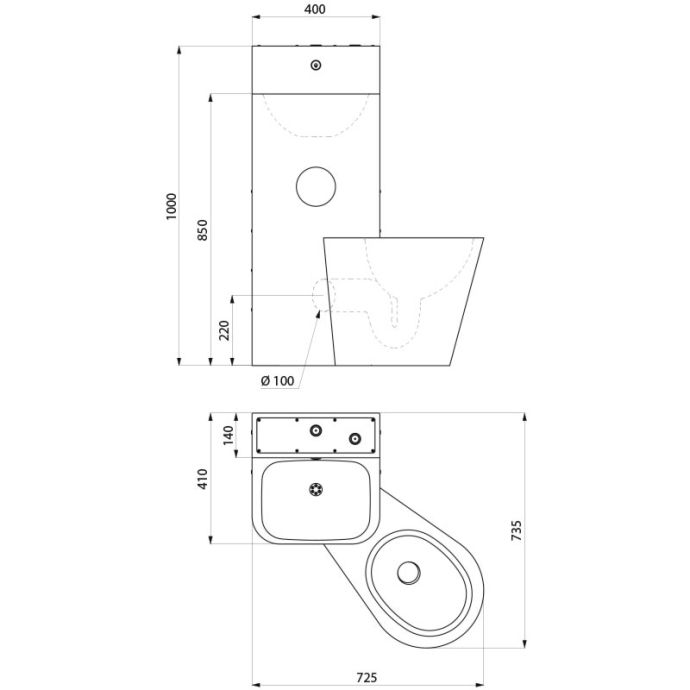

TECHNICAL CHARACTERISTICS
KOMPACT washbasin and floor-standing WC combination
Ref. 160600| Height | 1000mm |
| Length | 725mm |
| Width | 735mm |
| Thickness | 2mm |
| Finish | 304 polished satin stainless steel |
| Certificates |
|
| Warranty |
|
VARIANTS
| 160300 | Wall-mounted WC - WC pan on the right side | ||
|---|---|---|---|
| 160400 | Wall-mounted WC - WC pan on the left side | ||
| 160500 | Wall-mounted WC - centered WC pan | ||
| 160700 | Floor-standing WC - WC pan on the left side | ||
| 160800 | Floor-standing WC - centered WC pan | ||
| 161600 | Floor-standing WC - WC pan on the right side - 2 push-buttons CW/MW | ||
| 161700 | Floor-standing WC - WC pan on the left side - 2 push-buttons CW/MW | ||
| 161800 | Floor-standing WC - centered WC pan - 2 push-buttons CW/MW |
Associated products

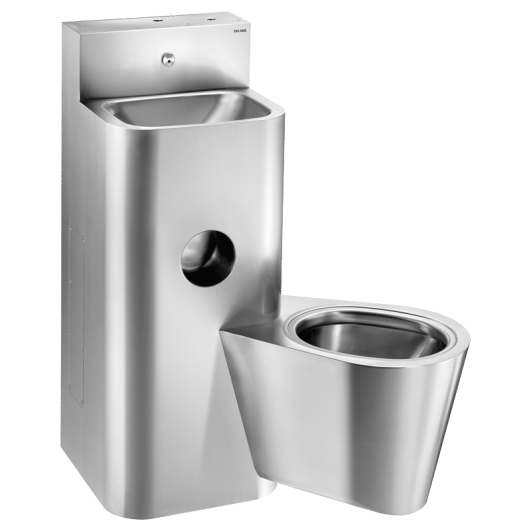

KOMPACT washbasin and wall-hung WC combination
Polished satin 304 stainless steel - Wall-mounted - WC on right side
Ref. 160300

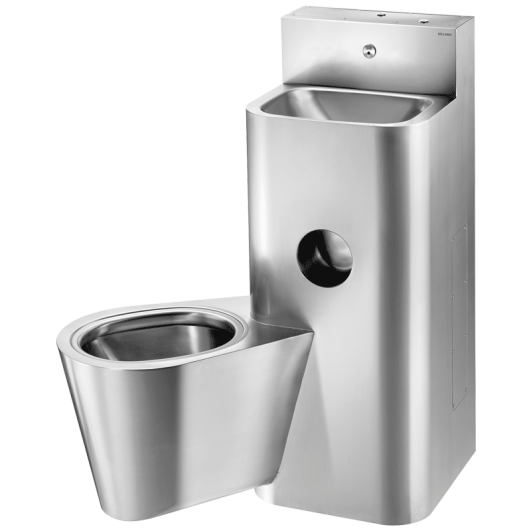

KOMPACT washbasin and wall-hung WC combination
Polished satin 304 stainless steel - Wall-mounted - WC on left side
Ref. 160400

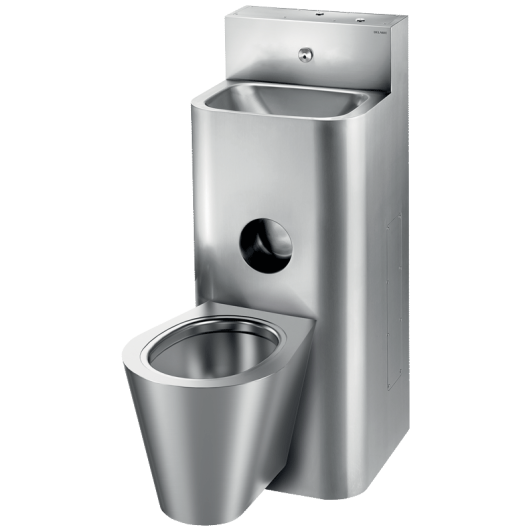

KOMPACT washbasin and wall-hung WC combination
