Single L stall urinal

Ref. 130200
Polished satin 304 stainless steel - L. 600mm - Floor-recessed
Single L stall urinal

Presentation

DESCRIPTION

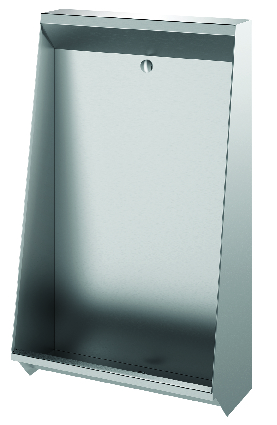

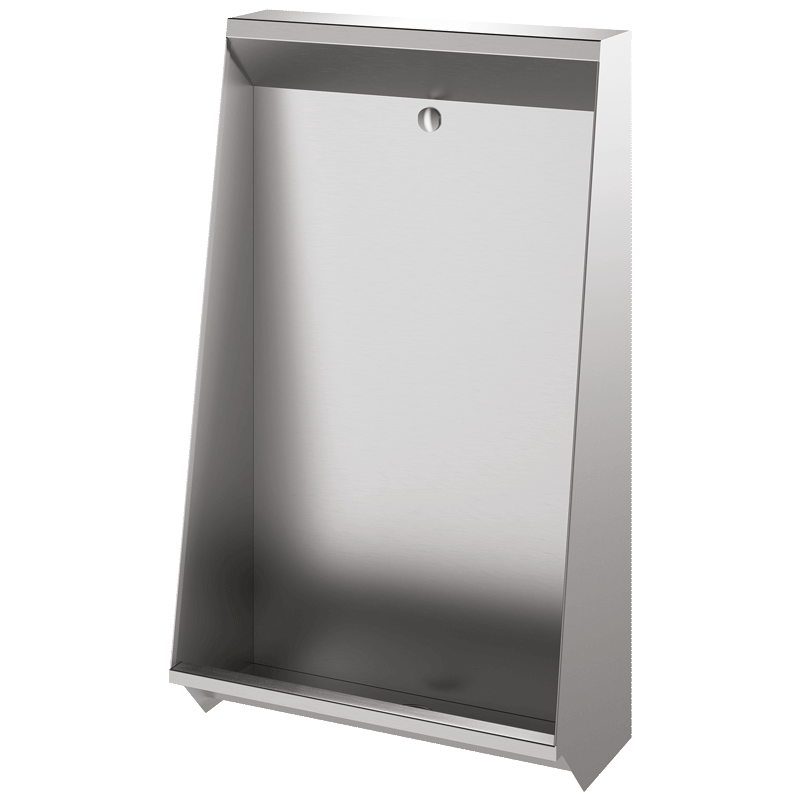

Single L stall urinal

Ref. 130200
Trough urinal for recessing in the floor, 600 x 1020 x 300mm.
Bacteriostatic 304 stainless steel.
Polished satin finish.
Stainless steel thickness: 1.2mm.
Rear water inlet.
Supplied with 1 stainless steel rinser and 1 flexible hose.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Central drainage.
Waste outlet 1½". Supplied with waste and integrated trap (ref. 785000).
Weight: 16.8kg.

[Formerly ref: 0310200001]

ADVANTAGES

Nettoyage aisé

Bacteriostatic 304 stainless steel

Characteristics

TECHNICAL CHARACTERISTICS

Single L stall urinal

Ref. 130200
Supply Back/Recessed
Height 1020mm
Length 300mm
Width 600mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Certificates Logo PZH
Warranty 30-Year
Single L stall urinal
Ref. 130200

Downloads

DOWNLOADS

Stalle d'urinoir L

Ref. 130200

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

130210 2 places - L. 1200mm
130220 3 places - L. 1800mm

Associated products

VARIANTS

130210 2 places - L. 1200mm
130220 3 places - L. 1800mm
