DESCRIPTION

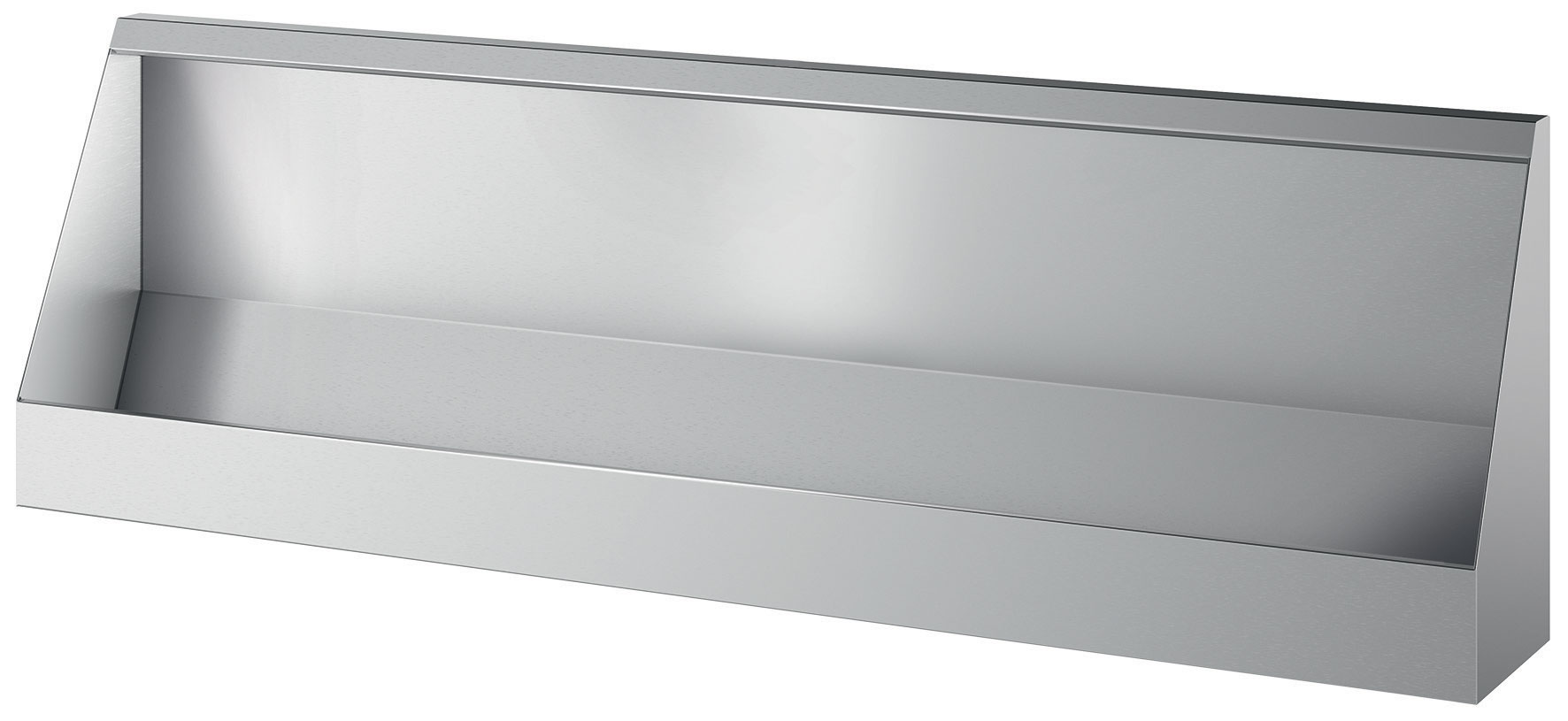

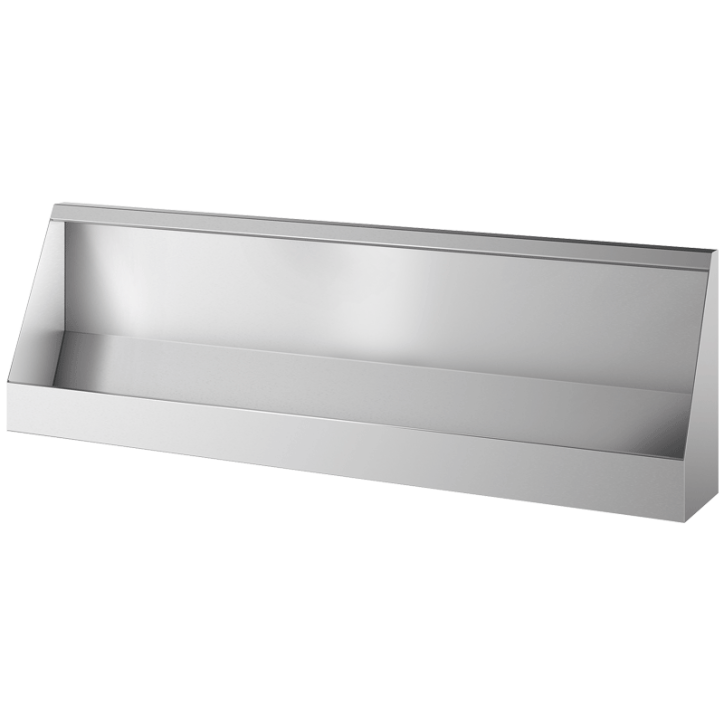

Wall-hung trough urinal
Ref. 130120Wall-hung trough urinal, 2400 x 575 x 275mm.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top water inlet F½.
Supplied with 1 stainless steel sparge pipe (perforated horizontal pipe) for optimum rinsing of urinal surface.Water savings: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Drainage on the right. Waste outlet 1½".
Supplied with fixing elements.

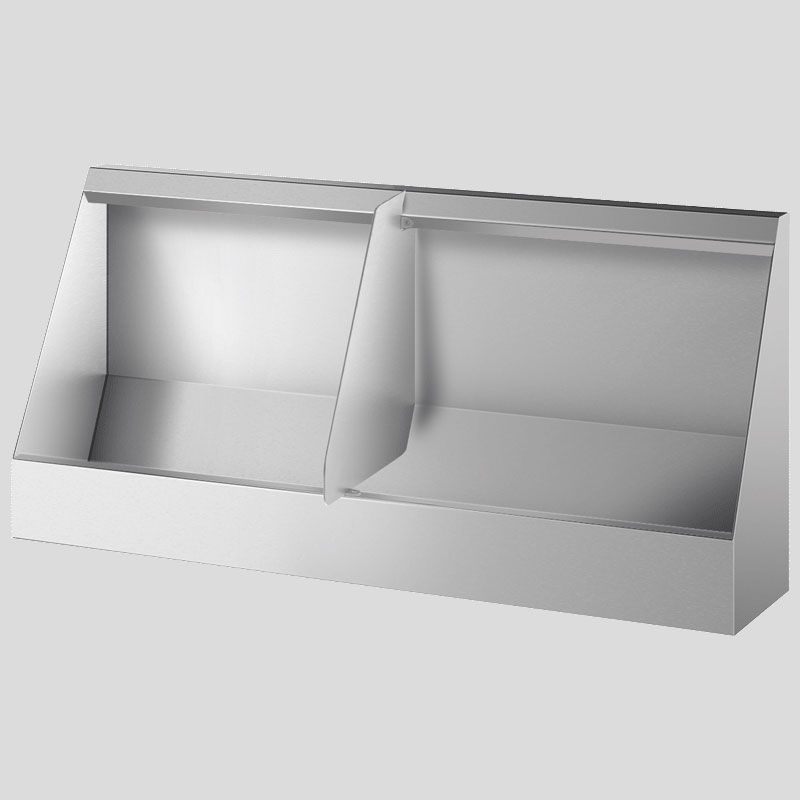

Possible to add one or more bacteriostatic 304 stainless steel dividers (ref. 100900). Fix directly onto the urinal in the desired location.
Installation advice: if you wish to install 2 urinals side by side, we recommend ordering one urinal with drainage on the left and one with drainage on the right.
Weight: 32.1kg.
Bacteriostatic 304 stainless steel. Polished satin finish.
Stainless steel thickness: 1.2mm.
Top water inlet F½.
Supplied with 1 stainless steel sparge pipe (perforated horizontal pipe) for optimum rinsing of urinal surface.Water savings: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Drainage on the right. Waste outlet 1½".
Supplied with fixing elements.
Possible to add one or more bacteriostatic 304 stainless steel dividers (ref. 100900). Fix directly onto the urinal in the desired location.
Installation advice: if you wish to install 2 urinals side by side, we recommend ordering one urinal with drainage on the left and one with drainage on the right.
Weight: 32.1kg.
ADVANTAGES
Bacteriostatic 304 stainless steel
TECHNICAL CHARACTERISTICS

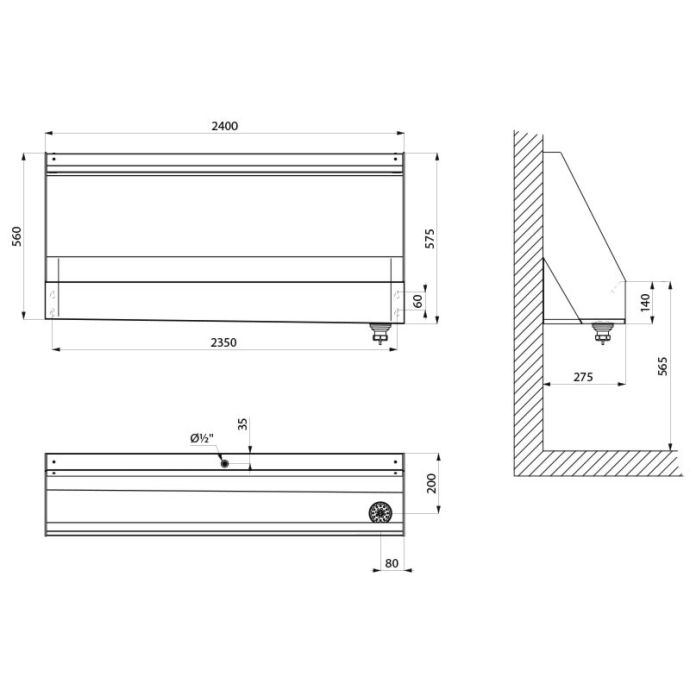

Wall-hung trough urinal
Ref. 130120Supply | Top inlet/exposed |
Height | 575mm |
Length | 275mm |
Width | 2400mm |
Thickness | 1.2mm |
Finish | Polished satin 304 stainless steel |
Certificates | |
Warranty |
VARIANTS
130100 | 2 users - L. 1200mm | ||
---|---|---|---|
130110 | 3 users - L. 1800mm |
VARIANTS
130100 | 2 users - L. 1200mm | ||
---|---|---|---|
130110 | 3 users - L. 1800mm |
