L trough urinal

Ref. 130220
Polished satin 304 stainless steel - L. 1,800mm - Floor-recessed
L trough urinal

Presentation

DESCRIPTION

L trough urinal

Ref. 130220

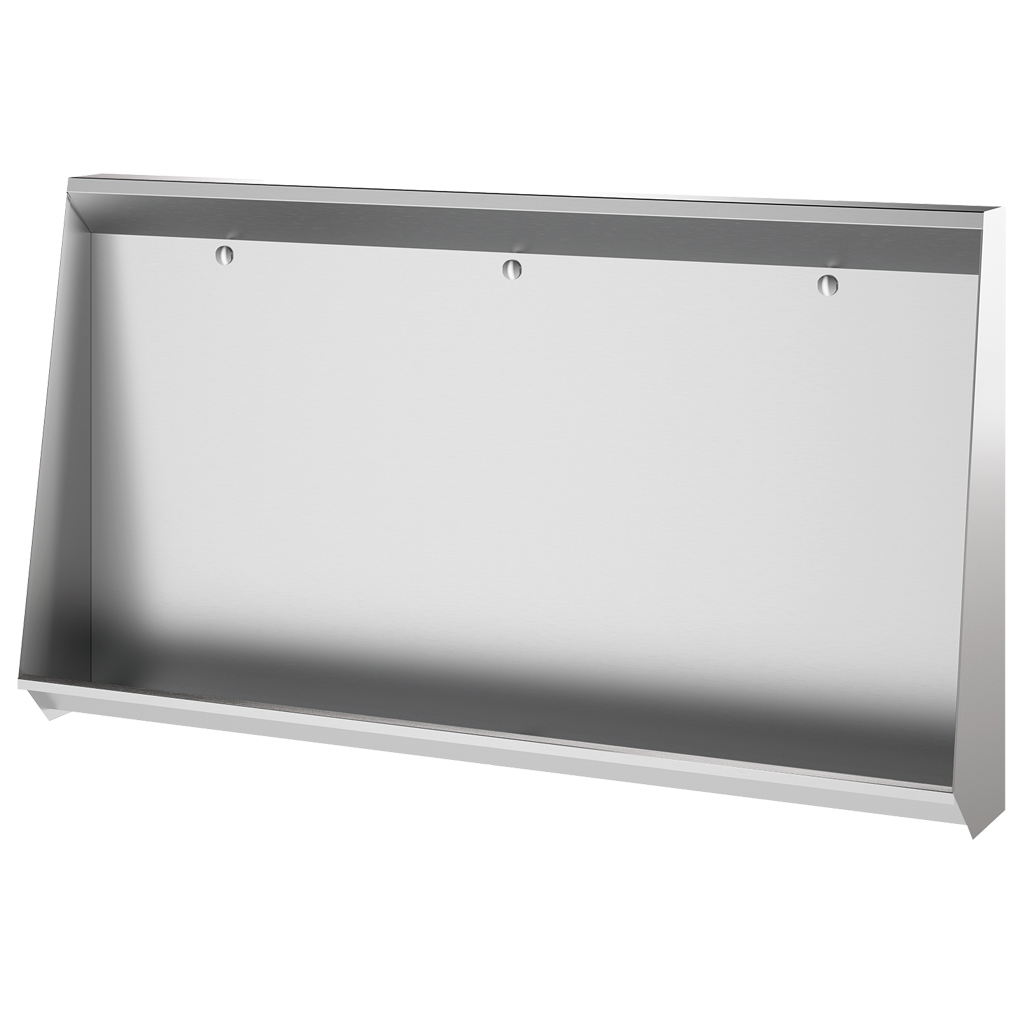

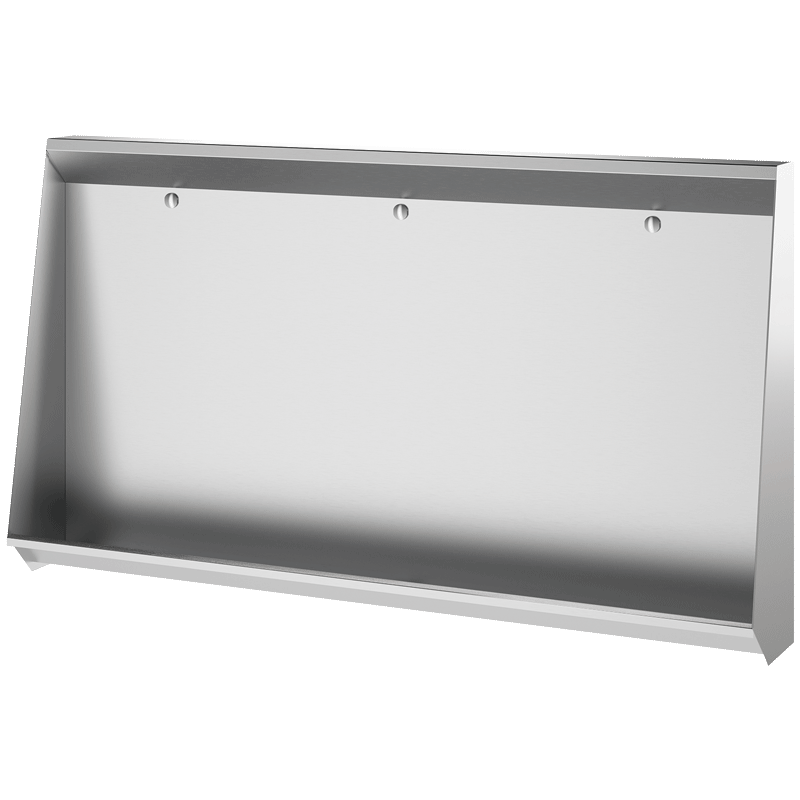

Floor-standing recessed trough urinal, 1800 x 1020 x 300mm.
Bacteriostatic 304 stainless steel.
Stainless steel thickness: 1.2mm.
Rear water inlet.
Supplied with 3 stainless steel rinsers and 3 flexible hoses.
Water saving: optimal rinsing with 0.1 L/sec. per service i.e. 0.3L per use.
Central drainage.
Waste outlet 1½". Supplied with waste and integrated trap (ref. 785000).
Weight: 34kg.
Possible to add one or more bacteriostatic 304 stainless steel dividers. Fix directly onto the urinal in the desired location.

ADVANTAGES

Nettoyage aisé

Bacteriostatic 304 stainless steel

Characteristics

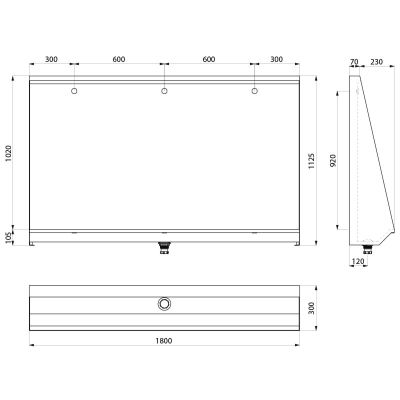

TECHNICAL CHARACTERISTICS

L trough urinal

Ref. 130220
Supply Rear inlet/recessed
Height 1020mm
Length 300mm
Width 1800mm
Thickness 1.2mm
Finish 304 polished satin stainless steel
Certificates Logo PZH
Warranty 30-Year
L trough urinal
Ref. 130220

Downloads

DOWNLOADS

Stalle d'urinoir L

Ref. 130220

To download one or several documents linked to this product, please select the type of file you require :

VARIANTS

130200 Single stall - L. 600mm
130210 2 places - L. 1200mm

Associated products

VARIANTS

130200 Single stall - L. 600mm
130210 2 places - L. 1200mm
