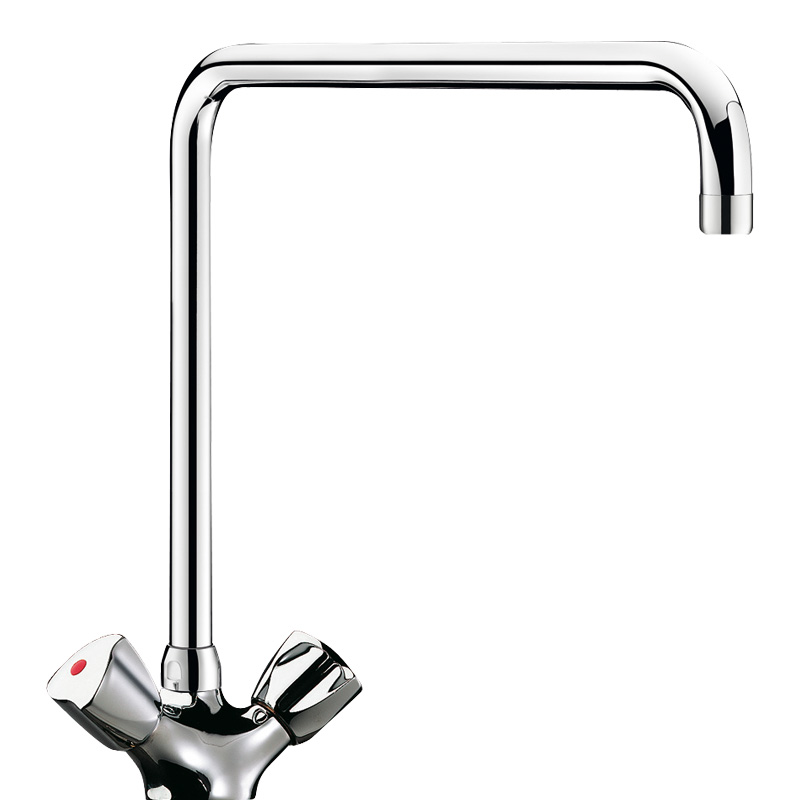

Deck-mounted single hole mixer - 45 lpm

Ref. G66453
Swivelling over spout L. 300mm H. 290mm

Presentation

DESCRIPTION

Deck-mounted single hole mixer - 45 lpm

Ref. G66453

Deck-mounted single hole mixer for professional kitchens.
Mixer for plunge sinks with swivelling, tubular spout H. 290mm L. 300mm.
Star-shaped flow straightener.
Water-free valve heads with control knobs.
Flow rate 45 lpm at 3 bar.
Spout with smooth interior.
Chrome-plated brass body and spout.
F3/8" PEX flexibles.
Suitable for intensive use in professional kitchens.
30-year warranty.

ADVANTAGES

Rapid fill: flow rate 45 lpm at 3 bar

Brass body and spout suitable for intensive use

Maximum hygiene: spout with smooth interior

Increased resistance: reinforced fixing

Characteristics

TECHNICAL CHARACTERISTICS

Deck-mounted single hole mixer - 45 lpm

Ref. G66453

Connector	F3/8"
Height	370mm
Drop height	290mm
Spout length	300mm
Flow rate	45 lpm
Finish	Chrome-plated brass
Certificates
Warranty

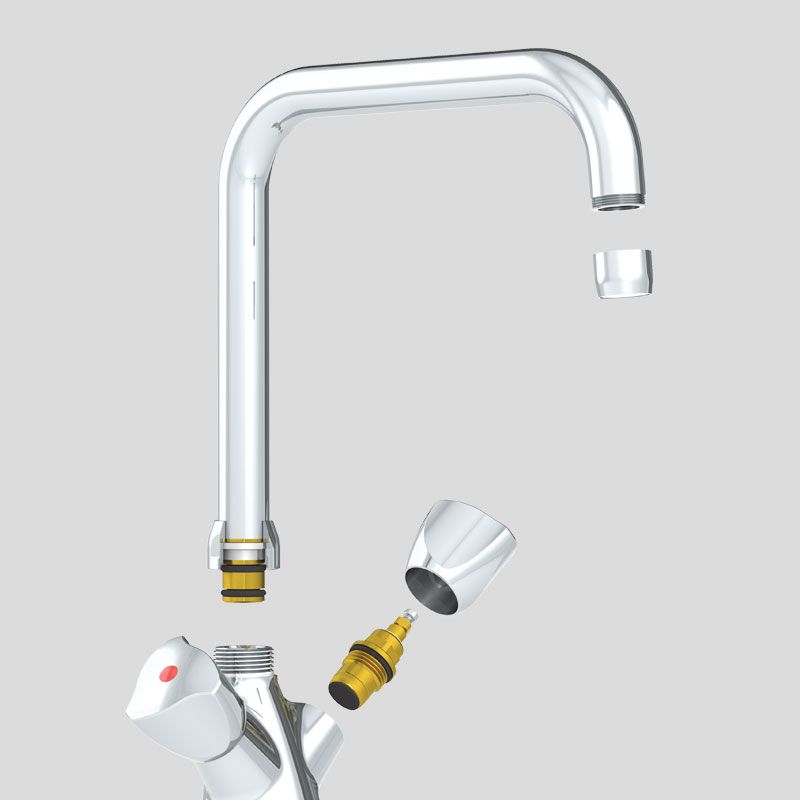

Repairability

Downloads

DOWNLOADS

Mélangeur monotrou sur plage - 45 l/min

Ref. G66453

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

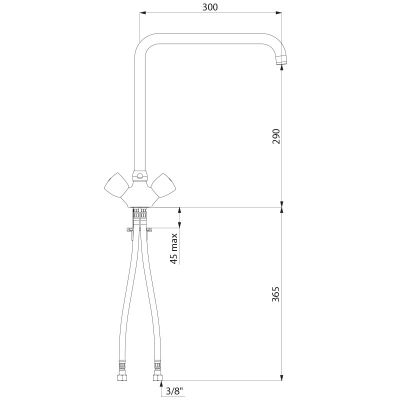

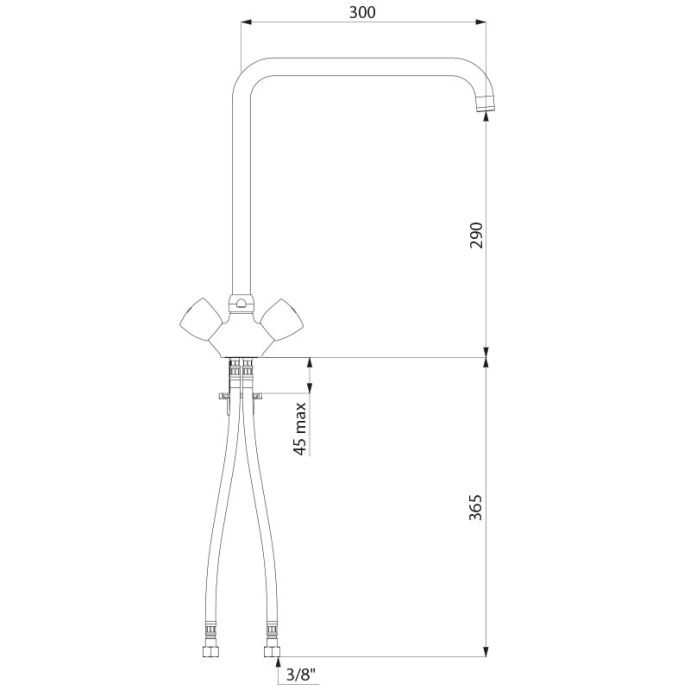

Line drawing

Line drawing AutoCAD DWG

Certificates

Spare parts

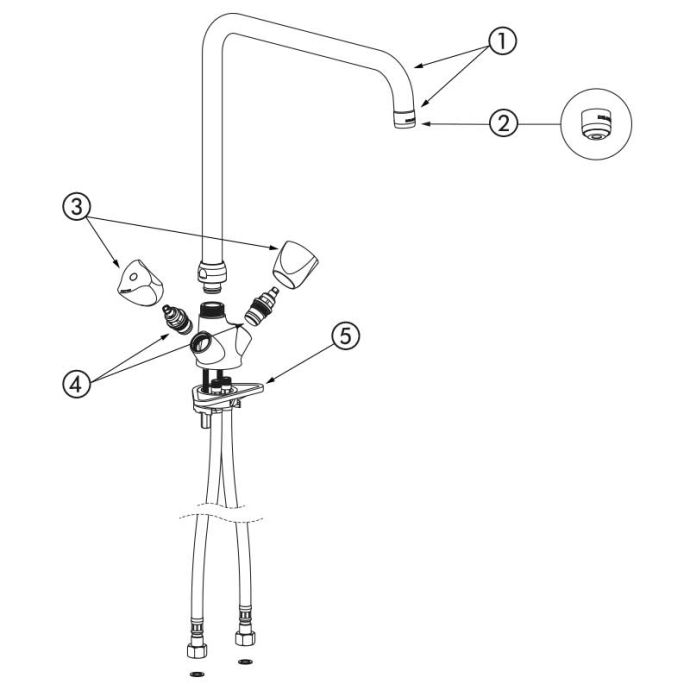

SPARE PARTS

Deck-mounted single hole mixer - 45 lpm

Ref. G66453

1.	963300245F	Swivelling, tubular spout
2.	921022.2P	Star-shaped flow straightener
3.	366015.2P	Bare LONG LIFE valve head
4.	256P	Fixing plate
5.	FLEX79508	F3/8" PEX flexible hoses
