Deck-mounted single hole mixer - 45 lpm

Ref. 5640T3
Swivelling over spout L. 300mm H. 190mm
Deck-mounted single hole mixer - 45 lpm

Presentation

DESCRIPTION

Deck-mounted single hole mixer - 45 lpm

Ref. 5640T3
Deck-mounted single hole mixer with swivelling, tubular spout Ø 22mm H. 190mm L. 300mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 45 lpm at 3 bar.
Full flow rate achieved within first 90°.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixings via two stainless steel rods.
F3/8" PEX flexibles.
30-year warranty.

ADVANTAGES

Remplissage rapide

Rapid fill: flow rate 45 lpm

Endurance - Fiabilité

Shockproof control levers withstand intensive use

Anti-vandalisme

Chromed brass body and spout, reinforced fixings

Corps à intérieur lisse

Spout with smooth interior

Characteristics

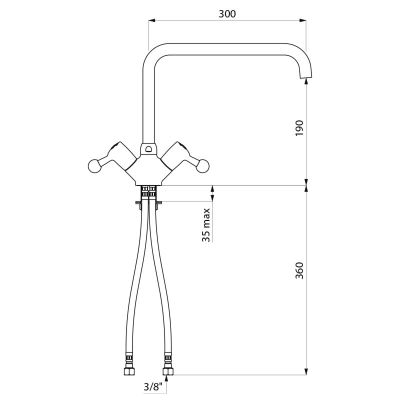

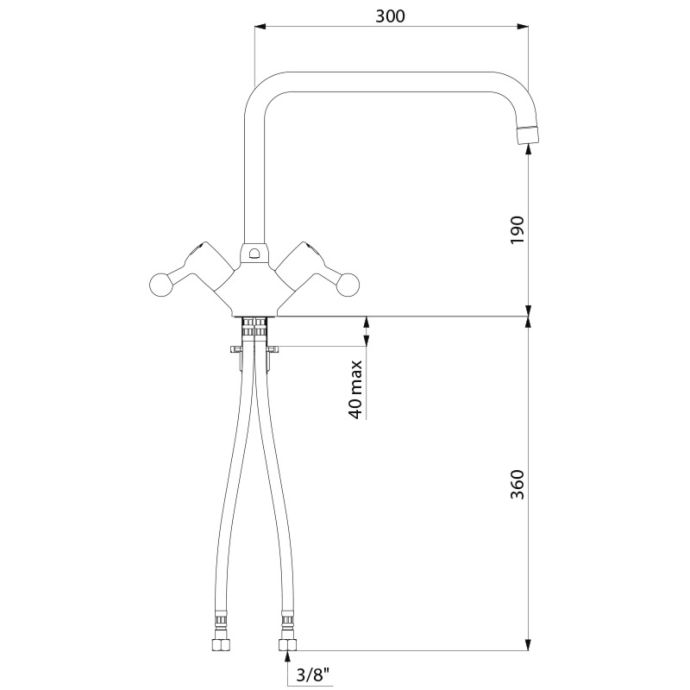

TECHNICAL CHARACTERISTICS

Deck-mounted single hole mixer - 45 lpm

Ref. 5640T3
Connector F3/8"
Height 270mm
Drop height 190mm
Spout length 300mm
Flow rate 45 lpm
Finish Chrome-plated brass
Certificates ACS Logo PZH Logo DoP
Warranty 30-Year
Repairability
Deck-mounted single hole mixer - 45 lpm
Ref. 5640T3

Downloads

DOWNLOADS

Mélangeur monotrou sur plage - 45 l/min

Ref. 5640T3

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

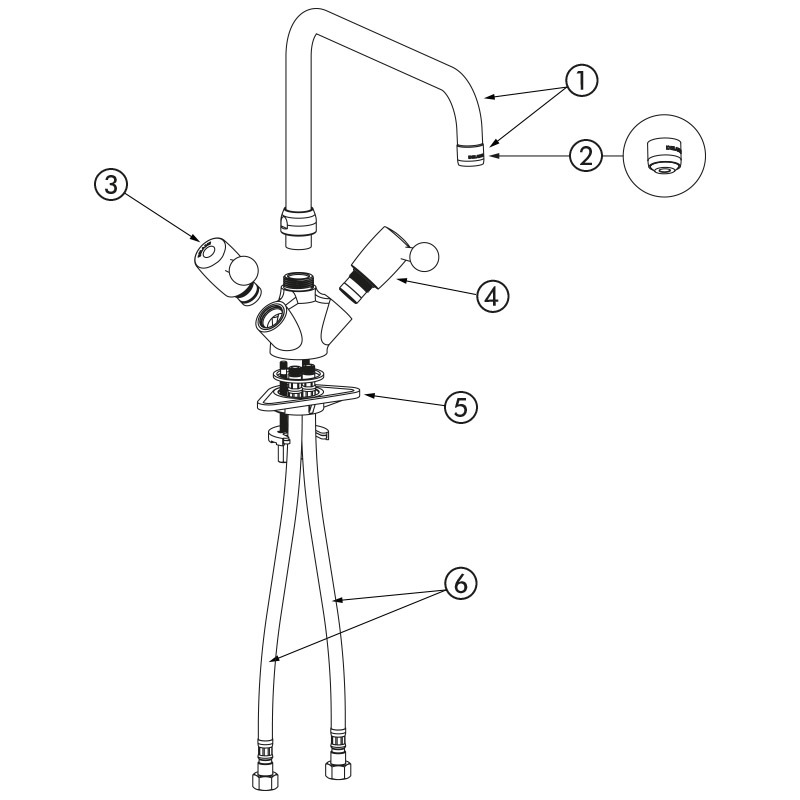

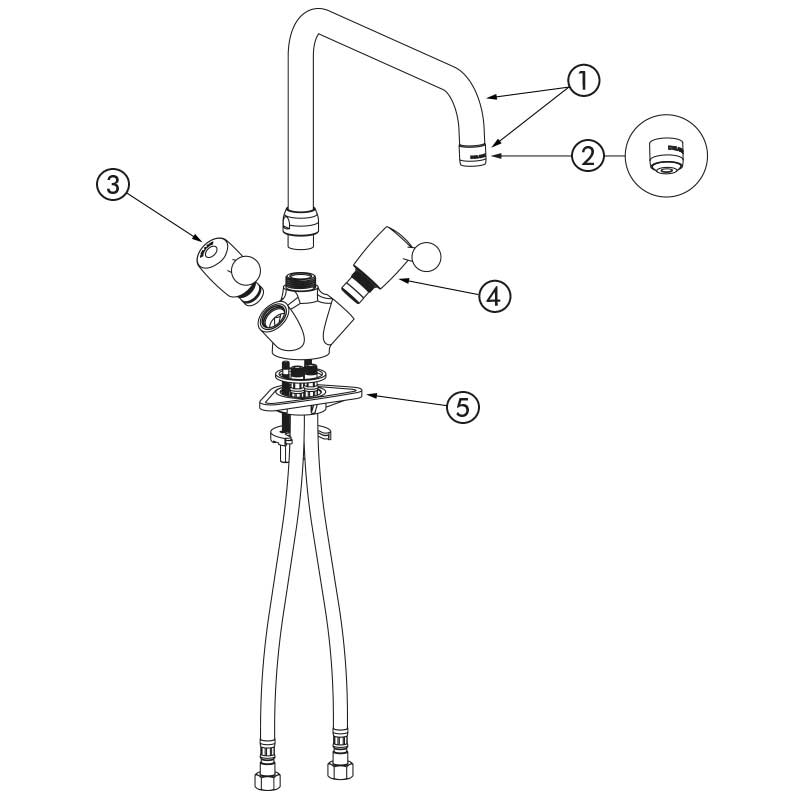

SPARE PARTS

Deck-mounted single hole mixer - 45 lpm

Ref. 5640T3
1. 963300145F
Swivelling, tubular spout
2. 921022.2P
Star-shaped flow straightener
3. P271AA85
Valve head 1/4 left turn
4. P272AA85
Valve head 1/4 right turn
5. 2510SES
Locking kit
6. 256P
Fixing plate
7. FLEX79508
F3/8" PEX flexible hoses

VARIANTS

5640T2 45 lpm single hole mixer - H.195 L.200
