DESCRIPTION

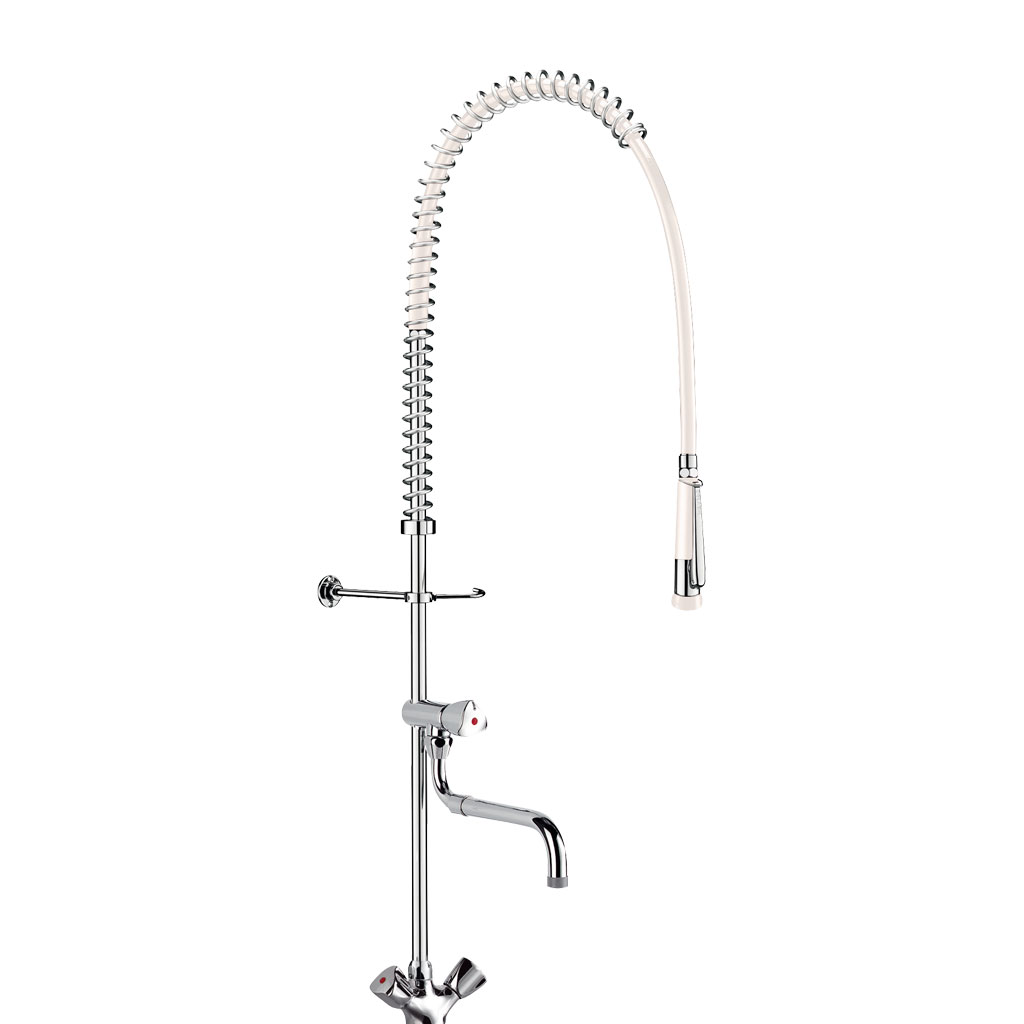

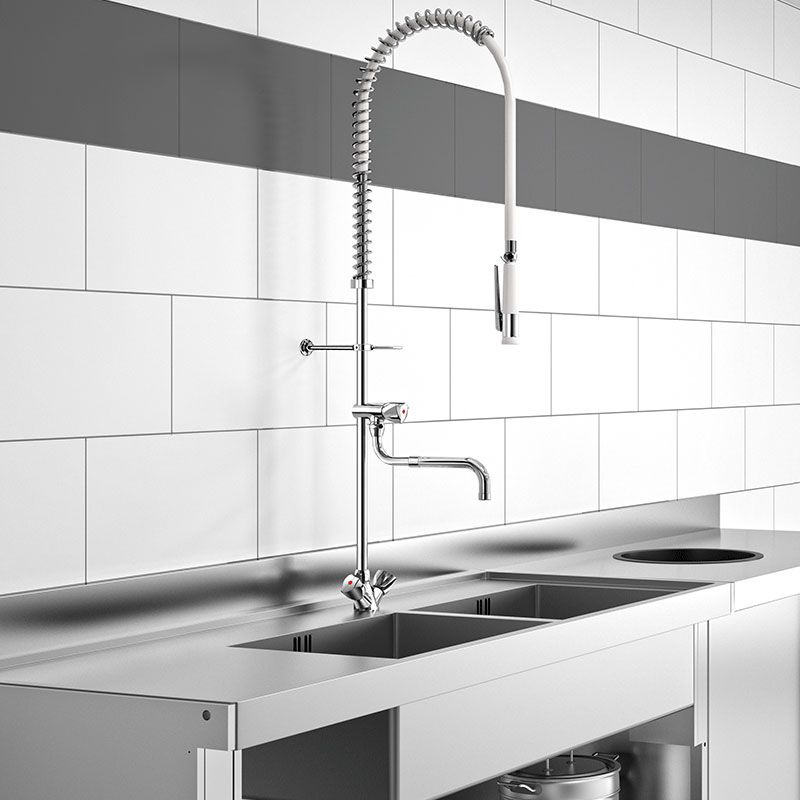

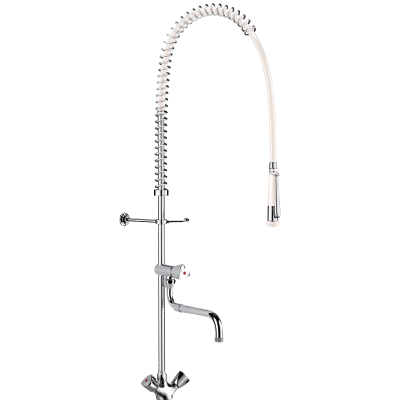

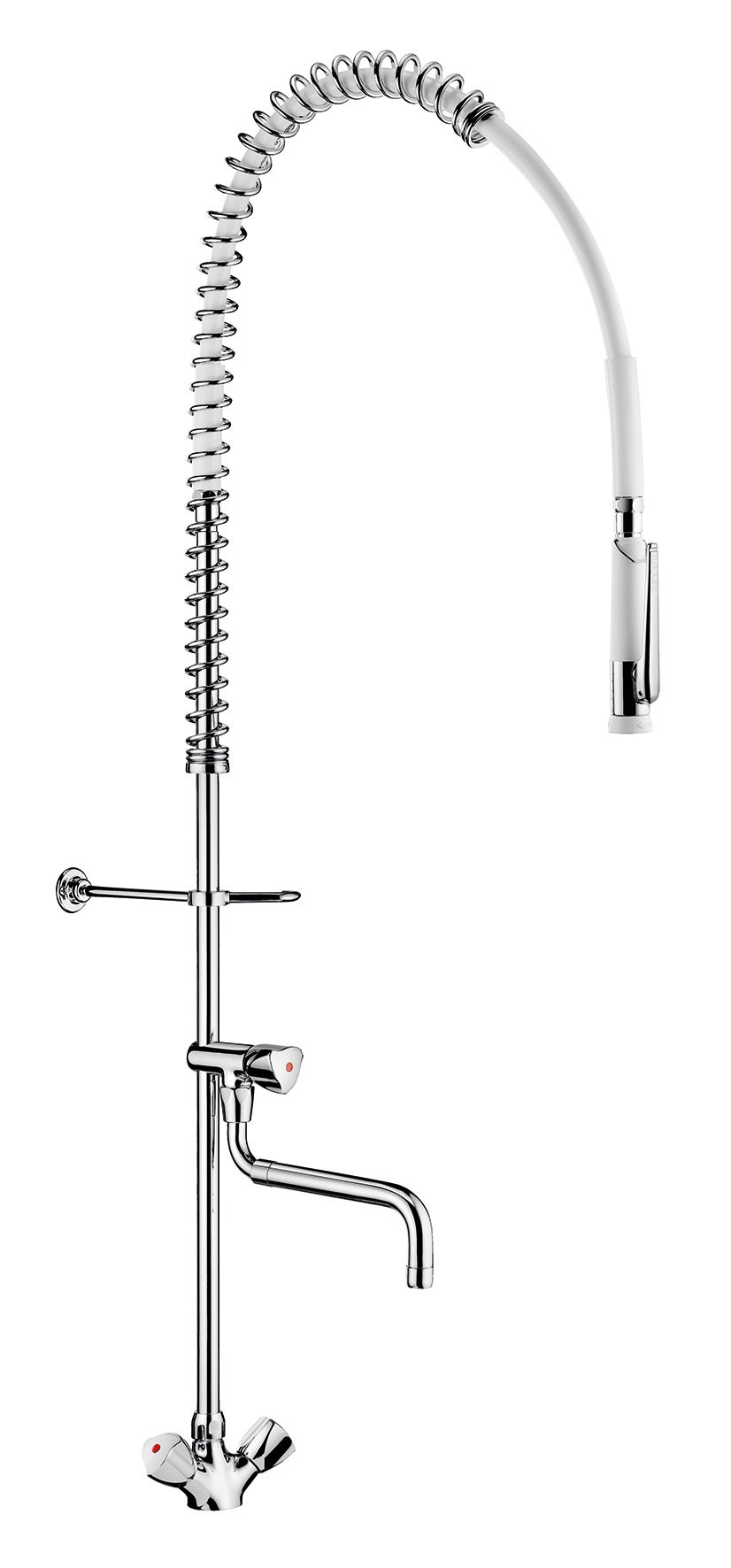

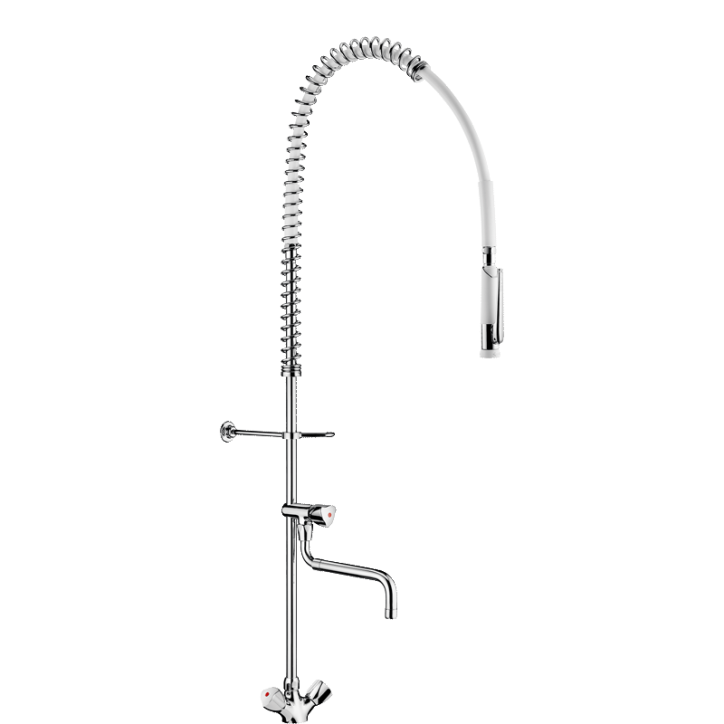

Pre-rinse set with mixer
Ref. G6632Complete pre-rinse set with bib tap.
Suitable for intensive use in professional kitchens.
Single hole deck-mounted mixer with:
- valve head with control knobs.
- F3/8" flexible connectors and non-return valves.
- reinforced fixing via 2 threaded rods and back-nuts.
Bib tap with:
- telescopic, swivelling spout L. 200 - 290mm with 20 lpm flow rate at the outlet.
- valve head with control knob.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray and shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
Suitable for intensive use in professional kitchens.
Single hole deck-mounted mixer with:
- valve head with control knobs.
- F3/8" flexible connectors and non-return valves.
- reinforced fixing via 2 threaded rods and back-nuts.
Bib tap with:
- telescopic, swivelling spout L. 200 - 290mm with 20 lpm flow rate at the outlet.
- valve head with control knob.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray and shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
ADVANTAGES
Rapid fill: full flow rate 20 lpm
Increased resistance: water-free valve heads
Telescopic, swivelling rapid-fill spout
Anti-torsion rotating nut and PVC sheath

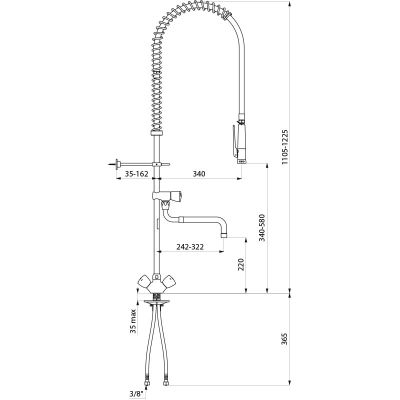

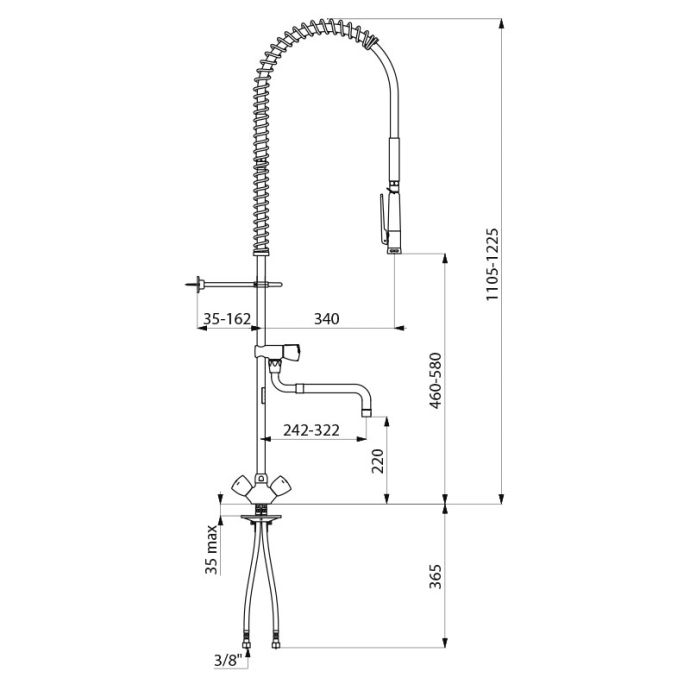

TECHNICAL CHARACTERISTICS
Pre-rinse set with mixer
Ref. G6632Connector | F3/8" |
Height | 1075 - 1195mm |
Drop height | 310 - 550mm |
Flow rate | 20 lpm with the bib tap; 9 lpm via the hand spray |
Width to the wall | 35 - 162mm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

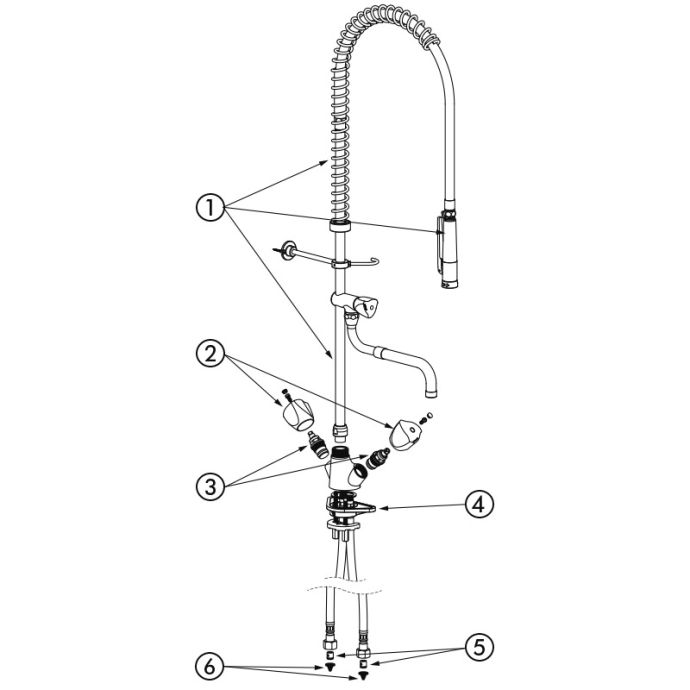

SPARE PARTS
Pre-rinse set with mixer
Ref. G66321. | 433220 |
|
White pe-rinse set with no valve |
2. | 366015.2P |
|
Bare LONG LIFE valve head |
3. | 256P |
|
Fixing plate |
4. | 900010 |
|
Non-return valve |
5. | 60438.10P |
|
Conical filter |
VARIANTS

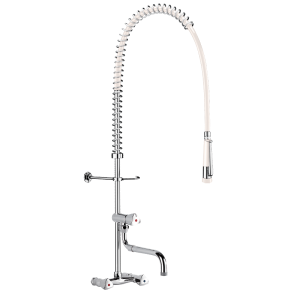

G6932 | Hand spray with scale-resistant nipples - Bib tap and telescopic spout | ||
---|---|---|---|
G6933 | Hand spray with scale-resistant nipples - Without bib tap | ||
G6633 | Hand spray with scale-resistant nozzle - Without bib tap |
