Wall-mounted pre-rinse set with mixer and telescopic spout

Ref. G6432
With bib tap and swivelling telescopic spout
Wall-mounted pre-rinse set with mixer and telescopic spout

Presentation

DESCRIPTION

Wall-mounted pre-rinse set with mixer and telescopic spout

Ref. G6432
Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.
Wall-mounted F3/4" mixer with 150mm centres with:
- valve heads with control knobs.
- non-return valves integrated in the mixer.
Bib tap with telescopic, swivelling spout L. 200-290mm.
- 20 lpm flow rate at the outlet.
- valve heads with control knobs.
White hand spray with adjustable jet with 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

ADVANTAGES

Remplissage rapide

Rapid fill: full flow rate 20 lpm

Confort - Ergonomie - Déclenchement souple

Telescopic, swivelling rapid-fill spout

Anti-vandalisme

Increased resistance: water-free valve heads

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Characteristics

TECHNICAL CHARACTERISTICS

Wall-mounted pre-rinse set with mixer and telescopic spout

Ref. G6432
Connector F3/4"

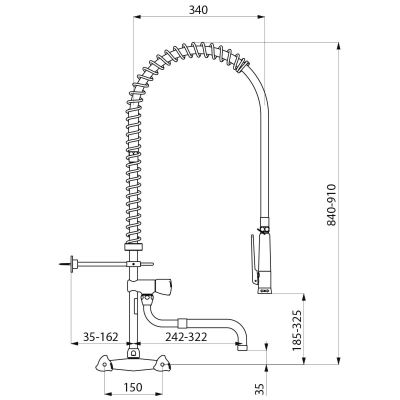

Height 840 - 910mm
Drop height 185 - 325mm
Flow rate 20 lpm with the bib tap; 9 lpm via the hand spray
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH
Warranty 30-Year
Repairability
Wall-mounted pre-rinse set with mixer and telescopic spout
Ref. G6432

Downloads

DOWNLOADS

Wall-mounted pre-rinse set with mixer and telescopic spout

Ref. G6432

To download one or several documents linked to this product, please select the type of file you require :

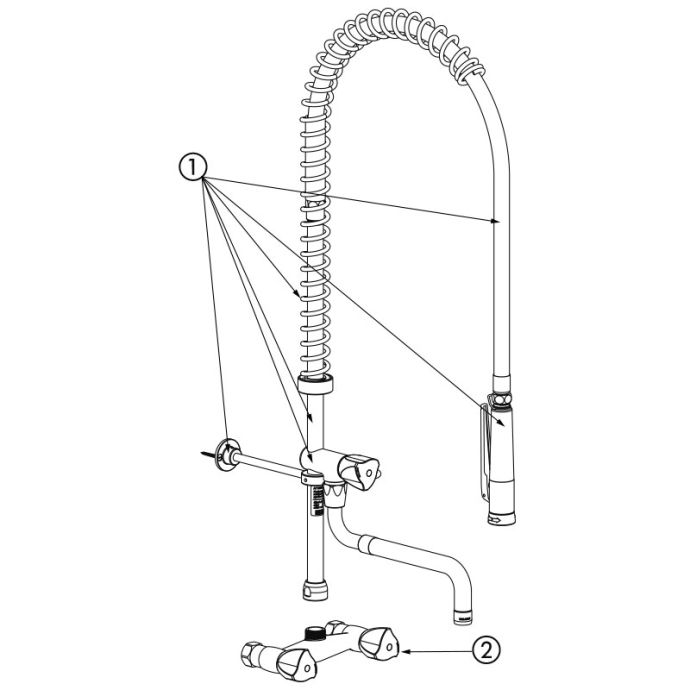

Spare parts

SPARE PARTS

Wall-mounted pre-rinse set with mixer and telescopic spout

Ref. G6432
1. 433422
White pre-rinse set with no valve
2. G6493
Subassembly for wall-mounted mixer

VARIANTS

G6732 Hand spray with scale-resistant nipples - Bib tap and telescopic spout
G6733 Hand spray with scale-resistant nipples - Without bib tap
G6433 Hand spray with scale-resistant nozzle - Without bib tap

Associated products

VARIANTS

G6732 Hand spray with scale-resistant nipples - Bib tap and telescopic spout
G6733 Hand spray with scale-resistant nipples - Without bib tap
G6433 Hand spray with scale-resistant nozzle - Without bib tap
