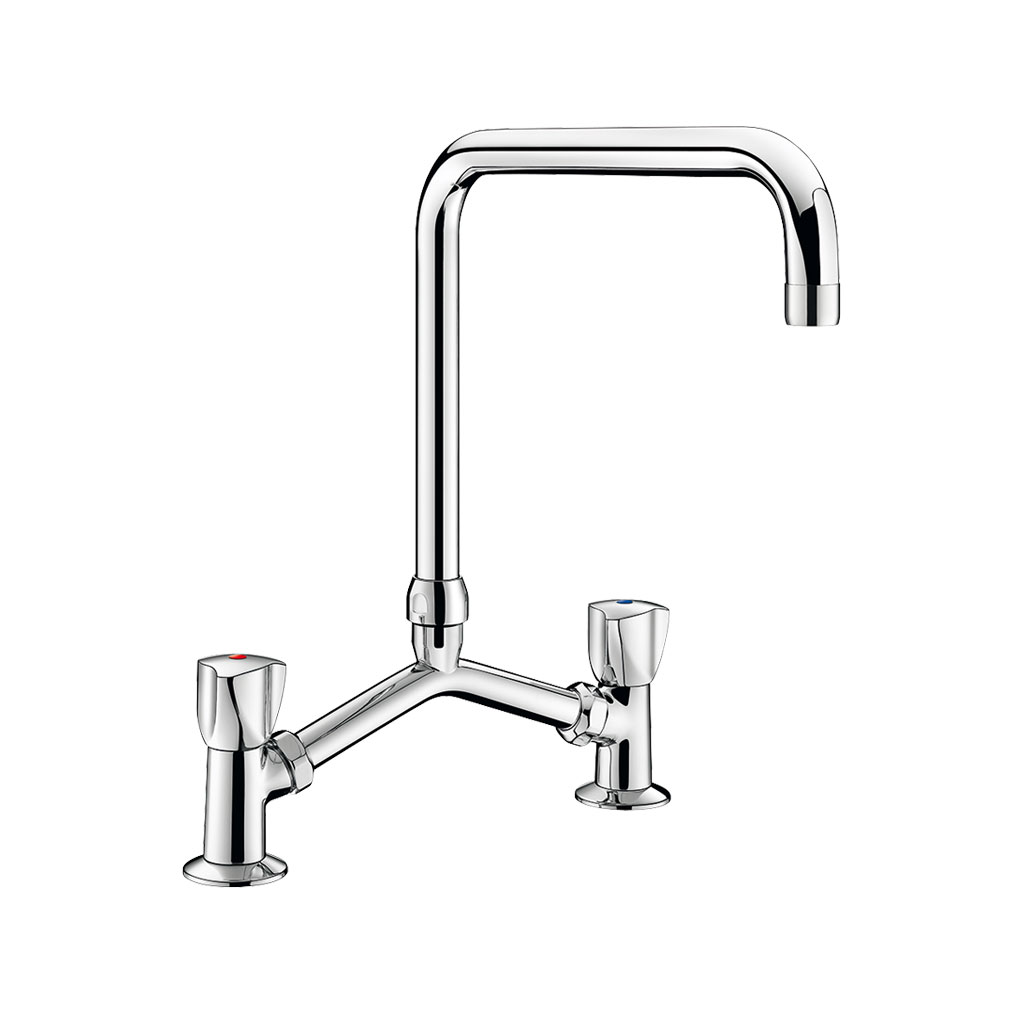

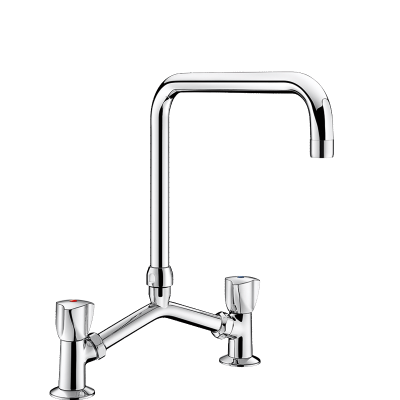

Deck-mounted twin hole mixer - 45 lpm

Ref. G65602
Swivelling over spout L. 200mm H. 250mm
Deck-mounted twin hole mixer - 45 lpm

Presentation

DESCRIPTION

Deck-mounted twin hole mixer - 45 lpm

Ref. G65602

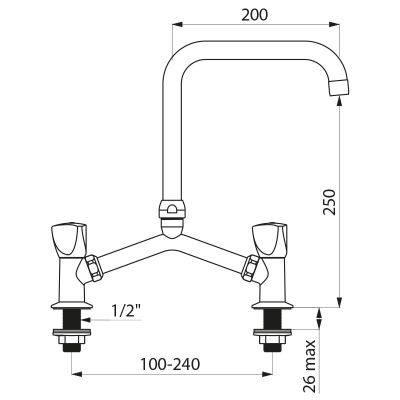

Deck-mounted twin hole mixer, M1/2" with 100 - 240mm adjustable centres.
Swivelling, tubular spout Ø 22mm H. 250mm L. 200mm with star-shaped flow straightener.
Water-free, guided valve heads with control knobs.
Flow rate 45 lpm at 3 bar.
Spout with smooth interior.
Chrome-plated brass body and spout.
Reinforced fixings.
Can be installed close to the splashback.
30-year warranty.

ADVANTAGES

Remplissage rapide

Flow rate 45 lpm

Anti-vandalisme

Chrome-plated brass body and spout

Faible espacement au mur - Encombrement limité

Can be installed close to splashback

Corps à intérieur lisse

Spout with smooth interior

Characteristics

TECHNICAL CHARACTERISTICS

Deck-mounted twin hole mixer - 45 lpm

Ref. G65602
Connector M1/2"
Height 320mm
Drop height 250mm
Spout length 200mm
Flow rate 45 lpm
Finish Chrome-plated brass
Certificates ACS Logo DoP Logo PZH
Warranty 30-Year
Repairability
Deck-mounted twin hole mixer - 45 lpm
Ref. G65602

Downloads

DOWNLOADS

Mélangeur 2 trous sur plage - 45 l/min

Ref. G65602

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

SPARE PARTS

Deck-mounted twin hole mixer - 45 lpm

Ref. G65602

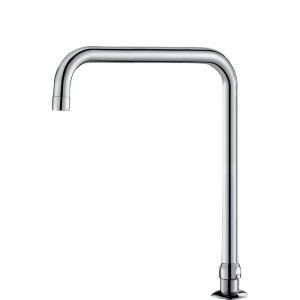

1. 963200145F
Swivelling tubular spout
2. 921022.2P
Star-shaped flow straightener
3. 366015.2P
Bare LONG LIFE valve head
4. 900015
Non-return valve
5. 60212.10P
Flat filter

VARIANTS

G65603 Twin hole mixer 45 lpm - H.340 L.300

Associated products

VARIANTS

G65603 Twin hole mixer 45 lpm - H.340 L.300
