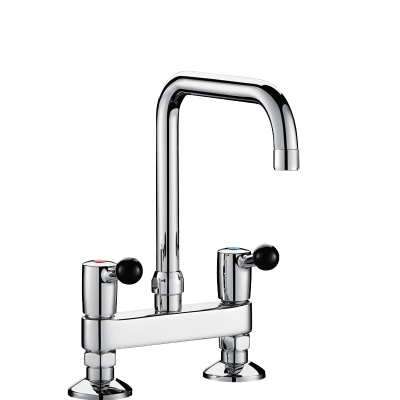

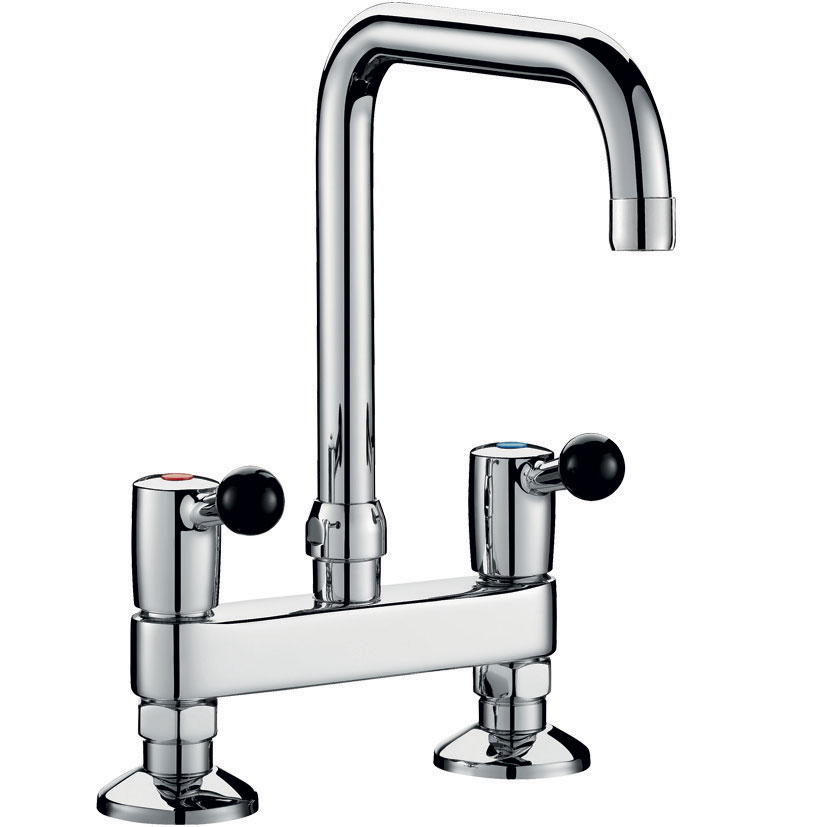

Deck-mounted twin hole mixer - 60 lpm
Ref. 5641T2
Swivelling over spout L. 200mm H.220mm
Swivelling over spout L. 200mm H.220mm
DESCRIPTION
Deck-mounted twin hole mixer - 60 lpm
Ref. 5641T2Deck-mounted twin hole mixer, M1/2" with 150mm centres.
Swivelling, tubular spout Ø 22mm H. 220mm L. 200mm with star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar within first 90°.
Full flow 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
Reinforced fixings.
Can be installed close to the splashback.
30-year warranty.
Swivelling, tubular spout Ø 22mm H. 220mm L. 200mm with star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar within first 90°.
Full flow 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
Reinforced fixings.
Can be installed close to the splashback.
30-year warranty.
ADVANTAGES
Flow rate 60 lpm within first 90°
One-piece body and spout in chrome-plated brass
Can be installed close to splashback
Spout with smooth interior

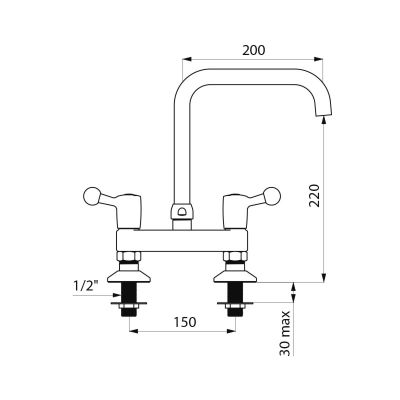

TECHNICAL CHARACTERISTICS
Deck-mounted twin hole mixer - 60 lpm
Ref. 5641T2| Connector | M1/2" |
| Height | 300mm |
| Drop height | 220mm |
| Spout length | 200mm |
| Flow rate | 60 lpm within 90°, 90 lpm full flow |
| Finish | Chrome-plated brass |
| Certificates |
|
| Warranty |
|
| Repairability |  |
Spare parts
SPARE PARTS
Deck-mounted twin hole mixer - 60 lpm
Ref. 5641T2
| 1. | 963200145F |
|
Swivelling tubular spout |
| 2. | 921022.2P |
|
Star-shaped flow straightener |
| 3. | P271AA85 |
|
Valve head 1/4 left turn |
| 4. | P272AA85 |
|
Valve head 1/4 right turn |
| 5. | 826115 |
|
Back-nut |
VARIANTS
| 5641T2UK | 60 lpm twin hole mixer - H.220 L.200 - 180mm centres | ||
|---|---|---|---|
| 5641T3 | 60 lpm twin hole mixer - H.220 L.300 - 150mm centres | ||
| 5641T3UK | 60 lpm twin hole mixer - H.220 L.300 - 180mm centres |
Associated products
Twin hole pillar-mounted mixer - 100 lpm
On pillar mounts
Ref. 5603

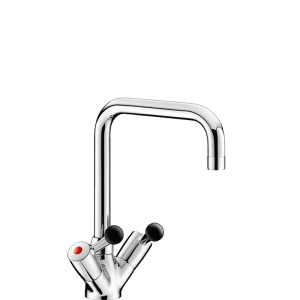

Deck-mounted single hole mixer - 45 lpm
Swivelling over spout L. 200mm H. 195mm
Ref. 5640T2

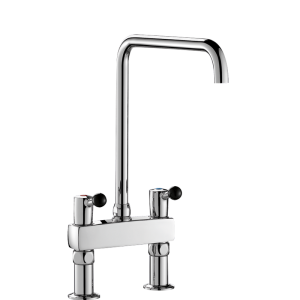

Deck-mounted twin hole mixer - 45 lpm
