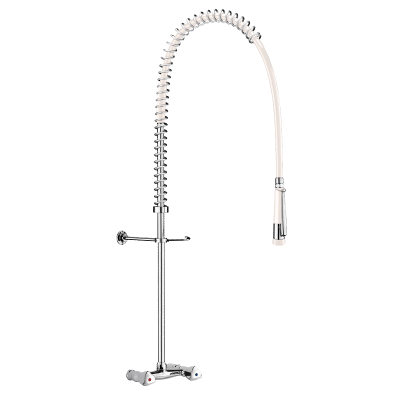

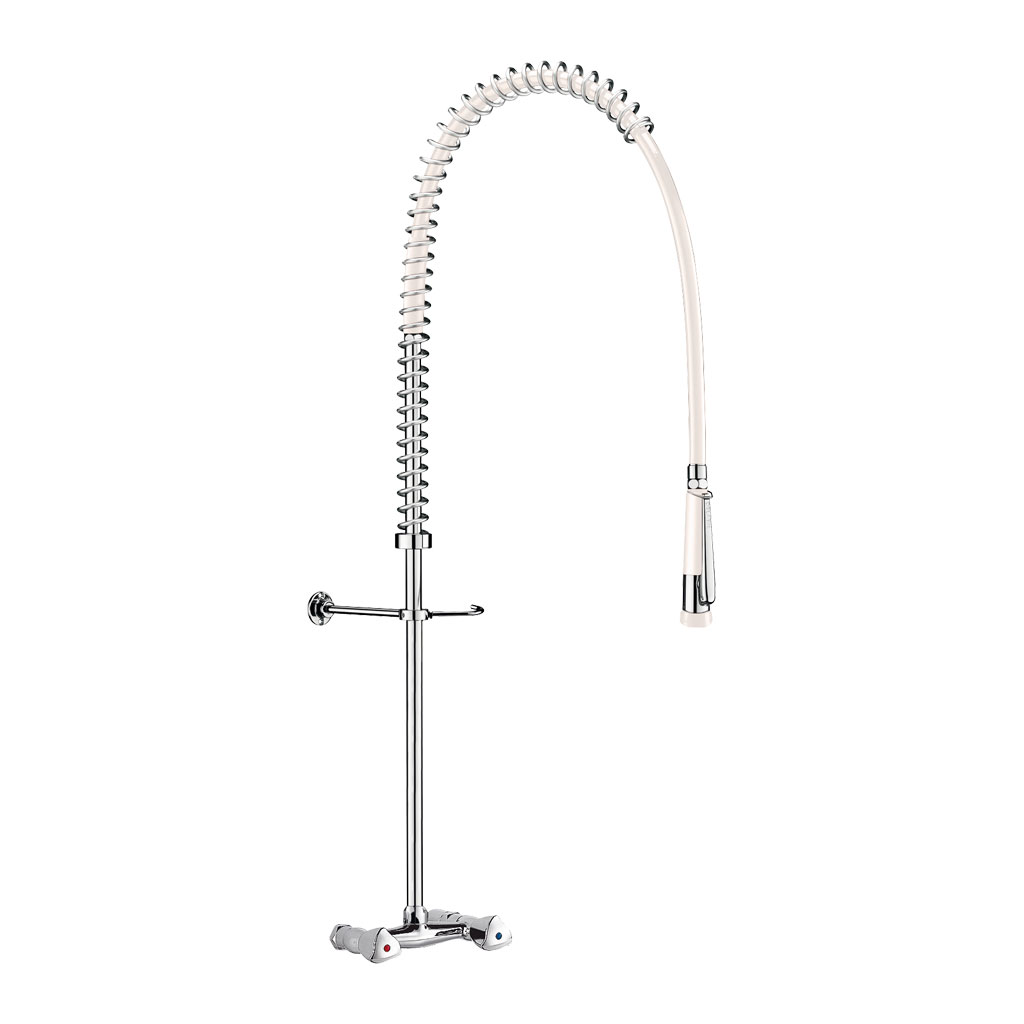

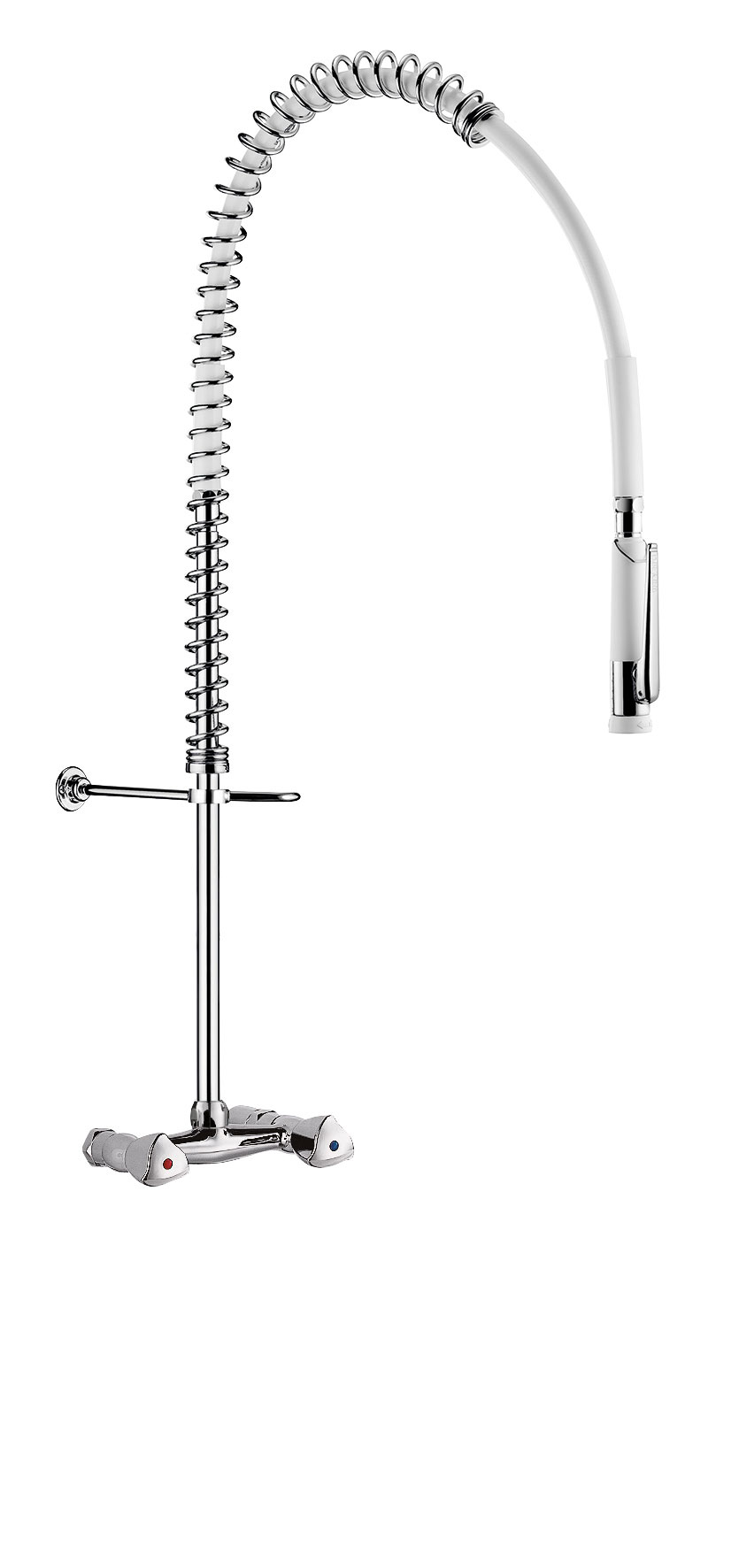

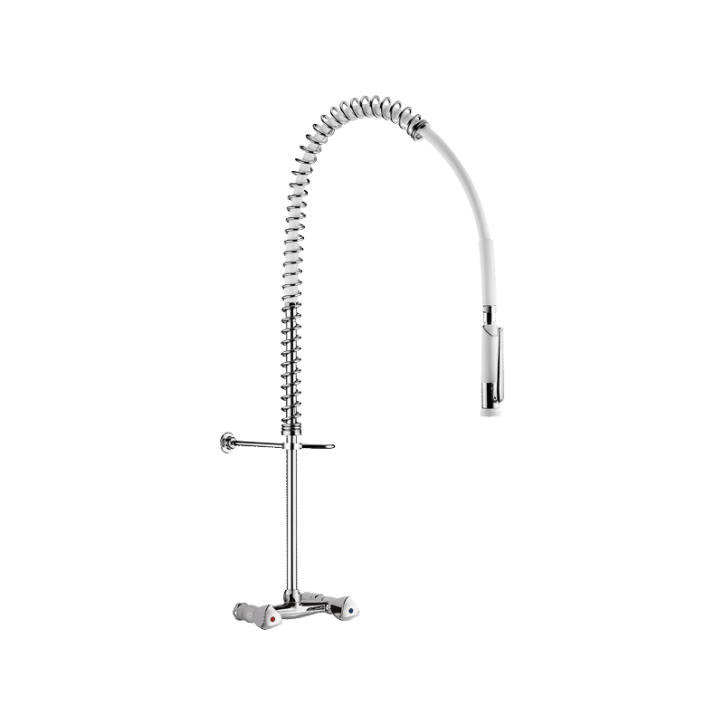

Wall-mounted pre-rinse set with mixer

Ref. G6433
Without bib tap
Wall-mounted pre-rinse set with mixer

Presentation

DESCRIPTION

Wall-mounted pre-rinse set with mixer

Ref. G6433
Complete pre-rinse set without bib tap.
Suitable for intensive use in professional kitchens.
Wall-mounted mixer, F3/4" with 150mm centres with:
- valve heads with control knobs.
- non-return valves integrated in the mixer.
White hand spray with 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

ADVANTAGES

Anti-vandalisme

Increased resistance: water-free valve heads

Endurance - Fiabilité

Anti-torsion rotating nut and PVC sheath

Confort - Ergonomie - Déclenchement souple

Comfort: hand spray with adjustable jet

Hygiène - Anti-bactérien - BIOSAFE

Hygiene: PVC flexible, scale-resistant handset

Characteristics

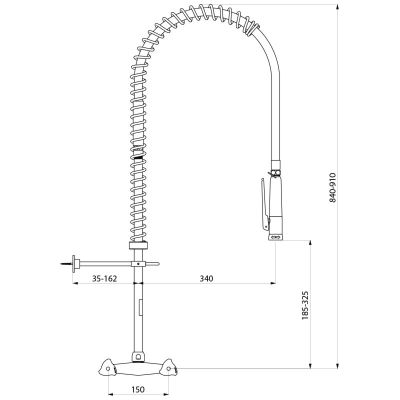

TECHNICAL CHARACTERISTICS

Wall-mounted pre-rinse set with mixer

Ref. G6433
Connector F3/4"
Height 840 - 910mm
Flow rate 9 lpm
Width to the wall 35 - 162mm
Finish Chrome-plated brass
Certificates ACS Logo Belgaqua Logo PZH
Warranty 30-Year
Repairability

Downloads

DOWNLOADS

Combiné de prélavage mural avec mélangeur

Ref. G6433

To download one or several documents linked to this product, please select the type of file you require :

Spare parts

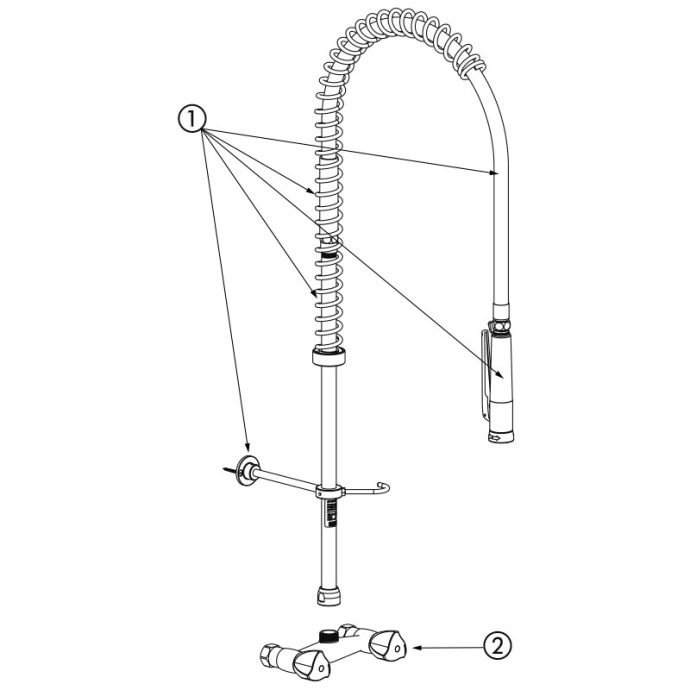

SPARE PARTS

Wall-mounted pre-rinse set with mixer

Ref. G6433
1. 433420
White pre-rinse set with no valve
2. G6493
Subassembly for wall-mounted mixer

VARIANTS

G6732 Hand spray with scale-resistant nipples - Bib tap and telescopic spout
G6733 Hand spray with scale-resistant nipples - Without bib tap
G6432 Hand spray with scale-resistant nozzle - Bib tap and telescopic spout

VARIANTS

G6732 Hand spray with scale-resistant nipples - Bib tap and telescopic spout
G6733 Hand spray with scale-resistant nipples - Without bib tap
G6432 Hand spray with scale-resistant nozzle - Bib tap and telescopic spout
