DESCRIPTION

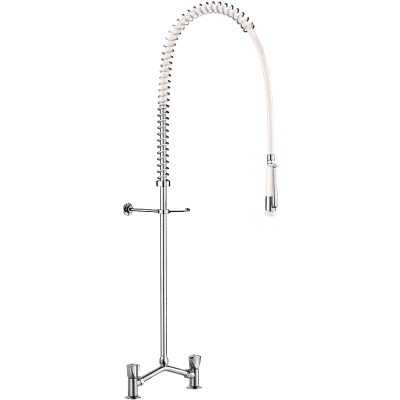

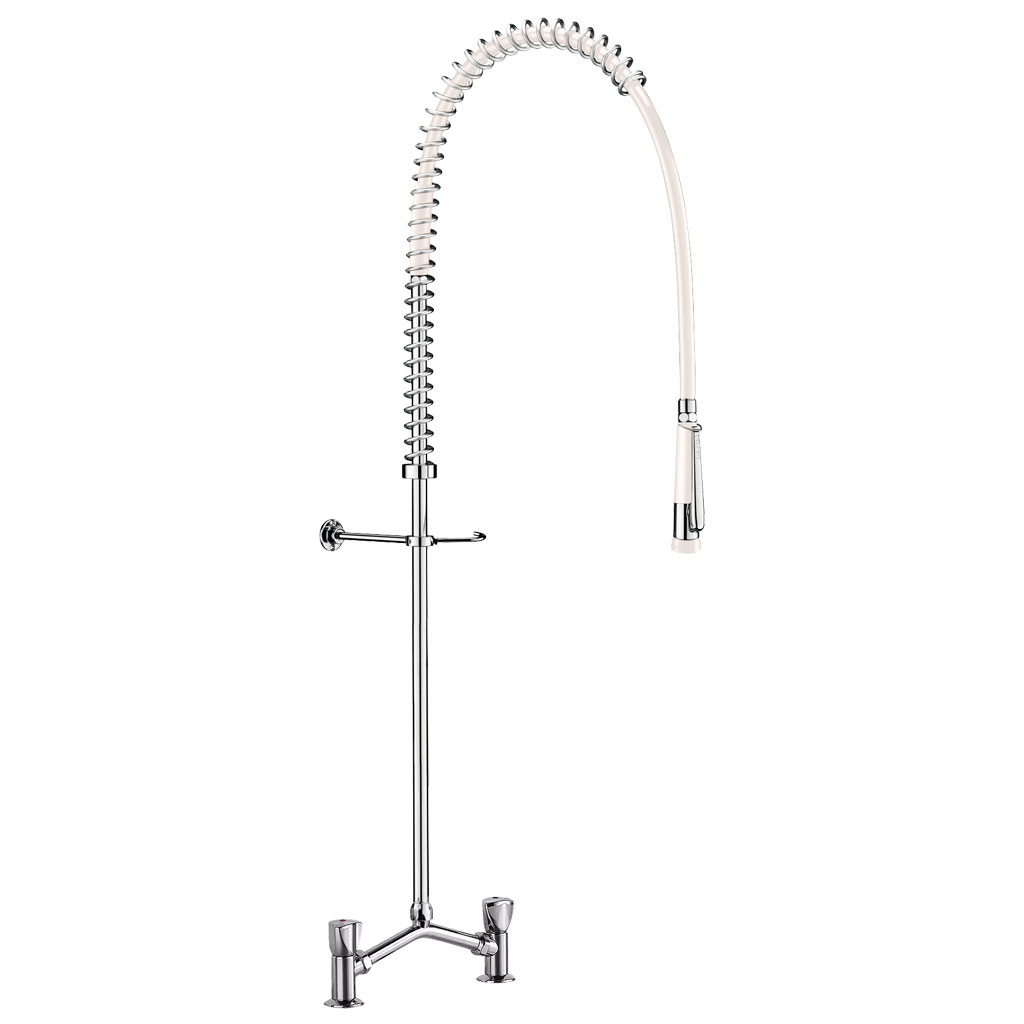

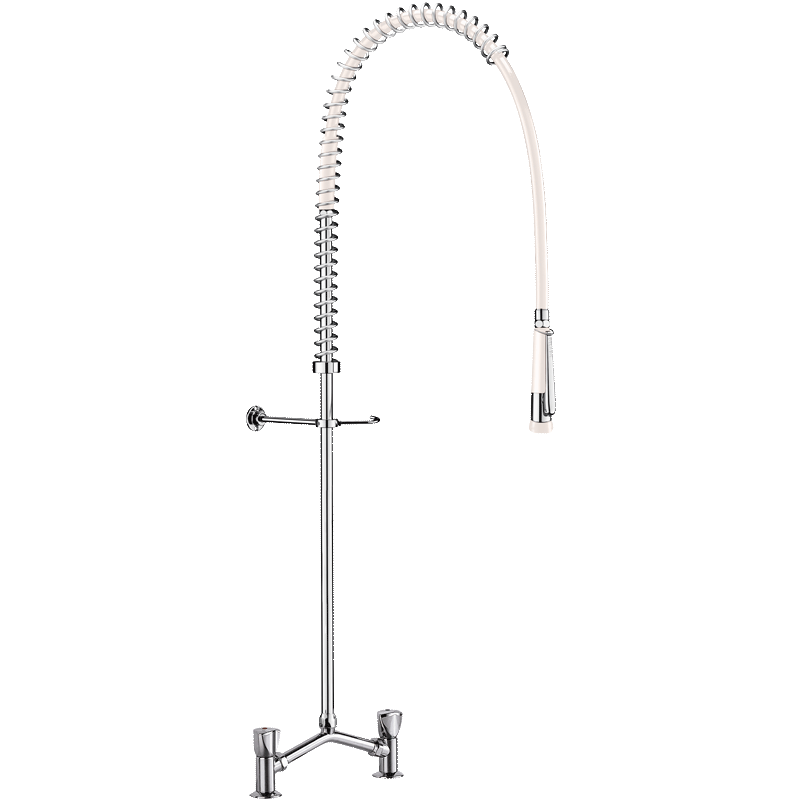

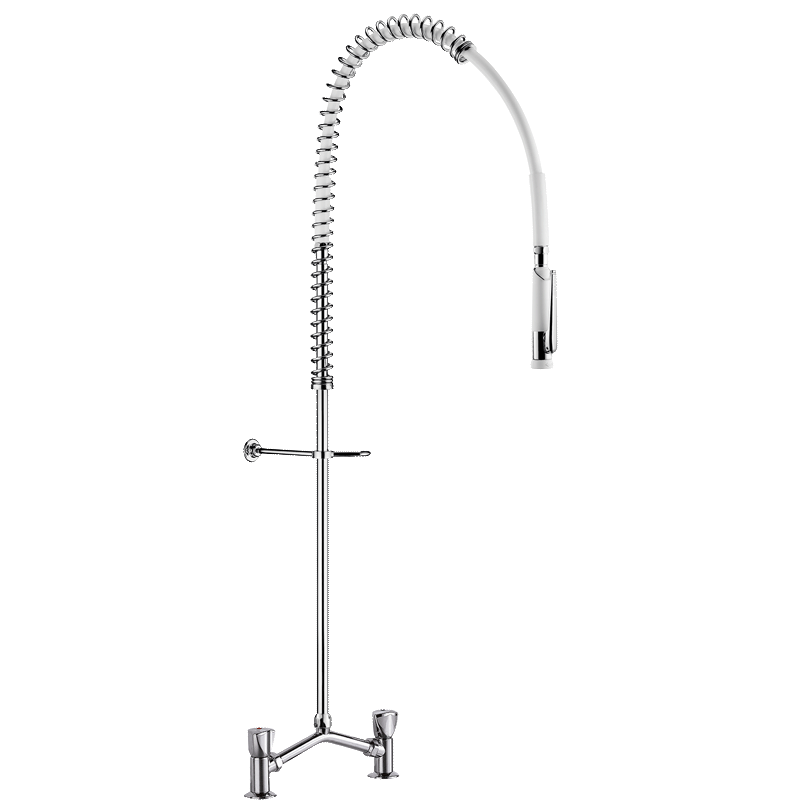

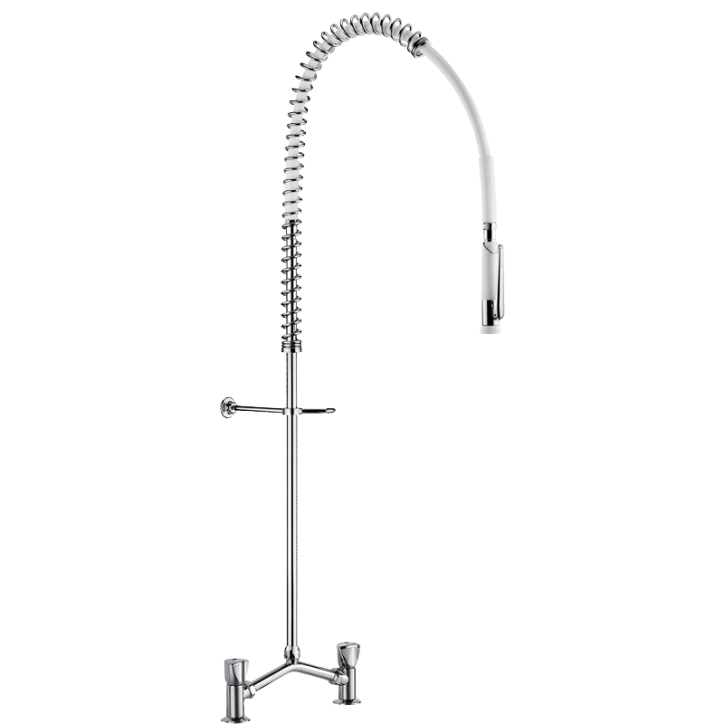

Twin hole pre-rinse set with mixer
Ref. G6533Complete pre-rinse set without bib tap suitable for intensive use in professional kitchens.
Deck-mounted twin hole mixer with adjustable centres 100 - 240mm with:
- valve heads with control knobs.
- offset inlet connections with M1/2" tails.
- supplied with non-return valves.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
These pre-rinse sets can be installed close to the splashback.
Deck-mounted twin hole mixer with adjustable centres 100 - 240mm with:
- valve heads with control knobs.
- offset inlet connections with M1/2" tails.
- supplied with non-return valves.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
White, reinforced, food-grade flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.
These pre-rinse sets can be installed close to the splashback.
ADVANTAGES
Increased resistance: water-free valve heads
Anti-torsion rotating nut and PVC sheath
Comfort: hand spray with adjustable jet
Hygiene: PVC flexible, scale-resistant spray
TECHNICAL CHARACTERISTICS
Twin hole pre-rinse set with mixer
Ref. G6533Connector | M1/2" |

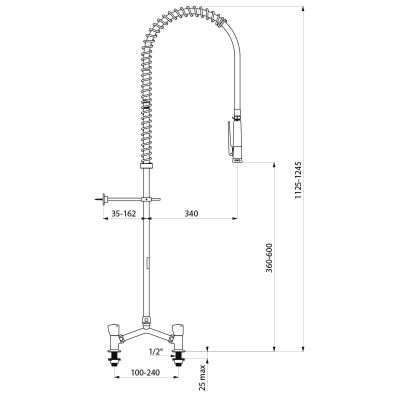

Height | 1125 - 1245mm |
Drop height | 360 - 600mm |
Flow rate | 9 lpm via the hand spray |
Width to the wall | 35 - 162mm |
Finish | Chrome-plated brass |
Certificates | |
Warranty | |
Repairability |
Spare parts

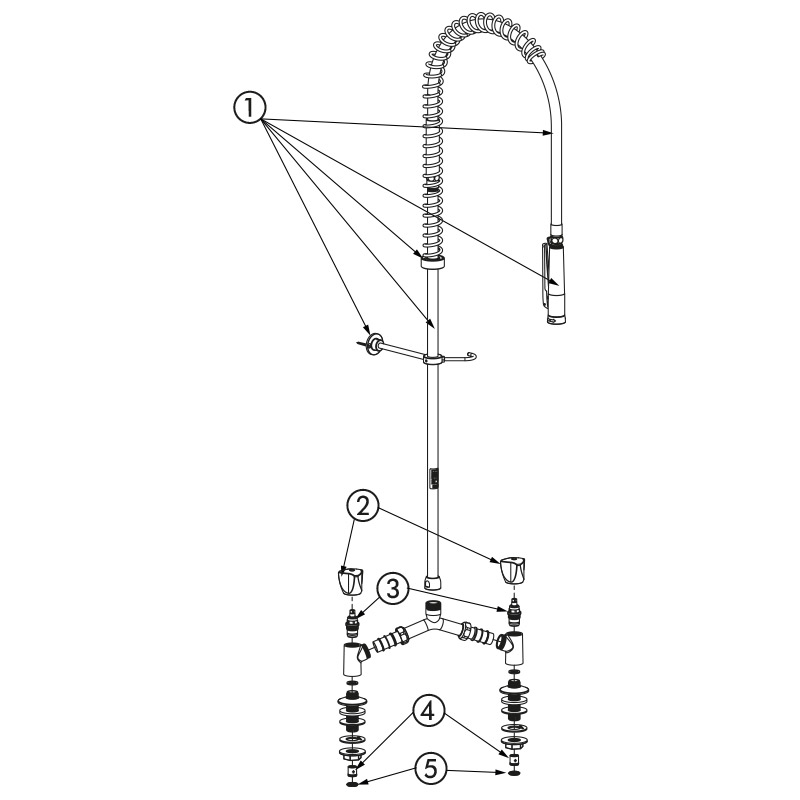

SPARE PARTS
Twin hole pre-rinse set with mixer
Ref. G65331. | 433020 |
|
White pre-rinse set with no valve |
2. | G6559 |
|
Subassembly for deck-mounted mixer |
VARIANTS

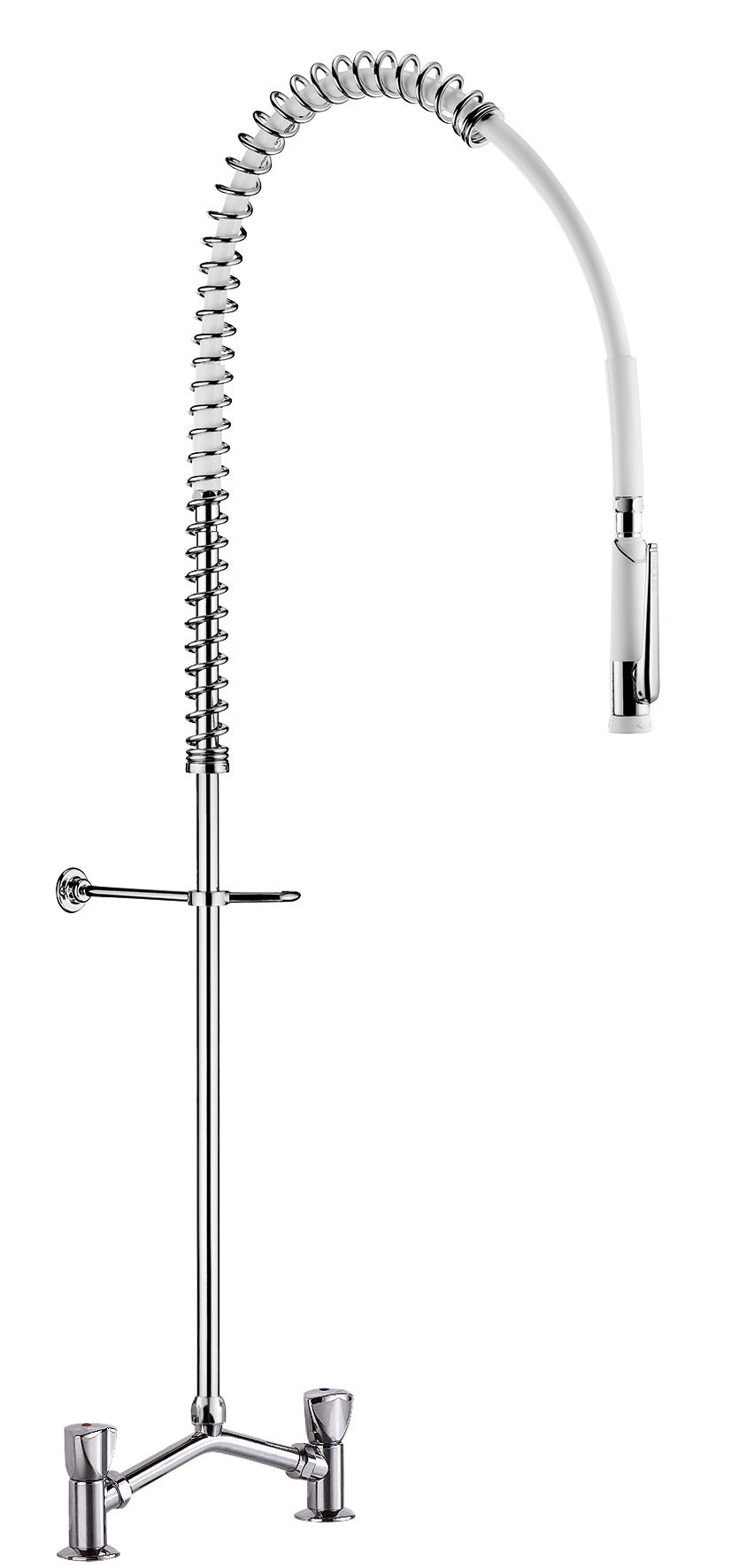

G6832 | Hand spray with scale-resistant nipples - Bib tap and telescopic spout | ||
---|---|---|---|
G6833 | Hand spray with scale-resistant nipples - Without bib tap | ||
G6532 | Hand spray with scale-resistant nozzle - Bib tap and telescopic spout |
VARIANTS
G6832 | Hand spray with scale-resistant nipples - Bib tap and telescopic spout | ||
---|---|---|---|
G6833 | Hand spray with scale-resistant nipples - Without bib tap | ||
G6532 | Hand spray with scale-resistant nozzle - Bib tap and telescopic spout |
