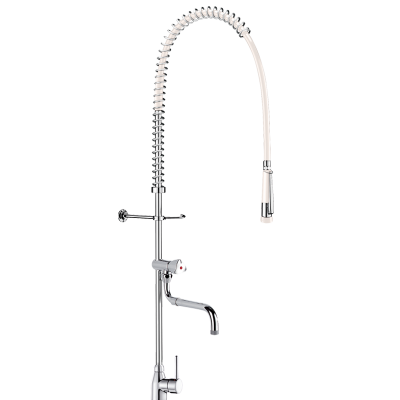

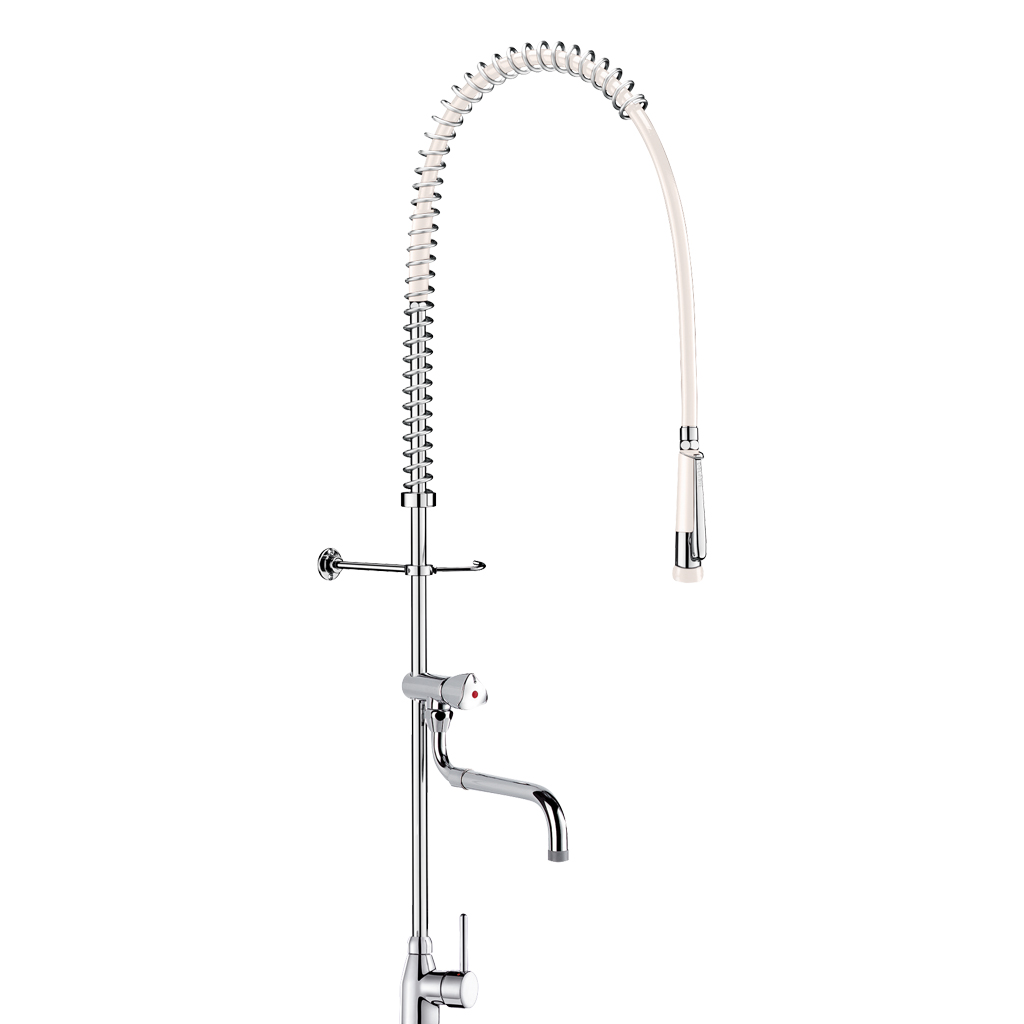

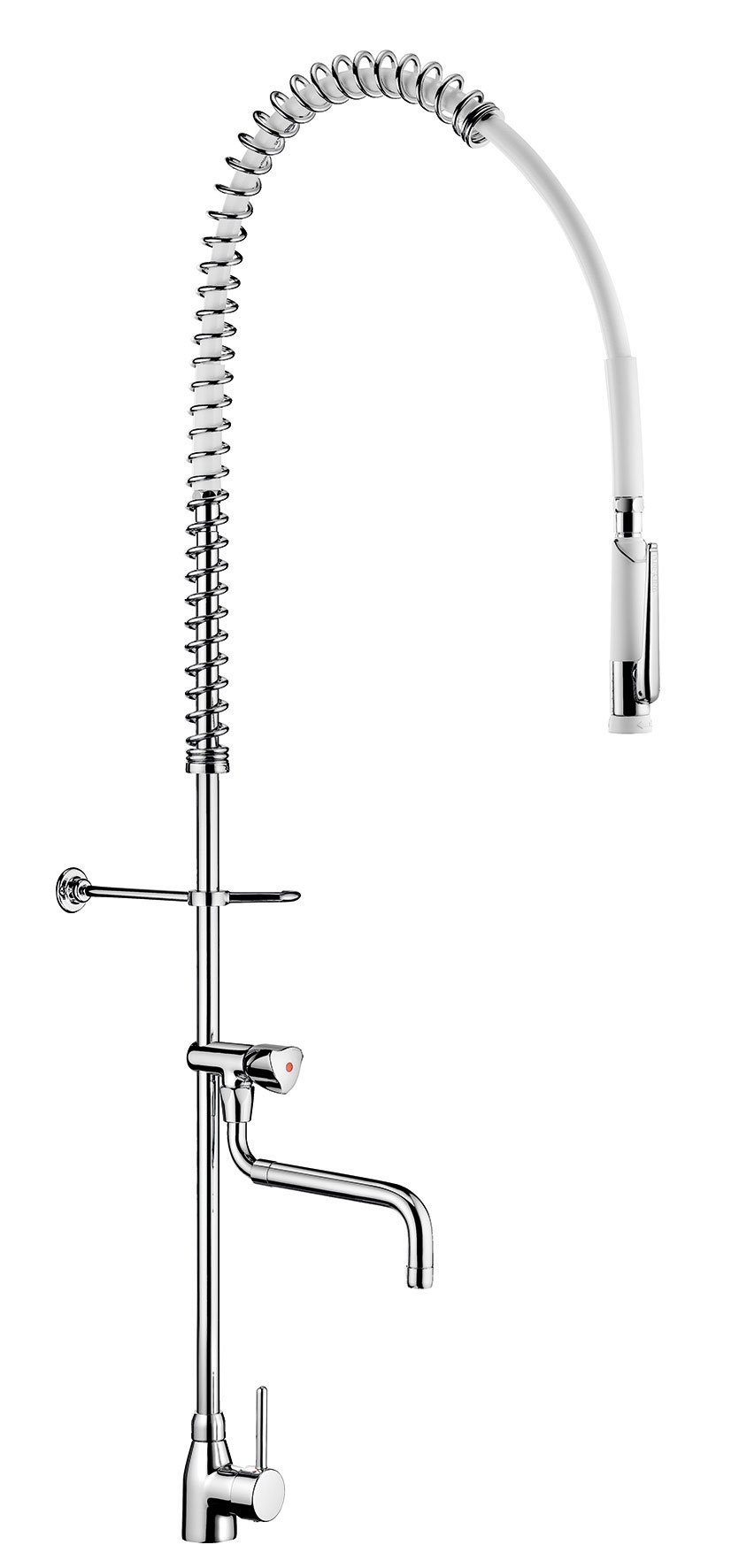

Pre-rinse set with mixer

Ref. 6692
With bib tap and telescopic spout

Presentation

DESCRIPTION

Pre-rinse set with mixer

Ref. 6692

Complete pre-rinse set with bib tap suitable for intensive use in professional kitchens.
Deck-mounted single hole mixer with slimline control lever.
Supplied with F3/8" flexibles and non-return valves.
Bib tap with telescopic, swivelling spout L. 200 - 290mm.
- flow rate 16 lpm at the outlet.
- valve head with control knob.
White hand spray with adjustable jet and 9 lpm flow rate at the outlet (ref. 433000).
Scale-resistant hand spray with shock-resistant tip.
Reinforced, food-grade, white flexible hose L. 0.95m.
3/4" brass column.
Adjustable wall bracket.
Stainless steel spring guide.
30-year warranty.

ADVANTAGES

Rapid fill: full flow rate within 1/2 turn

Telescopic, swivelling rapid-fill spout

Increased resistance: water-free valve heads

Anti-torsion rotating nut and PVC sheath

Characteristics

TECHNICAL CHARACTERISTICS

Pre-rinse set with mixer

Ref. 6692

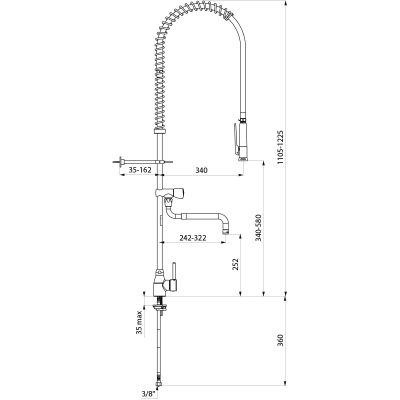

Connector	F3/8"
Height	1105 - 1225 mm
Drop height	340 - 580mm
Flow rate	16 lpm bib tap; 9 lpm via the hand spray
Width to the wall	35 - 162mm
Finish	Chrome-plated brass
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

Pre-rinse set with mixer

Ref. 6692

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

BIM files

Installation guide

Certificates

Spare parts

SPARE PARTS

Pre-rinse set with mixer

Ref. 6692

1.	433220	White pe-rinse set with no valve
2.	NS262	Ø35mm ceramic cartridge
3.	256P	Fixing plate
4.	2510SES	Locking kit
5.	900010	Non-return valve
6.	60438.10P	Conical filter
