Wall-mounted twin hole mixer - 60 lpm

Ref. 5647T3
Swivelling over spout L. 300mm

Presentation

DESCRIPTION

Wall-mounted twin hole mixer - 60 lpm

Ref. 5647T3

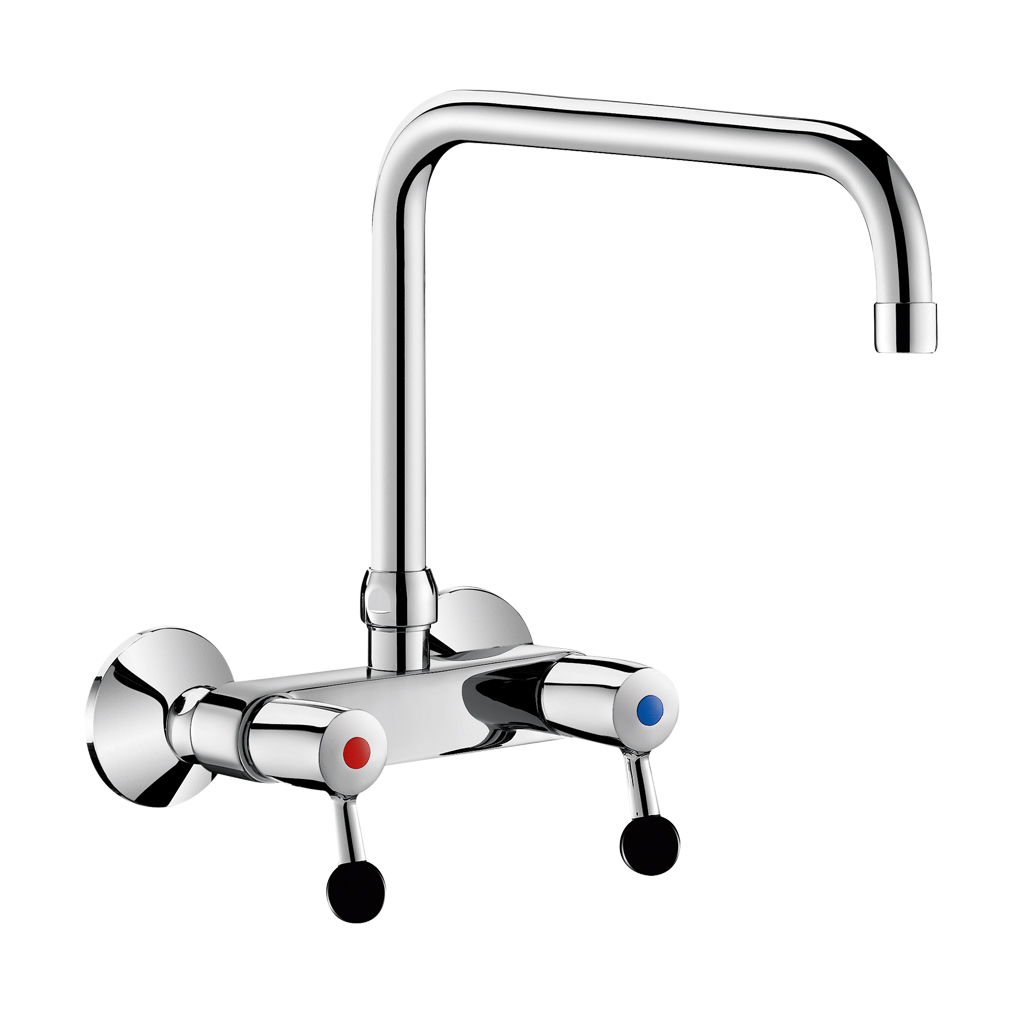

Wall-mounted twin hole mixer with swivelling, tubular over spout Ø 22mm L. 300mm.
Star-shaped flow straightener.
Water-free, guided valve heads with reinforced mechanisms.
Shock-resistant, ergonomic ball levers.
Flow rate 60 lpm at 3 bar achieved within 90°.
Full flow rate 90 lpm at 3 bar.
Spout with smooth interior.
One-piece body and spout made from chrome-plated brass.
M1/2" M3/4" offset connectors supplied with escutcheons.
Suitable for disposal sinks.
30-year warranty.

ADVANTAGES

Flow rate 60 lpm within first 90°

One-piece body and spout in chrome-plated brass

Helps create clear work surfaces

Spout with smooth interior

Characteristics

TECHNICAL CHARACTERISTICS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5647T3

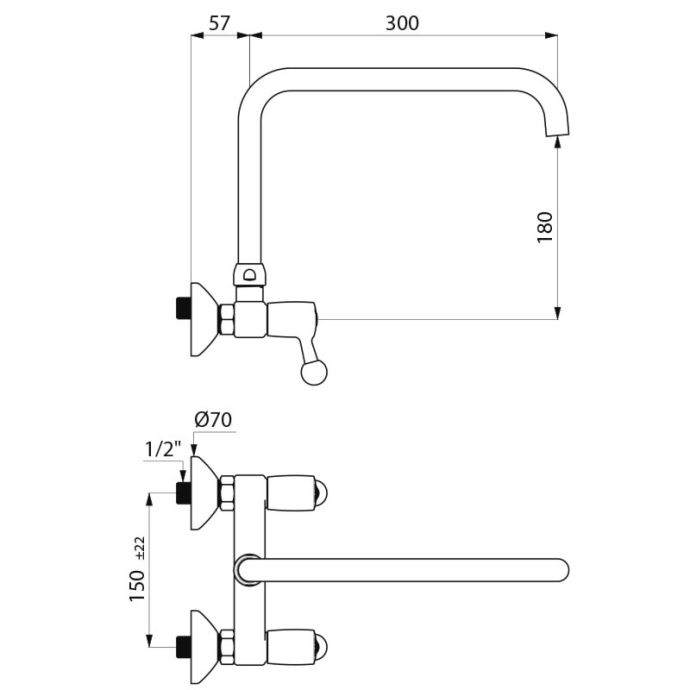

Connector	M1/2"
Spout length	300mm
Flow rate	60 lpm
Width to the wall	57mm
Finish	Chrome-plated brass
Certificates
Warranty
Repairability

Downloads

DOWNLOADS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5647T3

To download one or several documents linked to this product, please select the type of file you require :

Product file

Specification description

Lo-res JPG image

Hi-res EPS image

Line drawing

Line drawing AutoCAD DWG

Installation guide

Certificates

Spare parts

SPARE PARTS

Wall-mounted twin hole mixer - 60 lpm

Ref. 5647T3

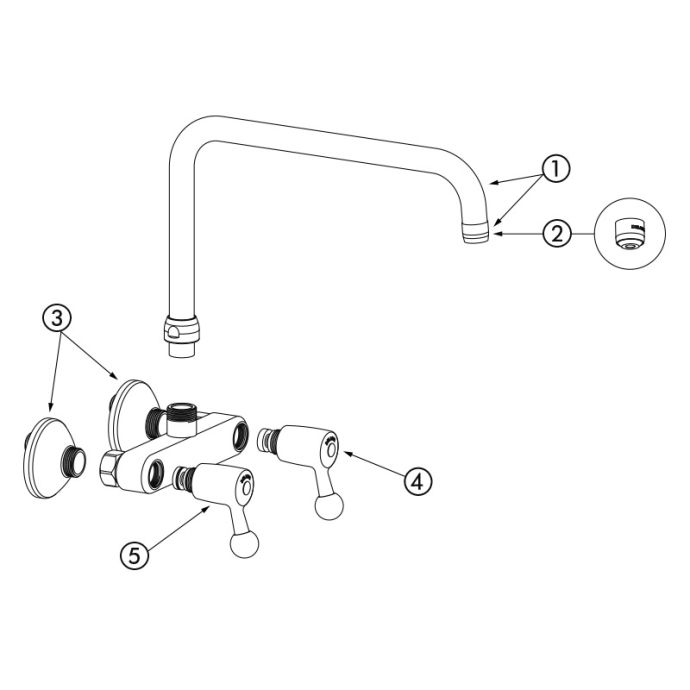

1.	963300145F	Swivelling, tubular spout
2.	921022.2P	Star-shaped flow straightener
3.	856127.2P	Offset connector
4.	P272AA85	Valve head 1/4 right turn
5.	P271AA85	Valve head 1/4 left turn
